What is a Super Tweeter speaker? Put simply, it’s an additional tweeter unit which covers a wide and extended high-frequency response, beyond that of your existing loudspeaker’s integrated tweeters.

Many loud speaker systems have poor high frequency performance. A Super Tweeter specializes in ultra-high frequencies and is used in conjunction with a bookshelf or tower speaker. Its purpose is to create a more realistic sound field, often characterized as "airiness," that enhances the listening experience. Super Tweeters are sometimes found in high fidelity speaker systems and home theater systems. They are used to supplement the sound of tweeters by reproducing frequencies which the existing tweeter may produce only with a narrow polar output, or perhaps with distortion. A Super Tweeter speaker provides auxiliary high frequency effect, detail, density and texture that can enhance your existing system’s sound field with width, depth and enhanced timbre.

A Super Tweeter is generally intended to respond well into ultra-high frequencies over 20 kHz, the commonly accepted upper frequency limit of human hearing. Super Tweeters are ideal for taking advantage extended-range audio formats such as vinyl, SACD, FLAC, UHD Bluray and other high-fidelity products.

Specification

How to Connect Super Tweeter

The chart below can be used to help match the Aluminum Ribbon Super Tweeter with your existing speaker`s sensitivity

Graph showing the extended frequency response of our Super Tweeter on the 14 kHz and16 kHz settings when paired with a bookshelf speaker:

The first generation used a planar-magnetic, flat style ribbon tweeter and has become very popular since its release in late 2018. After seeing the results and popularity of the original Super Tweeter, we jumped back in the lab and got to work on our new, Aluminum Ribbon Super Tweeter. The efforts and hours of product development did not go unwarranted. To fully understand the internal structure of our Aluminum Ribbon Super Tweeter, we disassembled one of them to present the complexity of the design diaghram.

There is an APERION ultra-thin aluminum sheet in the middle of the horn, with a thickness of just 45µm, and this is the core component of the aluminum strip. While the aluminum ribbon tweeter utilizes magnets, the key ingredient was to combine the voice coil and diaphragm into one. This clever design allows the diaphragm to be fully driven in the magnetic gap. The diaphragm is flat and light, without any phase issues, which allows for a high energy transfer and minimal distortion. All of the design characteristics encompass a higher frequency response up to 40 kHz, and the crossover and treble adjustment knobs allow for easy control of the dynamics and transient characteristics, without interruption of sound. The crossover slope is 12 dB/octave

Dynamics are a crucial component for a speaker dedicated to reproduction in the high frequency range as the ear is most sensitive to these frequencies. Knowing this, our engineering team was sure to test all aspects and performance of this speaker to ensure that the APERION® Aluminum Ribbon Super Tweeter would integrate well with many different types of speakers. We recommend pairing it with speakers that have a sensitivity rating between 85-95 dB. It can be used with full range speakers, floorstanding tower speakers, bookshelf speakers, center channel speakers, surround speakers, and works with speakers containing woofers ranging in size. Not only will they enhance any Hi-Fi audio source during playback, but also compliment DVD, Blu-ray and other sources to allow enjoyment of the true, full range of audio.

 At Aperion we break the tradition of “big-box” retailer thinking and mass distribution channels. These channels always look for ways to drive the costs of the products down, usually resulting in a sub-par product. We have the opposite thinking and rather than going cheaper with the parts to fit a retailer-distribution mold, it allows us to invest the costs of production to where it really counts, the speaker itself. This means better high-end components, robust internal capacitors and inductors, powerful drivers and tweeters, and overall the best sound for your buck!

Features

• Extended High Frequency Aluminum Ribbon Tweeter
• Frequency Response up to 40 kHz

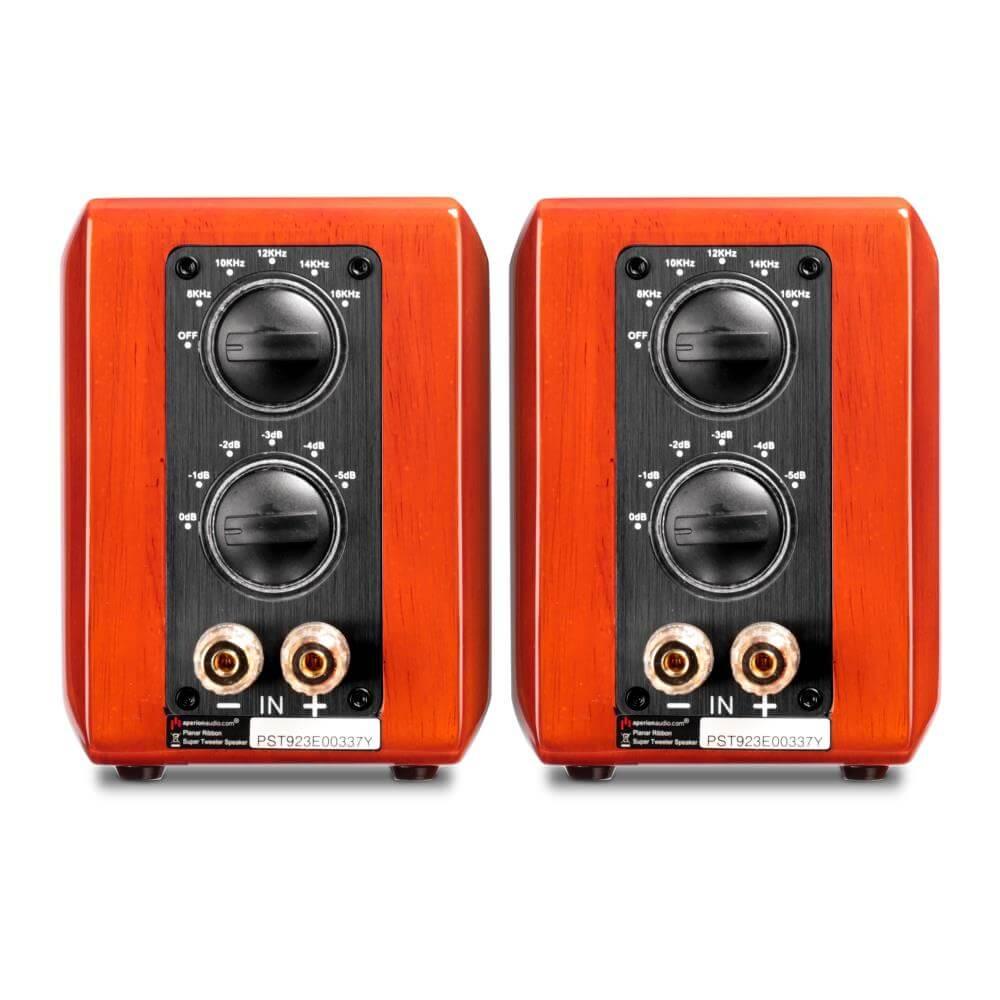

• 5 Adjustable crossover points + OFF
• Up to -5 dB Treble Adjust Knob
• 5-way gold-plated binding posts
• 3-year Warranty

Package Contents:

• Aluminum Ribbon Super Tweeter Speakers x Two (2) Pcs
• Manual x One (1) Pcs
