T80 3-Way Dual 8" Cinema/Studio Monitor Speaker | Theatrus

$1,549.00

In stock, Ready to Ship

Roll out the red carpet for the newest addition to the APERION® family - Theatrus - coming to a home theater near you! Theatrus brings home the full-sized Cinematic experience, engineered to perfection to produce impressive volume levels, without compromising high-resolution sound quality. Also designed for professional music studios and film production facilities, the Theatrus speakers are the evolution and next generation of Aperion engineering. The Theatrus line features the APERION® AMT Ribbon Tweeter, Dual Soft-Dome Mid-Range Drivers, and Dual Curv™ Woofers all linked to a high-efficiency crossover network. Tailor the sound to your space with the speakers rear frequency adjustments for installation and placement behind screens - then relax, sit back and enjoy the show.

QTY:

ADD TO CART

+ PRODUCT DESCRIPTION
+ Theatrus Story
+ Specifications
+ Features
+ Documentation
+ Open-Box
+ REVIEWS

+ PRODUCT DESCRIPTION

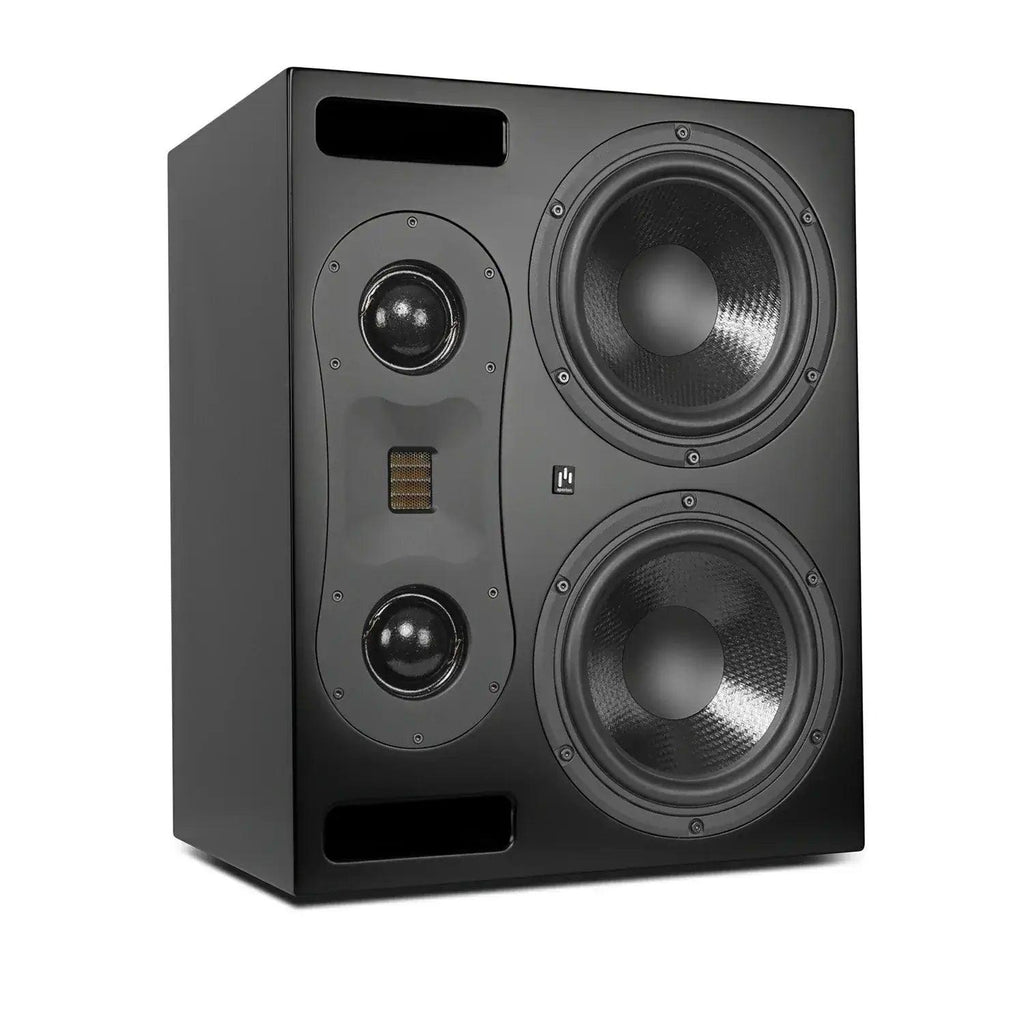

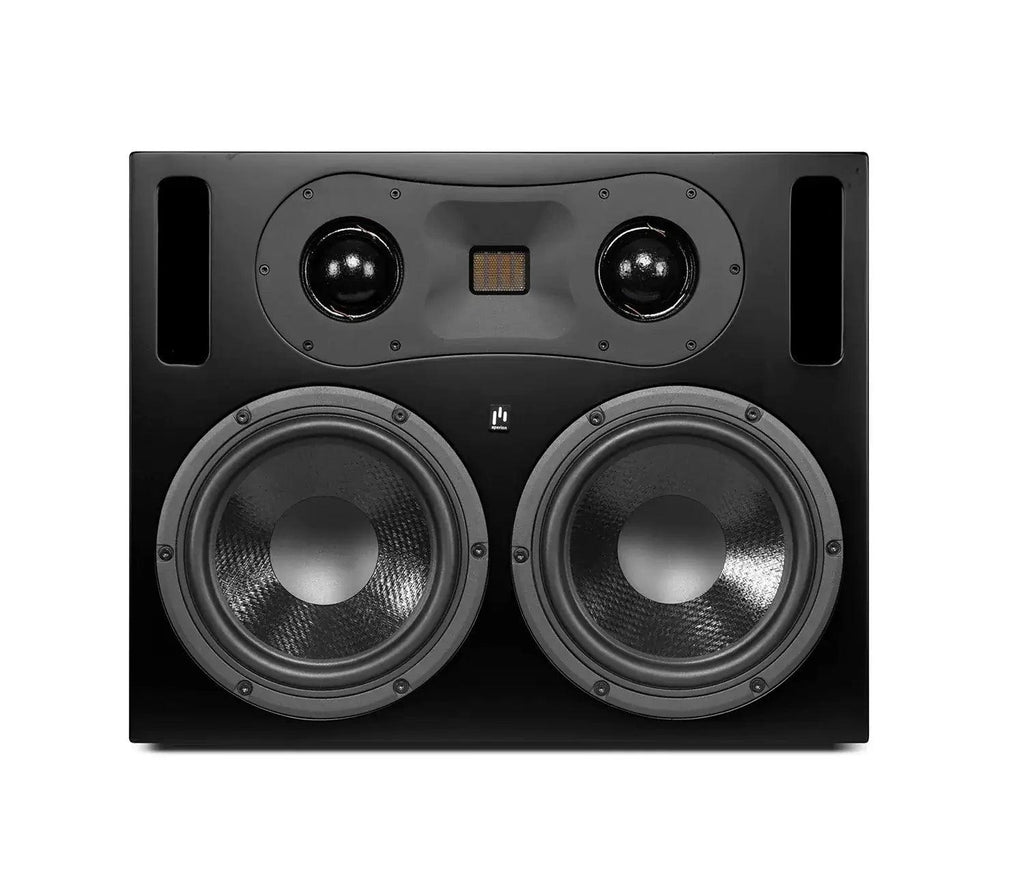

Aperion Theatrus T80 3-Way Dual 8" Studio Cinema Monitor Speakers For Custom Installation

The T80 is a 3-Way design, featuring an array of five (5) drivers, which fuses into a superforce of sound quality that is designed for home theater, custom installation, professional music studios, and film studios. It's not all about sound though, the speaker has a clean and smooth appearance. The Aperion crafted AMT Haier Ribbon Tweeter, and Dual 2-inch Soft-Dome Mid-Range Drivers are housed in a custom designed aluminum faceplate. Enhanced low end is produced by Dual 8" Woofers which were crafted from German Propex Fabrics Curv material. The T80 offers higher sound pressure levels, suitable for larger listening environments. High-Efficiency plus High-Power makes for an explosively wide sound field. Theatrus speakers are extremely flexible for placement for even the most difficult of rooms. Placed On-wall, In-Wall, on the ground or on the ceiling, the Theatrus line can effectively cover most of the listening area. The speakers can be arranged vertically or horizontally, dependent on the application. Along with the integrated mounting inserts are two frequency tuning switch options on the rear of the speaker for even greater placement flexibility. So whether you choose to use the Theatrus speakers in a 2-channel music setup, or a full blown home theater with Dolby Atmos, DTS:X and Auro-3D, listening to the new Theatrus speakers will certainly impress the most discerning of ears.

Key Features

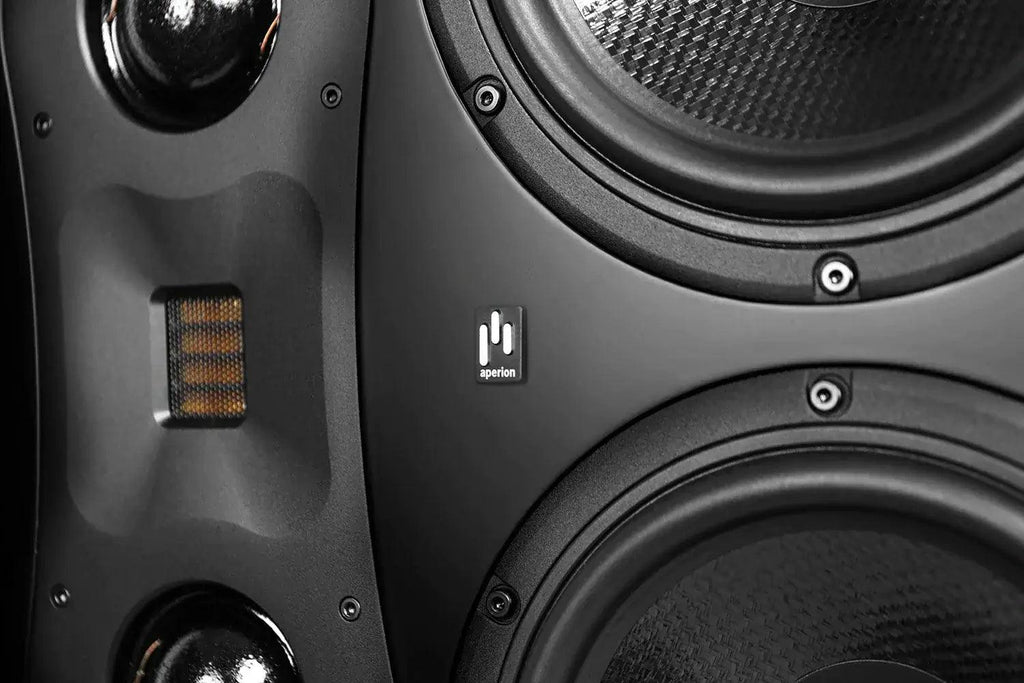

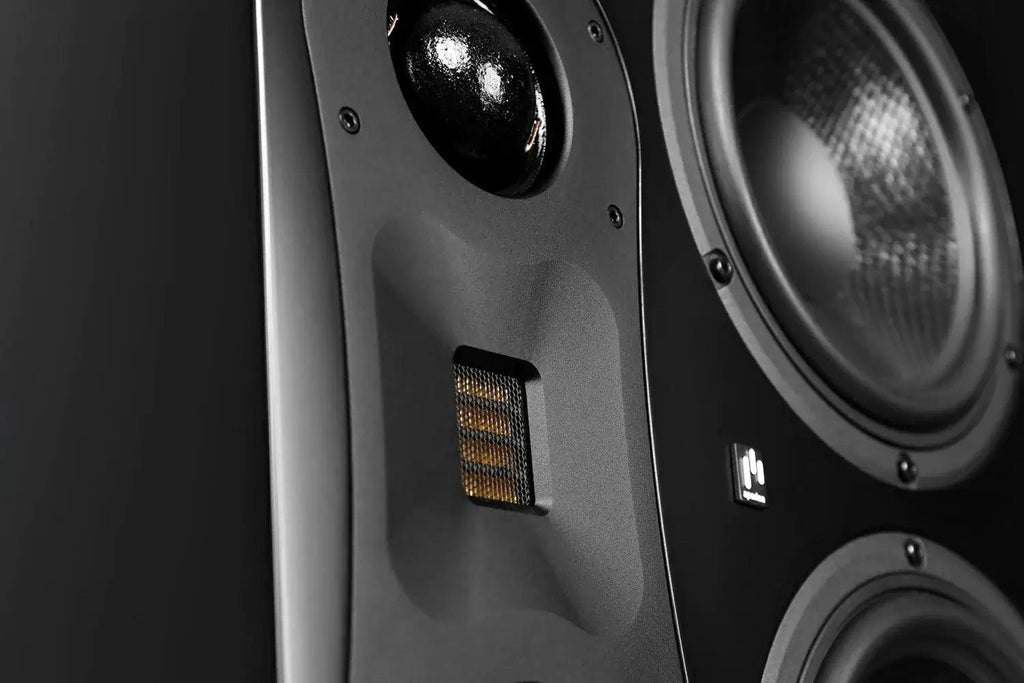

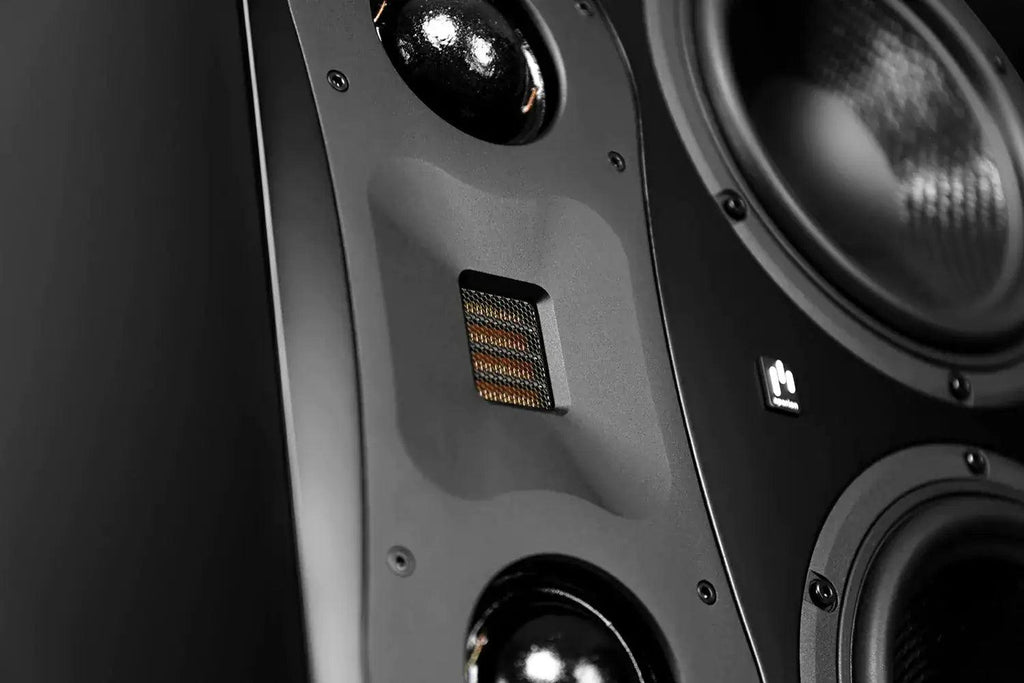

Aperion Air Motion Tweeter

aperion-t80-amt-tweeter

The APERION AMT tweeter can achieve 103 dB sensitivity, and frequency response of up to 40 kHz, which we found to be perfect for both larger and medium sized home theater rooms. Knowing that this tweeter would operate at a higher SPL, we also added a protection circuit to help keep the tweeter safe.

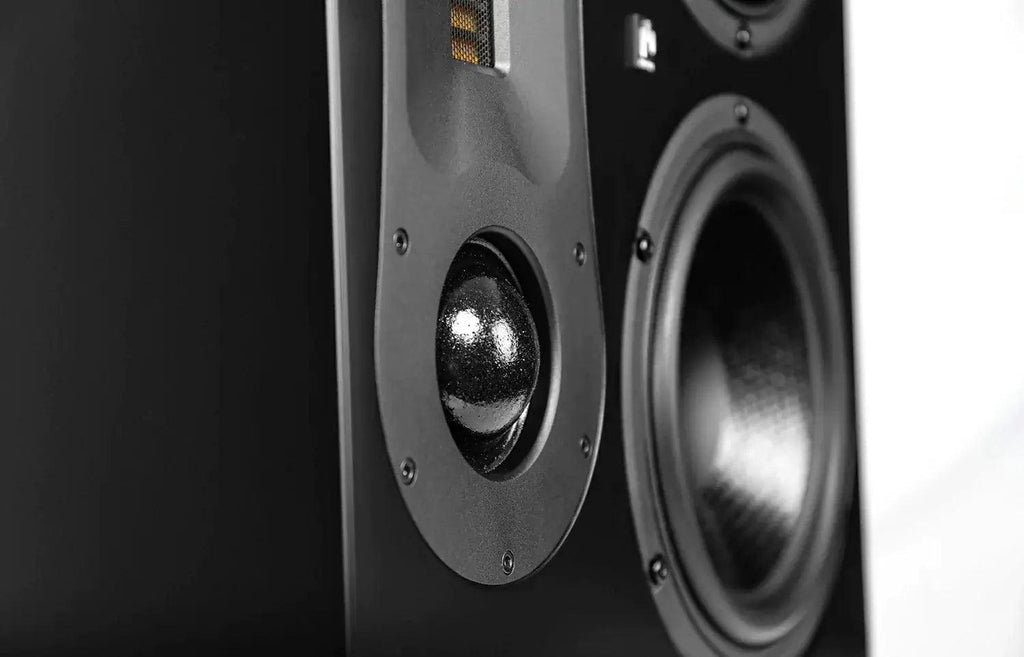

Dual 2" Soft-dome Midrange Driver

aperion-theatrus-softdome-midrange

Our high end soft-dome midrange unit features a large, low distortion 50mm voice coil, which exceeds the normal size of this type of drive unit. It's wide pole structure and special damping coating significantly reduce the medium frequency segmentation vibration.

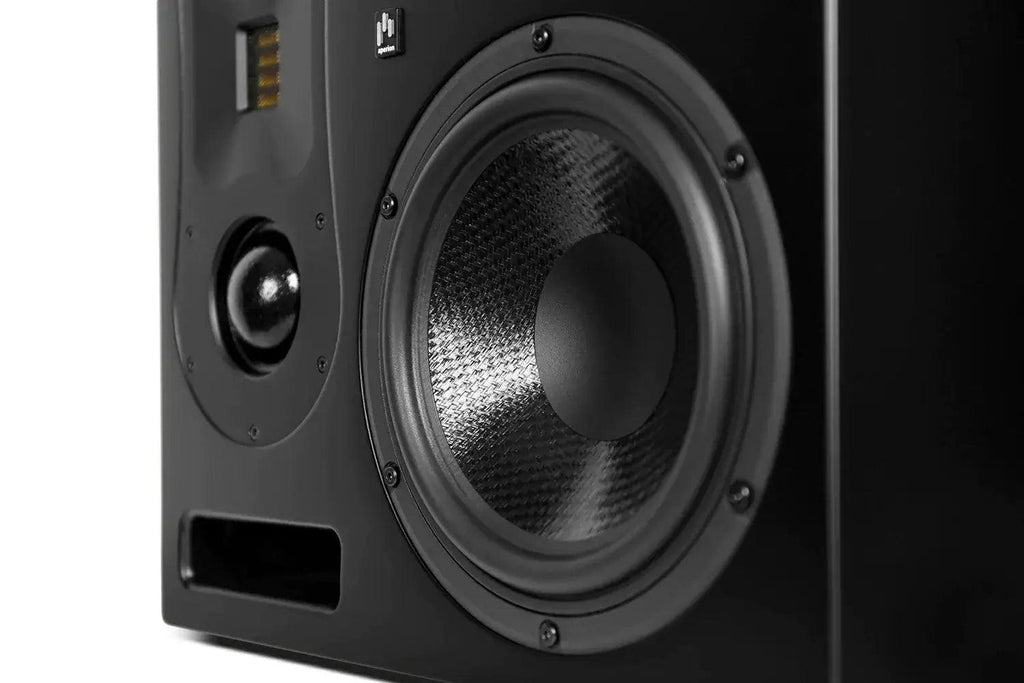

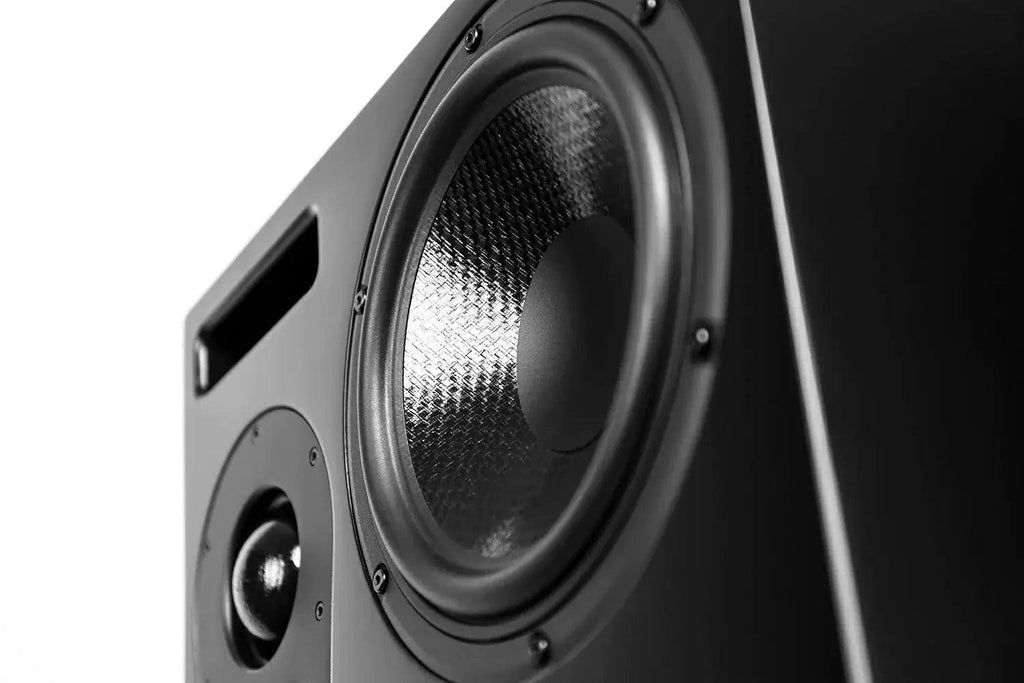

Dual 8" Curv Woofers

aperion-theatrus-woofer

The Theaterus line features a new Curv material from Germany Propex Fabrics. The properties of this new Curv material are lightweight, yet riged and stiff, maintain a high temperature resistance without any water absorption, and the most important in crating a driver unit - this matieral has a high Young's Modulus and internal damping.

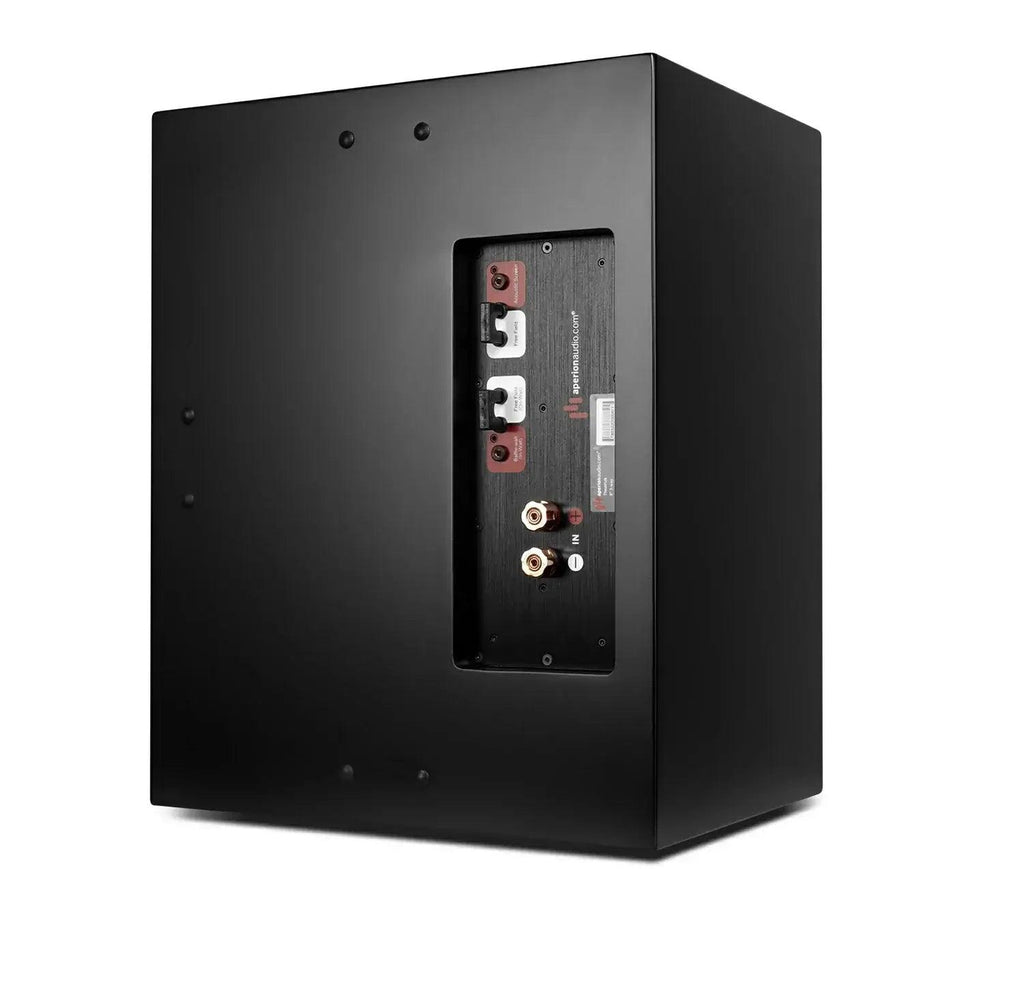

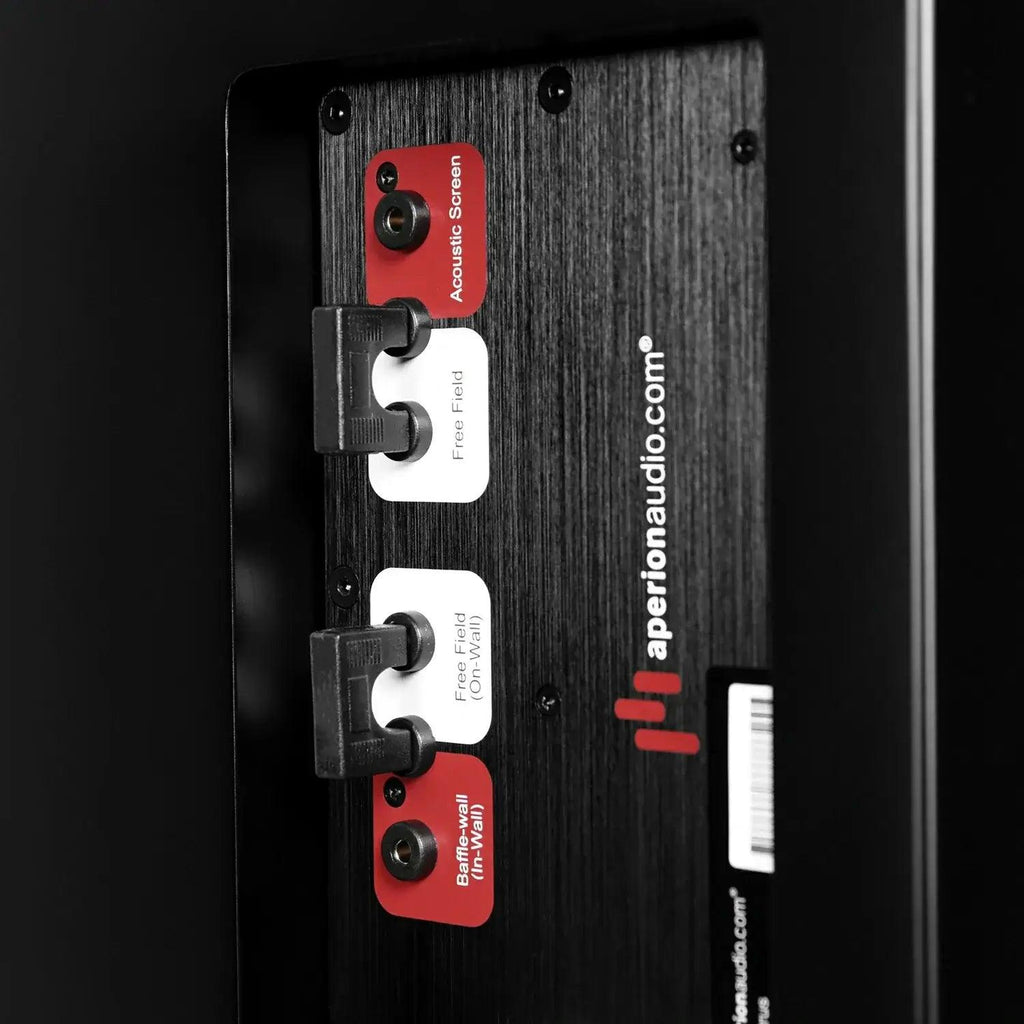

Sound Adjustment

aperion-theatrus-t80-sound-adjustment

The new Theatrus Speakers adapts to various arangements and positions with adjustments for Baffle-Wall (In-Wall) or Free-Field (On-Wall). Along with the bass adjustment, we also included a high frequency adjustment to compensate the high frequency when the speaker is placed behind a projection screen.

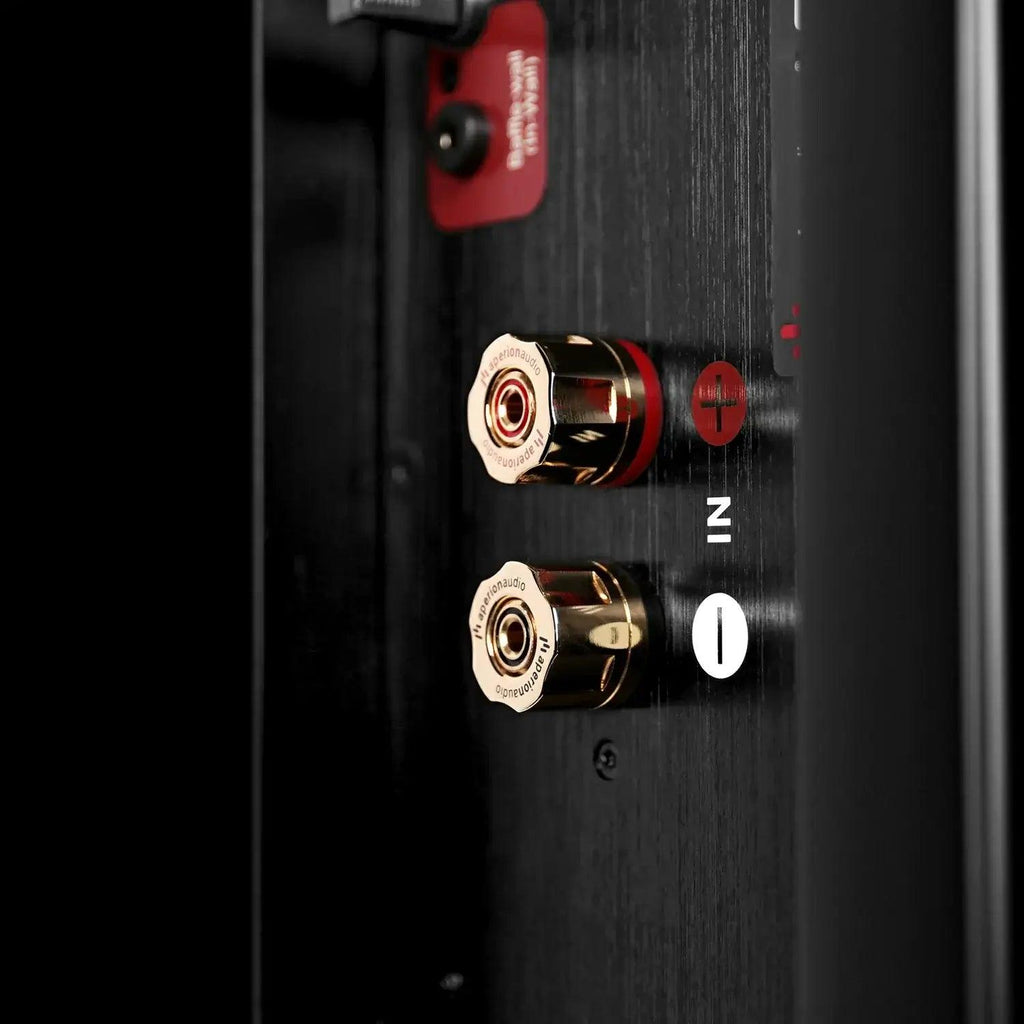

5-Way gold-plated binding posts

The 5-way gold-plated binding posts let you connect your speakers any which way you choose: bare wire, banana plugs, spades, round pins or flat pins.

Custom tuned cabinet

aperion-theatrus-speaker-cabient-design

Theatrus drivers come packed in a Stealth Black MDF Anti Resonant Cabinet.

Large front port tube

Bass reflex design w/dual front ports with optional port plugs (Note: In most situations the foam port plugs should be removed!)

Rotatable Easy-Pull Spring-Loadedor Logo

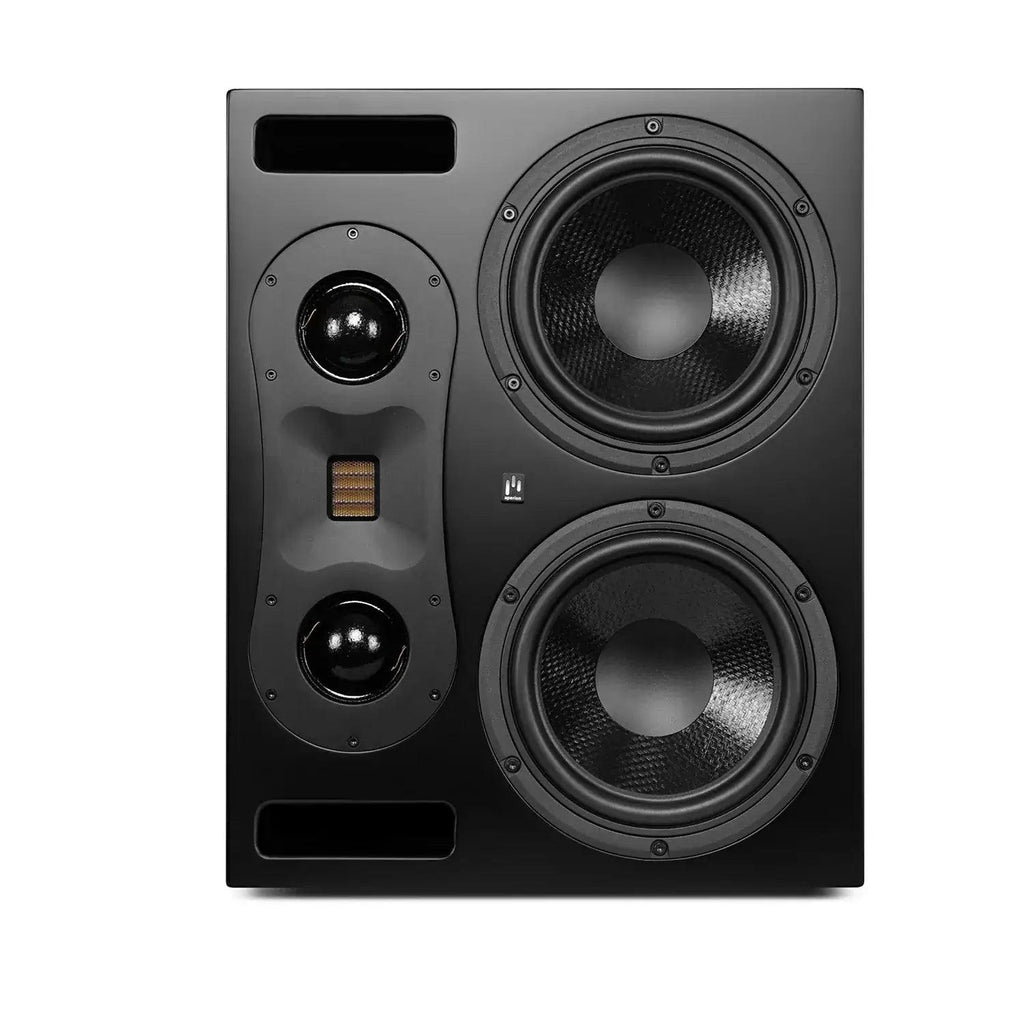

Theatrus speakers can be placed On-wall, In-wall, on the ground or on the ceiling, the Theatrus line can effectively cover most of the listening area. The speaker can be arranged vertically or horizontally, dependent on the application.

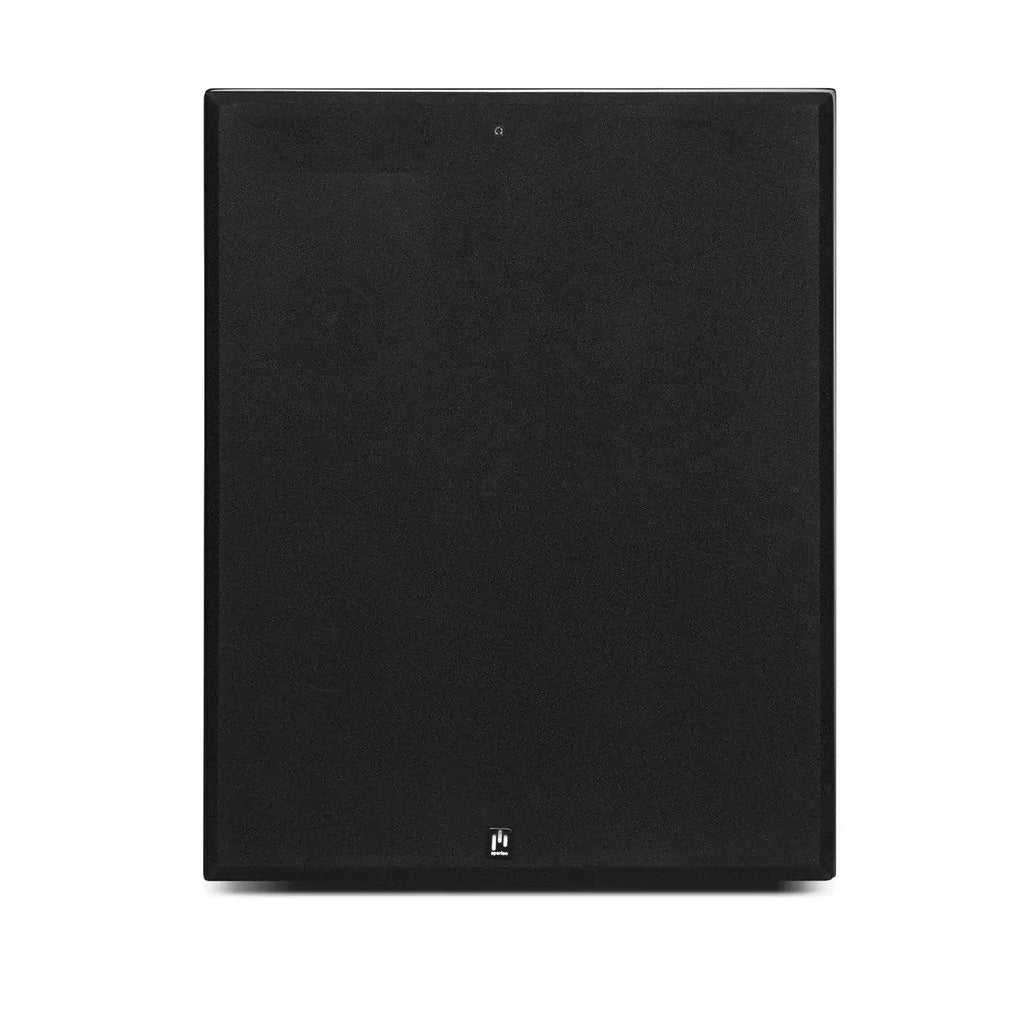

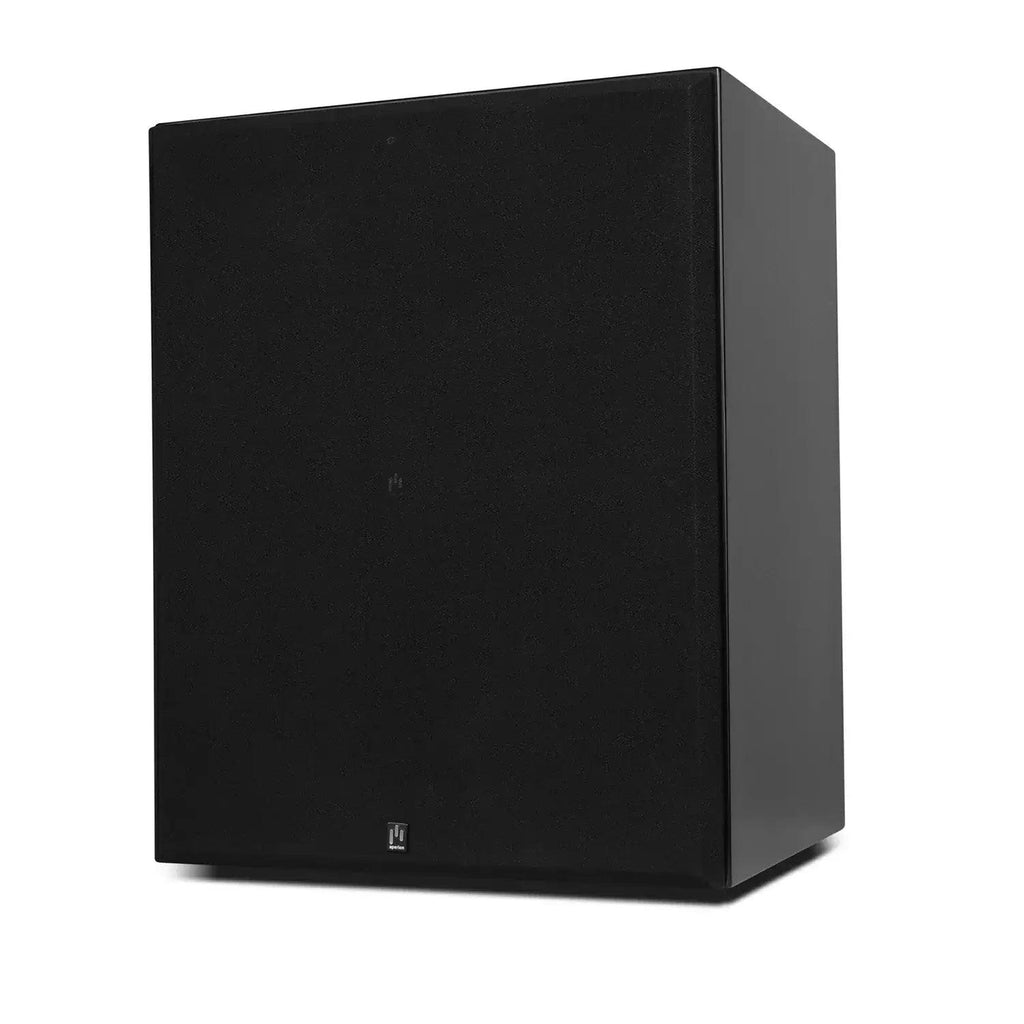

Lightweight magnetic grille

aperion-threatrus-magnet-grille

To protect the speaker innards from accidents, pets or curious fingers, the entire Theatrus line sports a lightweight magnetic grille which can easily be removed when you want to show off your beautiful speakers to friends and family.

Placement location

aperion-theatrus-speaker-placement

Main Speakers (Left, Center, Right), or Rear/Side Surround Speakers

Features

APERION AMT (Air Motion Transformer) Ribbon Tweeter

APERION 2" Soft-Dome Fabric Mid-Range Drivers x 2

APERION 8" Curv Cone Woofers x 2

Optimized Crossover Network with Mylar and Polypropylene Capacitors

Rear Adjustment High-Frequency Compensation for Placement Behind Projector Screens

Rear Adjustment Bass-Frequency Compensation for On-Wall or In-Wall Placement

Anti-Resonant Cabinet

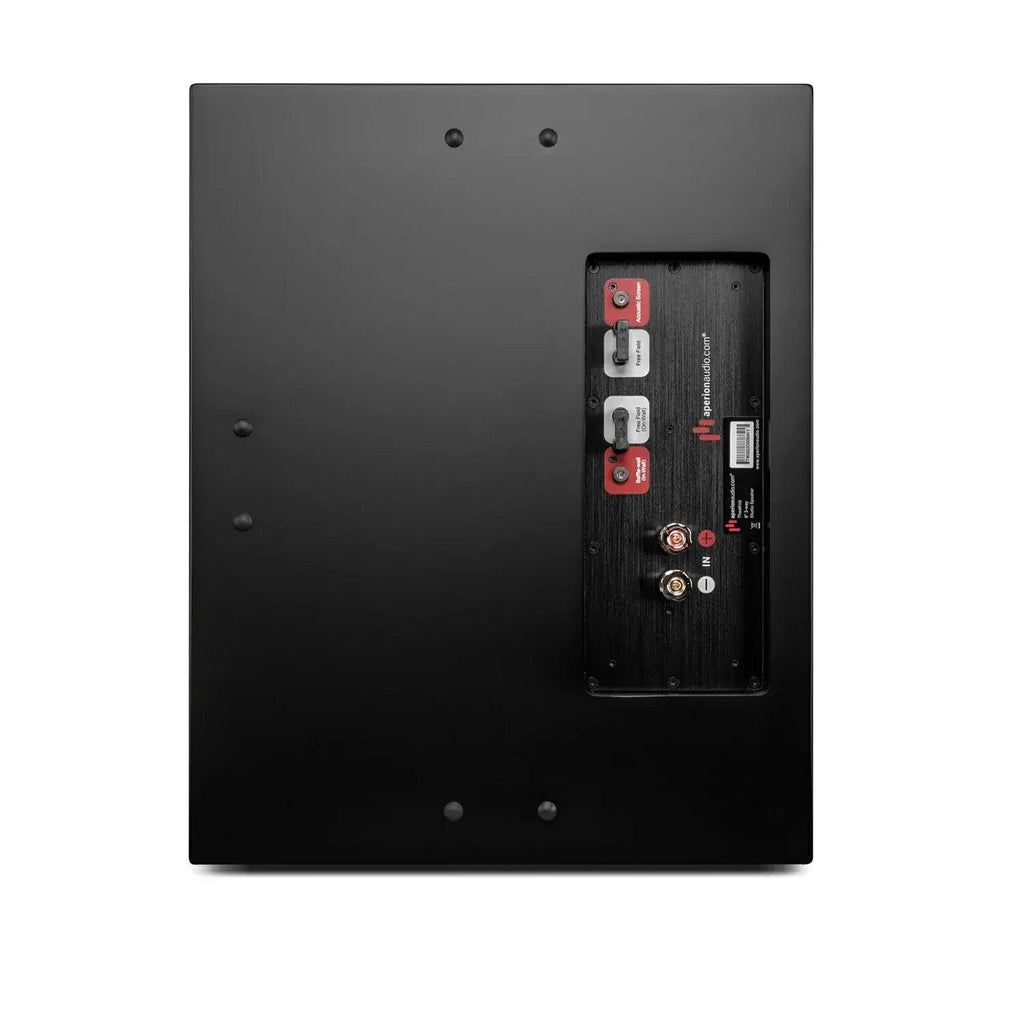

Rear Premounted Insert Threads for Easy Installation

5-Way Gold Plated Binding Posts

Magnetic Acoustically Transparent Grille Cloth

Rotatable Logo - Easy-Pull Spring-Loaded (On Cabinet) or Magnetic (On Grille)

Package Contents:

T80 Monitor Speaker x One (1) Pcs

Manual x One (1) Pcs

Polish Cloth x One (1) Pcs

Gloves x Two (2) Pcs

Rubber Bumpers x Four (4) Pcs

AWZ Wall Mount x One (1) Pcs

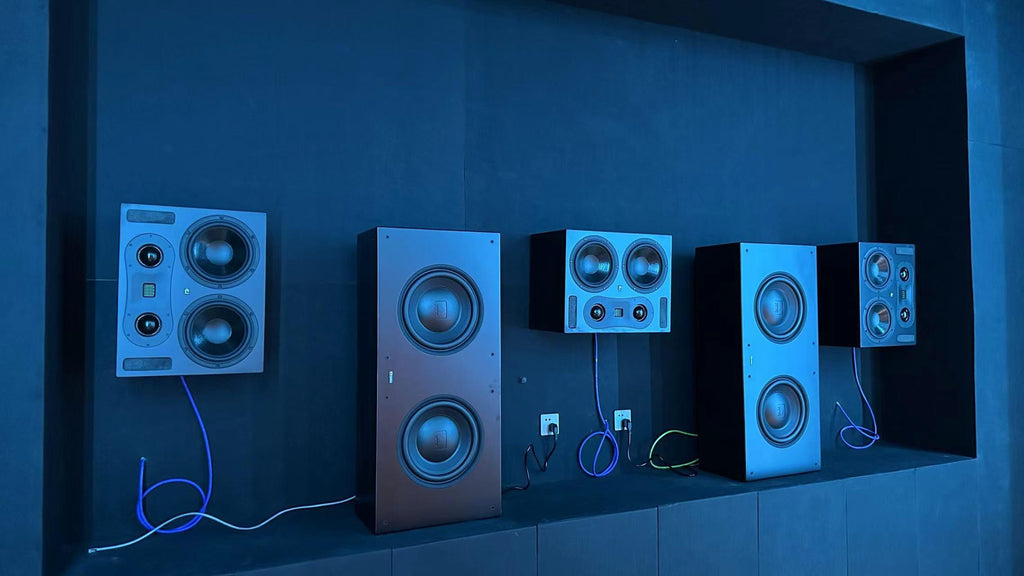

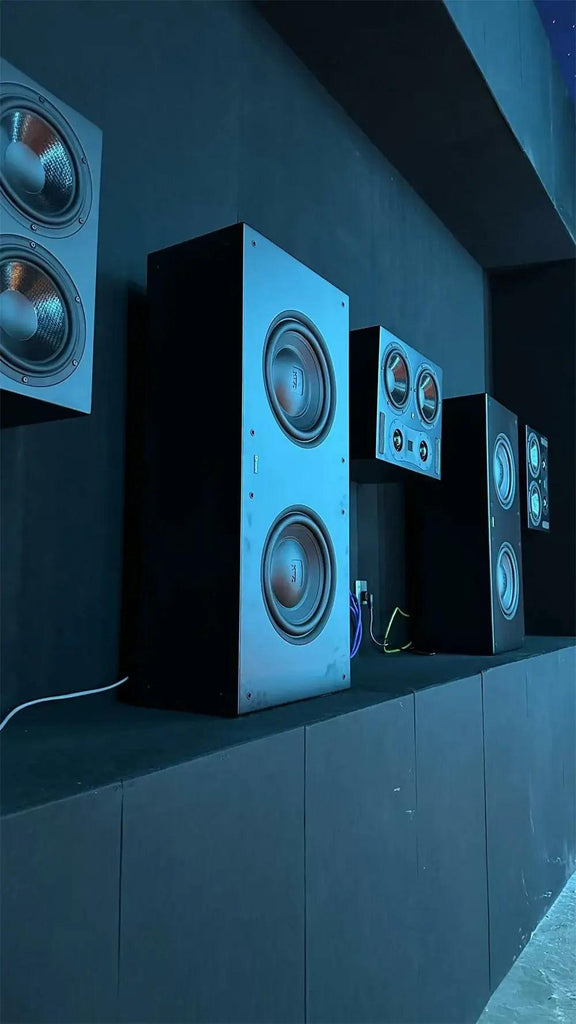

aperion-theatrus-installation-speaker-line

Theatrus T80 Un-Boxing Video

Complete Your Sound System Solution

These products work great with Theatrus Speakers

Other Theatrus Speaker

aperion-theatrus-cinema-studio-install-monitor-speakers

Power Your Speakers Energy Powered Amplifiers

Clearus In-Wall & In-Ceiling Speakers

Bravus II Powered Subwoofers

+ Theatrus Story

Theatrus Story

APERION® Theatrus Cinema Installation Speakers

Home Theater has been growing ever since the invention of the 5.1 surround sound format which was introduced in 1990 by KODAK and Optical Radiation Corporation. Blasting into the market with releases like the classic Days of Thunder and The Doors (film), this new trend was here to stay! In recent years with the development of Dolby Atmos, DTS:X, and Auro 3D, the demand for high-quality multi-channel speaker systems has constantly been raising the bar. Speakers and subwoofers are being pushed to the limits, creating a demand for a speaker with higher SPL's, detailed dynamics, better dialog clarity, and high power functioning internal components.

Not too long ago in 2014, the first ever Dolby Atmos enabled Home Theater AV Receivers were unveiled to the world, sparking the next best trend in Home Theater - Fully immersive 3D surround sound! At Aperion, we had been monitoring this very closely and shortly after in 2016 we knew what needed to be done - Create a speaker that would solve all of the above problems that traditional home audio, or pro audio speakers were not capable of. Breaking away from the traditional design framework, the Theatrus speaker combines a new driver layout, new woofer and tweeter materials, and enhanced crossover tuning and network, allowing placement of speakers behind a projector cinema screen. Theatrus not only excels in home theater applications, but also provides honest, detailed, accurate, and true reproduction for mixing and mastering recorded music. After 5 years of unremitting efforts, we unveil a new generation of cinema installation speakers - Theatrus!

Air Motion Tweeter

What makes the Theatrus AMT Tweeter so unique? In the current market there are basically two classifications of tweeter units, high sensitivity compression proaudio tweeters which easily have more than 100 dB sensitivity, or HiFi AV tweeters which mostly have a sensitivity of 92 dB or below. While proaudio style tweeters can handle louder sound pressures, they are known to easily cause fatigue and normally don't portray as much detail as the HiFi AV tweeter. These factors led us to shy away from a proaudio compression driver and continue the search for the perfect tweeter for our new Theatrus series. After some time of research and development and testing many tweeter styles trying to meet the requirements for our Theatrus Speakers, we hit a wall and development shortly stopped. We began to design the AMT style tweeter in 2018 as part of our Super Tweeter family. While an AMT design is nothing new to the industry, there are a small amount of companies who've mastered the engineering and manufacturing process and the Aperion team has been working with and mastered the process of the core material back in 2008. The Aperion AMT tweeter can achieve 103 dB sensitivity, and frequency response of up to 40 kHz, which we found to be perfect for both larger and medium sized home theater rooms. Knowing that this tweeter would operate at a higher SPL, we also added a protection circuit to help keep the tweeter safe. After a successful launch of the Dual Firing AMT Ribbon Super Tweeter in 2020, we knew this was the perfect technology to solve the issues at hand, high SPL, dynamically detailed high-frequencies with no distortion.

Softdome Midrange

As more consumers pursue a truly Hi-Fi Home Theater, the performance demand for higher SPL's and detailed dynamics are setting a higher bar. This can be a cruel challenge for any speaker driver unit, especially for the tweeter. What's the best way to protect the tweeter? In addition to the AMT protective circuit, the Theatrus speaker also needs one last piece to the puzzle - the Midrange driver that can handle the same high sensitivity as its counterparts. The midrange is so crucial to provide even more detail to the sound field, so after designing and testing various 2" and 3" soft dome midrange drivers, the Theatrus speaker sounded best using the 2" driver. Our high end soft-dome midrange unit features a large, low distortion 50mm voice coil, which exceeds the normal size of this type of drive unit. It's wide pole structure and special damping coating significantly reduce the medium frequency segmentation vibration. This soft-dome midrange driver utilizes about a quarter of its rated power, so with very low distortion at high volumes it produces superior directivity and a wide, realistic stereo field with ease!

Curv™ Woofer

Traditionally, producing a larger woofer cone that could achieve high sensitivity and detailed sound quality was difficult to do, even using the standard materials like aluminum, kevlar, woven-fiberglass. The Theaterus line features a new Curv material from Germany Propex Fabrics. The properties of this new Curv material are lightweight, yet rigged and stiff, maintain a high temperature resistance without any water absorption, and the most important in crating a driver unit - this matieral has a high Young's Modulus and internal damping. The Curv material does not require any glue or resins to set the shape like a traditional carbon-fiber or kevlar woofer. In fact most of the the time the glue or resin deteriorates the sound quality during construction, which is unfortunate because even carbon-fiber and kevlar materials have excellent properties for driver construction. Theatrus' Curv Woofers fuse the best values of internal speed of sound transmission, and internal damping which is difficult to achieve with other woofer types. This is exactly what the Theatrus line needed, high sensitivity and excellent sound quality.

Adjustment

With the growth of the home theater and private cinema market, a projector screen is the optimal choice to replicate the experience of the big movie theaters. Projector screens also pose potential acoustical issues due to screen size and material and whether they're acoustically transparent or not. This can require unique solutions and workarounds regarding speaker placement and positioning, especially while working with multiple rows of seating in larger rooms. The new Theatrus Speakers adapts to these listening conditions by replicating the type of speaker to be used in a professional listening studio. Each Theatrus speaker has a focused sound stage to accommodate listening distances both long, or short, allowing a uniform sound stage throughout the room. The Theatrus speaker is able to be mounted On-Wall or In-wall, which naturally will also have an affect on the acoustic response. If mounting in the wall, the bass response was over-boosted, which is not acceptable for professional performance. To address this issue, the Theatrus speaker went through many design adjustments to perfect the crossover network. This ultimately needed two settings: Baffle-Wall (In-Wall) or Free-Field (On-Wall). Along with the bass adjustment, we also included a high frequency adjustment to compensate the high frequency when the speaker is placed behind a projection screen. These subtle yet effective customizations allow Theatrus to perform at it's optimal level in various configurations.

+ Specifications

Specifications

Product Weight	50 lbs/ 21.3 Kgs
Frequency Response	(+/- 3 dB) 30-35,000 Hz
Impedance	4 Ohms
Sensitivity	94 dB
Recommended Power	20-350 Watts
Peak Power	700 Watts
Tweeter	One AMT (Air Motion Transformer) Tweeter
Midrange	Two German 2" Soft-Dome Fabric Mid-Range Drivers
Woofer	Two German 8" Curv® Cone Woofers
Driver Configuration	3-Way Five Drivers
Enclosure Type	Ported w/ Optional Port Plugs, Anti-Resonant, Internally Braced
Product Dimensions	(W/H/D) 15.75 x 19.7 x 11.8 inch / 400 x 500 x 300 mm (Without Grilles)
Product Family	Theatrus
Placement Location	Main Speakers (Left, Center, Right)
Shipping Weight	56.2 Lbs / 25.5 Kgs
Shipping Dimensions	(W/H/D) 21 x 27 x 19 inch / 535 x 670 x 480 mm

+ Features

Features

Air Motion Tweeter

The Aperion AMT tweeter can achieve 103 dB sensitivity, and frequency response of up to 40 kHz, which we found to be perfect for both larger and medium sized home theater rooms. Knowing that this tweeter would operate at a higher SPL, we also added a protection circuit to help keep the tweeter safe. .

Dual 2" Soft-Dome Mid-range Drivers

Dual 8" Curv Woofers

The Theaterus line features a new Curv material from Germany Propex Fabrics. The properties of this new Curv material are lightweight, yet rigged and stiff, maintain a high temperature resistance without any water absorption, and the most important in crating a driver unit - this matieral has a high Young's Modulus and internal damping

Adjustment

Wall Mountable

Use the included mounting brackets for wall mounting, or use the included rubber feet for use on stands or special placement.

Lightweight Magnetic Grilles

Custom tuned cabinet

Theatrus drivers come packed in a Stealth Black MDF Anti Resonant Cabinet.

Photos and Videos

Check Customer Photo Gallery in Pinterest

Check Awards and Professional Reviews of Theatrus Speakers

+ Documentation

Documentation

Theatrus Manual

T80 CAD Drawing

+ Open-Box

Open-Box Save More

Thanks for checking out our Open Box and Closeout products! These items have been deemed open box for a variety of reasons, including being returned from a customer or online reviewer, slight blemishes in the finish, or for one reason or another our trusted QC inspections team came across a speaker brand new from our factory that had a bit of personality to it ;) But don't worry, these speakers have been acoustically tested and perform perfectly! Open-Box specials offer savings on Aperion Theatrus speakers. All Theatrus Open-Box products look and perform "like new" and carry a Five (5) years warranty.

T80 Speaker Open-Box

Check More Theatrus Speaker Open-Box
