Power Amplifiers - Aperionaudio Energy Multichannel Power Amplifiers

Beginning with the the two-channel E2 to the seven-channel E7, all Energy Series amplifiers feature Aperion’s Soft Turn-on protection. The Soft Turn-on circuit gradually powers up the amp to avoid tripping the circuit breaker or dimming the lights. At the back of the amplifier, an RCA unbalanced input, an XLR Balanced input, input selection switch and a pair of gold-plated, 5-way binding post outputs support each channel. There is also a 1/8” mono mini jack for +12V trigger, a gold-plated chassis ground lug, a fuse holder and an Amp inlet for the provided detachable power cord.

Energy Series amps are passively cooled with large heat sinks for efficiency and low noise operation. Featuring toroidal transformers with bi-filar windings ensures low noise and crosstalk, hallmarks of all Energy amplifiers.

Aperion Audio Energy 7-Channel Audiophile Power Amplifier – E7

Designing a quality sounding home theater using Atmos technology often requires an additional 2 channel amplifier or two. Using the many 2-channel amplifiers available from Aperionaudio can certainly contribute to completing your Atmos system. or if need to add additional channels to your existing receiver for more sound depth in your theater room.

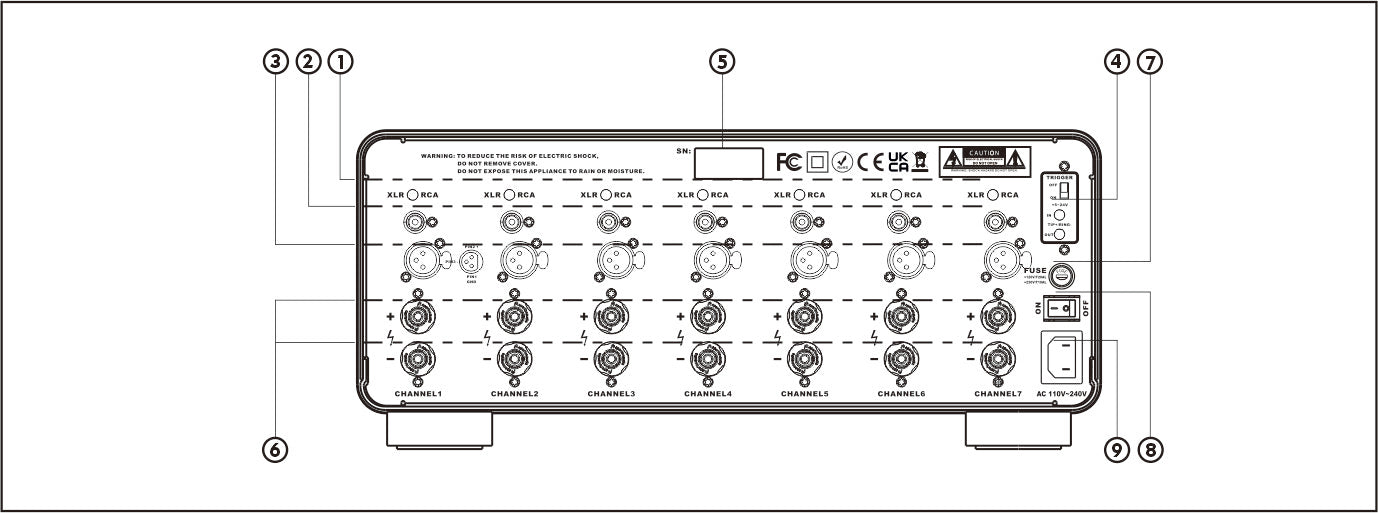

Getting to Know the Rear Panel

1. Input Selector Switch: Selects either the BALANCED INPUT (XLR) or the UN-BALANCED (RCA) INPUT jack.

2. Unbalanced RCA Audio Inputs: Use the UNBALANCED INPUT jacks to connect to the out-puts of a preamplifier, receiver with preout connections,CD player, or other source device with RCA style outputs.

3.Balanced XLR Audio Inputs: Use the BALANCED INPUT jacks to connect to the outputs of a preamplifier or other control device with XLR outputs.

4.Trigger Input and Output Port: Trigger Input: This allows the amplifier controlled by a source or preamplifier device. Trigger Output: Link out to anther amplifier via 1/8" mono minicable.

5. Product Serial Number

6. Speaker Outputs: Use the OUTPUT binding posts to connect the amplifier to your Speakers, red for positive, black for negative.

7. Fuse
a. E2 using 4A/230V& 8A/120V slow broken type fuse;
b. E3 using 6A/230V& 12A/120V slow broken type fuse;
c. E5 using 8A/230V& 15A/120V slow broken type fuse;
d. E7 using 10A/230V& 20A/120V slow broken type fuse.

8. Master Power Switches: Turns the current to each bank of the amplifier on or off.

9. AC Input: Use the included power cords to connect your amplifier to an AC power source.

Aperion Audio Energy 7-Channel Audiophile Power Amplifier – E7

Features

- Remote Trigger: Activated from 5VDC to 24VDC

Protection Circuits: Optically – coupled with full automatic reset. Class AB: More efficient, many high end, audiophile grade amplifiers utilize a Class AB design.

- Toroid Transformers:Bi-filar windings for guarantee lower noise and crosstalk.

- Circuit Boards: Double-sided FR-4 glass epoxy, computer-grade boards.

- Soft Start Circuitry: Soft-start minimizes in-rush current. Multiple units can be turned on without tripping circuit breakers, eliminating the need for turn-on sequencing.

- Power Transistors: High current, bi-polar output transistors ensure optimized performance in real time.

- Silent Cooling: Oversized heat sinks, instead of fans, are used to keep the amplifier as cool and as silent as possible. No fans means less dust and a longer operating life for your equipment.

- Dynamics: Energy amplifiers capable of delivering clear and clean audio across a wide dynamic range which can clearly and accurately articulate the quietest portions, the loudest portions, and everything in between.

- Power Cord: Detachable, 3-wire power cord.

Aperion Audio Energy 2-Channel Audiophile Power Amplifier – E2

The Energy 2-Channel Power Amplifier brings immersive, dynamic sound to your home theater. Equipped with premium components and Aperion's technologies, this amplifier delivers pristine audio performance that is unwaveringly faithful to the source. It also provides enough bandwidth and deep power reserves to handle dynamic audio passages, so you'll enjoy exceptional audio during even the most audio-intensive movie scenes. With its efficient power consumption and durable design, the amplifier is a welcome addition to any home theater system, and is a perfect companion for any Preamplifier.

Powerful amplifier delivers exceptional, dynamic audio performance.

Aperion Audio Energy 2-Channel Audiophile Power Amplifier – E2

Aperion Audio Energy 2-Channel Audiophile Power Amplifier – E2

E2 Specifications

Type 2 Channel Power Amplifier
Power Output (RMS)@ 2 Channels Driven 180W (8Ω, 1 Channel), 300W (4Ω, 1 Channel)
Power Output (RMS) @ All Channels Driven 170W (8Ω, 2 Channel), 272W (4Ω, 2 Channel)
Connections RCA Inputs and Balanced XLR-Inputs
SNR 96dB/RCA, 108dB/XLR
Distortion (THD+N): ≤0.015% (Max Power at 1 kHz)
Frequency Response (+/-1dB) 10 Hz-35 Khz
Power Supply 110 - 220 VAC (Automatically)
Transformer High-performance toroidal transformers
Max Power Consumption 874 W
Standby Consumption <0.5W
Input Sensitivity 1.3 V for Full Rated Power@8 ohms
Load Impedance 4 - 16 ohms
Input Impedance Nominally 50kΩ
Remote Trigger Voltage 5-24V
Product Dimension 7.4"x17.2"x17"/188x437x432mm(HxWXD)
Product Weight 41 Lbs/18.7 Kgs
Shipping Dimension 13"x22"x23"/320x560x590mm(HxWXD)
Shipping Weight 50 Lbs/22.5 Kgs

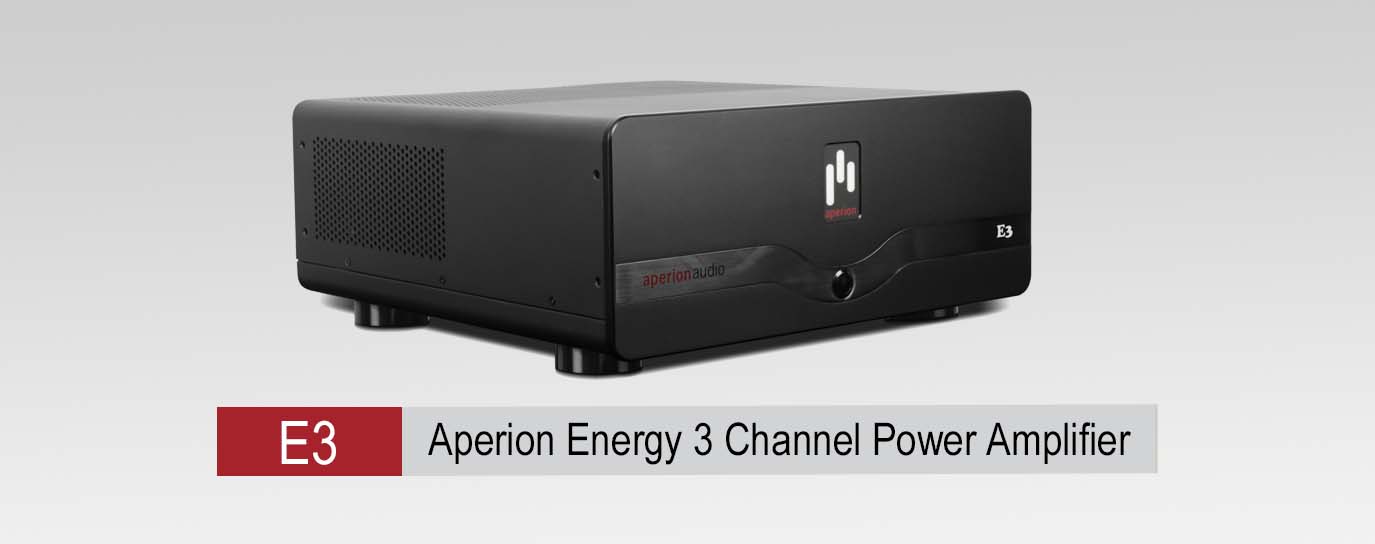

The E3 is a three-channel power amplifier, and is perfect for powering the three important front channels of a 5.1 channel, 7.1 channel, or Dolby Atmos / DTS:X home theater system. Improved Channel Balance, Lower Noise Floor and Overall a purer sound reduced distrotion and increased dynamic range, clean and potent power output .

Aperion Audio Energy 3-Channel Audiophile Power Amplifier – E3

Aperion Audio Energy 3-Channel Audiophile Power Amplifier – E3

E3 Specifications

Type 3 Channel Power Amplifier
Power Output (RMS) @ 2 Channels Driven 180W (8Ω, 2 Channel), 300W (4Ω, 2 Channel)
Power Output (RMS) @ All Channels Driven 170W (8Ω, All Channel), 252W (4Ω, All Channel)
Connections RCA Inputs and Balanced XLR-Inputs
SNR 96dB/RCA, 108dB/XLR
Distortion (THD+N): ≤0.015% (Max Power at 1 kHz)
Frequency Response (+/-1dB) 10 Hz-35 Khz
Power Supply 110 - 220 VAC (Automatically)
Transformer High-performance toroidal transformers
Max Power Consumption 1210 W
Standby Consumption <0.5W
Input Sensitivity 1.3 V for Full Rated Power@8 ohms
Load Impedance 4 - 16 ohms
Input Impedance Nominally 50kΩ
Remote Trigger Voltage 5-24V
Product Dimension 7.4"x17.2"x17"/188x437x432mm(HxWXD)
Product Weight 44 Lbs/20 Kgs
Shipping Dimension 13"x22"x23"/320x560x590mm(HxWXD)
Shipping Weight 52 Lbs/23.8 Kgs

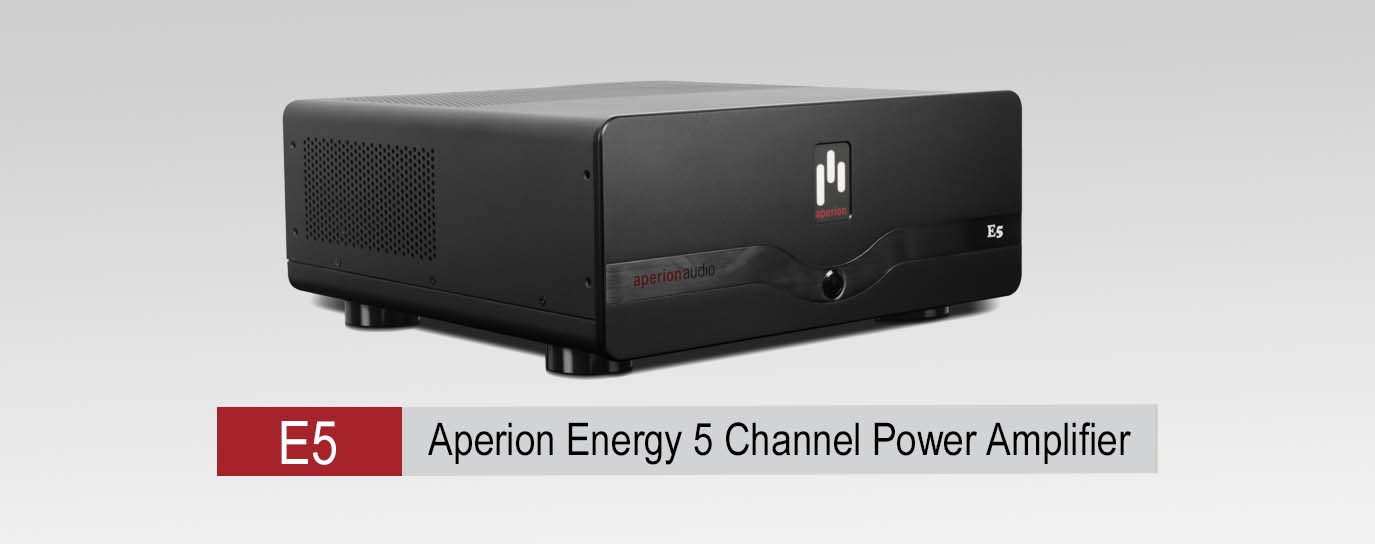

Audio Energy 5-Channel Audiophile Power Amplifier – E5

The E5 is a five-channel power amplifier, and is perfect for powering the five main channels of a 5.1 channel, 7.1 channel, or Dolby Atmos / DTS:X home theater system. Improved Channel Balance, Lower Noise Floor and Overall a purer sound reduced distrotion and increased dynamic range, clean and potent power output.

Audio Energy 5-Channel Audiophile Power Amplifier – E5

Audio Energy 5-Channel Audiophile Power Amplifier – E5

E5 Specifications

Type 5 Channel Power Amplifier
Power Output (RMS) @ 2 Channels Driven 180W (8Ω, 2 Channel), 300W (4Ω, 2 Channel)
Power Output (RMS) @ All Channels Driven 155W (8Ω, All Channel), 247W (4Ω, All Channel)
Connections RCA Inputs and Balanced XLR-Inputs
SNR 96dB/RCA, 108dB/XLR
Distortion (THD+N): ≤0.015% (Max Power at 1 kHz)
Frequency Response (+/-1dB) 10 Hz-35 Khz
Power Supply 110 - 220 VAC (Automatically)
Transformer High-performance toroidal transformers
Max Power Consumption 1950 W
Standby Consumption <0.5W
Input Sensitivity 1.3 V for Full Rated Power@8 ohms
Load Impedance 4 - 16 ohms
Input Impedance Nominally 50kΩ
Remote Trigger Voltage 5-24V
Product Dimension 7.4"x17.2"x17"/188x437x432mm(HxWXD)
Product Weight 64 Lbs/29.1 Kgs
Shipping Dimension 13"x22"x23"/320x560x590mm(HxWXD)
Shipping Weight 73 Lbs/32.9 Kgs

Aperion Audio Energy 7-Channel Audiophile Power Amplifier – E7

The E7 is a seven-channel power amplifier, and is perfect for powering the seven main bed channels of a 5.1 channel, 7.1 channel, or Dolby Atmos / DTS:X home theater system. Improved Channel Balance, Lower Noise Floor and Overall a purer sound reduced distrotion and increased dynamic range, clean and potent power output.

Aperion Audio Energy 7-Channel Audiophile Power Amplifier – E7

Aperion Audio Energy 7-Channel Audiophile Power Amplifier – E7

E7 Specifications

Type 7 Channel Power Amplifier
Power Output (RMS) @ 2 Channels Driven 180W (8Ω, 2 Channel), 300W (4Ω, 2 Channel)
Power Output (RMS) @ All Channels Driven 150W (8Ω, All Channel), 230W (4Ω, All Channel)
Connections RCA Inputs and Balanced XLR-Inputs
SNR 96dB/RCA, 108dB/XLR
Distortion (THD+N): ≤0.015% (Max Power at 1 kHz)
Frequency Response (+/-1dB) 10 Hz-35 Khz
Power Supply 110 - 220 VAC (Automatically)
Transformer High-performance toroidal transformers
Max Power Consumption 2640 W
Standby Consumption <0.5W
Input Sensitivity 1.3 V for Full Rated Power@8 ohms
Load Impedance 4 - 16 ohms
Input Impedance Nominally 50kΩ
Remote Trigger Voltage 5-24V
Product Dimension 7.4"x17.2"x17"/188x437x432mm(HxWXD)
Product Weight 70 Lbs/31.6 Kgs
Shipping Dimension 13"x22"x23"/320x560x590mm(HxWXD)
Shipping Weight 78 Lbs/35.4 Kgs
