Custom Install In-Ceiling Speakers
Theatrus T8C 8" In-Ceiling Speaker
Theatrus T6C 6.5" In-Ceiling Speaker | (Single)
Clearus C8C Angled 8" In-Ceiling Speaker Single
In-Ceiling Speaker Comparison
Aperion Audio
Theatrus T8C 8" In-Ceiling Speaker
Aperion Audio
Theatrus T6C 6.5" In-Ceiling Speaker | (Single)
Aperion Audio
Clearus C8C Angled 8" In-Ceiling Speaker Single
Aperion Audio
Theatrus T8C 8" In-Ceiling Speaker
Aperion Audio
Theatrus T6C 6.5" In-Ceiling Speaker | (Single)
Aperion Audio
Clearus C8C Angled 8" In-Ceiling Speaker SingleTweeter
APERION AMT Ribbon Tweeter
Tweeter
APERION AMT Ribbon Tweeter
Tweeter
1” Titanium Tweeter
Mid/Woofer
APERION 8" Curv® Cone Woofer
Mid/Woofer
APERION 6.5" Curv® Cone Woofer
Mid/Woofer
8” Woven-Fiberglass Woofer
Frequency Response
36-35,000Hz
Frequency Response
45-35,000Hz
Frequency Response
45-25,000 Hz
Impedance
4 ohm
Impedance
4 ohm
Impedance
8 ohm
Sensitivity
92 dB
Sensitivity
90 dB
Sensitivity
90 dB
Power Handling
20-150 Watts (Peak: 300W)
Power Handling
20-120 Watts (Peak: 240W)
Power Handling
20-160 Watts (Peak: 320W)
Finish
Fireproofing Black Aluminum Frame, Black Grille
Finish
Fireproofing Black Aluminum Frame, Black Grille
Finish
Black ABS Frame, White Grille
Product Dimensions
11.3" Diameter x 5.1" Deep -- 288mm Diameter x 129mm Deep
Product Dimensions
9.4" Diameter x 4.6" Deep -- 239mm Diameter x 117 mm Deep
Product Dimensions
10.95" Diameter x 6.03"Deep -- 278mm Diameter x 153mm Deep
Product Weight
9 lb / 4.1 kg
Product Weight
7.1 lb / 3.2 kg
Product Weight
7 lb / 3 kg
Cut-out Dimensions
9.93" Round/252 mm Round
Cut-out Dimensions
8.19"/208 mm Round
Cut-out Dimensions
10.08" / 256 mm Round
Custom On-Wall Speakers
Theatrus T80S Dual 8" Slim On-Wall Speaker
Theatrus T65S Dual 6.5" Slim On-Wall Speaker
Theatrus T80SL Dual 8" Slim Stack On-Wall LCR Speaker
Theatrus T65SL Dual 6.5" Slim Stack On-Wall LCR Speaker
Theatrus T83S Single 8" Slim On-Wall Speaker
Theatrus T63S Single 6.5" Slim On-Wall Speaker
On-Wall Speaker Comparison
Aperion Audio
Theatrus T80S Dual 8" Slim On-Wall Speaker
Aperion Audio
Theatrus T65S Dual 6.5" Slim On-Wall Speaker
Aperion Audio
Theatrus T80S Dual 8" Slim On-Wall Speaker
Aperion Audio
Theatrus T65S Dual 6.5" Slim On-Wall Speaker
Type
3-Way 5 Drivers Dual 8"
Type
3-Way 5 Drivers Dual 6.5"
Type
3-Way 5 Drivers Dual 8" LCR
Use Case
Front L/R, Center, Surround
Use Case
Front L/R, Center, Surround
Use Case
Front L/R, Center, Surround
Tweeter
AMT Ribbon Tweeter
Tweeter
AMT Ribbon Tweeter
Tweeter
AMT Ribbon Tweeter
Midrange
2" Soft-Dome Mid-Range Drivers x 2
Midrange
2" Soft-Dome Mid-Range Drivers x 2
Midrange
2" Soft-Dome Mid-Range Drivers x 2
Woofer
8" Curv® Cone Woofers x 2
Woofer
6.5" Curv® Cone Woofers x 2
Woofer
8" Curv® Cone Woofers x 2
Frequency Response
60-35,000 Hz
Frequency Response
65-35,000 Hz
Frequency Response
60-35,000 Hz
Impedance
4 ohm
Impedance
4 ohm
Impedance
4 ohm
Sensitivity
94 dB (MAX SPL: 120 dB)
Sensitivity
94 dB (MAX SPL: 118 dB)
Sensitivity
94 dB (MAX SPL: 120 dB)
Power Handling
20-350 Watts (Peak: 700W)
Power Handling
20-250 Watts (Peak: 500W)
Power Handling
20-350 Watts (Peak: 700W)
Finish
Matte Black HDF Cabinet
Finish
Matte Black HDF Cabinet
Finish
Matte Black HDF Cabinet
Product Dimensions
H 19.7" x W 15.8" x D 5.1" / H 500mm x W 400mm x D 130mm
Product Dimensions
H 16.9" x W 14.2" x D 4.3" / H 430mm x W 360mm x D 110mm
Product Dimensions
H 34.7" x W 11" x D 5.1" / H 880mm x W 280mm x D 130mm
Product Weight
35.7 lb / 16.2 kg
Product Weight
26.5 lb / 12 kg
Product Weight
40.4 lb / 18.3 kg
Custom In-Wall Speakers
Theatrus T80W Dual 8" In-Wall Speaker
Theatrus T65W Dual 6.5" In-Wall Speaker
Theatrus T80WL Dual 8" Slim Stack In-Wall LCR Speaker
Theatrus T65WL Dual 6.5" Slim Stack In-Wall LCR Speaker
Theatrus T83W 8" In-Wall Speaker
Theatrus T63W 6.5" In-Wall Speaker
Clearus C8W 2-Way 8" In-Wall Speaker
Clearus C6W 2-Way 6.5" In-Wall Speaker
Clearus C6LCR Dual 6.5" LCR In-Wall Speaker
In-Wall Speaker Comparison
Aperion Audio
Theatrus T80W Dual 8" In-Wall Speaker
Aperion Audio
Theatrus T65W Dual 6.5" In-Wall Speaker
Aperion Audio
Theatrus T80W Dual 8" In-Wall Speaker
Aperion Audio
Theatrus T65W Dual 6.5" In-Wall Speaker
Type
3-Way 5 Drivers Dual 8"
Type
3-Way 5 Drivers Dual 6.5"
Type
3-Way 5 Drivers Dual 8" LCR
Use Case
Front L/R, Center, Surround
Use Case
Front L/R, Center, Surround
Use Case
Front L/R, Center, Surround
Tweeter
AMT Ribbon Tweeter
Tweeter
AMT Ribbon Tweeter
Tweeter
AMT Ribbon Tweeter
Midrange
2" Soft-Dome Mid-Range Drivers x 2
Midrange
2" Soft-Dome Mid-Range Drivers x 2
Midrange
2" Soft-Dome Mid-Range Drivers x 2
Woofer
8" Curv® Cone Woofers x 2
Woofer
6.5" Curv® Cone Woofers x 2
Woofer
8" Curv® Cone Woofers x 2
Frequency Response
60-35,000 Hz
Frequency Response
65-35,000 Hz
Frequency Response
60-35,000 Hz
Impedance
4 ohm
Impedance
4 ohm
Impedance
4 ohm
Sensitivity
94 dB (MAX SPL: 120 dB)
Sensitivity
94 dB (MAX SPL: 118 dB)
Sensitivity
94 dB (MAX SPL: 120 dB)
Power Handling
20-350 Watts (Peak: 700W)
Power Handling
20-250 Watts (Peak: 500W)
Power Handling
20-350 Watts (Peak: 700W)
Finish
Matte Black HDF Cabinet
Finish
Matte Black HDF Cabinet
Finish
Matte Black HDF Cabinet
Product Dimensions
H 21.3" x W 17.3" x D 5.2" / H 540mm x W 440mm x D 132mm
Product Dimensions
H 18.5" x W 15.8" x D 4.4" / H 470mm x W 400mm x D 112mm
Product Dimensions
H 36.2"x W 12.6"x D 5.2" / H 920mm x W 320mm x D 132mm
Product Weight
40.1 lb / 18.2 kg
Product Weight
31.3 lb / 14.2 kg
Product Weight
49 lb / 22.2 kg
Cut-out Dimensions
L 19.92" x W 15.98" x D 5.1" / L 506mm x W 406mm x D 130mm
Cut-out Dimensions
L 17.17" x W 14.41" x D 4.3" / L 436mm x W 366mm x D 110mm
Cut-out Dimensions
L 34.88" x W 11.26" / L 886mm x W 286mm

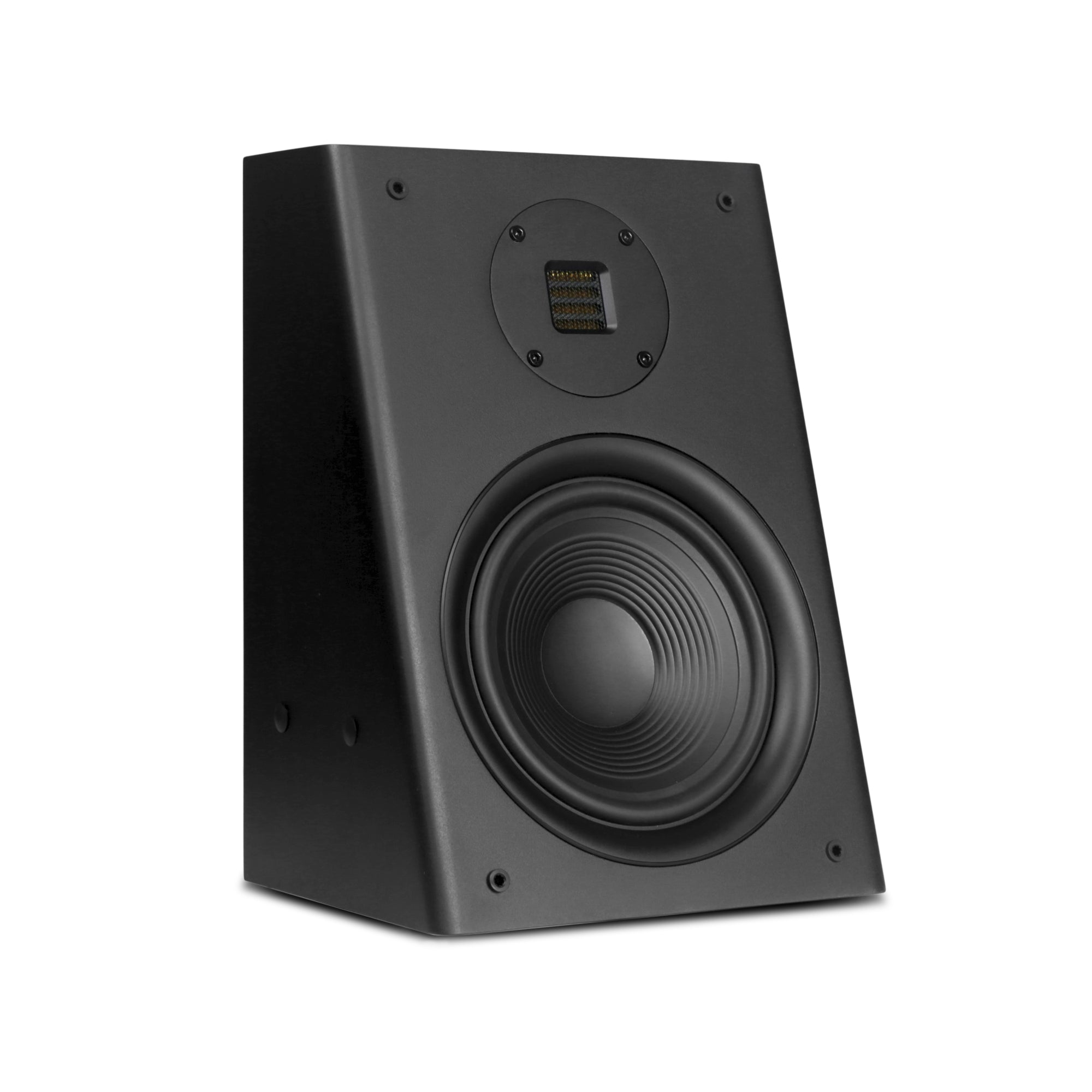

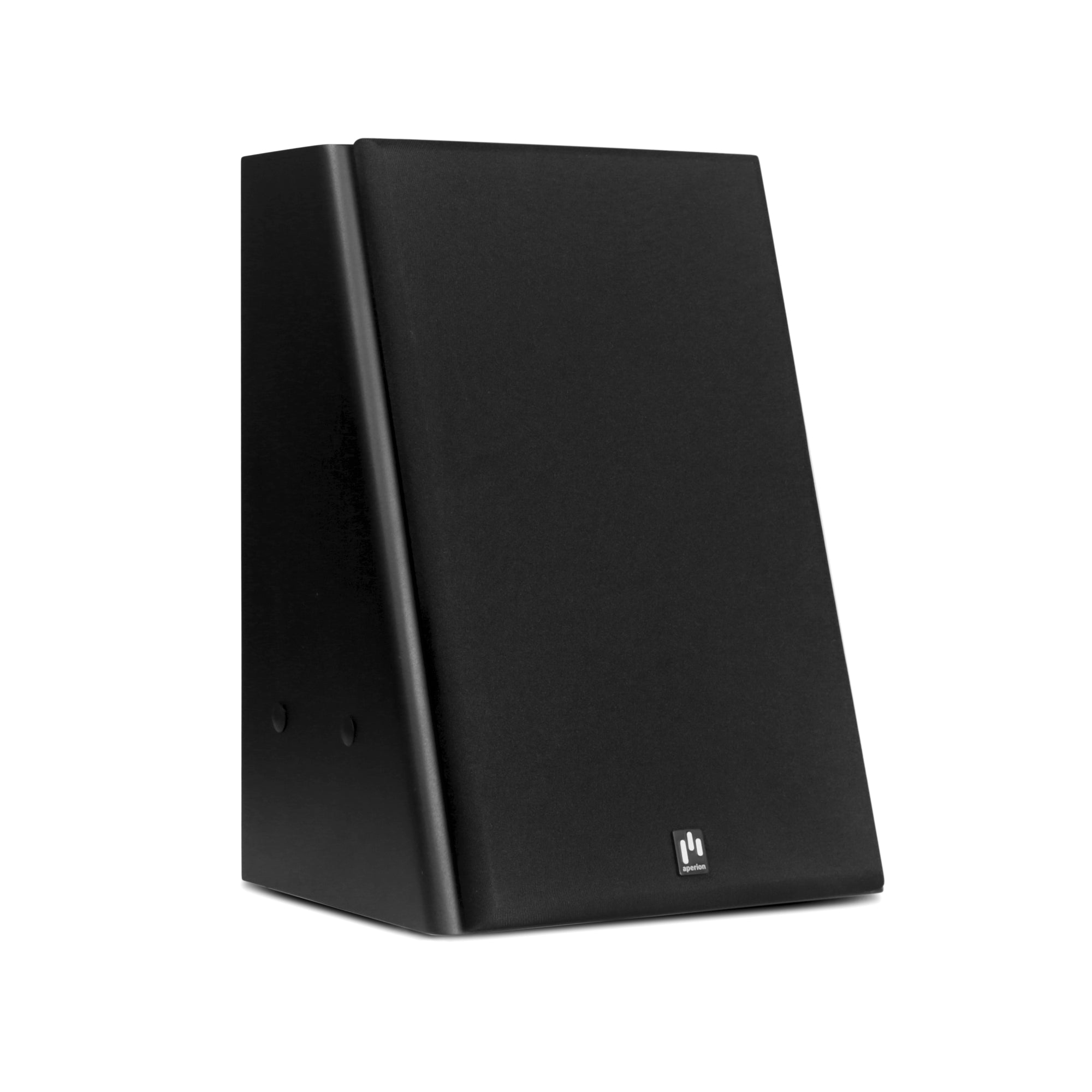

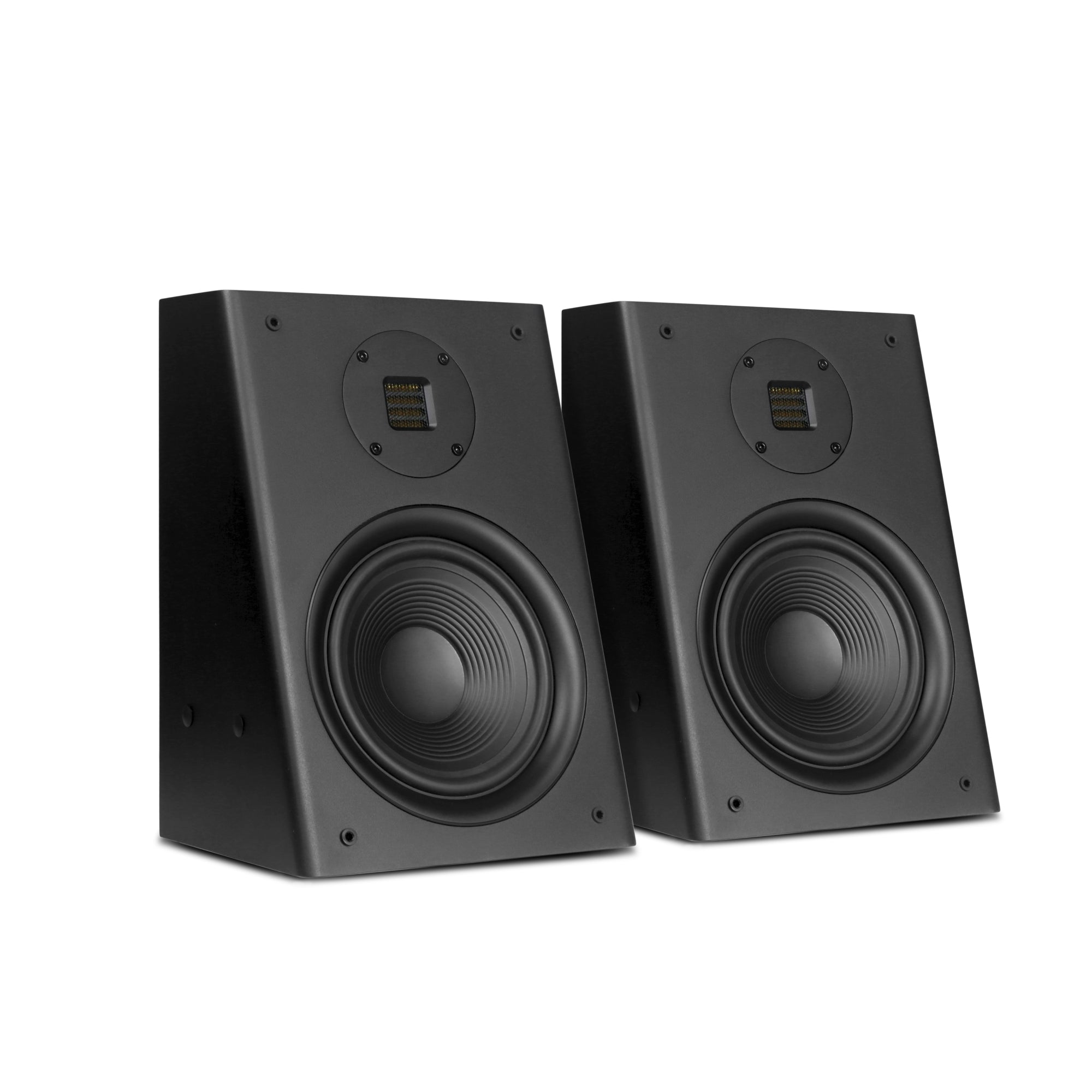

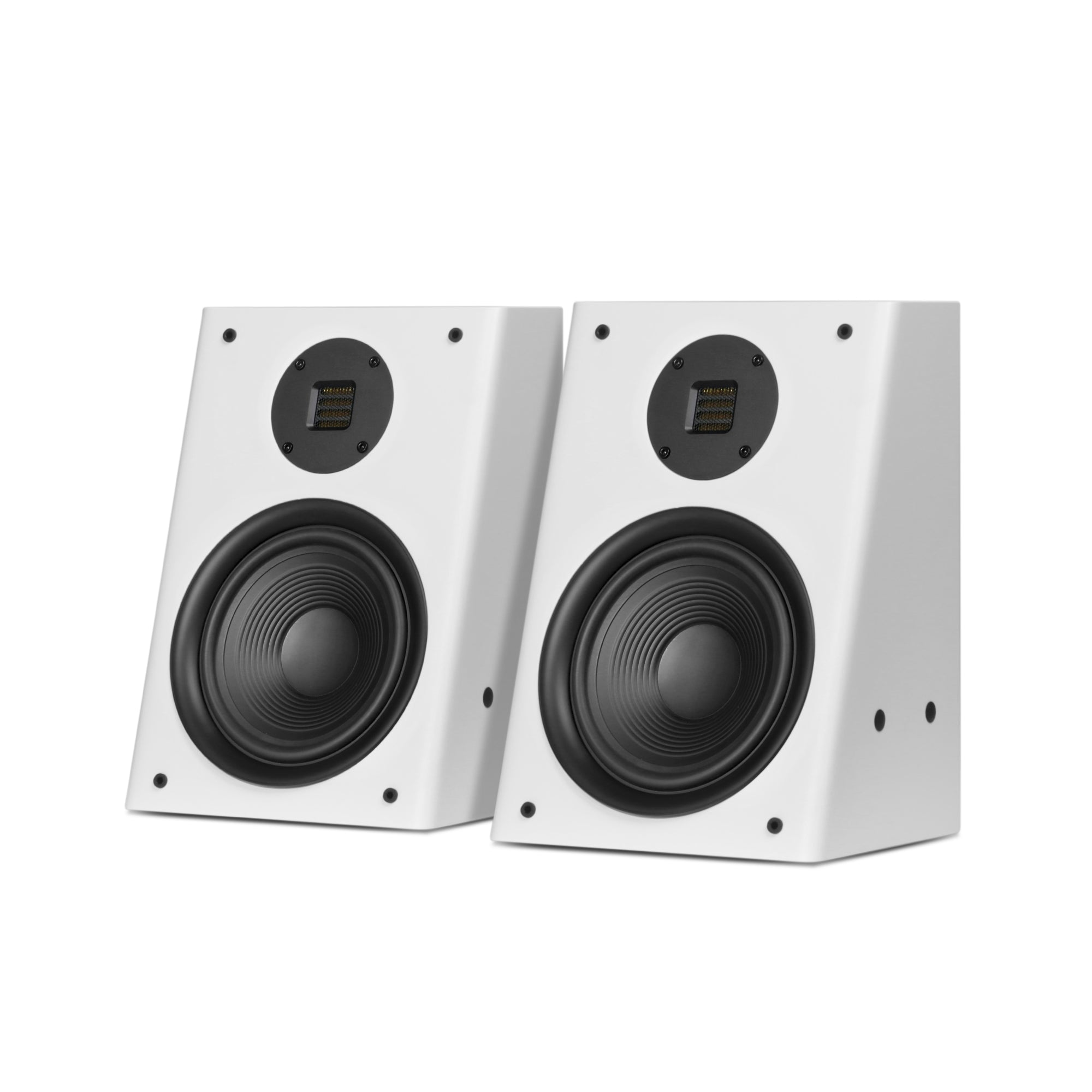

Height Channel Speakers
A5 Atmos 5.25" Immersive Reflective/Height Module Speaker Pair
Height Channel Speaker Comparison
Stealth Black
Stealth Black
Type
2-Way 5.25" Coax
Type
2-Way 6.5"
Type
2-Way 6.5"
Use Case
On-top of Speakers, On-wall, Ceiling-Mounted, Surround Speakers
Use Case
On-wall, Ceiling-Mounted, Surround Speakers
Use Case
On-wall, Ceiling-Mounted, Surround Speakers
Tweeter
Natural-Fiber 1" Silk-Dome, Ferrofluid-Cooled
Tweeter
AMT Ribbon Tweeter
Tweeter
AMT Ribbon Tweeter
Mid-Woofer
5.25" Aluminum Cone Woofer
Mid-Woofer
6.5" Paper Cone Midbass Driver
Mid-Woofer
6.5" Curv® Cone Woofer
Frequency Response
90-30,000 Hz
Frequency Response
85-35,000 Hz
Frequency Response
80-35,000 Hz
Impedance
6 ohm
Impedance
4 ohm
Impedance
4 ohm
Sensitivity
87 dB
Sensitivity
88 dB (MAX SPL 108 dB)
Sensitivity
88 dB (MAX SPL 108 dB)
Power Handling
20-80 Watts (Peak：160W)
Power Handling
20-100 Watts (Peak：120W)
Power Handling
20-100 Watts (Peak：120W)
Finish
Matte Black/White MDF Cabinet
Finish
Black/White MDF Cabinet
Finish
Matte Black HDF Cabinet
Product Dimensions
H 5.7" x W 7.1" x D 7.9" / H 146mm x W 180mm x D 200mm
Product Dimensions
H 12" x W 8.5" x D (6.7/3.2)" / H 305mm x W 215mm x D (170/80)mm
Product Dimensions
H 12" x W 7.9" x D 6.7" (Bottom) 3.2" (Top) / H 305mm x W 200mm x D 170mm (Bottom) / 80mm (Top)
Product Weight
7.5 lb / 3.5 kg each
Product Weight
9.9 Lbs / 4.5 kg each
Product Weight
11 Lbs / 5 kg each
Energy Power Amplifiers
Energy 7 Channel Home Theater Power Amplifier – E7
Energy 5 Channel Home Theater Power Amplifier – E5
Energy 3 Channel Home Theater Power Amplifier – E3
Energy 2 Channel Stereo Power Amplifier - E2
Power Amplifier Comparison
Aperion Audio
Energy 7 Channel Home Theater Power Amplifier – E7
Aperion Audio
Energy 7 Channel Home Theater Power Amplifier – E7Type
High Power 3-Channel
Type
High Power Stereo 2-Channel
Type
7-Channel
1 Channel Driven
700W (8Ω), 1000W (4Ω)
1 Channel Driven
700W (8Ω), 1000W (4Ω)
1 Channel Driven
210W (8Ω), 330W (4Ω)
All Channels Driven
600W (8Ω), 900W (4Ω)
All Channels Driven
650W (8Ω), 950W (4Ω)
All Channels Driven
170W (8Ω), 270W (4Ω)
Connections
RCA Inputs and Balanced XLR-Inputs
Connections
RCA Inputs and Balanced XLR-Inputs
Connections
RCA Inputs and Balanced XLR-Inputs
SNR
96dB/RCA, 108dB/XLR
SNR
96dB/RCA, 108dB/XLR
SNR
96dB/RCA, 108dB/XLR
THD+N
≤0.015% (Measured during peak power at 1 kHz)
THD+N
≤0.015% (Measured during peak power at 1 kHz)
THD+N
≤0.015% (Measured during peak power at 1 kHz)
Frequency Response
10-32,000 Hz
Frequency Response
10-32,000 Hz
Frequency Response
10-32,000 Hz
Power Supply
110 - 220 VAC
Power Supply
110 - 220 VAC
Power Supply
110 - 220 VAC
Transformer
Dual High-performance toroidal transformer
Transformer
Dual High-performance toroidal transformer
Transformer
Dual High-performance toroidal transformer
Peak Power Consumption
4140W
Peak Power Consumption
3150W
Peak Power Consumption
2640W
Standby Consumption
＜0.5W
Standby Consumption
＜0.5W
Standby Consumption
＜0.5W
Input Sensitivity
1.2 V for Full Rated Power@8 ohms
Input Sensitivity
1.2 V for Full Rated Power@8 ohms
Input Sensitivity
1.2 V for Full Rated Power@8 ohms
Load Impedance
4 - 16 ohms
Load Impedance
4 - 16 ohms
Load Impedance
4 - 16 ohms
Input Impedance
Nominally 50kΩ
Input Impedance
Nominally 50kΩ
Input Impedance
Nominally 50kΩ
Remote Trigger Voltage
5-24V
Remote Trigger Voltage
5-24V
Remote Trigger Voltage
5-24V
Capacitance
80000 µF per channel
Capacitance
80000 µF per channel
Capacitance
40000 µF per channel
Product Dimension
H 9.1" x W 17.2" x D 17" / H 230mm x W 437mm x D 432mm
Product Dimension
H 9.1" x W 17.2" x D 17" / H 230mm x W 437mm x D 432mm
Product Dimension
H 7.4" x W 17.2" x D 17" / H 188mm x W 437mm x D 432mm
Product Weight
81.6 lb / 37 kg
Product Weight
71.6 lb / 32.5 kg
Product Weight
70 lb / 31.6 kg
