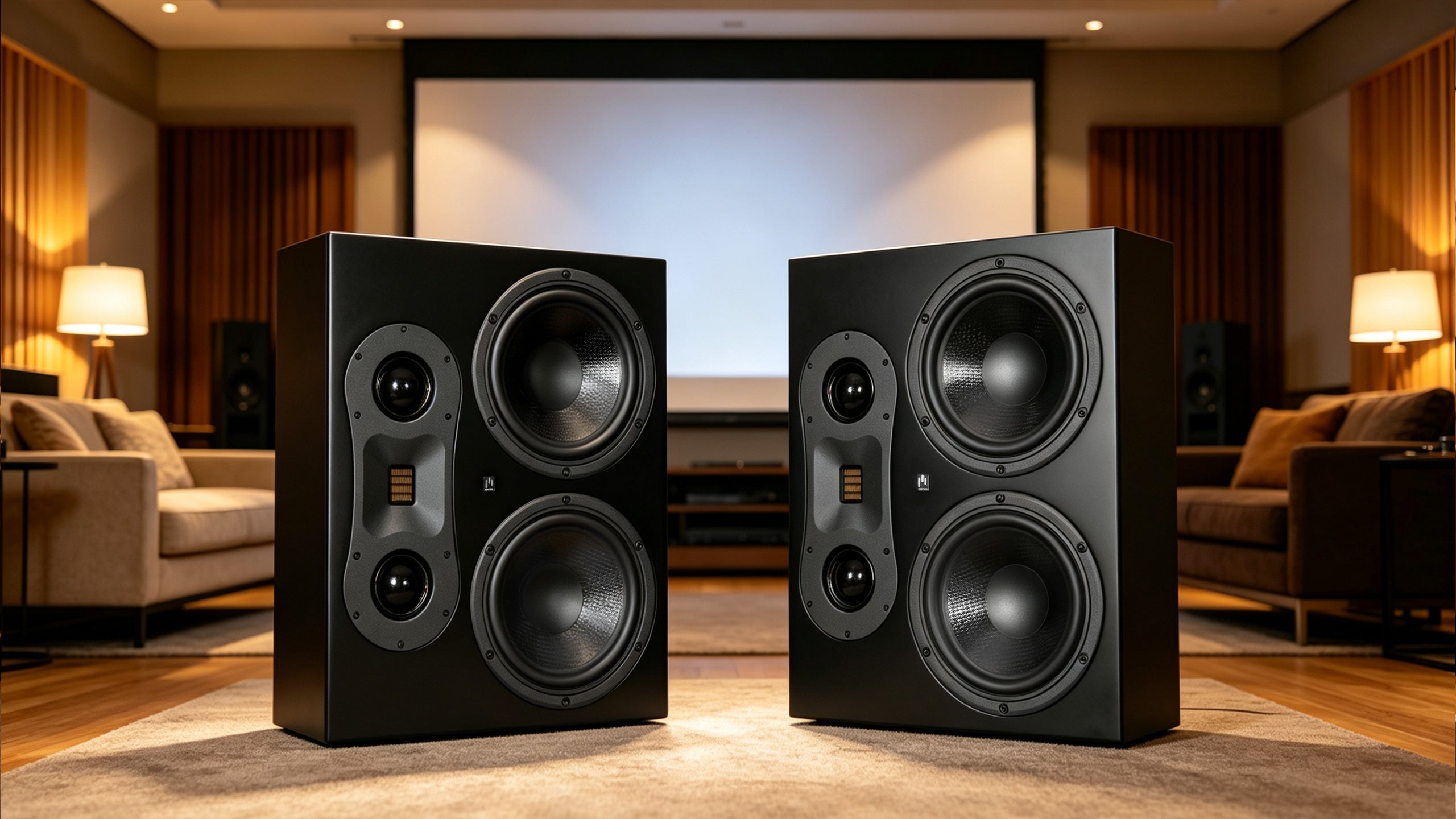

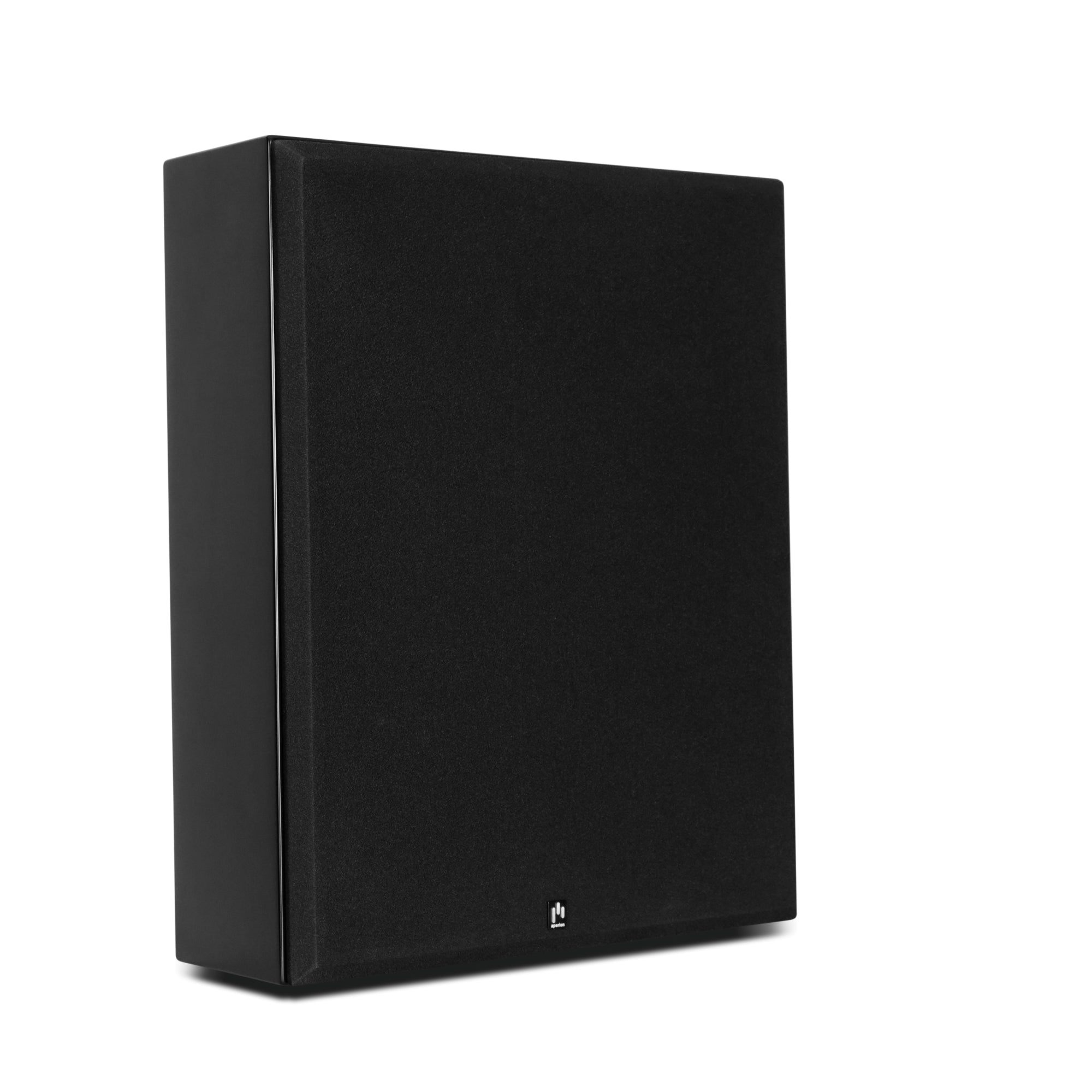

Theatrus T80S Slim On-Wall Speaker | 3-Way Dual 8" Cinema / Studio Monitor
The T80S Slim On-Wall Speaker and T65S Slim On-Wall Speaker are two great speakers designed for creating a surround sound experience. They share the same advanced technology and speaker setup as other models, but they are designed to be as slim as possible.
This makes them perfect for mounting on walls or installing in built-in spaces. Don’t overlook these slim models though; they also perform exceptionally well as front and center speakers in your sound system.
Specification
Frequency Response: | (+/- 3dB) 60-35,000 Hz |
Impedance: | 4 Ohms |
Sensitivity: | 94 dB |
Max SPL: | 122 dB |
Recommended Power: | 20-350 Watts |
Peak Power: | 700 Watts |
Tweeter: | One AMT (Air Motion Transformer) Tweeter |
Midrange: | Two German 2" Soft-Dome Fabric Mid-Range Drivers |
Woofer: | Two German 8" Curv® Cone Woofers |
Driver Configuration: | 3-Way Five Drivers |
Enclosure Type: | Sealed Cabinet, Anti-Resonant, Internally Braced |
Product Weight: | 35.7 Lbs / 16.2 Kgs |
Product Dimensions: |
W 15.8" x H 19.7" x D 5.1" W 400mm x H 500mm x D 130mm (Without Grilles) |
Placement Location: | Main Speakers (Left, Center, Right), or Rear/Side Surround Speakers |
Shipping Weight: | 42.8 Lbs / 19.4 Kgs |
Shipping Dimensions: |
W 20.5" x H 25.4" x D 11.6" W 520mm x H 645mm x D 295mm |
Features

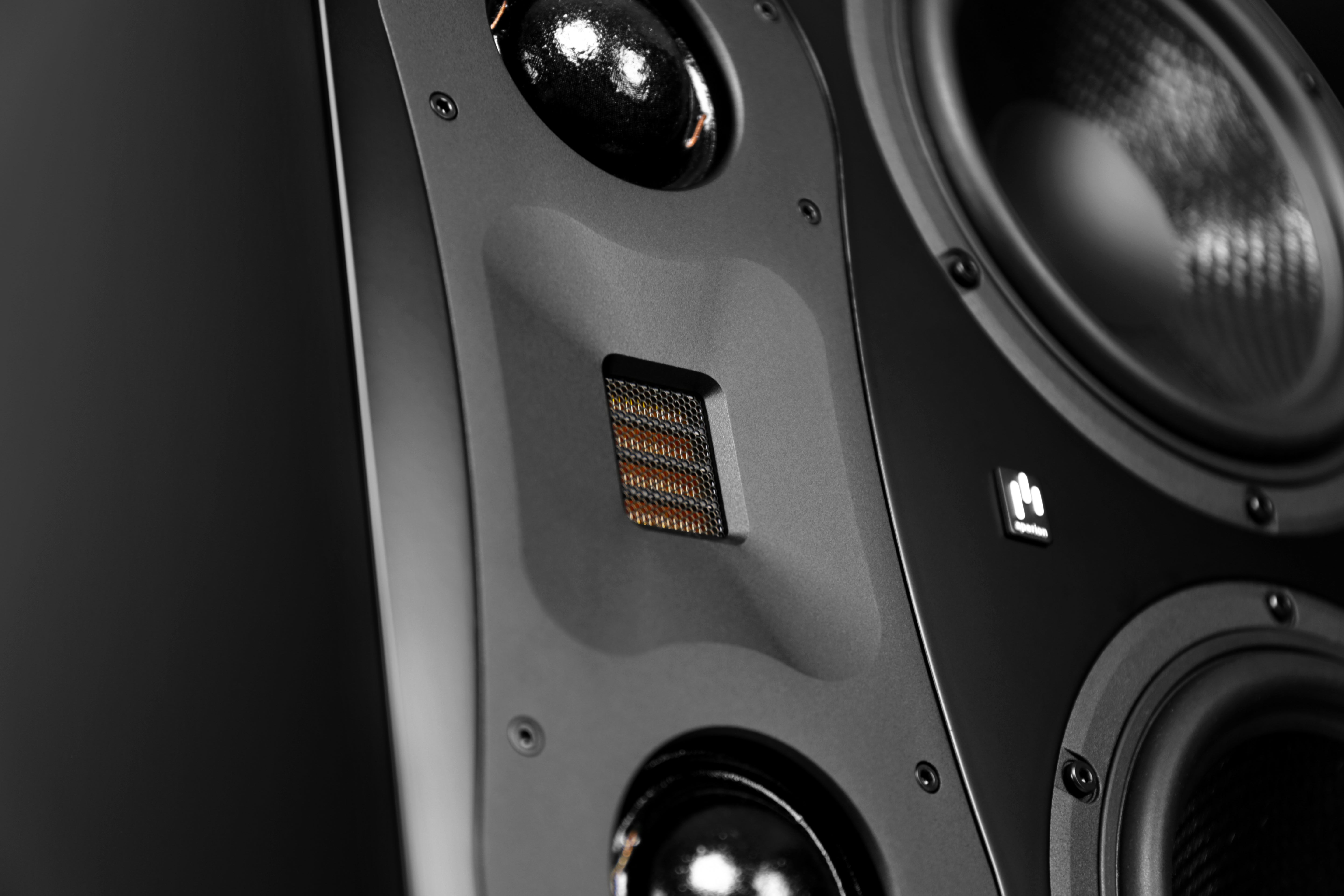

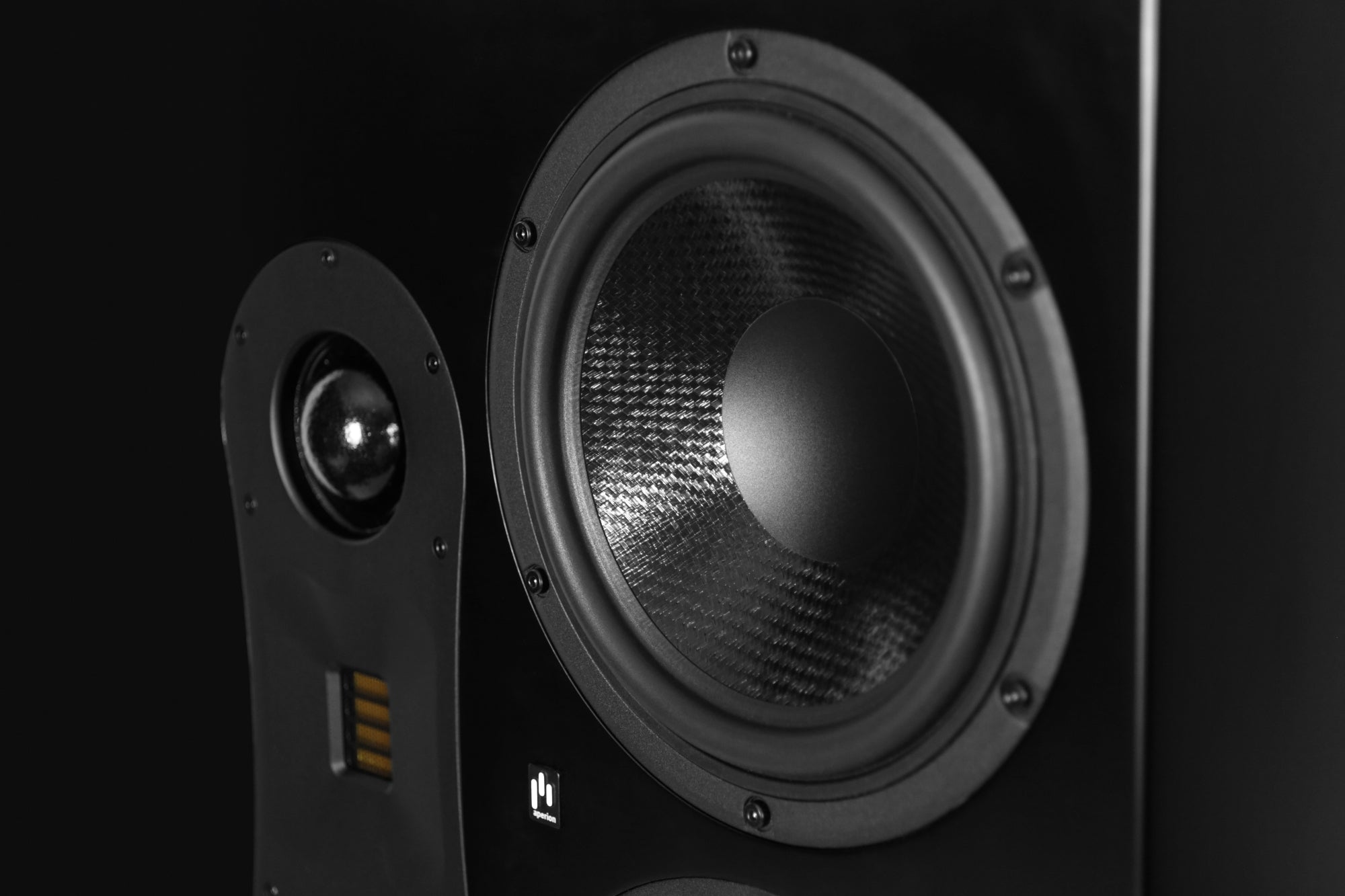

Aperion Air Motion Tweeter
The APERION AMT tweeter boasts a sensitivity of 103 dB and a frequency response reaching 40 kHz, making it ideal for larger and medium-sized home theater rooms. To ensure the tweeter's safety while operating at higher sound pressure levels, we have included a protection circuit. |

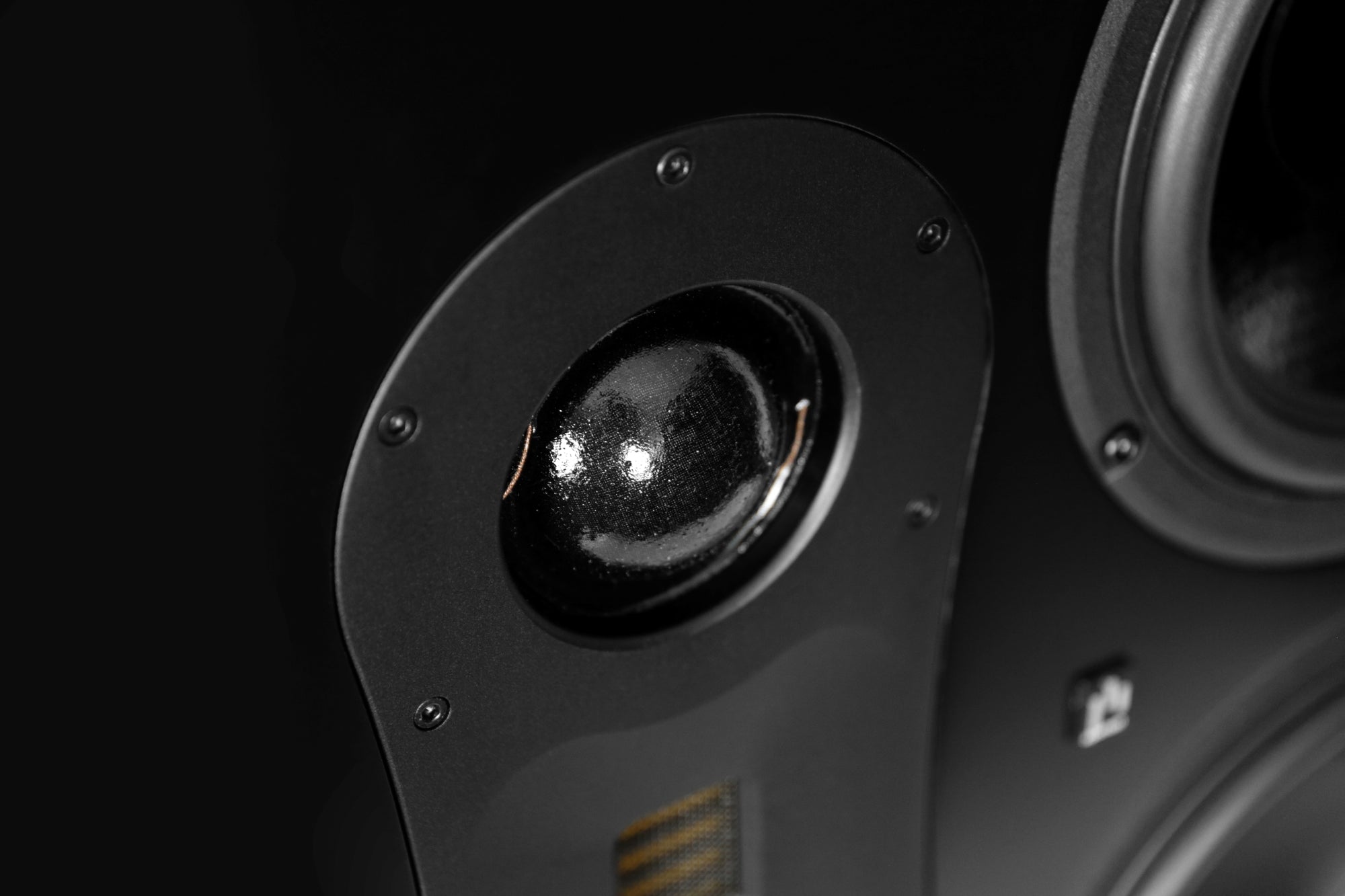

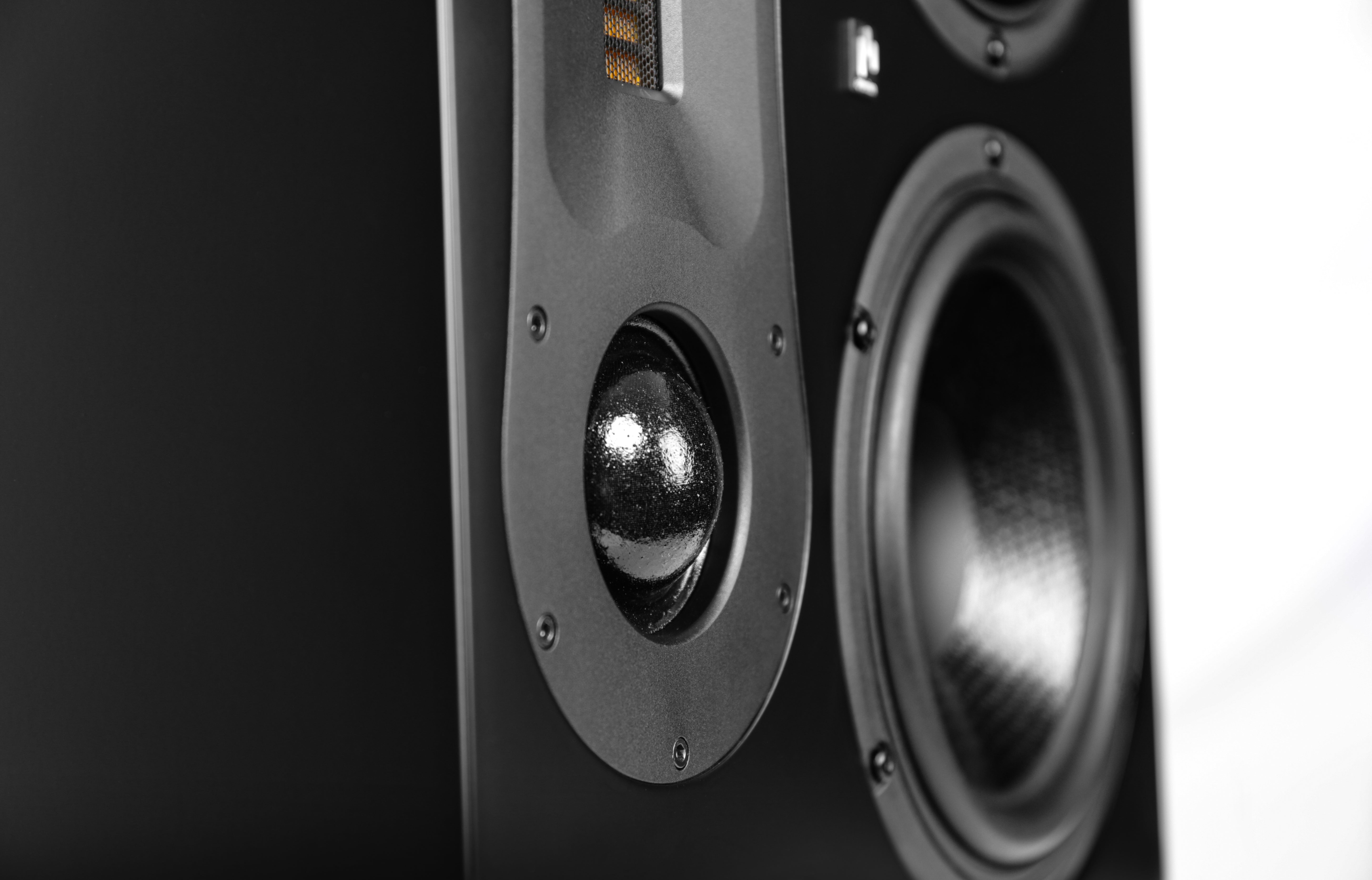

Dual 2" Soft-dome Midrange Driver
Our high end soft-dome midrange unit features a large, low distortion 50mm voice coil, which exceeds the normal size of this type of drive unit. It's wide pole structure and special damping coating significantly reduce the medium frequency segmentation vibration. |

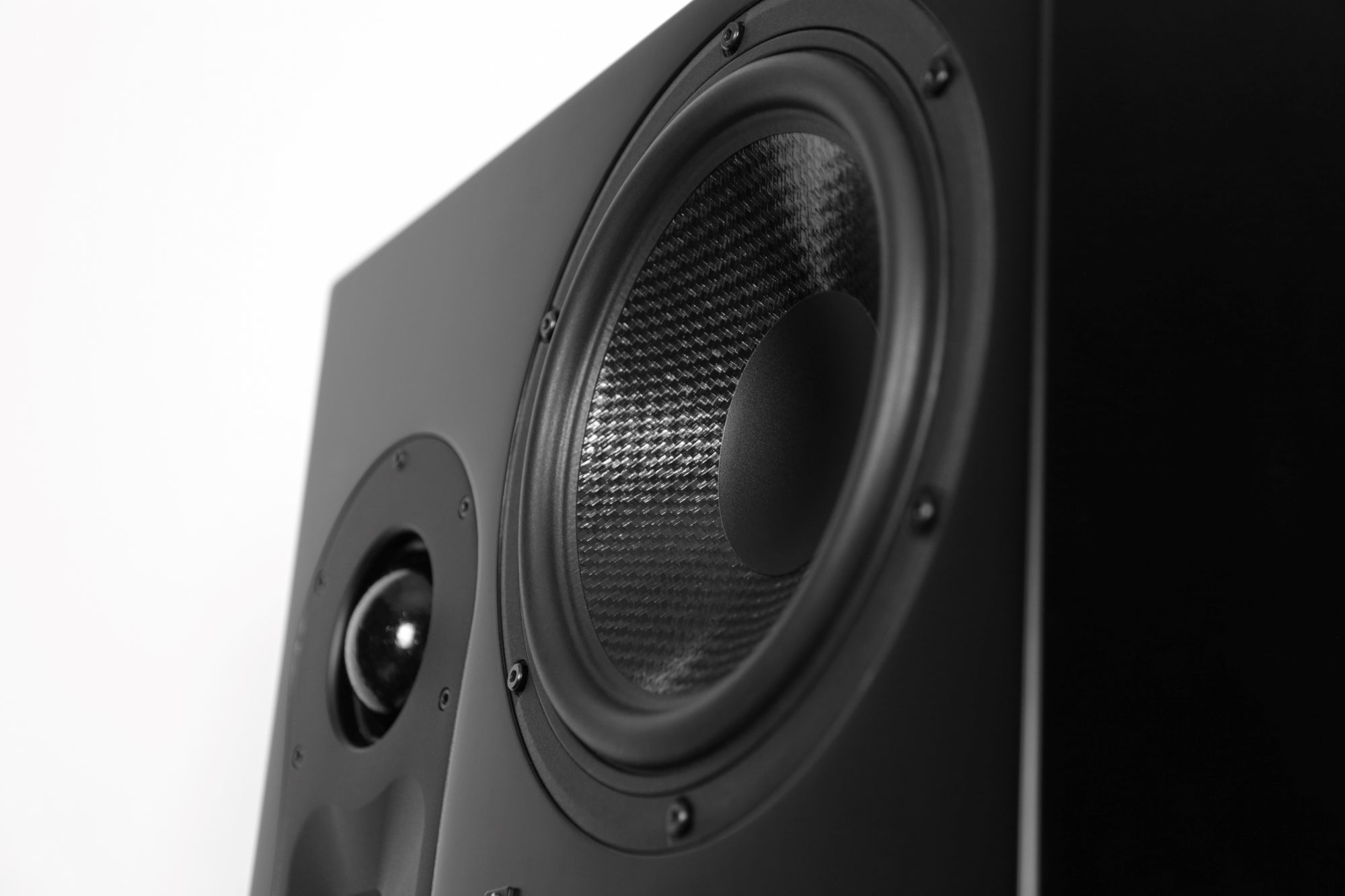

Dual 8" Curv Woofers
The Theatrus line features a new Curv material from Germany Propex Fabrics. The properties of this new Curv material are lightweight, yet rigid and stiff, maintain a high temperature resistance without any water absorption, and the most important in crating a driver unit - this material has a high Young's Modulus and internal damping. |

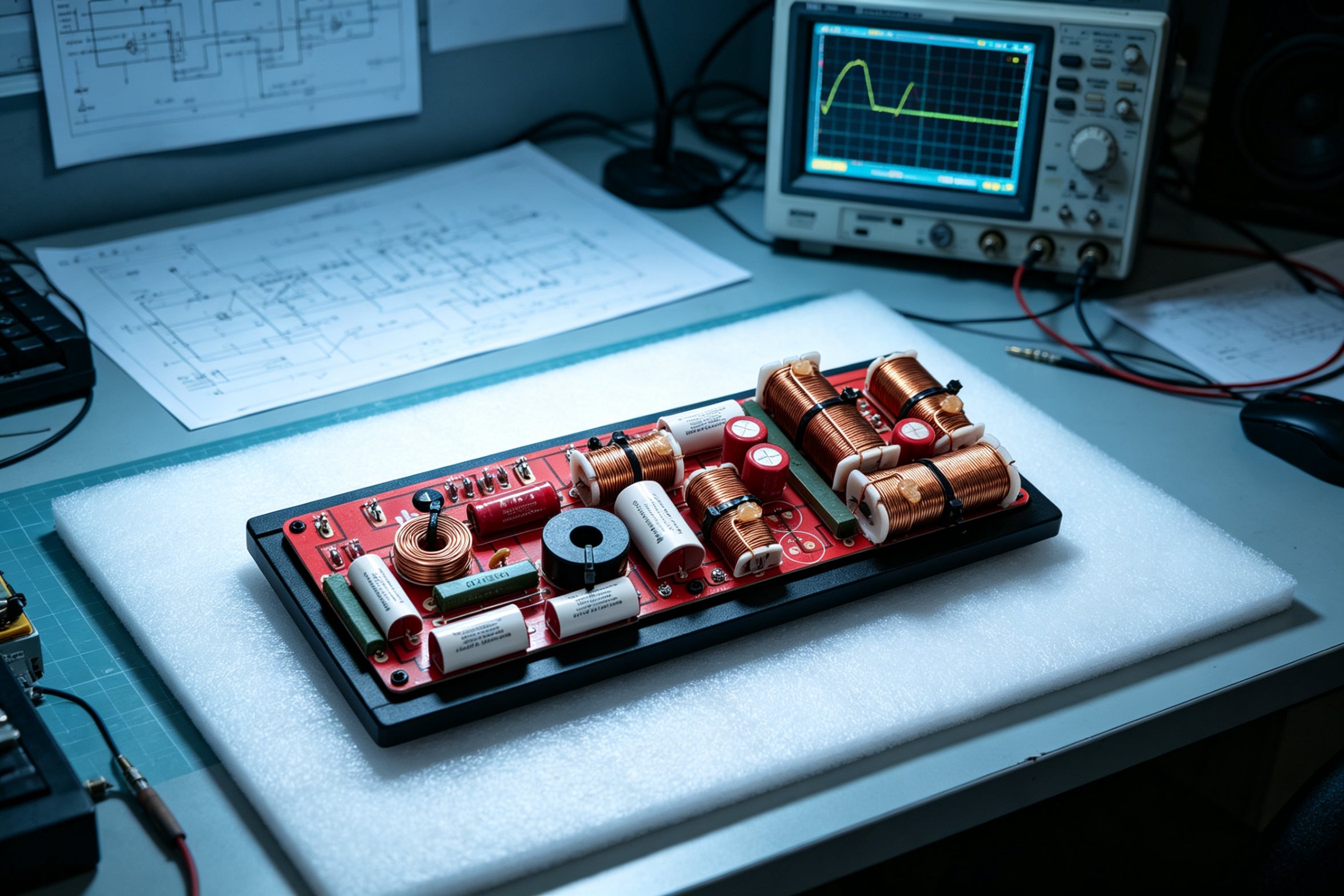

Advanced Crossover
Time-intensive iterative designing and fine-tuning of the crossover networks have resulted in a smoother, more neutral, and better-balanced frequency response across the whole range. Enhanced phase integration between the tweeter and midrange drivers has also resulted in a cleaner, more open sound in the transition regions. The speakers of Theatrus Cinema Studio are crafted using high-quality custom components. These include Aperion's premium metallized polypropylene capacitors, copper wire inductors, and precision wirewound resistors. Together, these components create an exceptional audio experience that combines both beauty and enjoyment. In our pursuit of excellence, we have also custom-painted the FR4 2OZ PCB in Aperion's signature red to reflect our commitment to delivering outstanding sound quality! |
High-Fidelity Cinema Sound Quality
When listening to music, the high-frequency performance is outstanding, with solid density and an abundance of detail. The low frequencies are quick and distinct, showcasing impressive layering. In a multi-channel cinema setup, the characteristics of the monitor box's image cohesion shine through. There is minimal interference between channels, and the sound field positioning is both accurate and precise. Its transient response and control are excellent, allowing for seamless transitions between large and small signals. The sound retraction and release are sharp and crisp, with no dragging, perfectly complementing the original soundtrack of the film and delivering an authentic audio experience to the audience. The independent dome midrange and pneumatic tweeter produce vibrant sound, yet they manage to remain soft and avoid being overly harsh. Even from outside the room, such as in the living room, the beautiful sound quality is easily discernible. When playing Bel Canto, the sound demonstrates powerful penetration, effortlessly passing through sound-transparent curtains without any noticeable strain! |

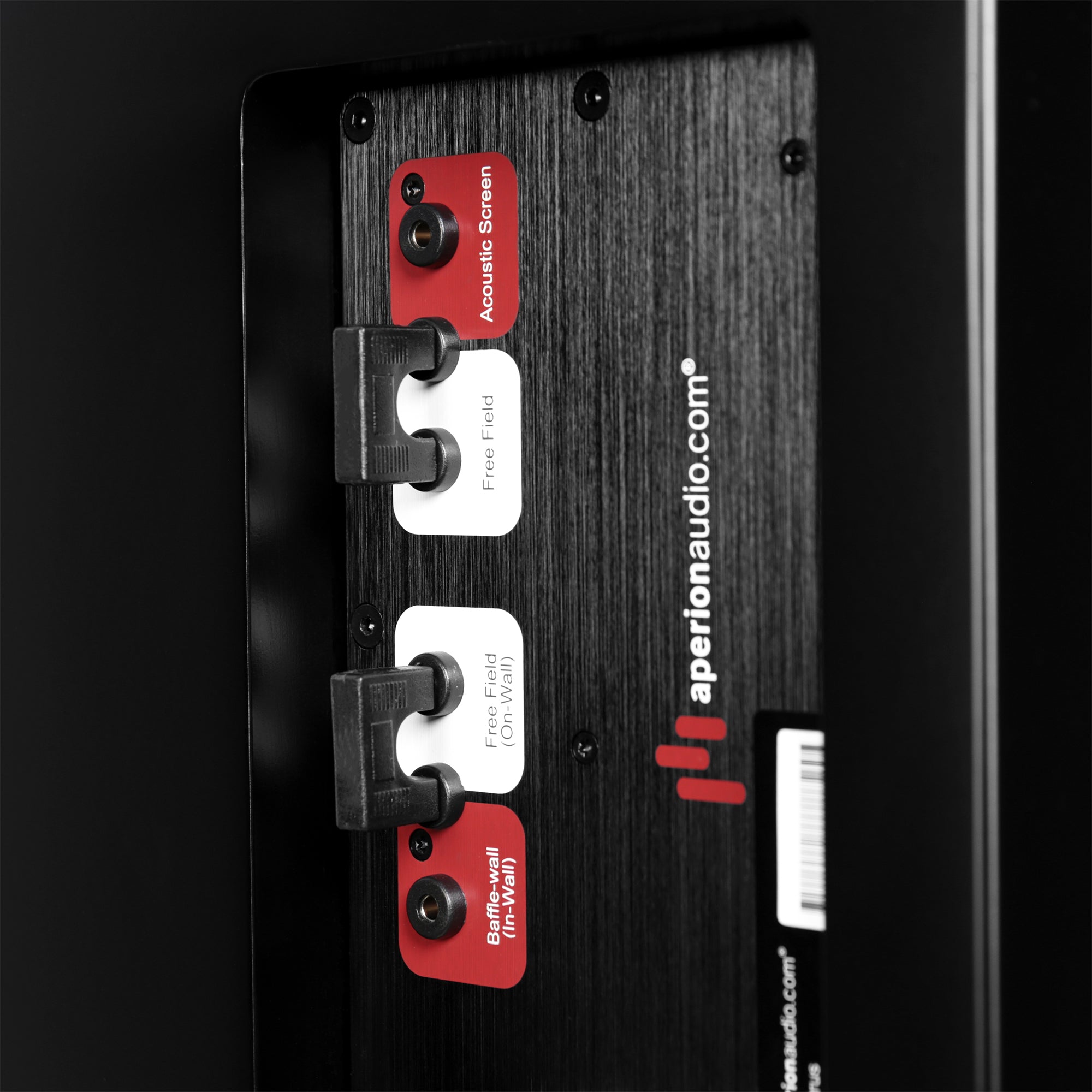

Sound Adjustment

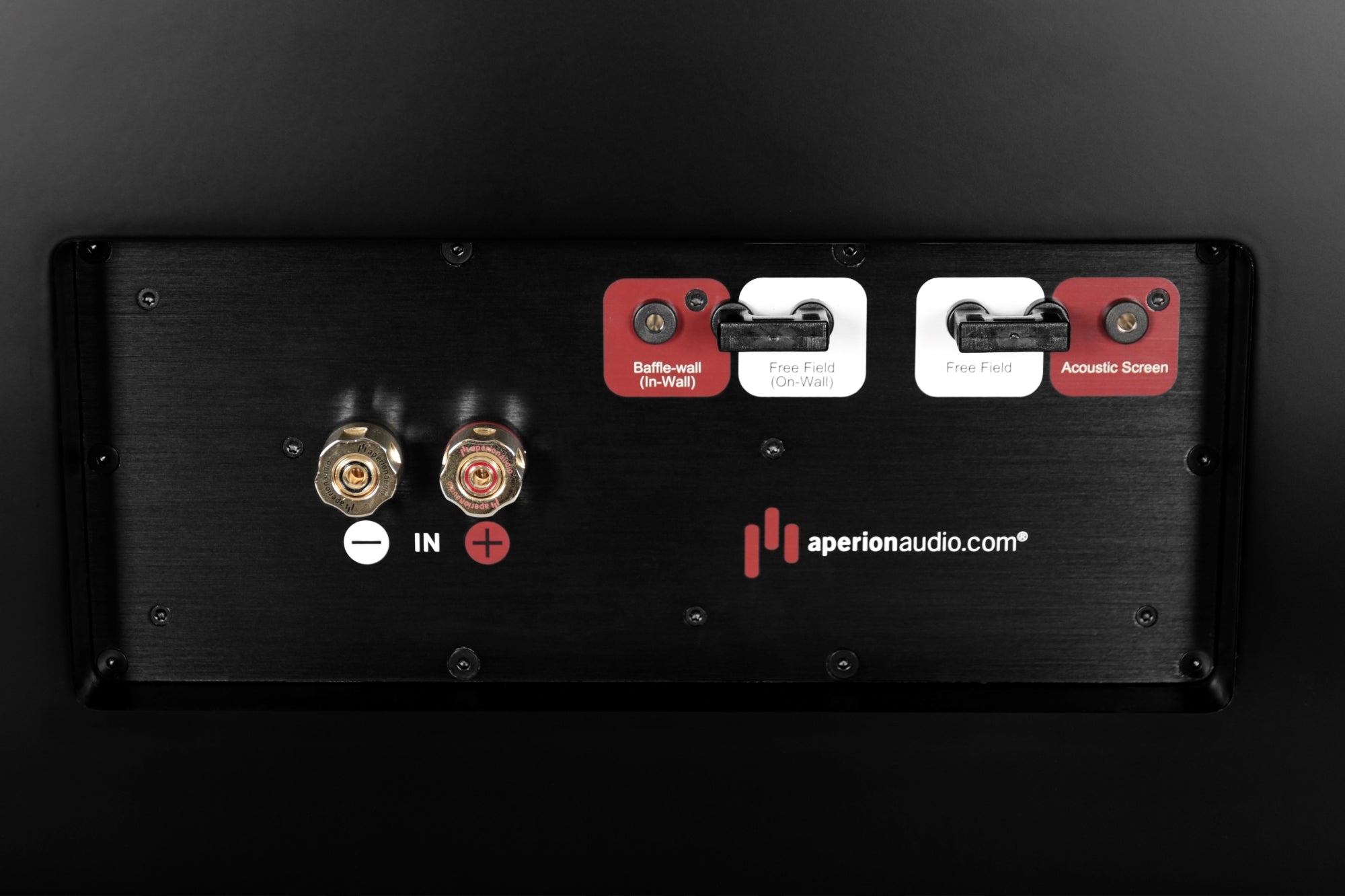

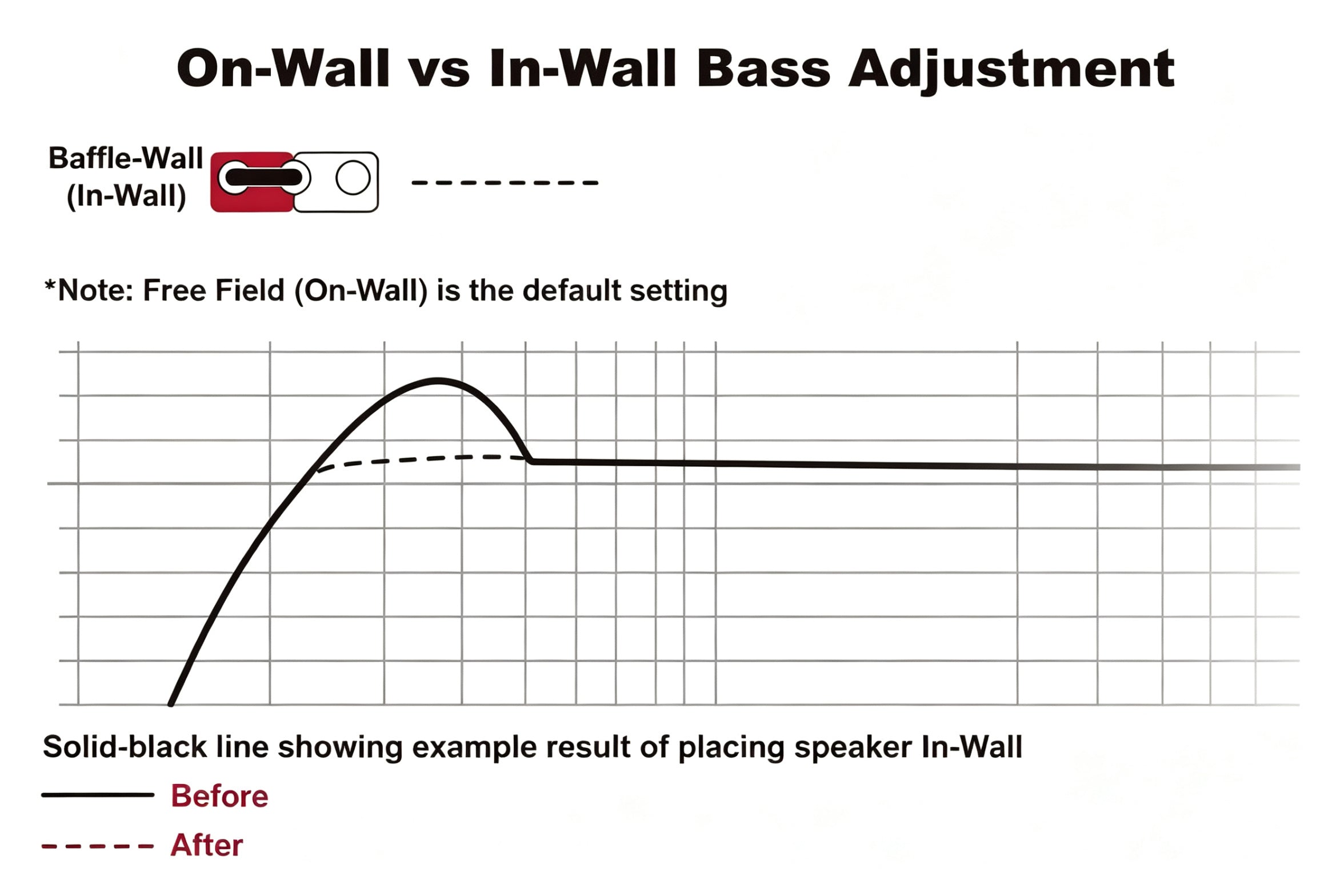

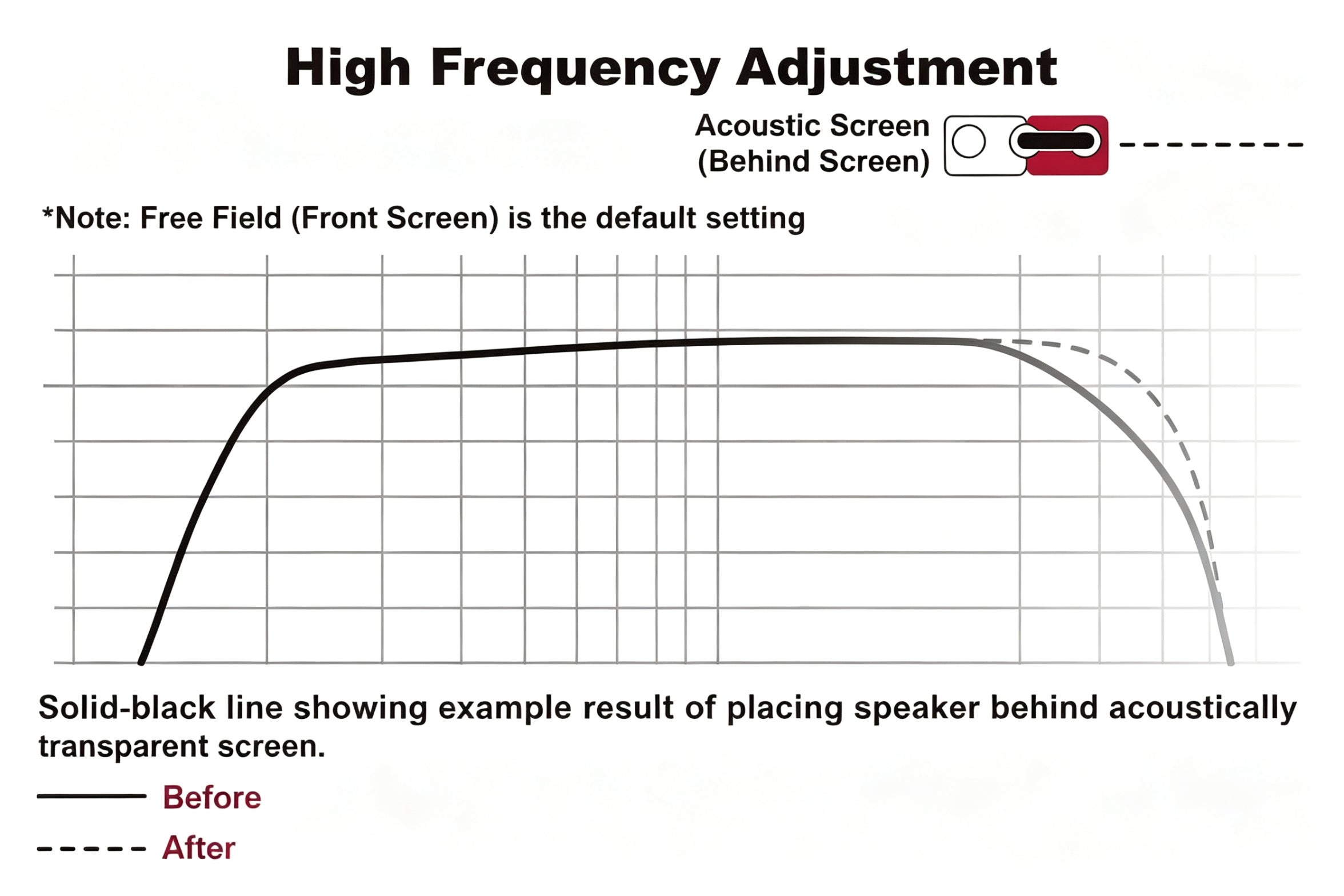

The new Theatrus Speakers adapts to various arrangements and positions with adjustments for Baffle-Wall (In-Wall) or Free-Field (On-Wall). Along with the bass adjustment, we also included a high frequency adjustment to compensate the high frequency when the speaker is placed behind a projection screen. |

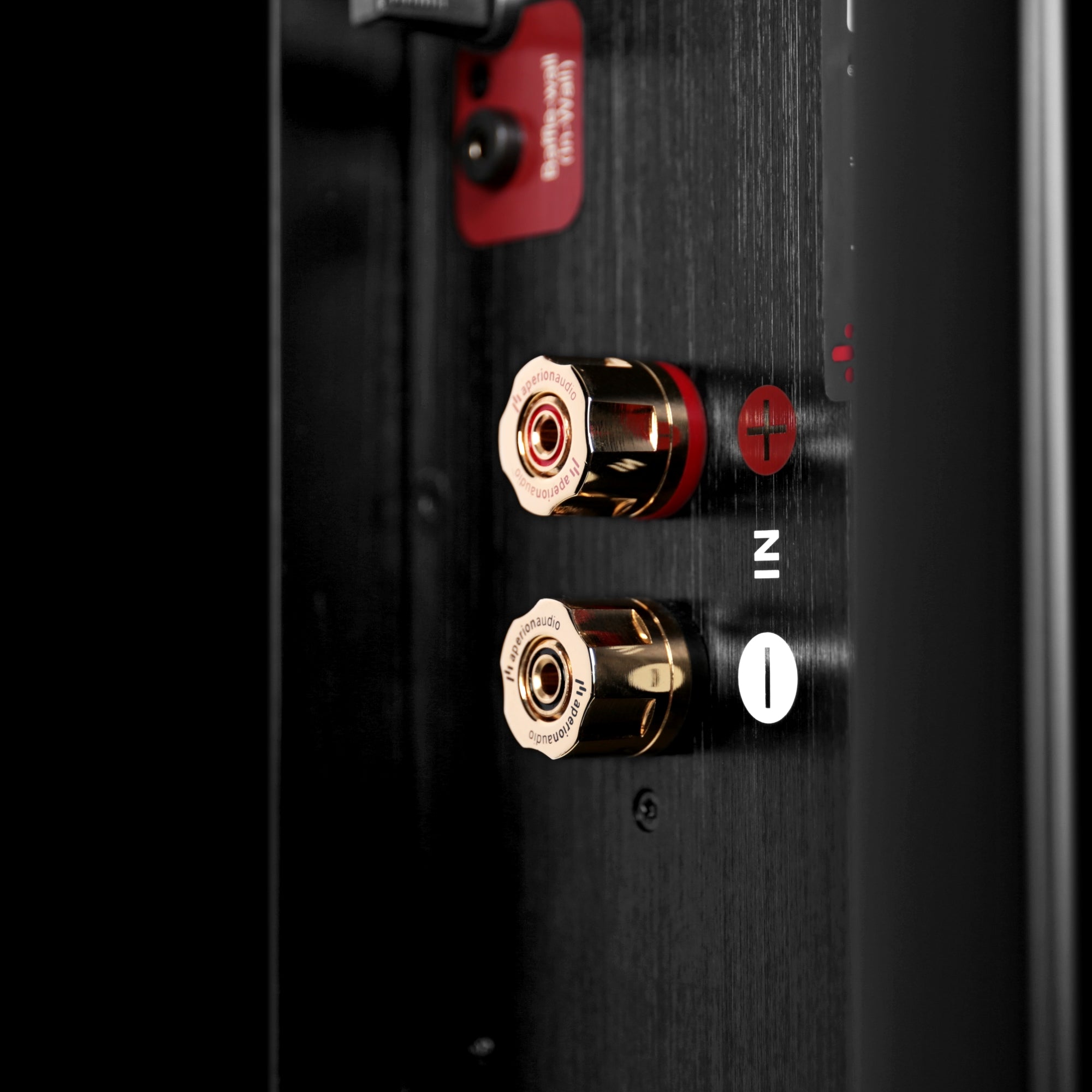

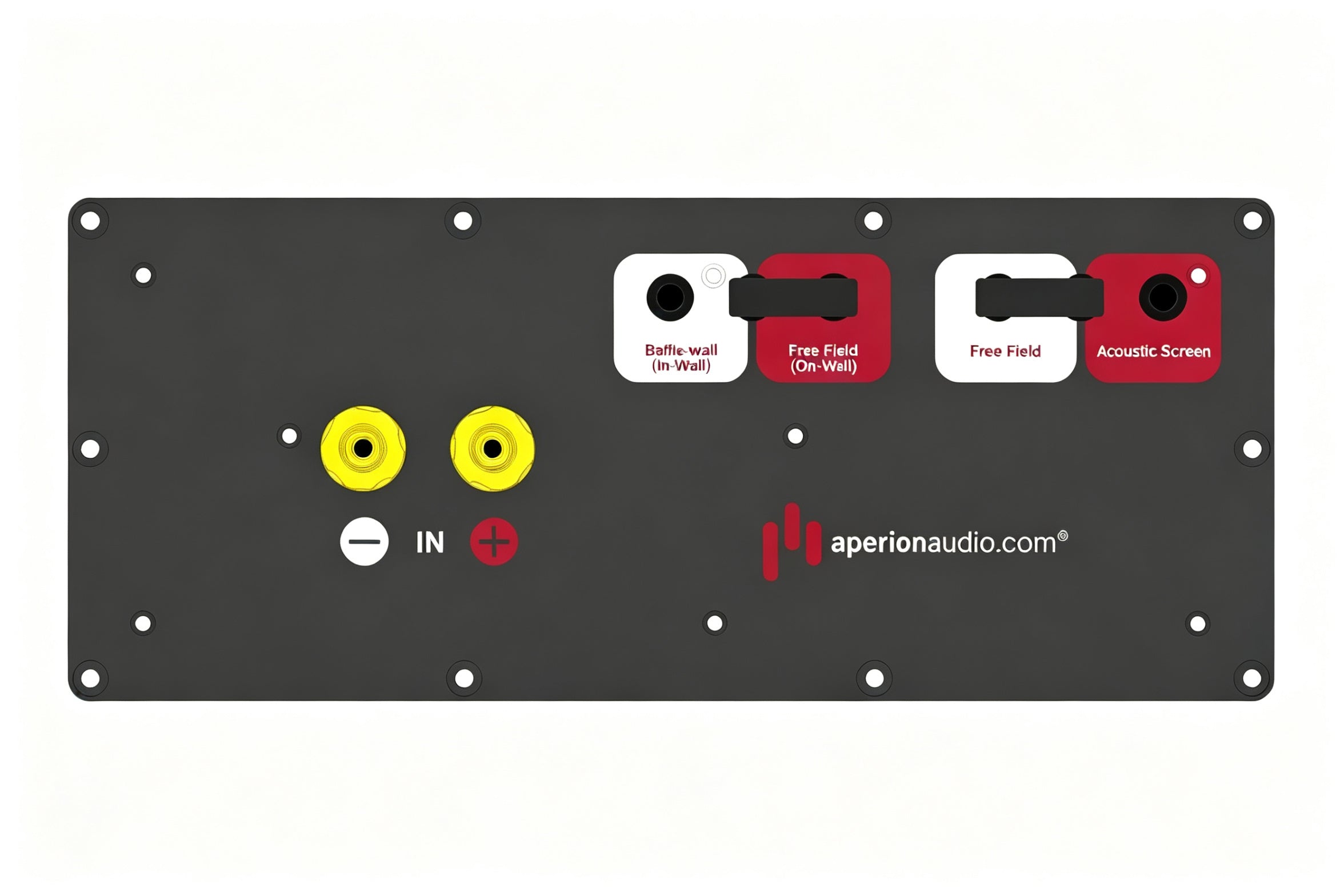

5-Way gold-plated binding posts
The 5-way gold-plated binding posts let you connect your speakers any which way you choose: bare wire, banana plugs, spades, round pins or flat pins. |
Custom tuned cabinet
Theatrus drivers come packed in a Stealth Black MDF Anti Resonant Cabinet. |

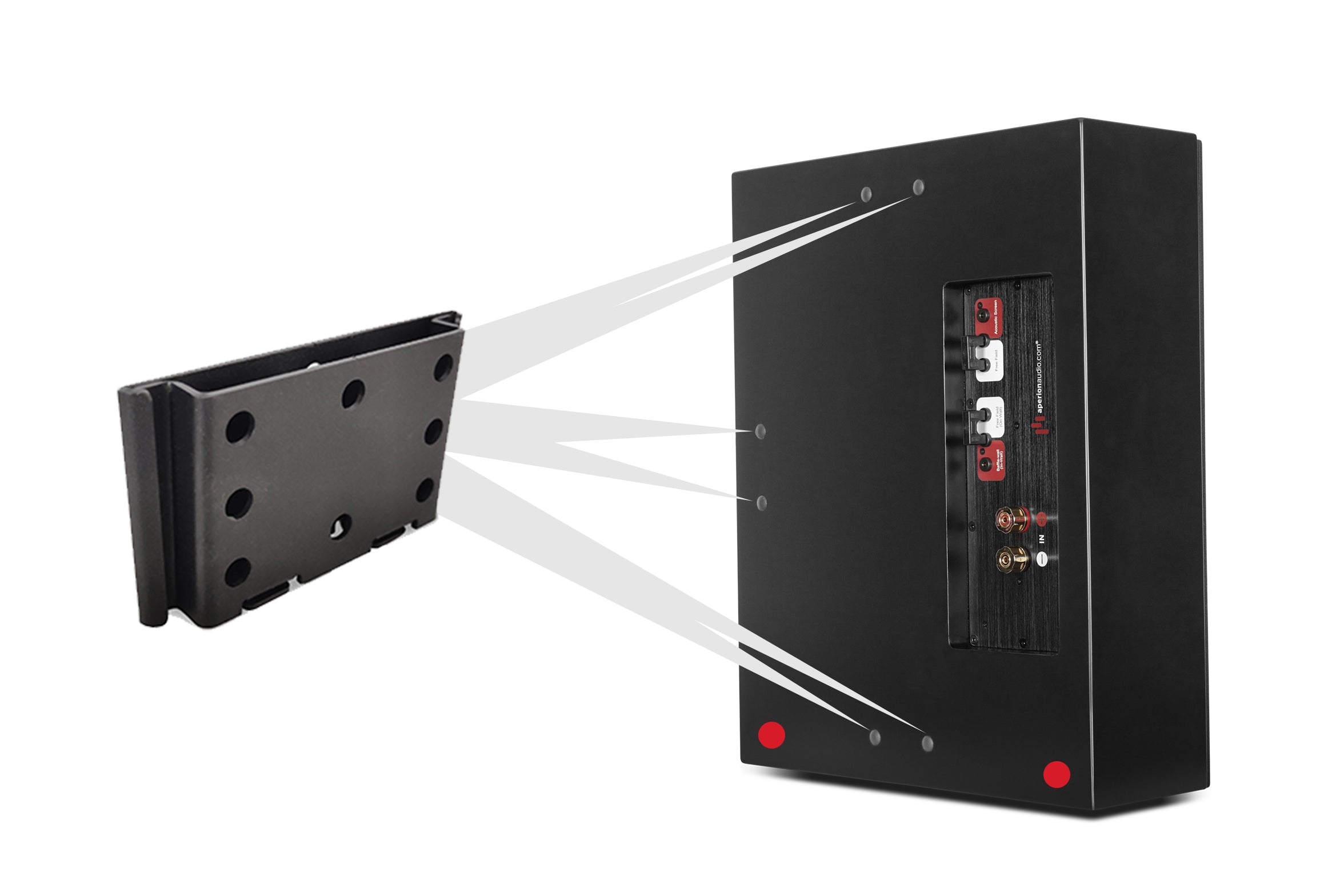

Easy mount and install

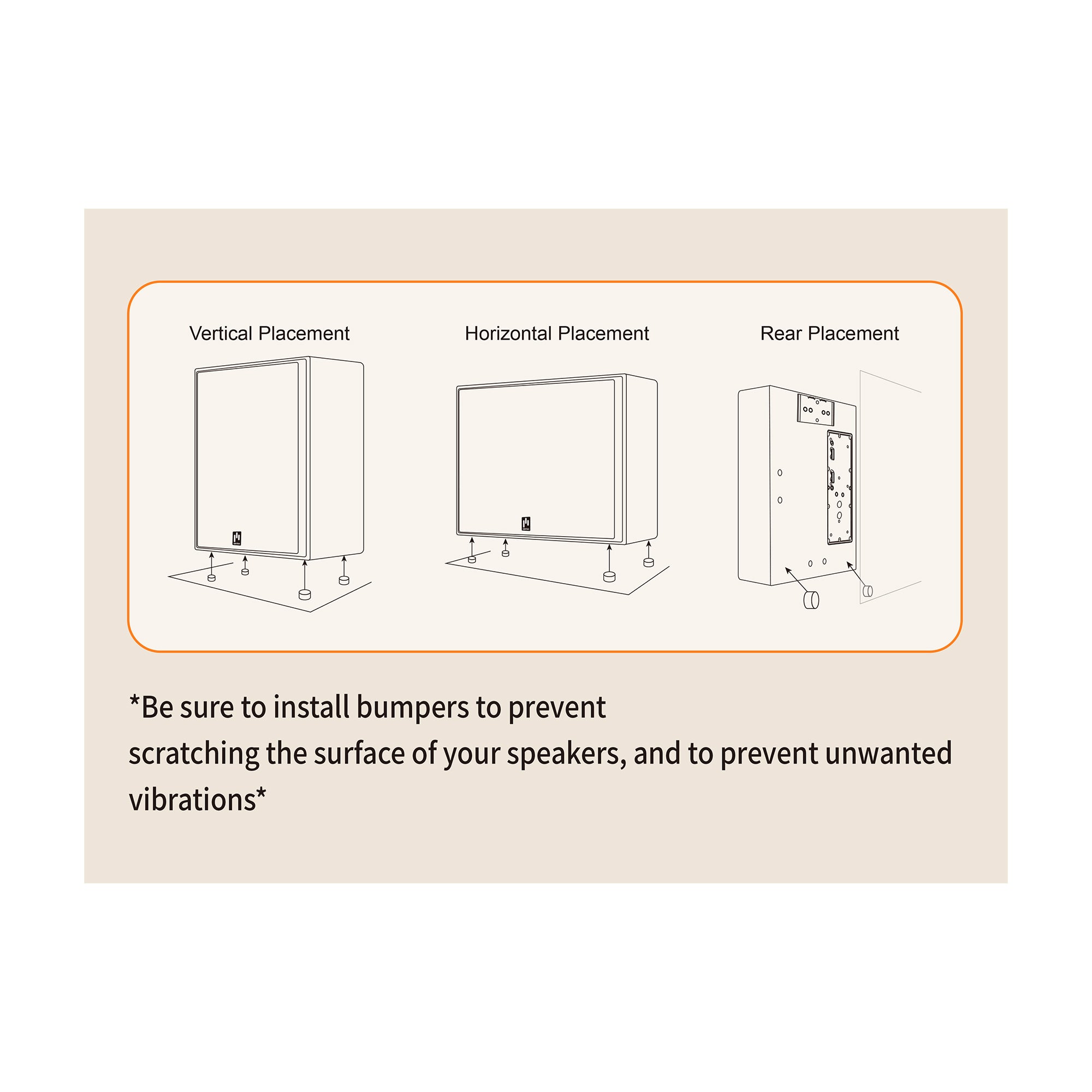

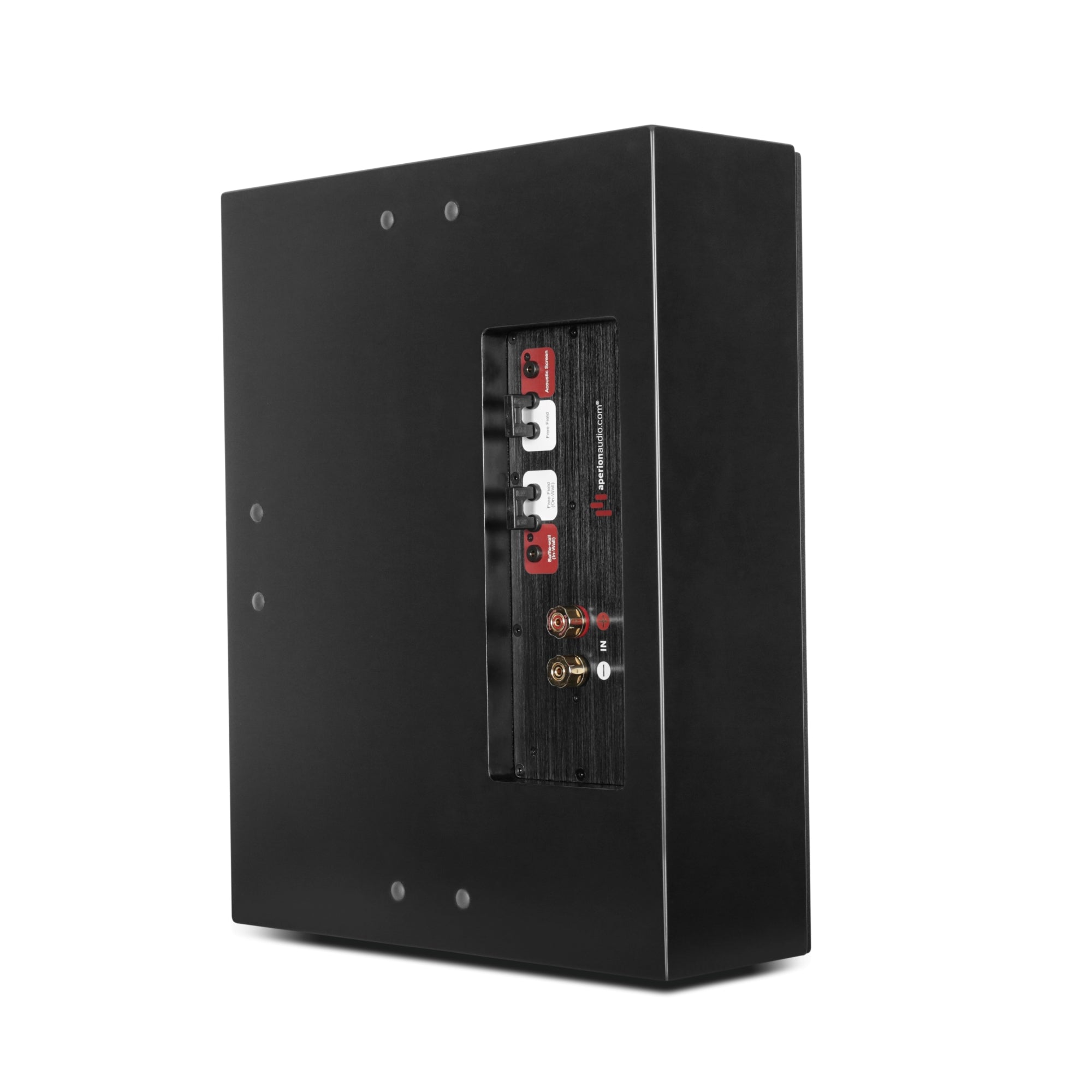

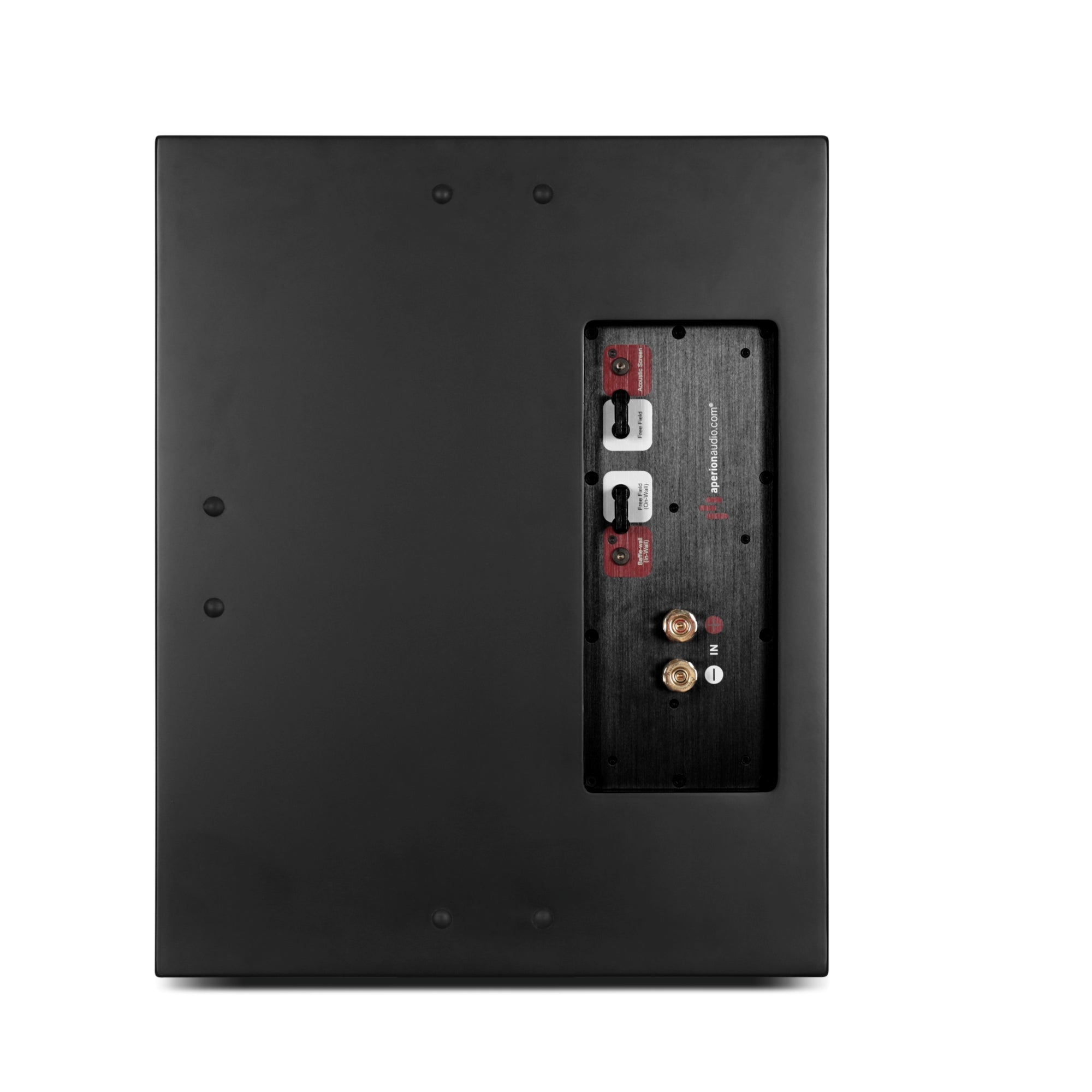

The Theatrus T80S speaker features a total of six mounting holes on three different sides of its back, allowing for flexible installation in various directions. It includes our Stealth Mount wall bracket, making installation quick and easy. Additionally, four rubber feet are included in the package. Please note that you need to attach two of the rubber feet near the red circle marks shown in the picture above to ensure that the speaker remains balanced. If you choose to install it on other edges, the same principle applies. If you want to rotate the speaker, we have also reserved a mounting hole in the middle of the back of the T80S. You will need to use our other AWM Wall Mount. |

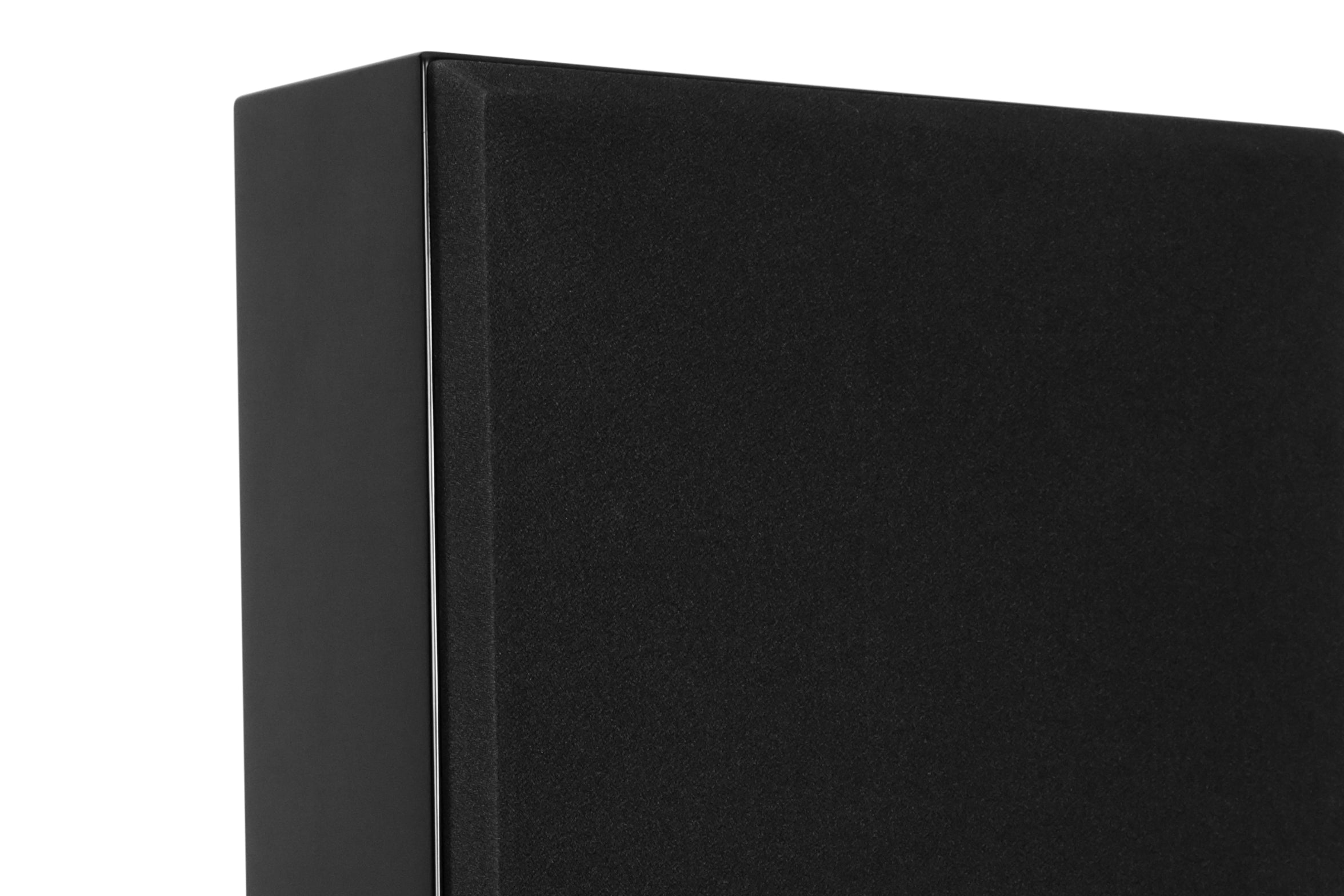

Sealed slim cabinet design
One of the key steps in achieving sound quality is to contain the sound from the speaker to your room, as opposed to your wall. Theatrus On-wall speakers use a sealed box enclosure. |
Rotatable Easy-Pull Spring-Loaded Logo

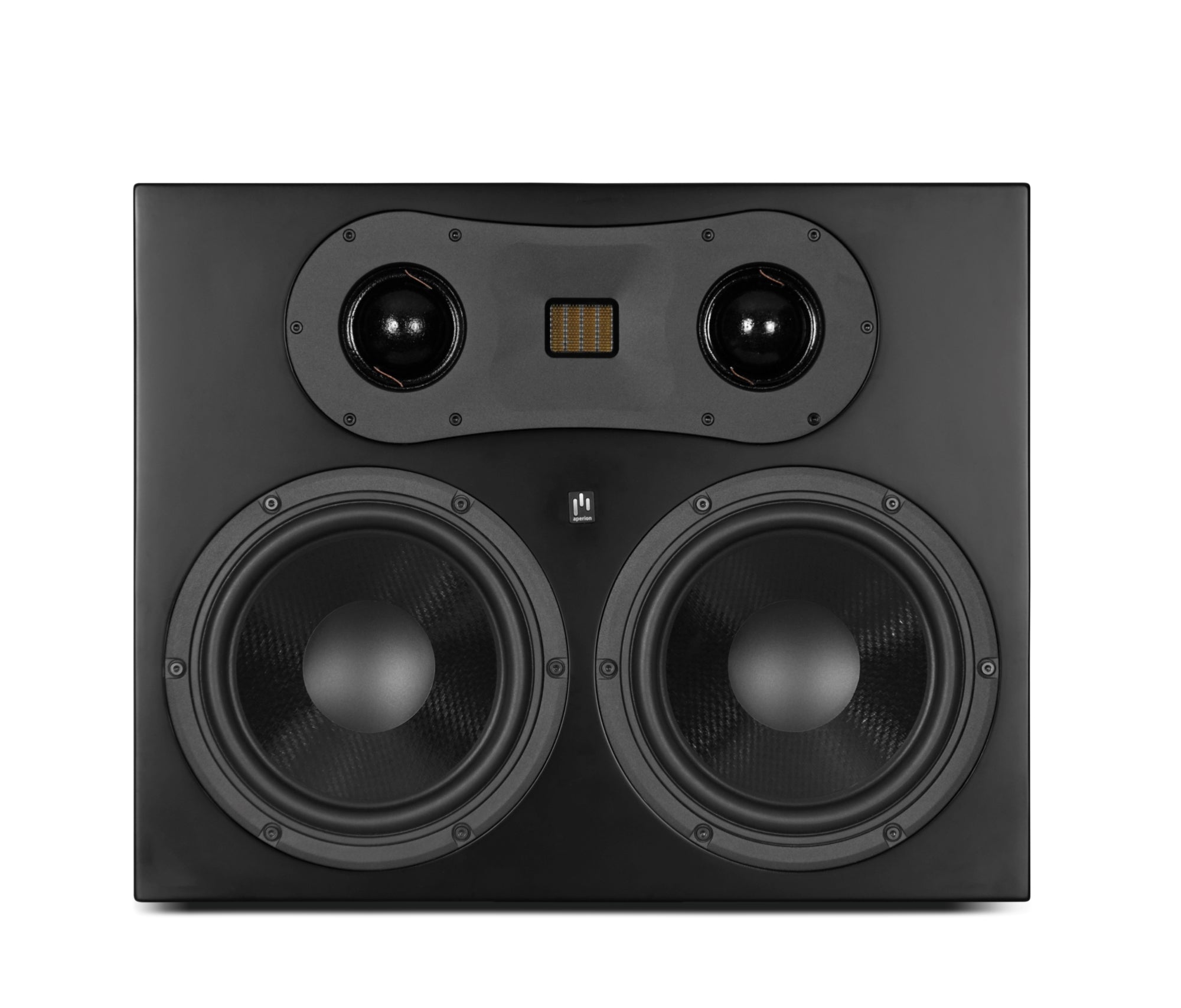

Theatrus speakers can be placed On-wall, In-wall, on the ground or on the ceiling, the Theatrus line can effectively cover most of the listening area. The speaker can be arranged vertically or horizontally, dependent on the application. |

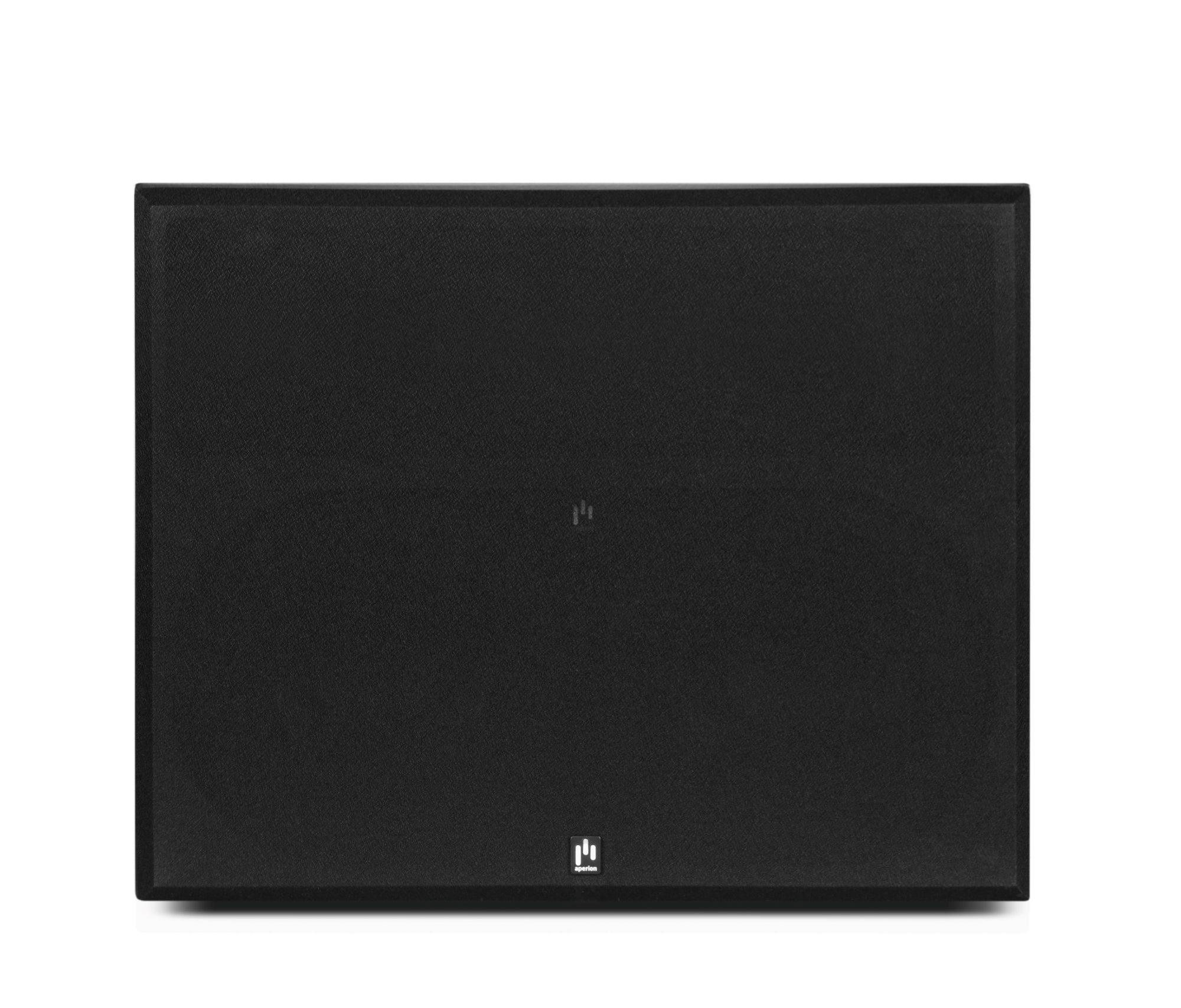

Lightweight magnetic grille
To protect the speaker innards from accidents, pets or curious fingers, the entire Theatrus line sports a lightweight magnetic grille which can easily be removed when you want to show off your beautiful speakers to friends and family. |
Key Features
- APERION AMT (Air Motion Transformer) Ribbon Tweeter
- APERION 2" Soft-Dome Fabric Mid-Range Drivers x 2
- APERION 8" Curv Cone Woofers x 2
- Optimized Crossover Network with Mylar and Polypropylene Capacitors
- Rear Adjustment High-Frequency Compensation for Placement Behind Projector Screens
- Rear Adjustment Bass-Frequency Compensation for On-Wall or In-Wall Placement
- Anti-Resonant Cabinet
- Rear Insert Threads for Easy Installation
- 5-Way Gold Plated Binding Posts
- Magnetic Acoustically Transparent Grille Cloth
- Easy-Pull Spring-Loaded Rotatable Logo
Package Contents:
- T80S Slim On-Wall Speaker x One (1) Pcs
- Manual x One (1) Pcs
- Polish Cloth x One (1) Pcs
- Gloves x Two (2) Pcs
- Rubber Bumpers x Four (4) Pcs
- AWZ Wall Mount x One (1) Pcs
