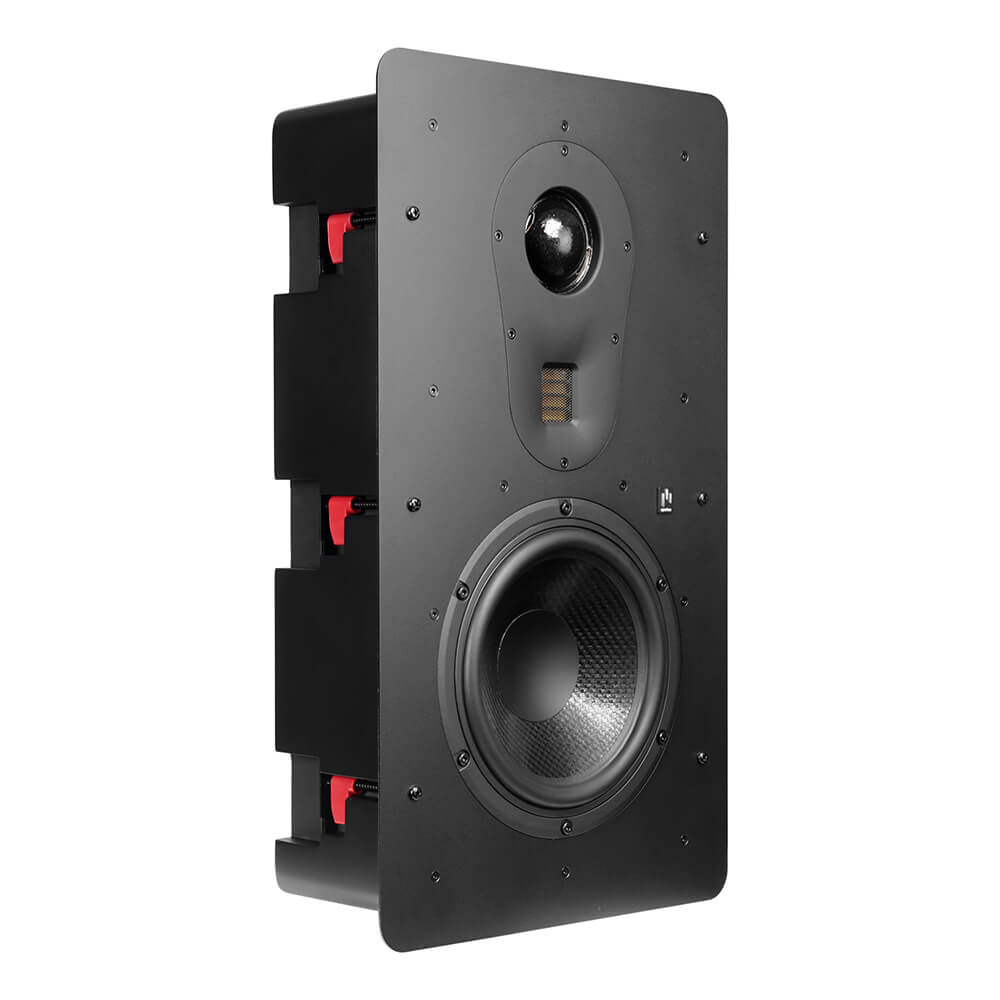

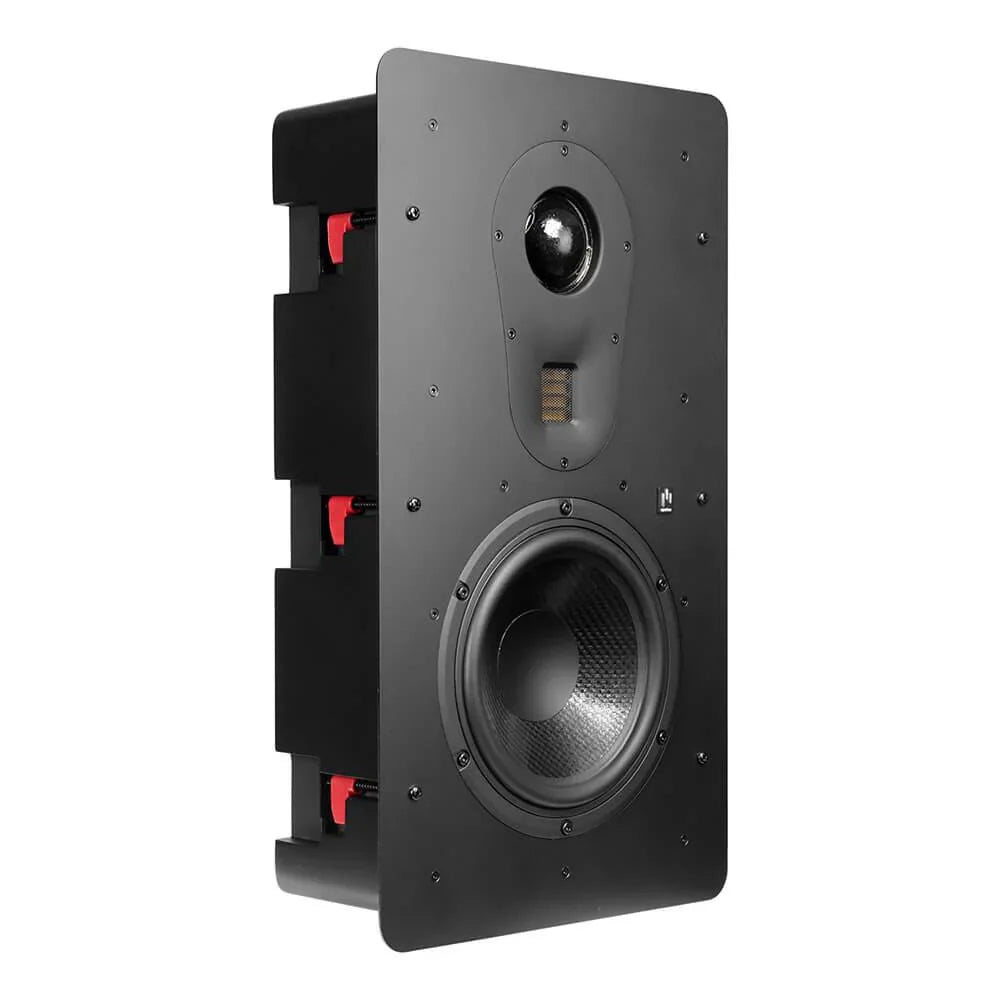

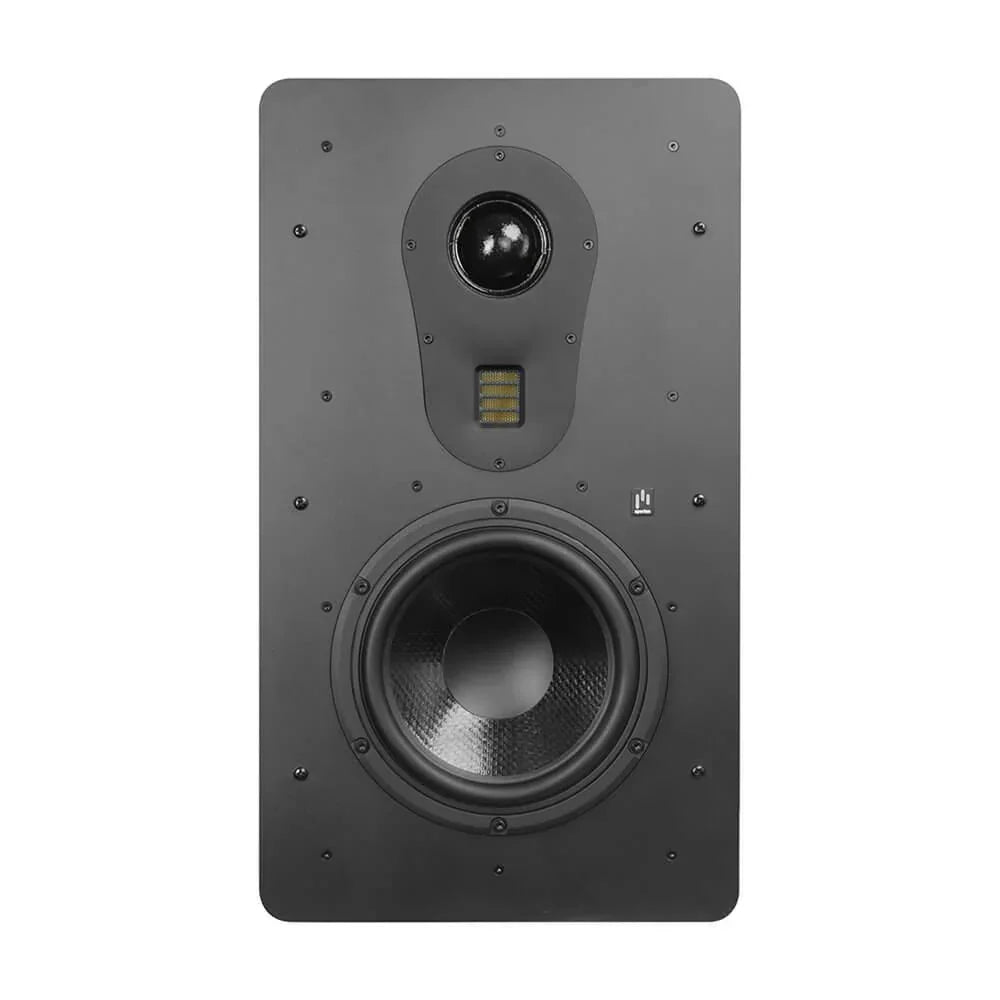

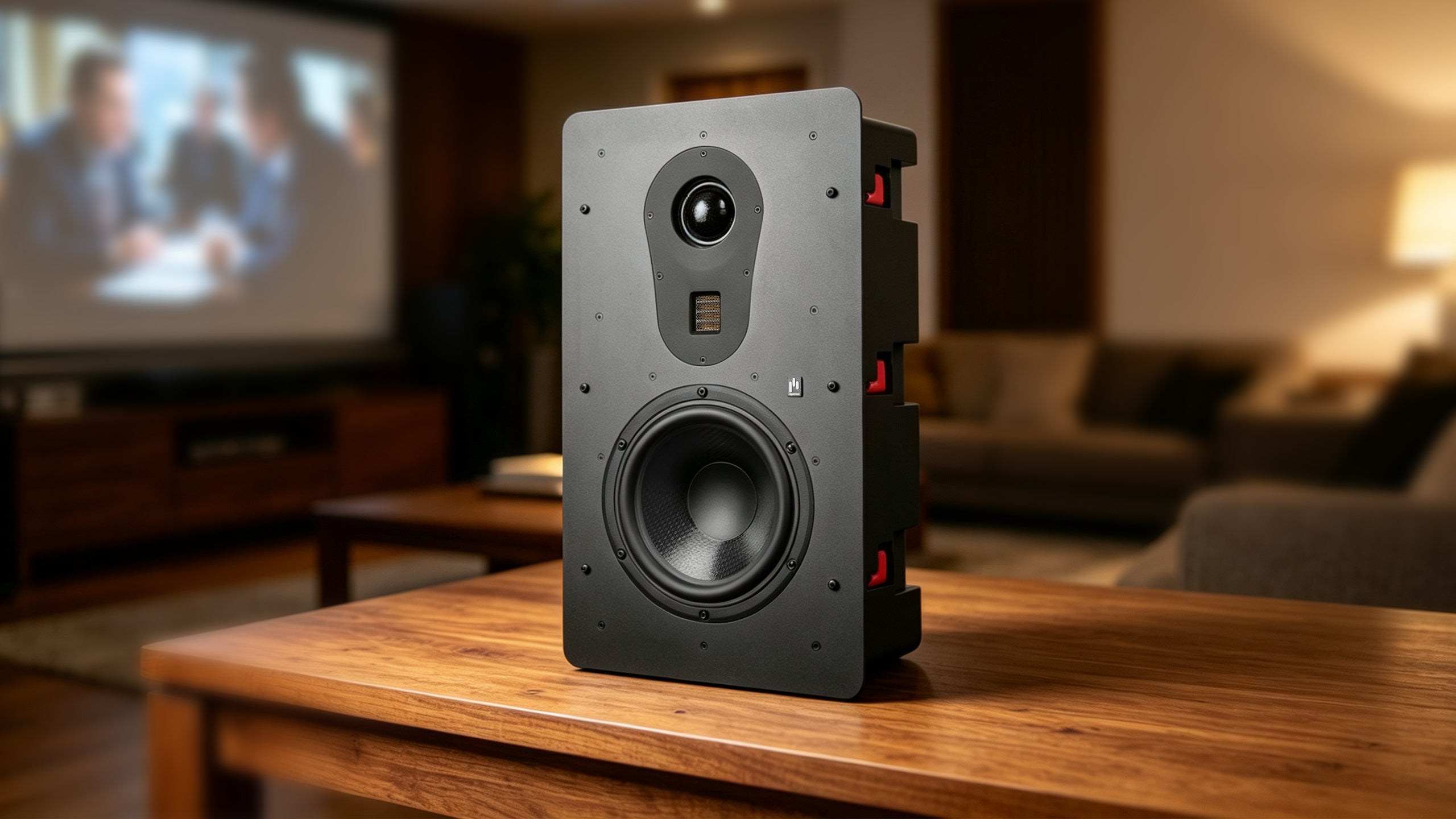

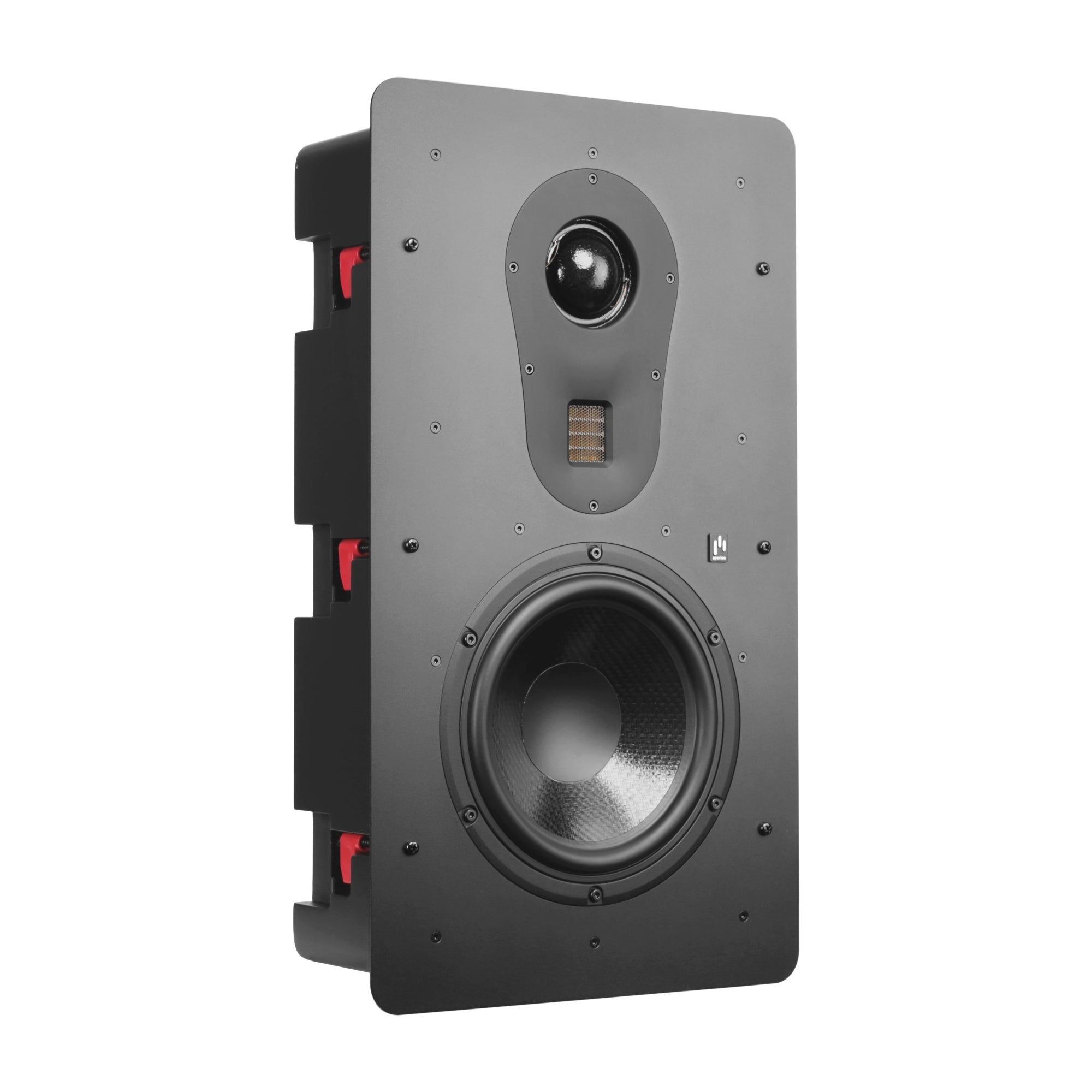

Theatrus T83W In-Wall Speaker | 3-Way Single 8" Cinema / Studio Speaker
The Theatrus T83W In-Wall Speaker is a versatile speaker that provides powerful sound, making it a great choice for home theaters, recording studios, and various professional settings.
Its sturdy design ensures durability and easy setup. The speaker looks stylish thanks to its strong steel casing, and you can use it with or without a magnetic front cover to choose between a bold or more understated look.
The Theatrus T83W In-Wall Speaker with backing enclosure has been designed and engineered with the same high expectations as the other Theatrus models for easy-installation, leaving no space for compromise on sound or build quality.
Its hardened steel baffle maintains a clean look if you prefer no grilles, or leave the grilles on for a stealth-like look throughout your home theater.
The Theatrus T83W In-Wall Speaker is a high SPL speaker with excellent performance and dynamic range, targeting small to large home theaters, film production facilities, professional music studios. No matter where you install your Theatrus speakers, you'll know you're getting the best that Aperion has to offer.
Specification
Frequency Response: | (+/- 3dB) 60-35,000 Hz |
Impedance: | 4 Ohms |
Sensitivity: | 91 dB |
Max SPL: | 117 dB |
Recommended Power: | 20-200 Watts |
Peak Power: | 400 Watts |
Tweeter: | One AMT (Air Motion Transformer) Tweeter |
Midrange: | One German 2" Soft-Dome Fabric Mid-Range Driver |
Woofer: | One German 8" Curv® Cone Woofer |
Driver Configuration: | 3-Way Single 8" Backbox In-Wall Speake |
Enclosure Type: | Anti-Resonant, Sealed |
Product Weight: | 28.4 Lbs / 12.9 Kgs |
Product Dimensions: |
W 12.6" x H 22.1" x D 5.2" W 320mm x H 560mm x D 132mm |
Cut-out Dimensions: |
W 11.26" x H 20.71" x D 5.2" W 286mm x H 526mm x D 130mm |
Placement Location: | Main Speakers (Left, Center, Right), or Rear/Side Surround Speakers |
Shipping Weight: | 32.4 Lbs / 14.7 Kgs |
Shipping Dimensions: |
H 26" x W 12" x D 16" H 670mm x W 300mm x D 395mm |
Features

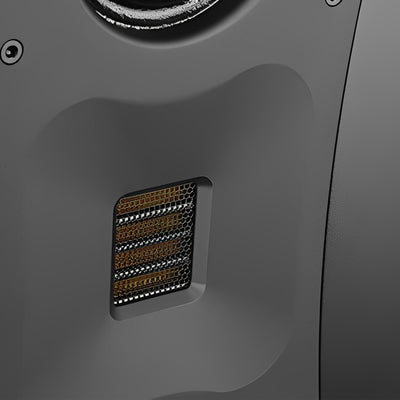

Aperion Air Motion Tweeter
The APERION AMT tweeter can achieve 103 dB sensitivity, and frequency response of up to 40 kHz, which we found to be perfect for both larger and medium sized home theater rooms. Knowing that this tweeter would operate at a higher SPL, we also added a protection circuit to help keep the tweeter safe. |

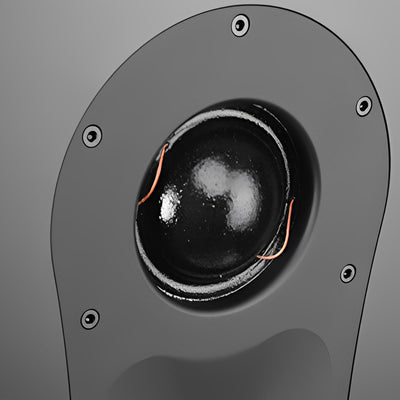

2" Soft-dome Midrange Driver
Our high end soft-dome midrange unit features a large, low distortion 50mm voice coil, which exceeds the normal size of this type of drive unit. It's wide pole structure and special damping coating significantly reduce the medium frequency segmentation vibration. |

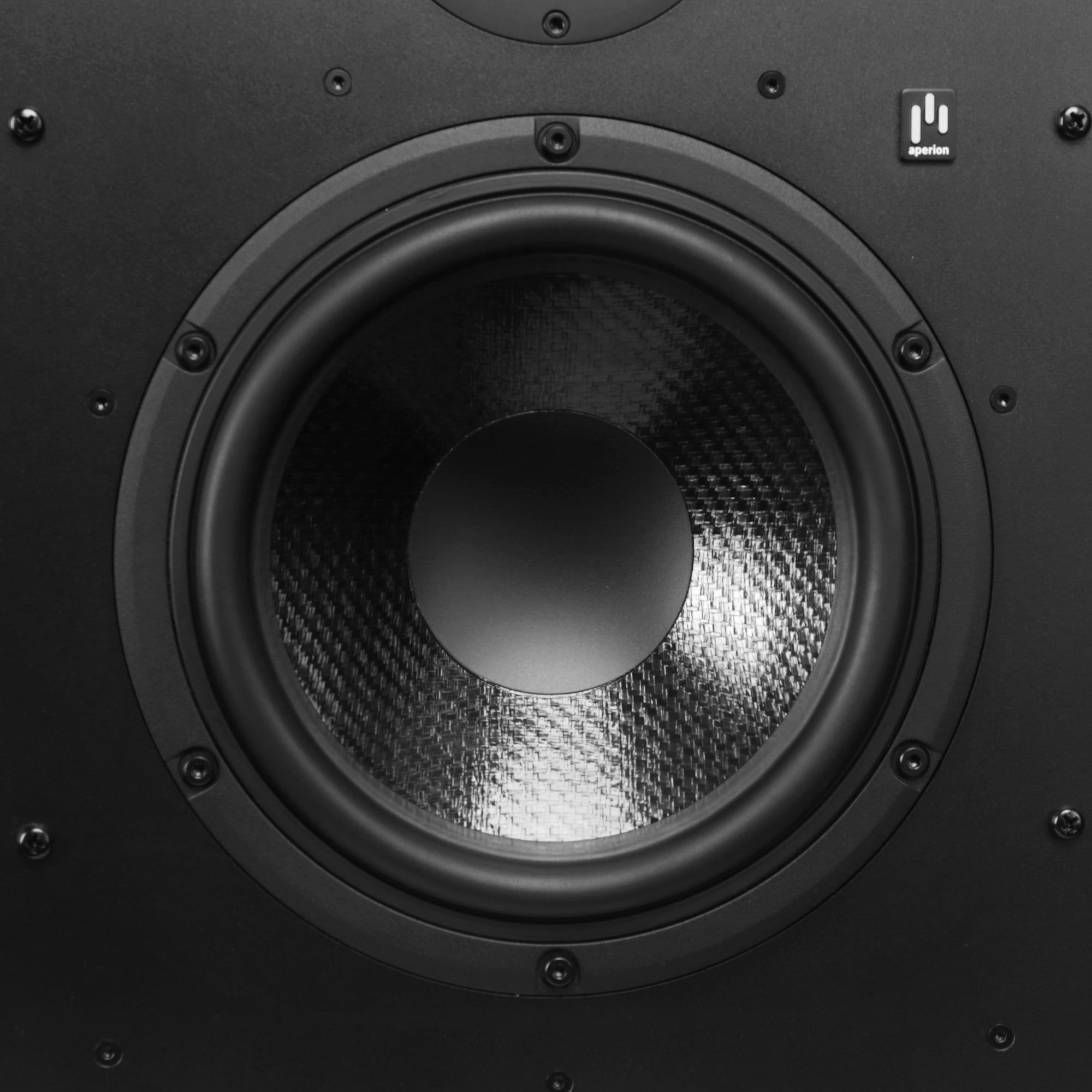

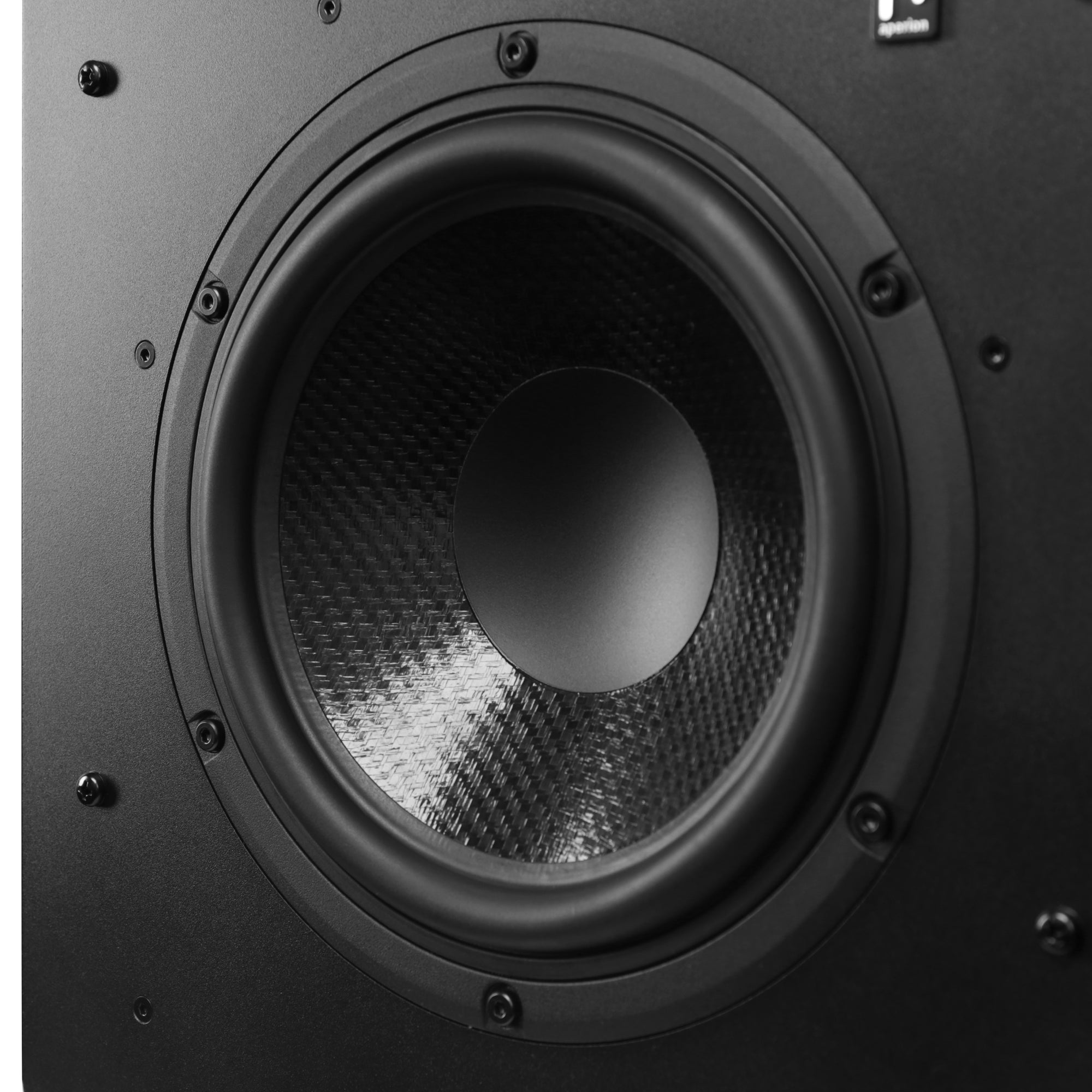

8" Curv Woofer
The Theaterus line features a new Curv material from Germany Propex Fabrics. The properties of this new Curv material are lightweight, yet rigid and stiff, maintain a high temperature resistance without any water absorption, and the most important in crating a driver unit - this material has a high Young's Modulus and internal damping. |
Advanced Crossover
Time-intensive iterative designing and fine-tuning of the crossover networks have resulted in a smoother, more neutral, and better-balanced frequency response across the whole range. Enhanced phase integration between the tweeter and midrange drivers has also resulted in a cleaner, more open sound in the transition regions. The speakers of Theatrus Cinema Studio are crafted using high-quality custom components. These include Aperion's premium metallized polypropylene capacitors, copper wire inductors, and precision wirewound resistors. Together, these components create an exceptional audio experience that combines both beauty and enjoyment. In our pursuit of excellence, we have also custom-painted the FR4 2OZ PCB in Aperion's signature red to reflect our commitment to delivering outstanding sound quality! |
High-Fidelity Cinema Sound Quality
When listening to music, the high-frequency performance is outstanding, with solid density and an abundance of detail. The low frequencies are quick and distinct, showcasing impressive layering. In a multi-channel cinema setup, the characteristics of the monitor box's image cohesion shine through. There is minimal interference between channels, and the sound field positioning is both accurate and precise. Its transient response and control are excellent, allowing for seamless transitions between large and small signals. The sound retraction and release are sharp and crisp, with no dragging, perfectly complementing the original soundtrack of the film and delivering an authentic audio experience to the audience. The independent dome midrange and pneumatic tweeter produce vibrant sound, yet they manage to remain soft and avoid being overly harsh. Even from outside the room, such as in the living room, the beautiful sound quality is easily discernible. When playing Bel Canto, the sound demonstrates powerful penetration, effortlessly passing through sound-transparent curtains without any noticeable strain! |
Sound Adjustment

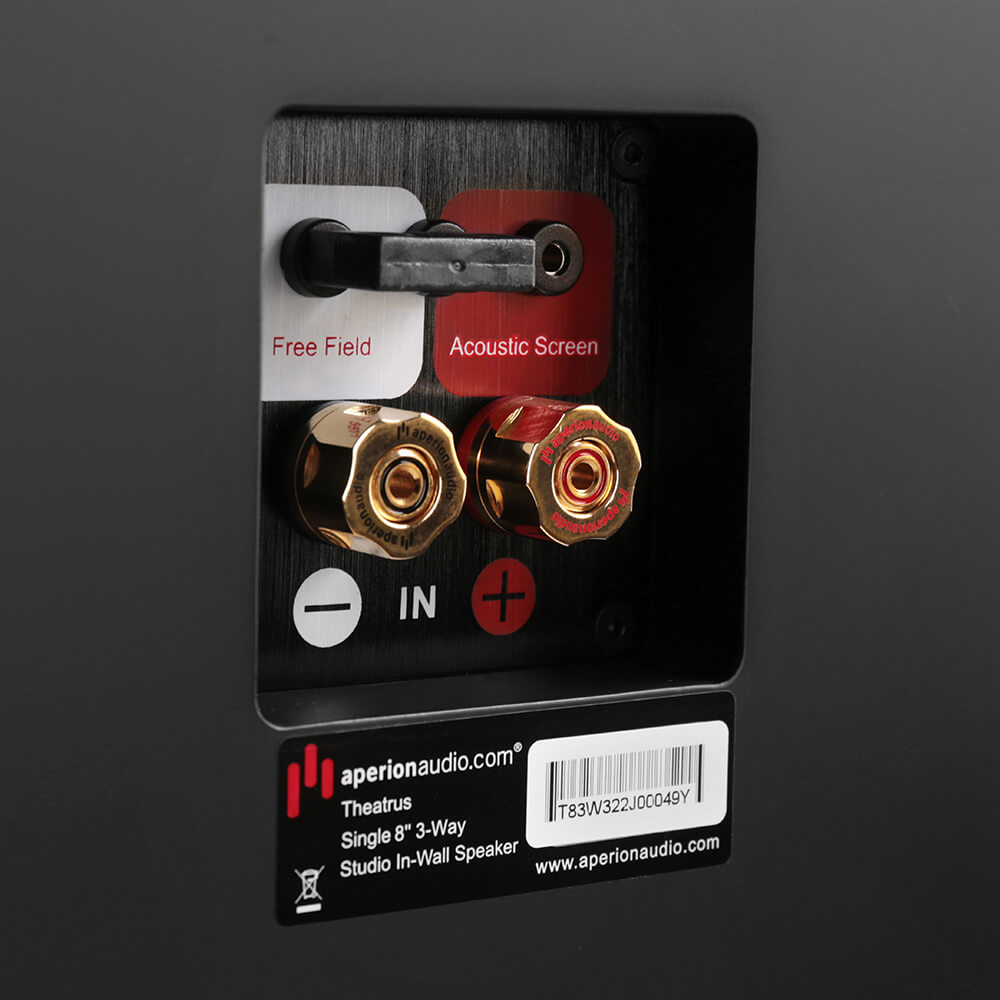

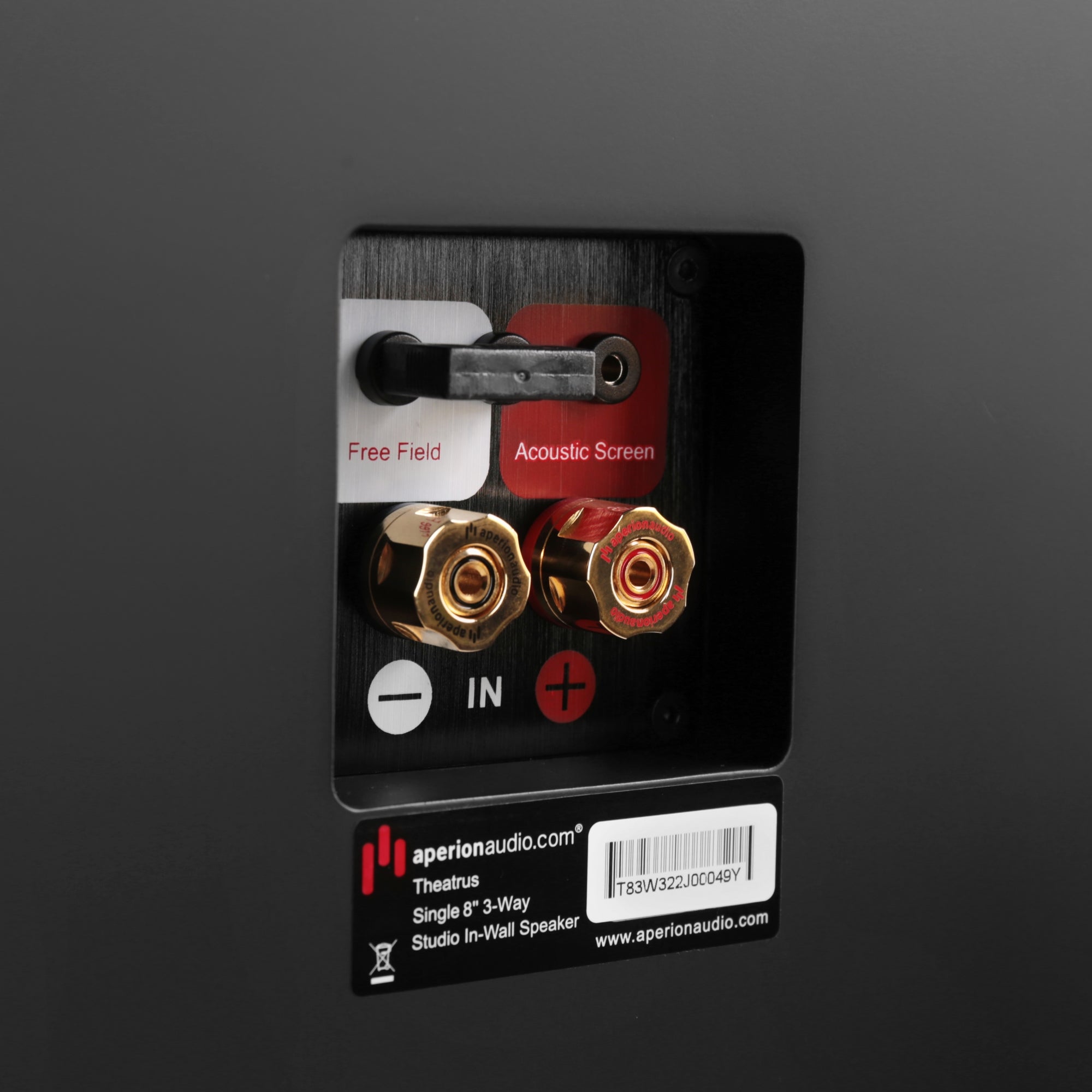

The new Theatrus Speakers adapts to various arangements and positions with adjustments for Baffle-Wall (In-Wall) or Free-Field (On-Wall). Along with the bass adjustment, we also included a high frequency adjustment to compensate the high frequency when the speaker is placed behind a projection screen. |

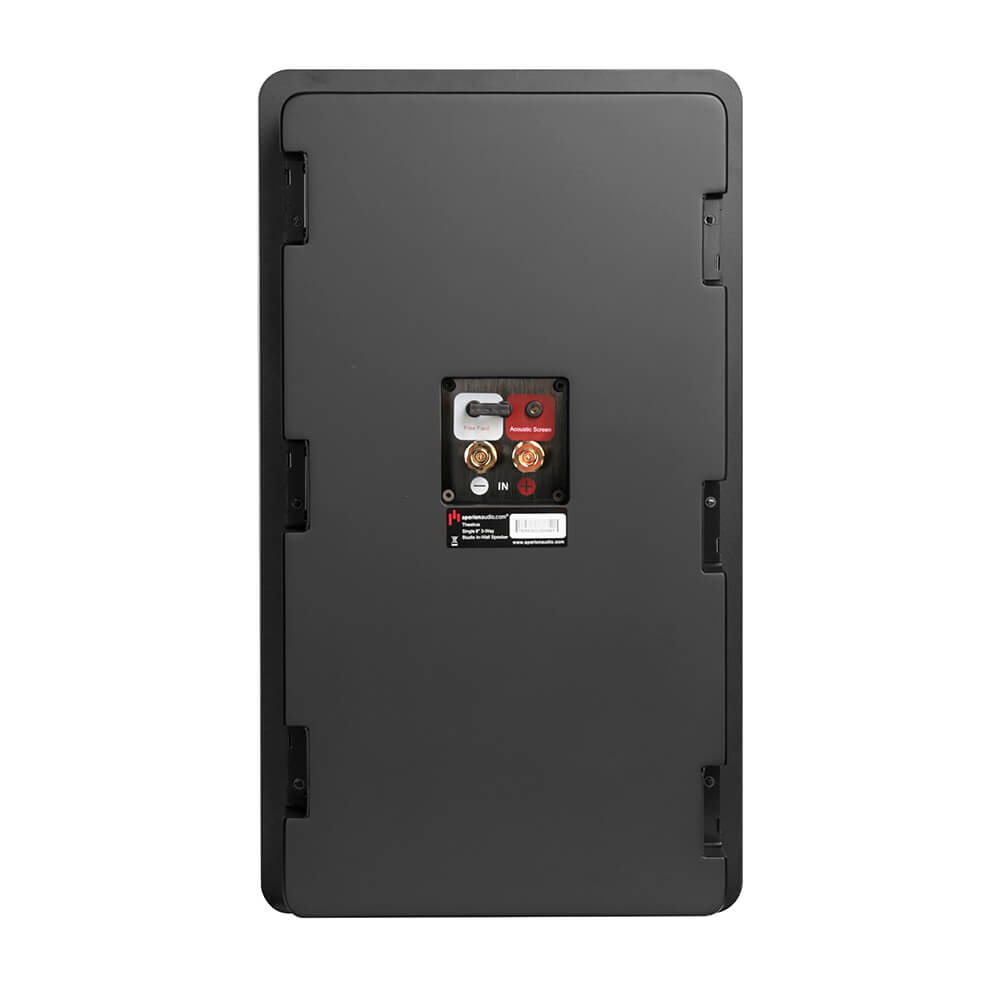

5-Way gold-plated binding posts
The 5-way gold-plated binding posts let you connect your speakers any which way you choose: bare wire, banana plugs, spades, round pins or flat pins. |

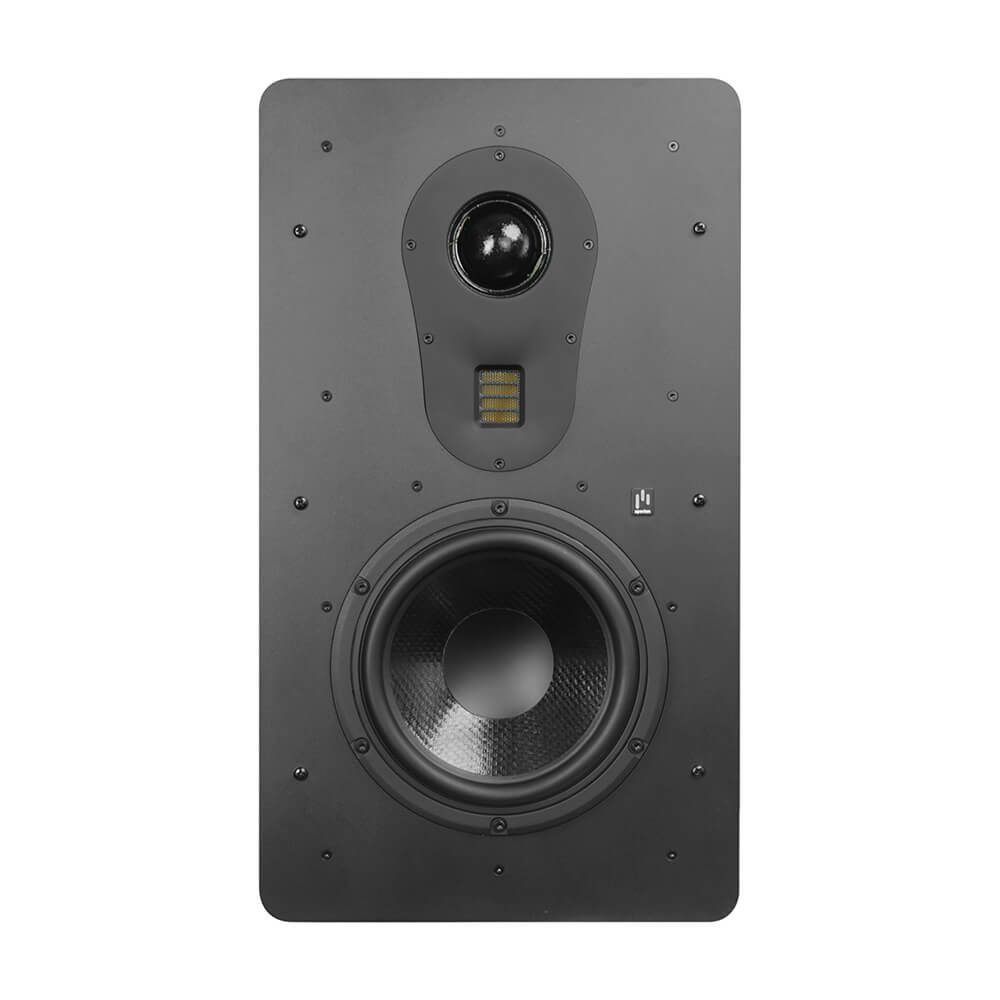

Hardened Steel Front Baffle
The solid steel front baffles to reinforce the wall and eliminate the rattle and buzz of common plastic frame In-Wall speaker. The heat hardened steel is powder coated for effective rust-proofing to last a lifetime. |

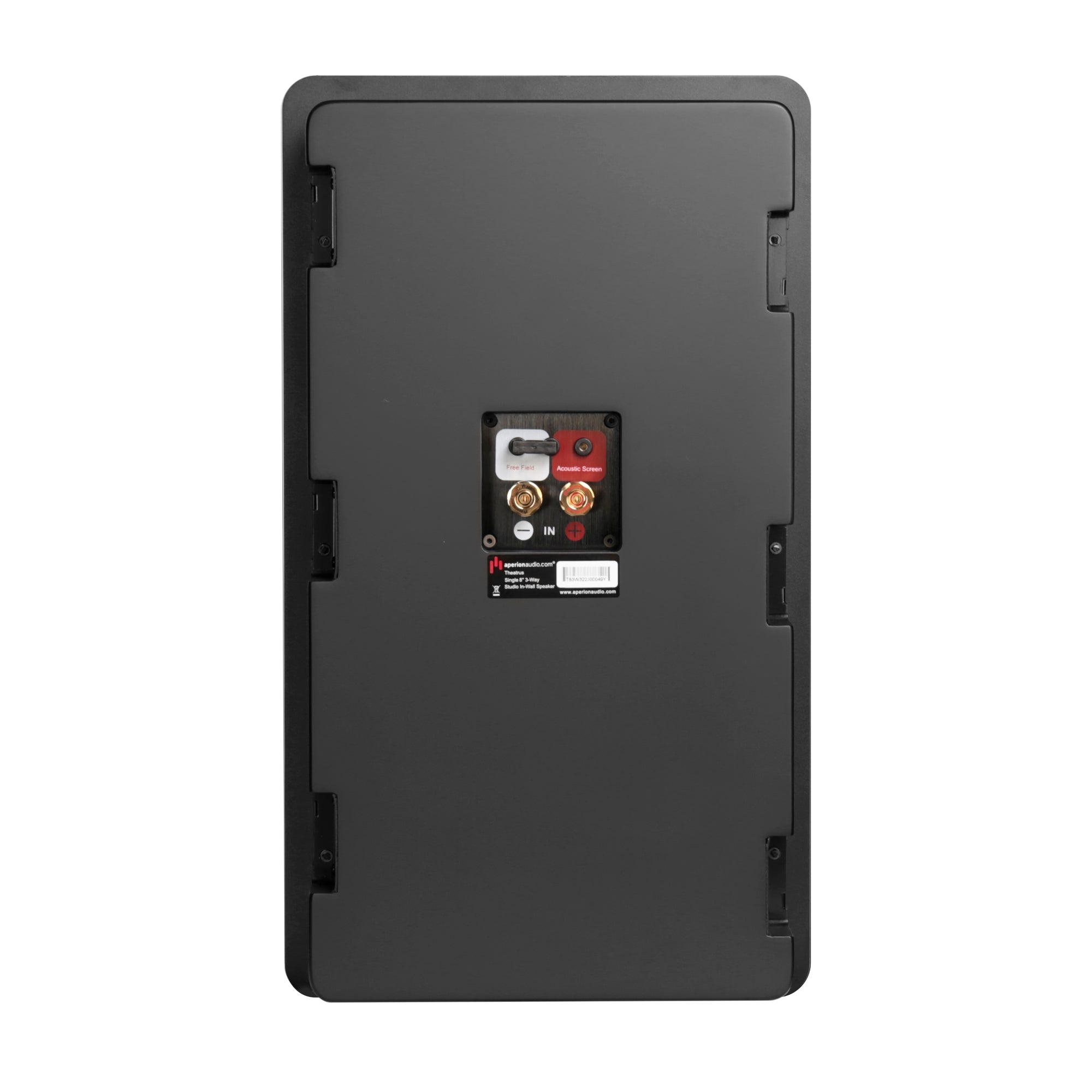

Sealed In-Wall Box
One of the key steps in achieving sound quality is to contain the sound from the speaker to your room, as opposed to your wall or ceiling cavity. Theatrus In-wall speakers use a sealed box enclosure. |

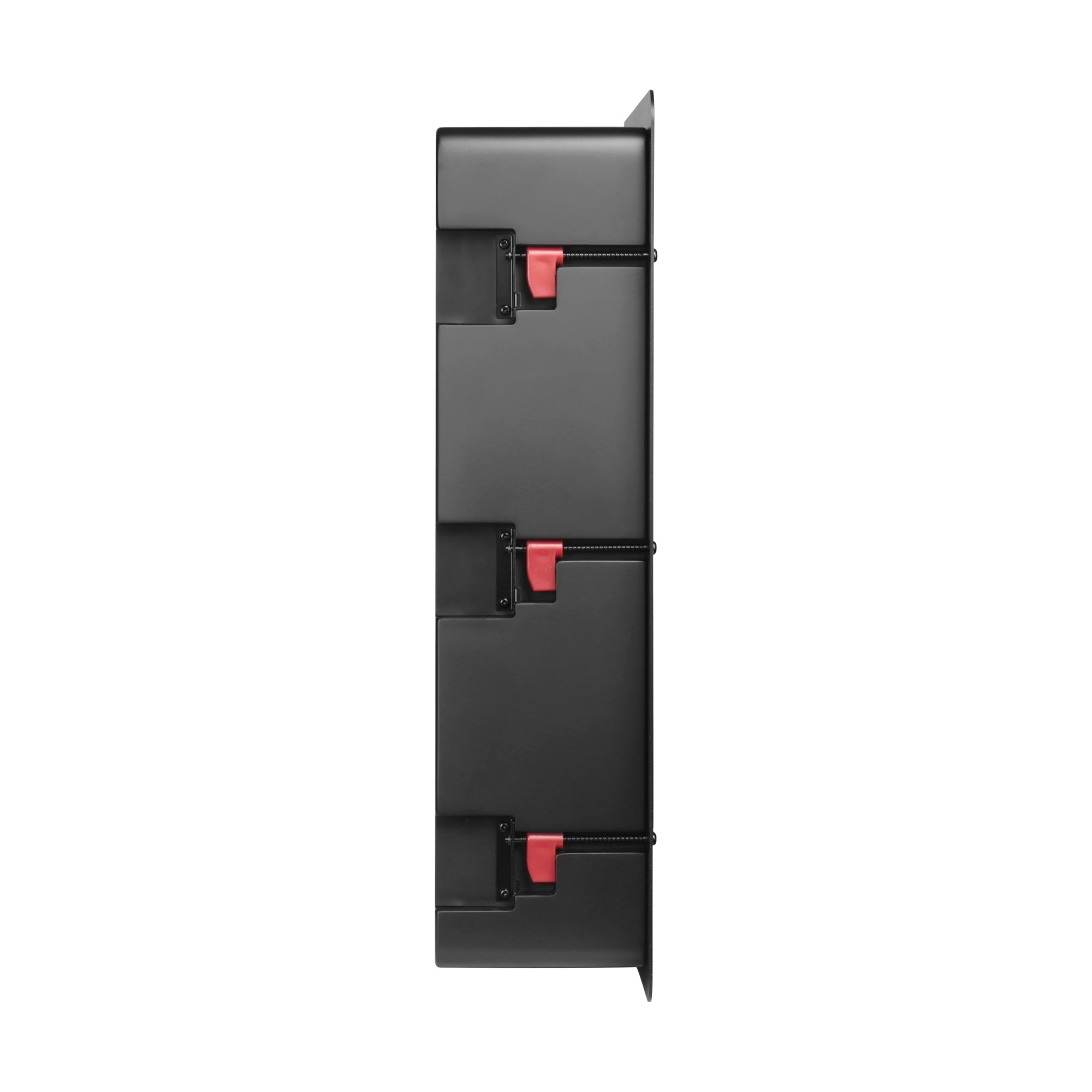

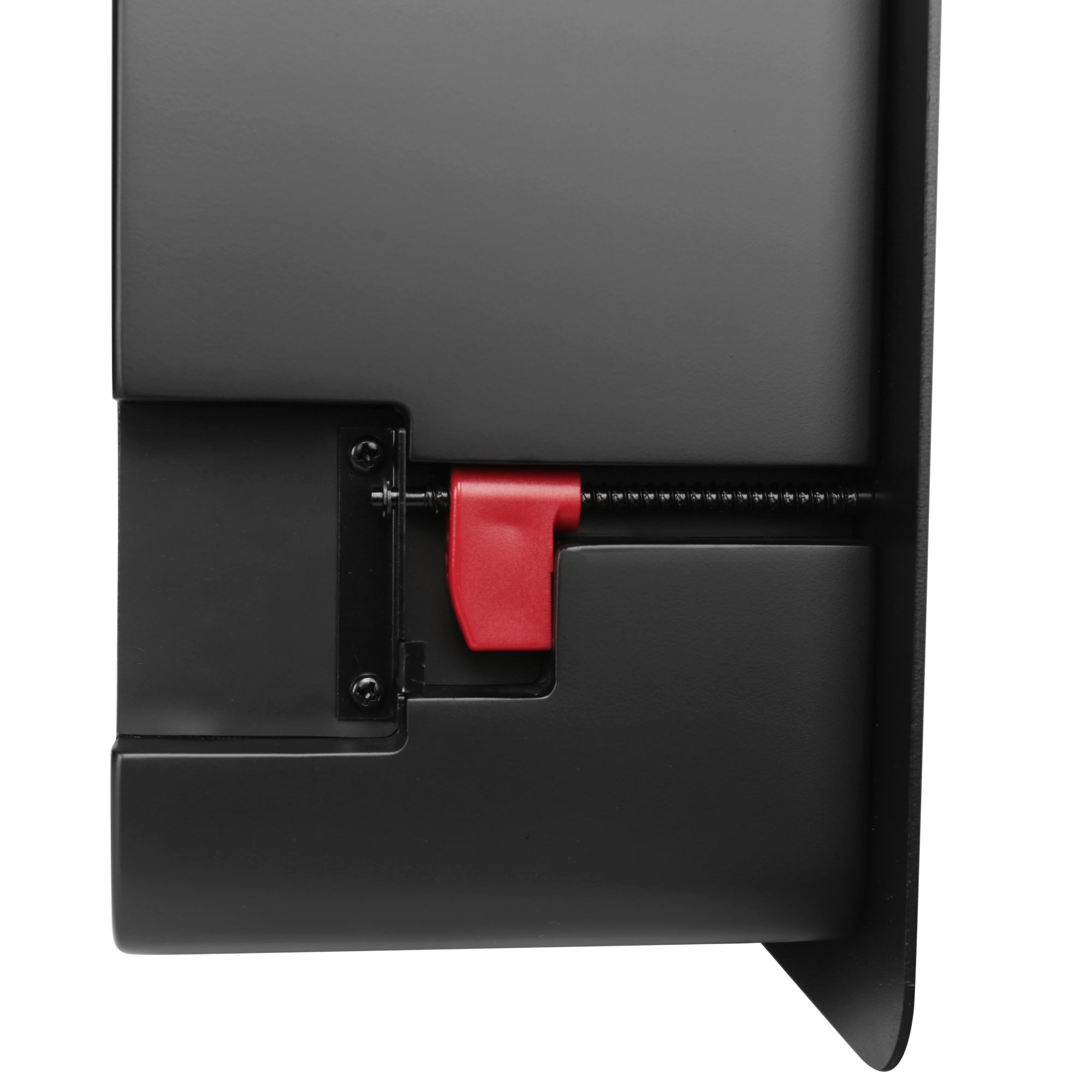

Easy mount and install
Simply mark the intended placement using the cut-out template enclosed with the speaker, prepare the opening, attach speaker wire, drop in the box, tighten screws and fit the front grille. Then, get ready to be blown away. |

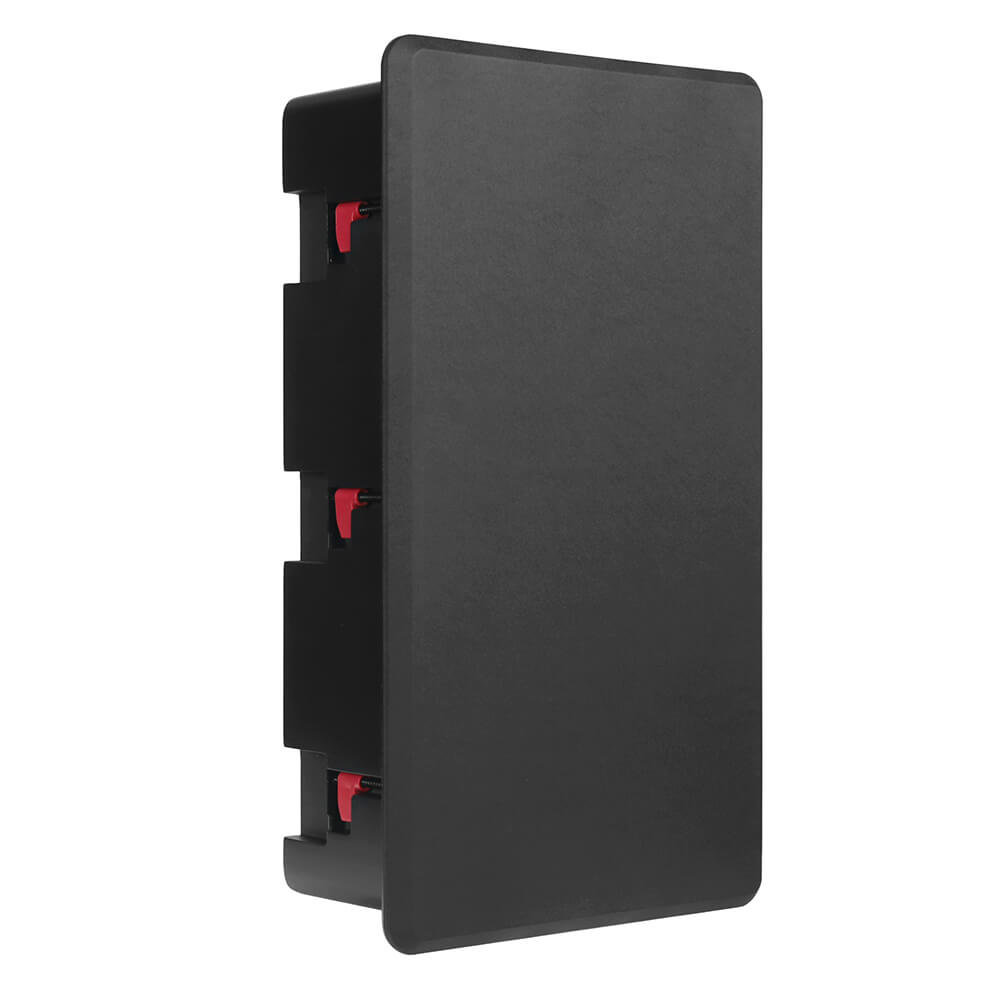

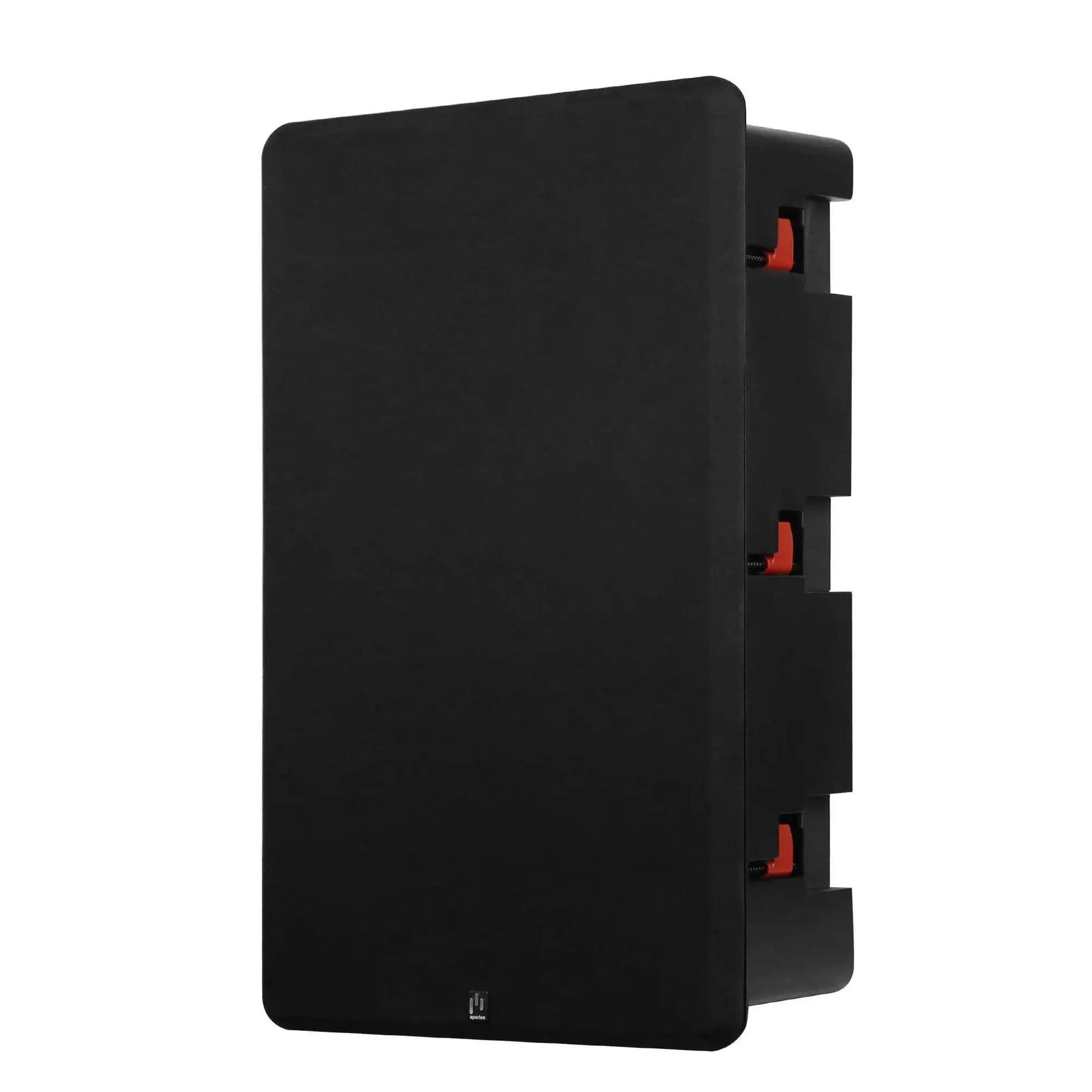

Lightweight magnetic grille
To protect the speaker's driver from accidents, pets or curious fingers, the entire Theatrus line sports a lightweight magnetic grille which can easily be removed when you want to show off your beautiful speakers to friends and family. |
Key Features
- APERION AMT (Air Motion Transformer) Ribbon Tweeter
- APERION 2" Soft-Dome Fabric Mid-Range Driver
- APERION 8" Curv Cone Woofer
- Rear Adjustment High-Frequency Compensation for Placement Behind Projector Screens
- APERION® Customized Internal Wiring
- Optimized Crossover Network with Mylar and Polypropylene Capacitors
- Anti-Resonant, Internally Braced, MDF Cabinet Walls
- 5-Way Gold-Plated Binding Posts
- Lightweight Magnetic Grille
- Easy mount and Install

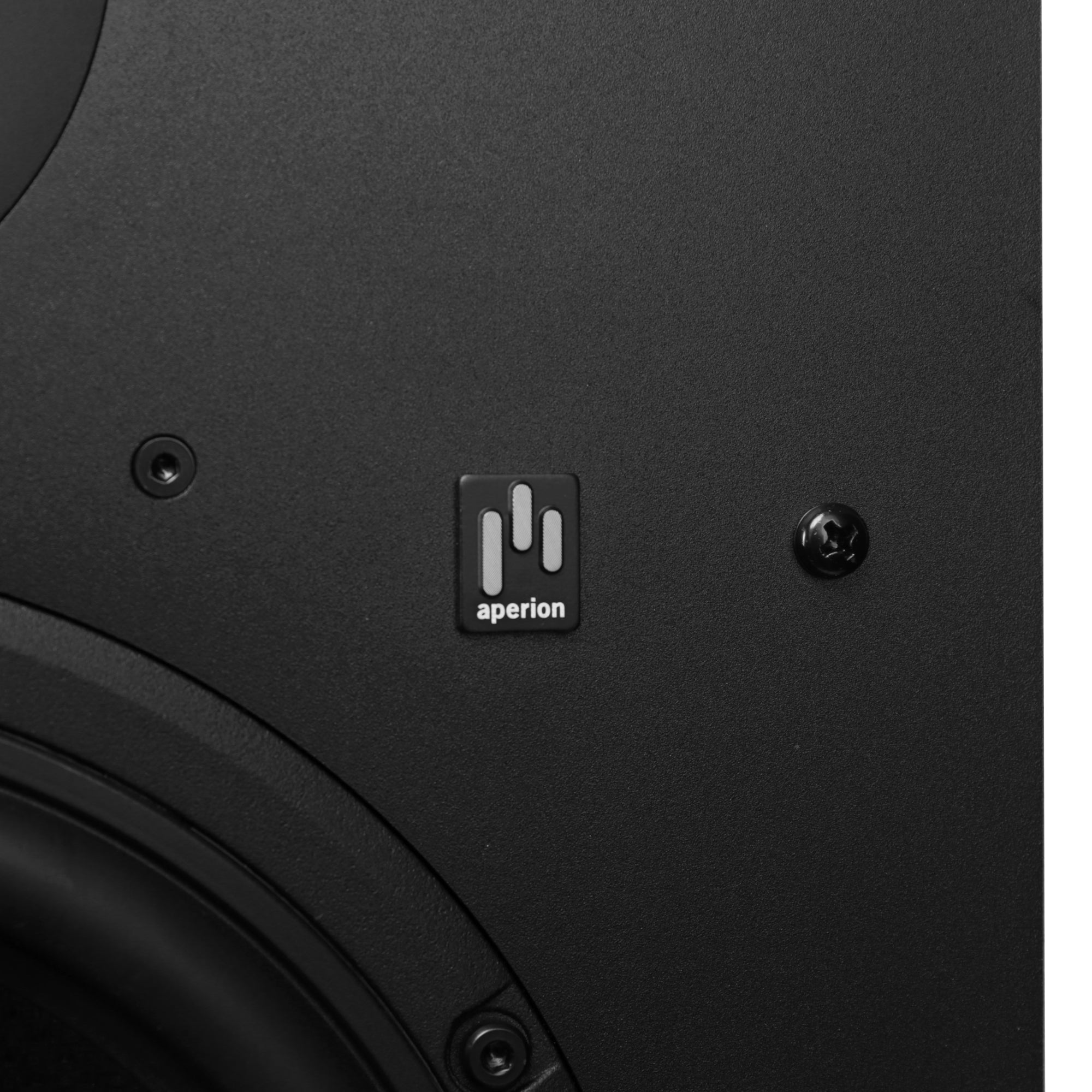

- Rotatable Logo - Easy-Pull Spring-Loaded (On Cabinet) or Magnetic (On Grille)
- Custom tuned cabinet
Package Contents:
- T83W Slim In-Wall Speaker x One (1) Pcs
- Manual x One (1) Pcs
- Polish Cloth x One (1) Pcs
- Gloves x Two (2) Pcs
- Cut-out Template x One (1) Pcs
