Placement
For placement of Aperion Theatrus in wall speakers, pls note the following basic recommendations for installation.
Defining correct placement height for Theatrus in wall speakers in stereo or surround set-up is essential, beginning with finding the speaker`s acoustic on axis point, marked between woofers and tweeters as shown below.
For both stereo and surround front speakers the system’s acoustic “on axis-point” should be approximately 10- 15 cm above ear level – when sitting in listening position.
For surround rear and side speakers the systems acoustic “on axis-point” should be approximately 70-90 cm above ear level – when sitting in listening position.
Every new Theatrus Backbox In-Wall speaker is designed to be as universal as possible, whether used in In-Wall or In-Ceiling applications. The range is fully compatible with all current and future sound formats, including Dolby Atmos, DTS X and Auro.
Left / Center / Right Orientation
In a typical front speaker configuration, the Thearus models are recommended to be used as shown below.
T80W and T65W
Using T80W and T65W with acoustically transparent screen, it is recommended to position left and right speakers with tweeters pointing inward towards the screen and place center speaker in vertical position behind the screen.
When using T80W and T65W with a non-transparent screen, the center channel can be placed above or below the screen, while the Left and Right speakers may be moved up or down, to approach the vertical placed center channel position. (Fig A)
If the center channel is placed horizontally, place the tweeters closest to the screen. (Fig B)
Stereo Orientation
The above recommendations are to be followed for any stereo application. A good formula when setting up a stereo system, is to have the same distance between left and right speaker to the listening position.
Installation
-Cut-out template integrated in packing for marking of wall position and cut-out dimensions

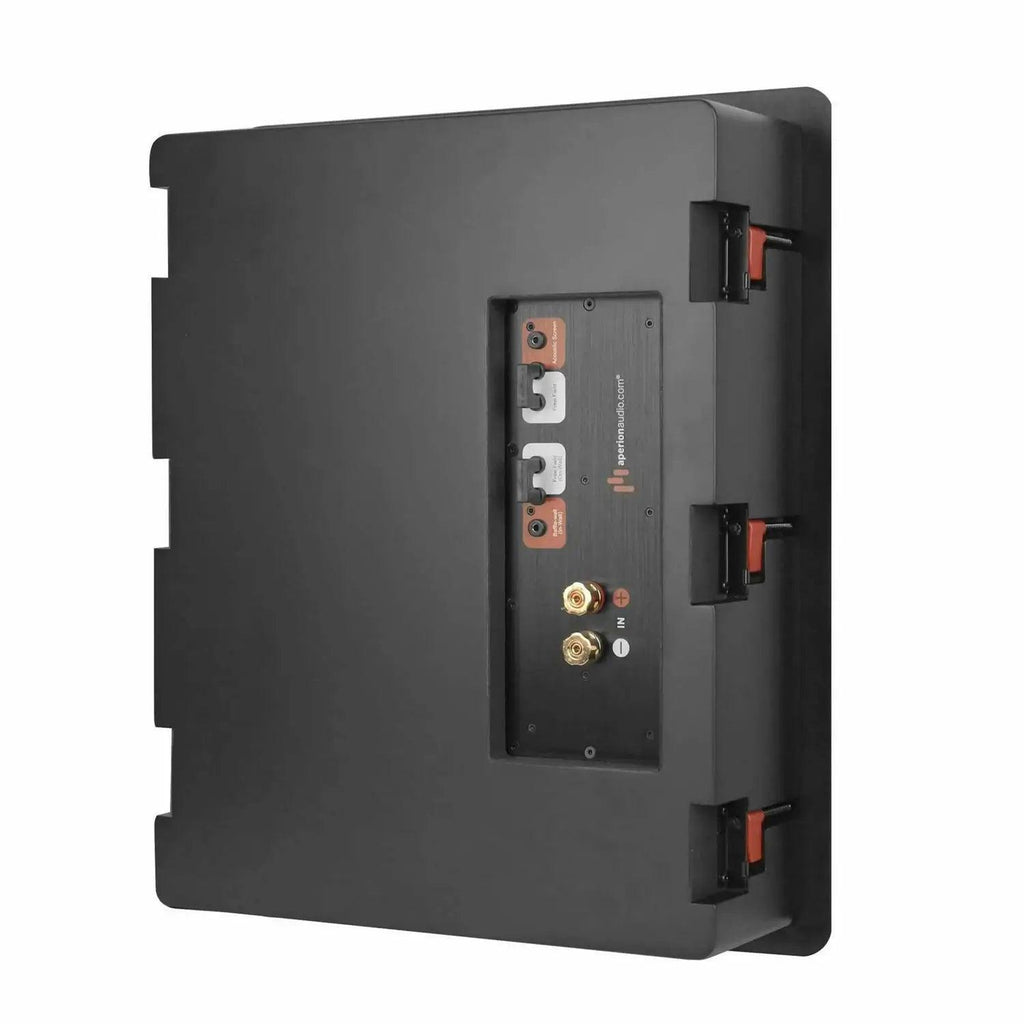

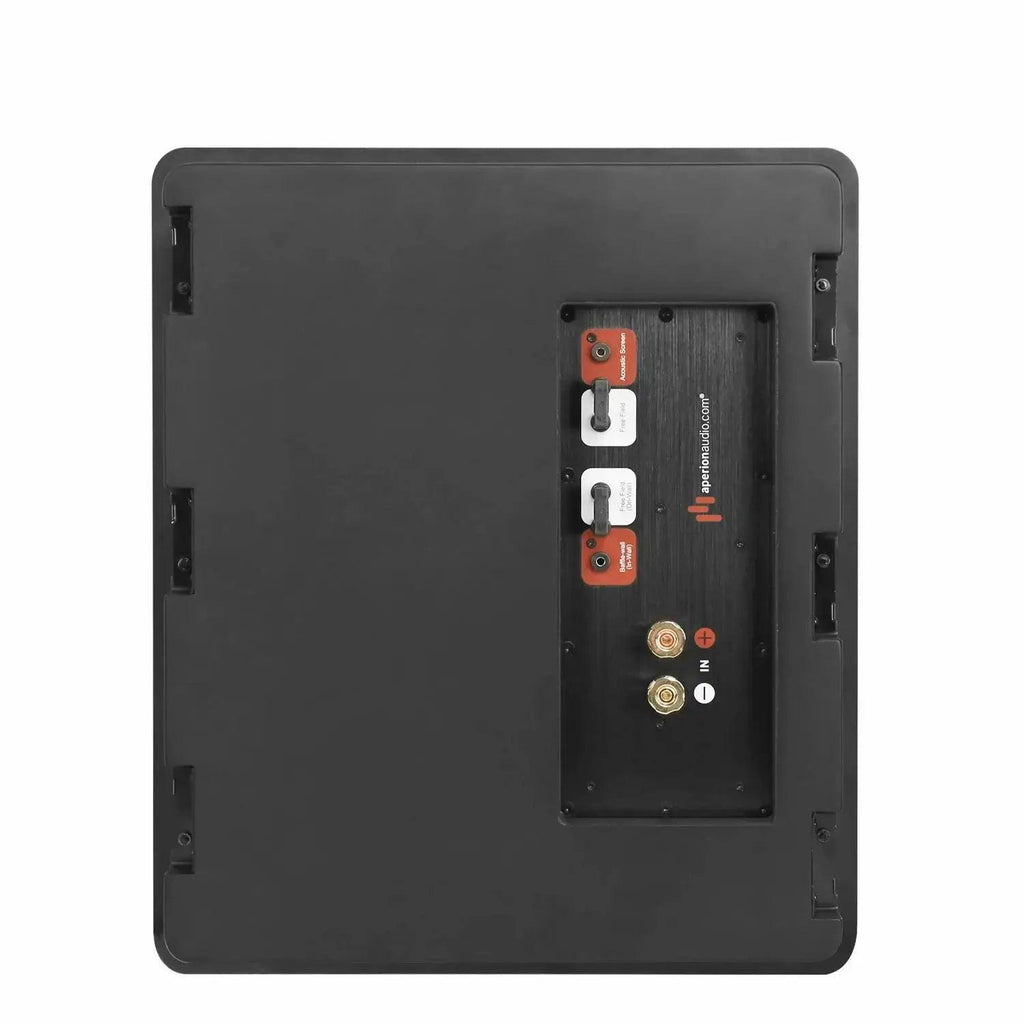

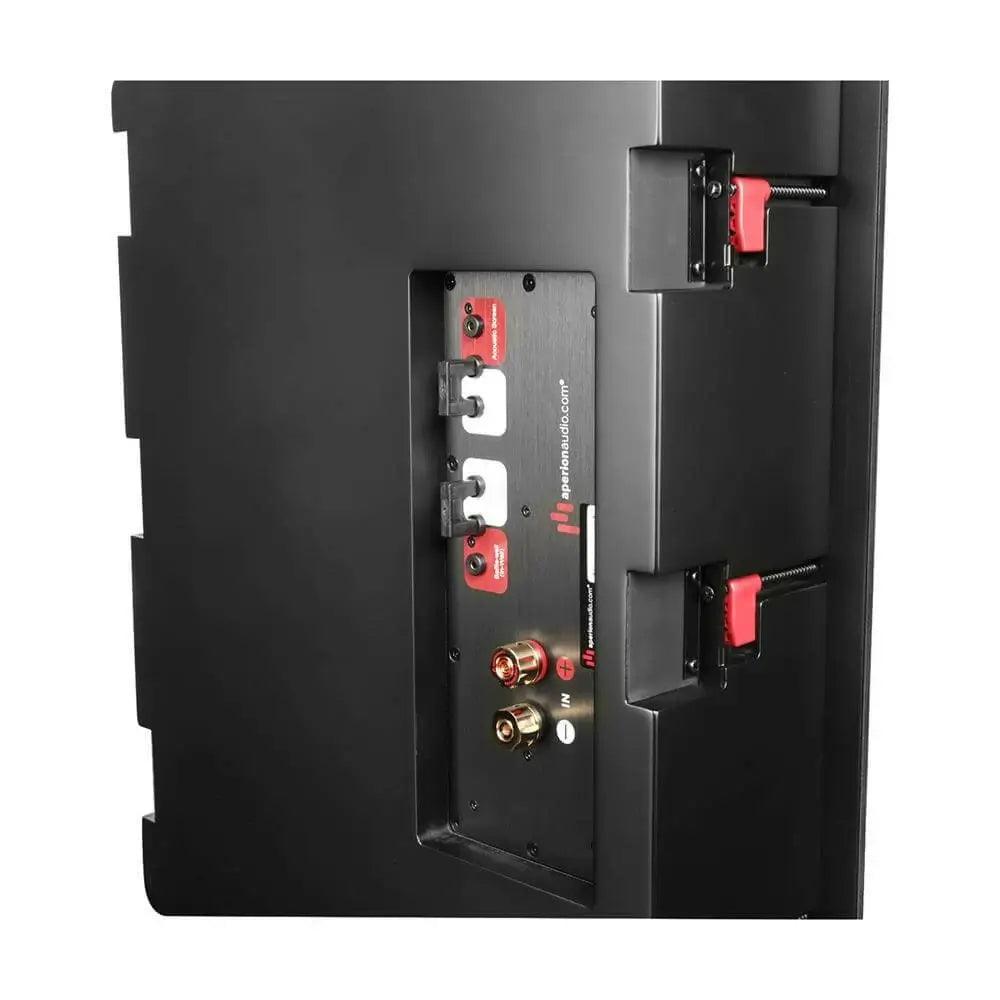

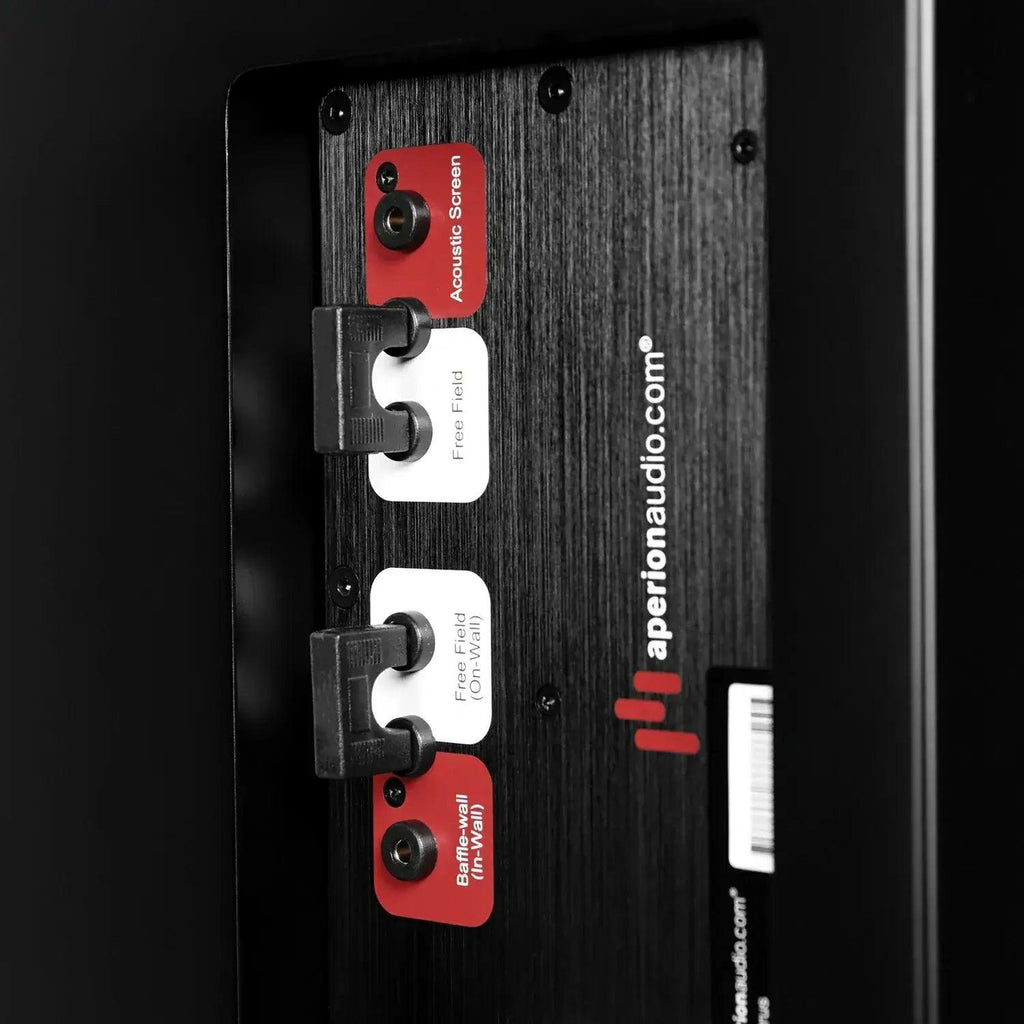

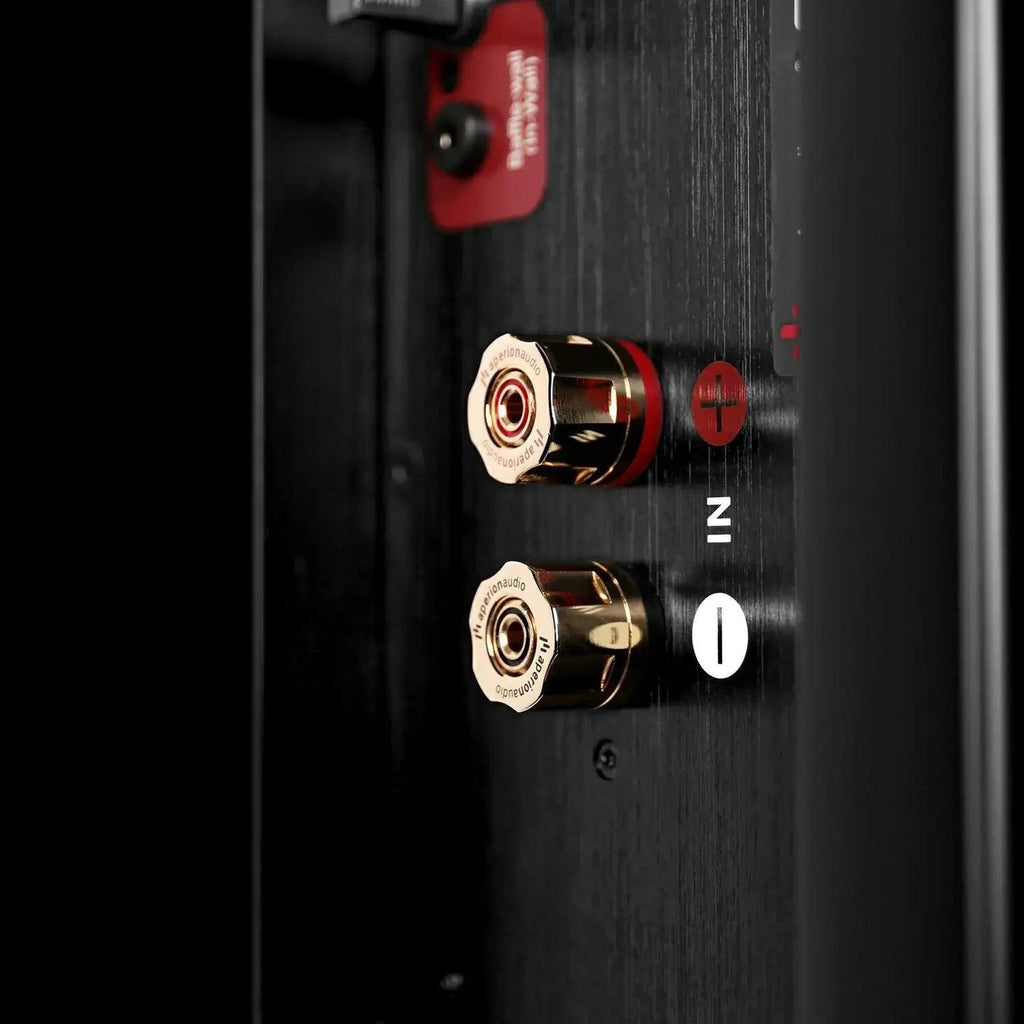

-5-Way gold plated terminal connectors for quick install

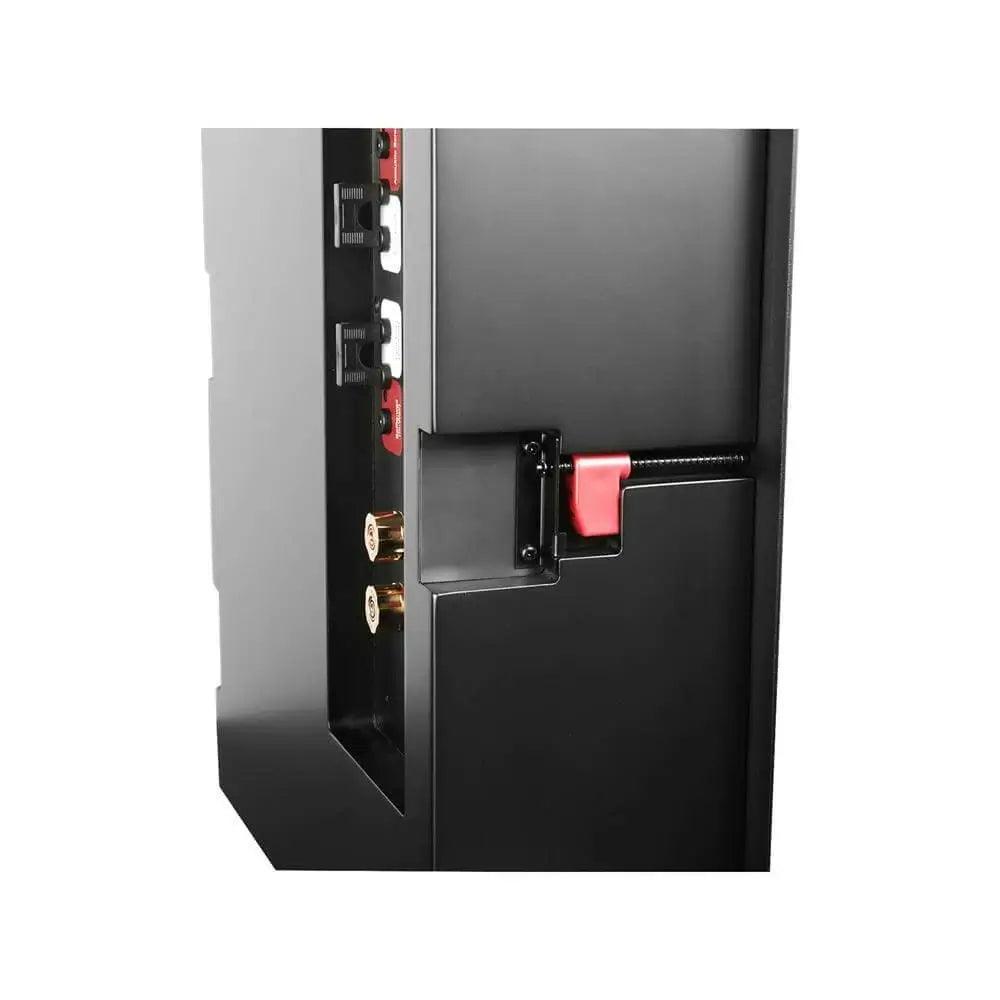

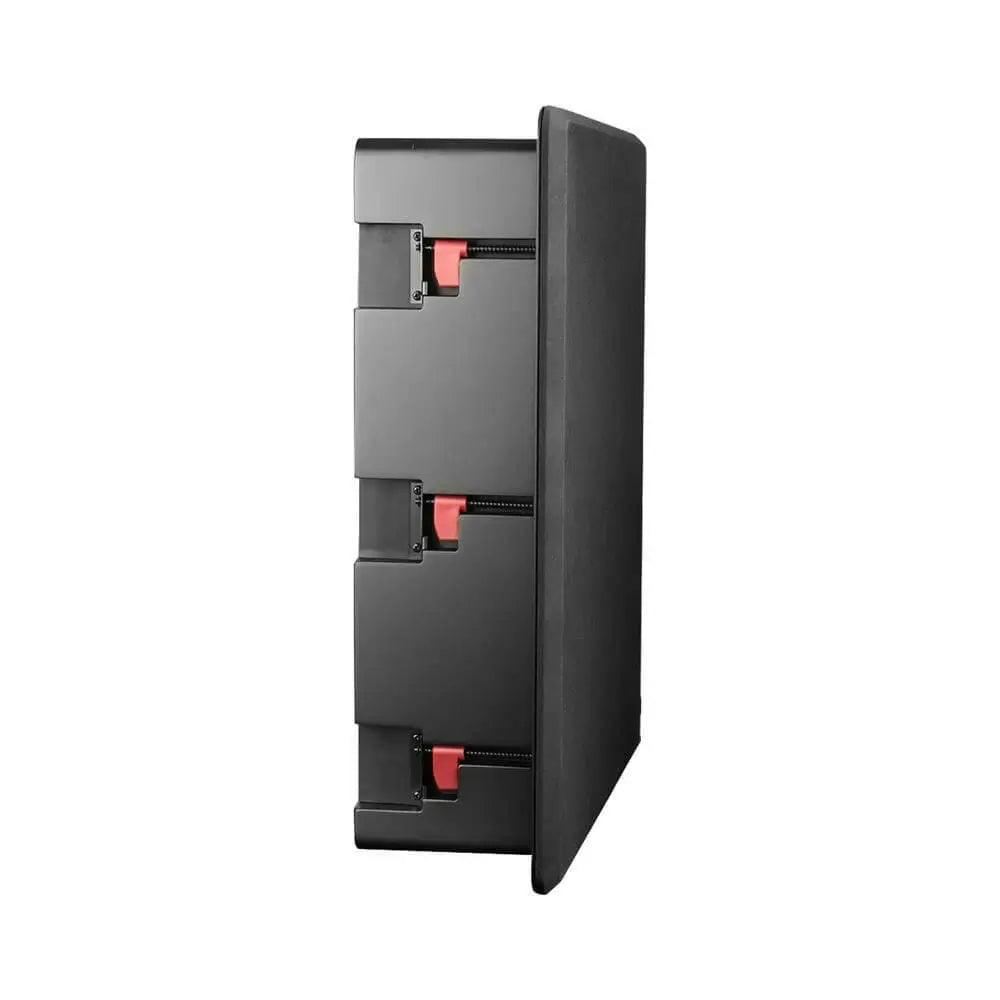

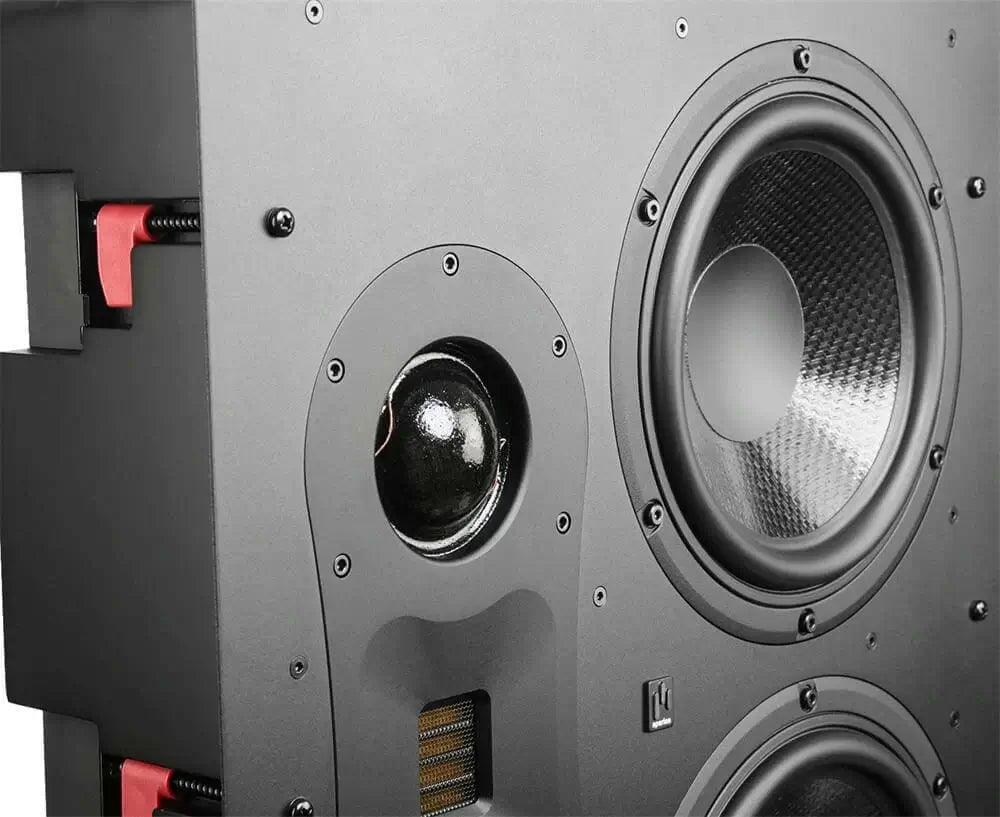

-Dog screw mounting system with self-locking clamps for solid attachment to wall

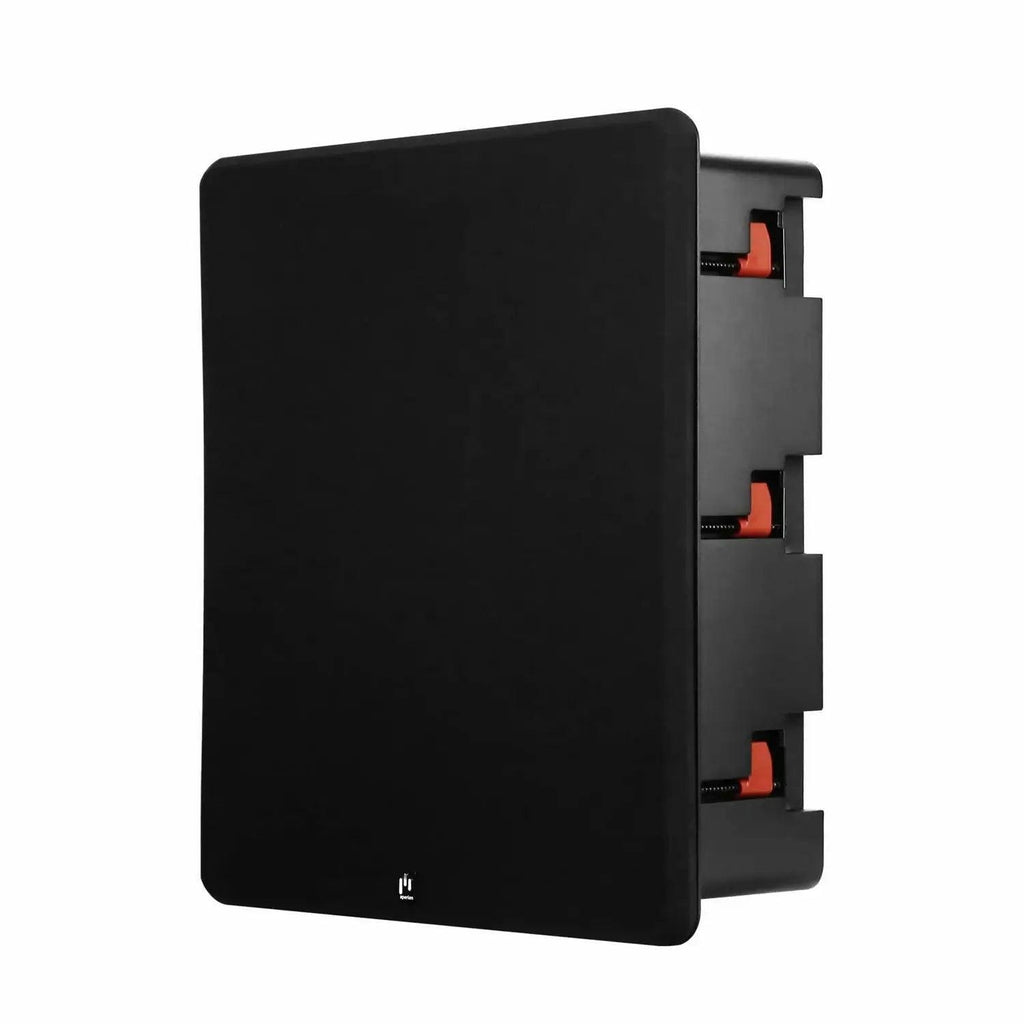

-Wood front grille and Metal front baffle with integrated magnets for easy grille mounting
To support precise wall cut-out for Aperion Theatrus backboxed speakers, use the template included in the carton.
Following the instructions 1 - 8 will result in proper and easy installation of the speaker.
1. Use the cutout template to visualize wall position for system
2. Hold the cutout template at the wall to mark a line for the actual cut.
3. Cut to the inside of your marked line on the wall.
4. Cutting direct on the template is not recommended.
5. Connect the speaker to cables in the wall, and place cabinet into “the wall cut.
6. When speaker is placed into “the wall cut”, turn The screws on the front clockwise to activate the mounting clamps.
7. Check if speaker is perfectly aligned.
8. Mount and align the grille, and your installation is done!
Important Practical Information!
When using an electric tool for screw mounting, adjust the tension function to prevent the dog screws from being over-tightened. It is also recommended to use moderate or low speed when tightening the dog screws.
When using an electric tool for screw mounting, adjust the tension function to prevent the dog screws from being over-tightened. It is also recommended to use moderate or low speed when tightening the dog screws.
