Theatrus T80W Dual 8" In-Wall Speaker

Theatrus T80W Dual 8" In-Wall Speaker

Low stock

Regular price $1,549.00
Regular price $1,549.00 Sale price $1,549.00
Sale Sold out

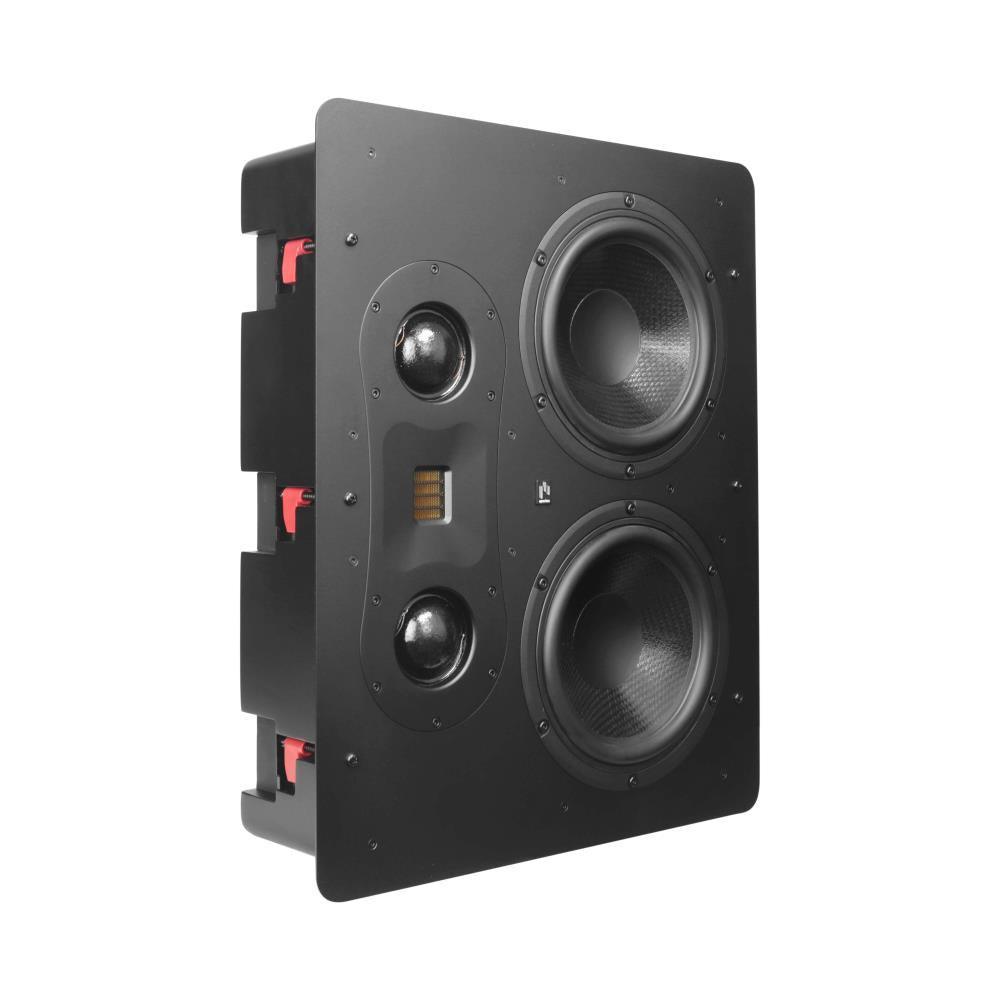

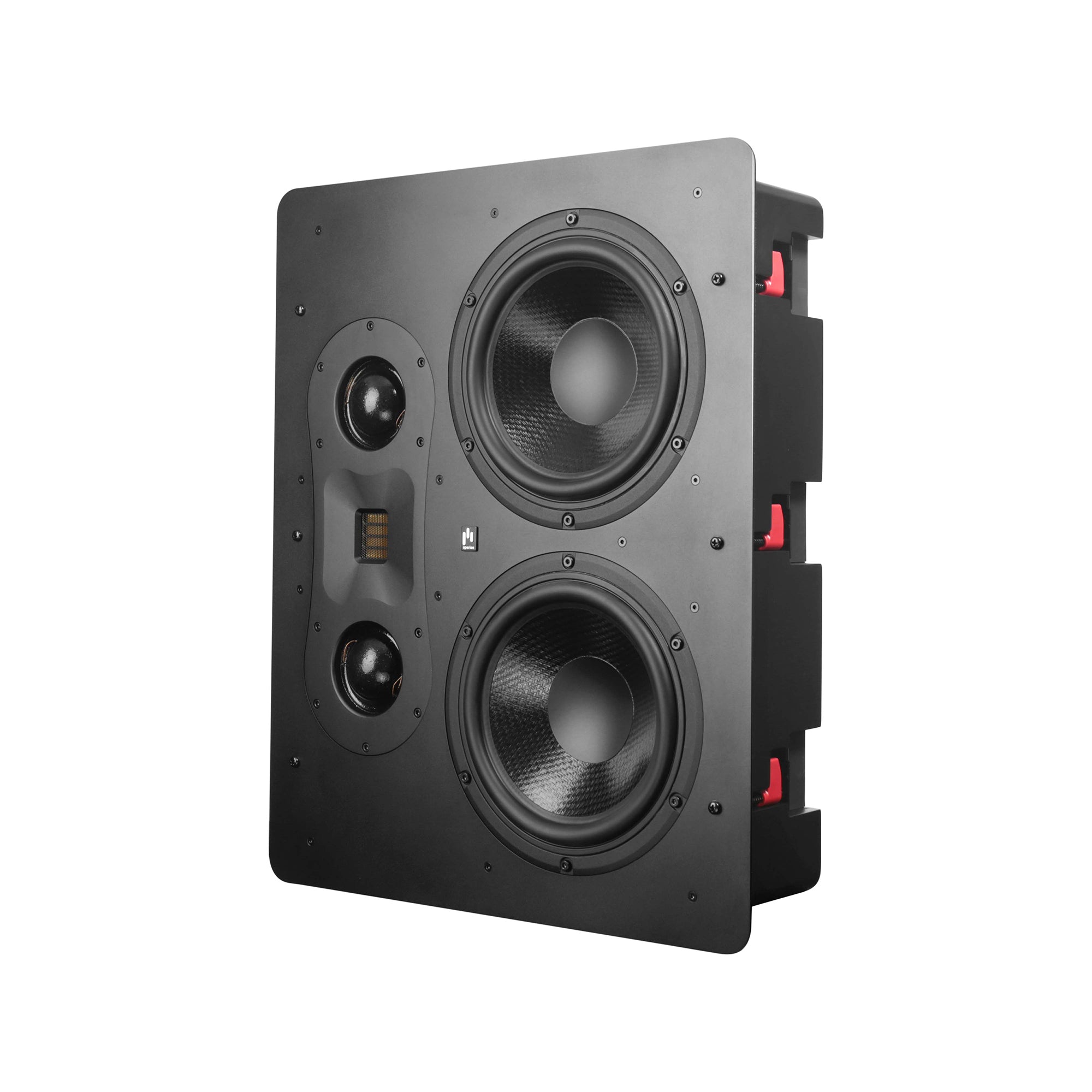

Aperion Theatrus T80W 3-Way Dual 8" Cinema/Studio In-Wall Installation Speaker

The T80W represents a premier high-SPL cinema speaker designed for in-wall installation, demonstrating exceptional performance in both small and large home theaters, professional recording studios, and commercial environments including restaurants and small venues. Its meticulous design and outstanding technical features yield superior sound quality while facilitating straightforward installation. The enclosure is constructed from hardened steel, providing the speaker with a sleek, modern aesthetic, which remains appealing whether the magnetic grille is utilized or removed for a more understated look.

The Theatrus In-Wall with backing enclosure has been designed and engineered with the same high expectations as the other Theatrus models for easy-installation, leaving no space for compromise on sound or build quality. Its hardened steel baffle maintains a clean look if you prefer no grilles, or leave the grilles on for a stealth-like look throughout your home theater.

The T80W is a high SPL Cinema speaker with excellent performance and dynamic range, targeting small to large home cinemas, film production facilities, professional music studios, or for social settings such as your favorite brewhouse, restaurants, small venues. No matter where you install your Theatrus speakers, you'll know you're getting the best that Aperion has to offer.

The APERION T80W is a 3-Way design In-Wall Speaker, featuring an array of five (5) drivers, which fuses into a superforce of sound quality that is designed for home theater, custom installation, professional music studios, and film studios. It's not all about sound though, the speaker has a clean and smooth appearance.

The Aperion crafted AMT Haier Ribbon Tweeter, and Dual 2-inch Soft-Dome Mid-Range Drivers are housed in a custom designed aluminum faceplate. Enhanced low end is produced by Dual 8" Woofers which were crafted from German Propex Fabrics Curv material. The T80W offers higher sound pressure levels, suitable for larger listening environments. High-Efficiency plus High-Power makes for an explosively wide sound field. Theatrus speakers are extremely flexible for placement for even the most difficult of rooms. Placed On-wall, In-Wall, on the ground or on the ceiling, the Theatrus line can effectively cover most of the listening area.

The speakers can be arranged vertically or horizontally, dependent on the application. Along with the integrated mounting inserts are two frequency tuning switch options on the rear of the speaker for even greater placement flexibility. So whether you choose to use the Theatrus speakers in a 2-channel music setup, or a full blown home theater with Dolby Atmos, DTS:X and Auro-3D, listening to the new Theatrus speakers will certainly impress the most discerning of ears.



Specification

Frequency Response: (+/- 3dB) 60-35,000 Hz
Impedance: 4 Ohms
Sensitivity: 94 dB
Max SPL: 122 dB
Recommended Power: 20-350 Watts
Peak Power: 700 Watts
Tweeter: One AMT (Air Motion Transformer) Tweeter
Midrange: Two German 2" Soft-Dome Fabric Mid-Range Drivers
Woofer: Two German 8" Curv® Cone Woofers
Driver Configuration: 3-Way 8" Backbox In-Wall Speaker
Enclosure Type: Sealed Cabinet
Product Weight: 40 Lbs/18.2 Kg
Product Dimensions: 21" x 17.3" x 5.2" / 540 x 440 x 132mm (HxWxD)
Cut-out Dimensions: 20" x 16" x 5.1" / 506 x 406 x 130mm (HxWxD)
Placement Location: Main Speakers (Left, Center, Right), or Rear/Side Surround Speakers
Shipping Weight: 46.5 Lbs/ 21.1 Kgs
Shipping Dimensions: 26" x 12" x 20"/650x300x515 mm (H/W/D)


Features

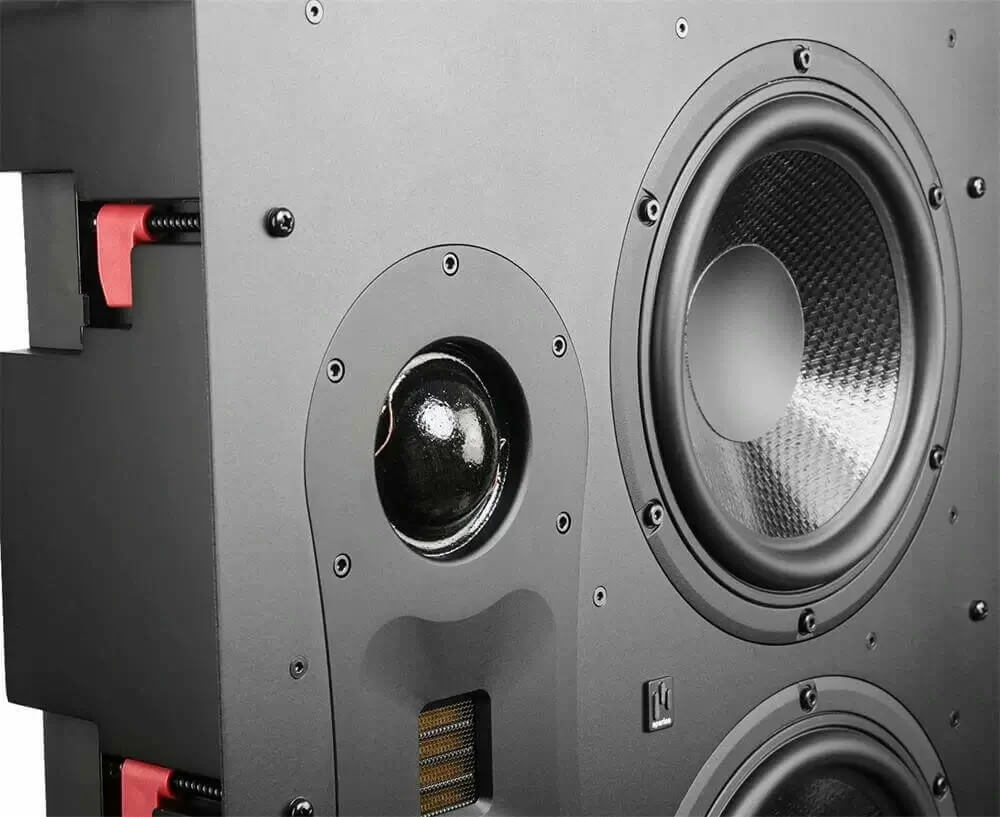

Aperion Air Motion Tweeter

aperion-theatrus-t80w-in-wall-speaker-amt-tweeter

The APERION AMT tweeter boasts a sensitivity of 103 dB and a frequency response reaching 40 kHz, making it ideal for larger and medium-sized home theater rooms. To ensure the tweeter's safety while operating at higher sound pressure levels, we have included a protection circuit.



Dual 2" Soft-dome Midrange Driver

aperion-theatrus-t80w-in-wall-speaker-dome-midrange

Our high end soft-dome midrange unit features a large, low distortion 50mm voice coil, which exceeds the normal size of this type of drive unit. It's wide pole structure and special damping coating significantly reduce the medium frequency segmentation vibration.

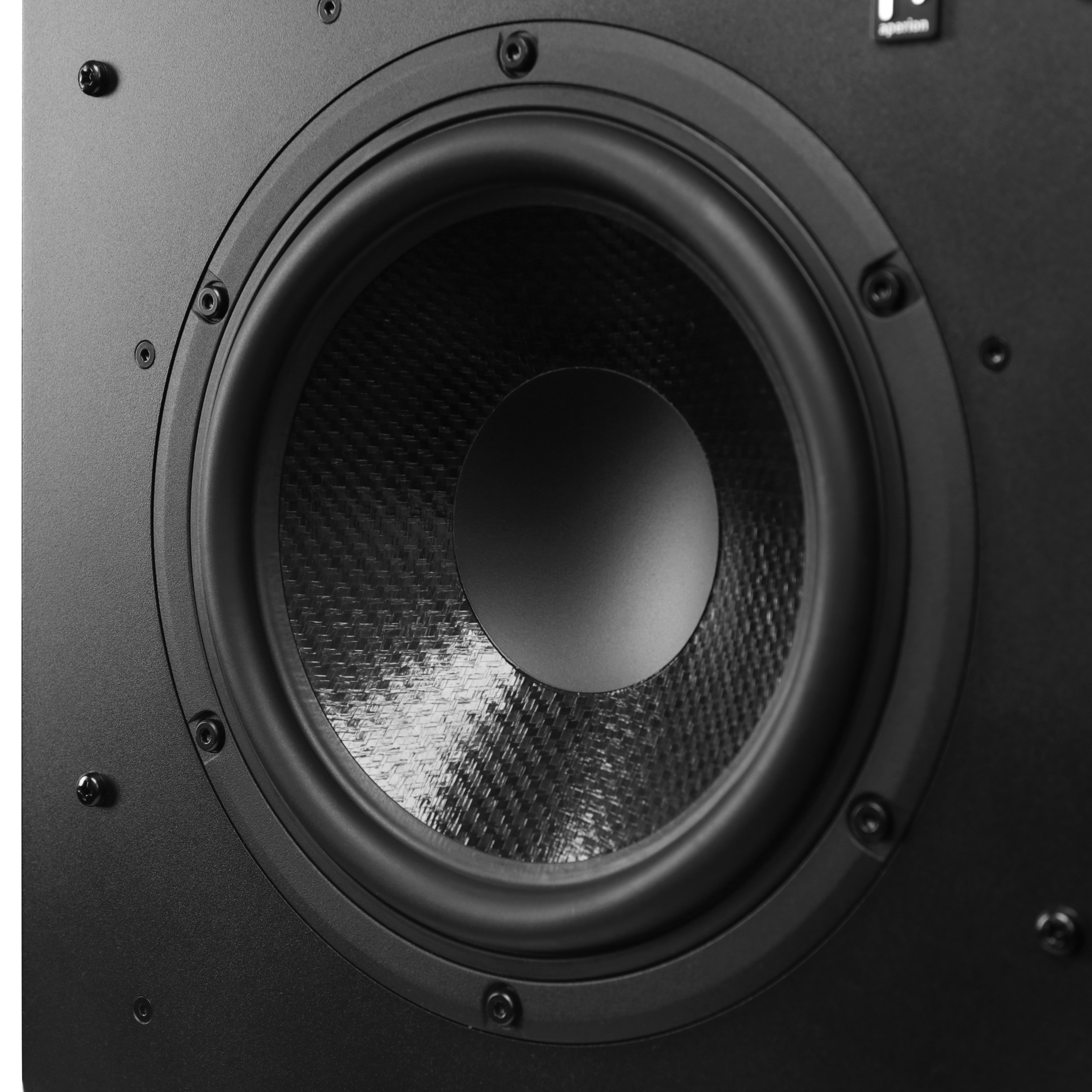

Dual 8" Curv Woofers

aperion-theatrus-t80w-in-wall-speaker-woofer

The Theaterus line features a new Curv material from Germany Propex Fabrics. The properties of this new Curv material are lightweight, yet riged and stiff, maintain a high temperature resistance without any water absorption, and the most important in crating a driver unit - this matieral has a high Young's Modulus and internal damping.

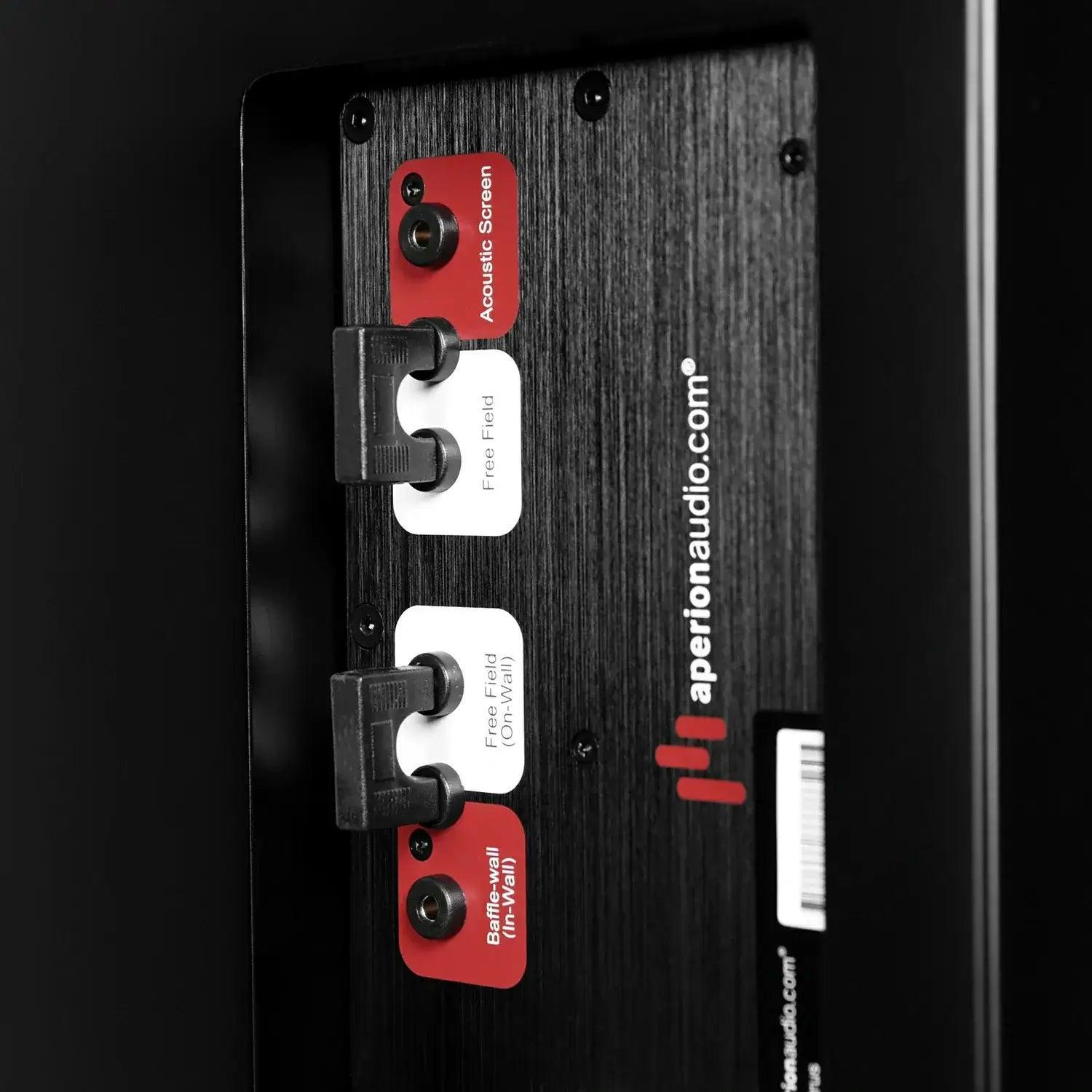

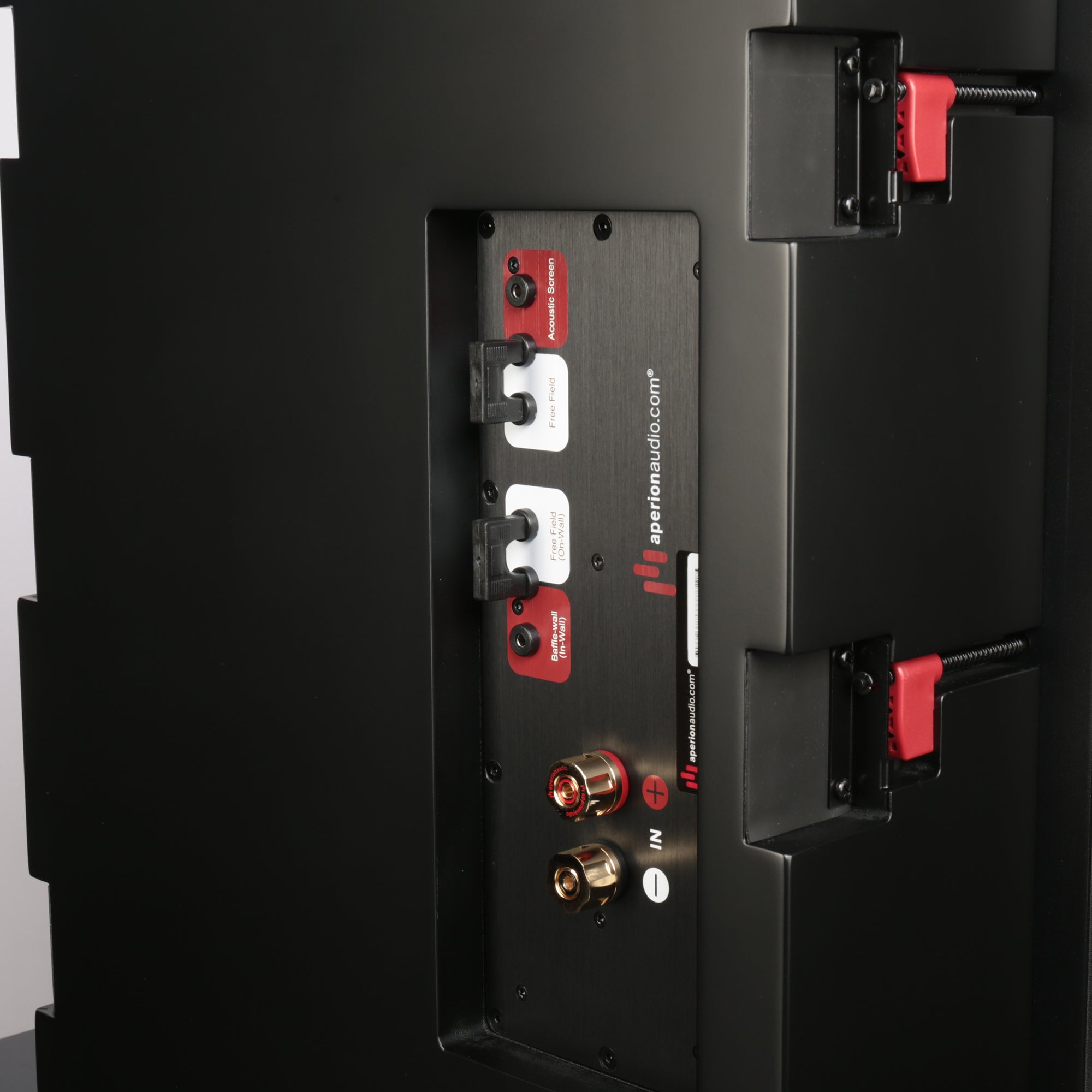

Sound Adjustment

aperion-theatrus-t80w-in-wall-speaker-sound-adjustment

The new Theatrus Speakers adapts to various arangements and positions with adjustments for Baffle-Wall (In-Wall) or Free-Field (On-Wall). Along with the bass adjustment, we also included a high frequency adjustment to compensate the high frequency when the speaker is placed behind a projection screen.

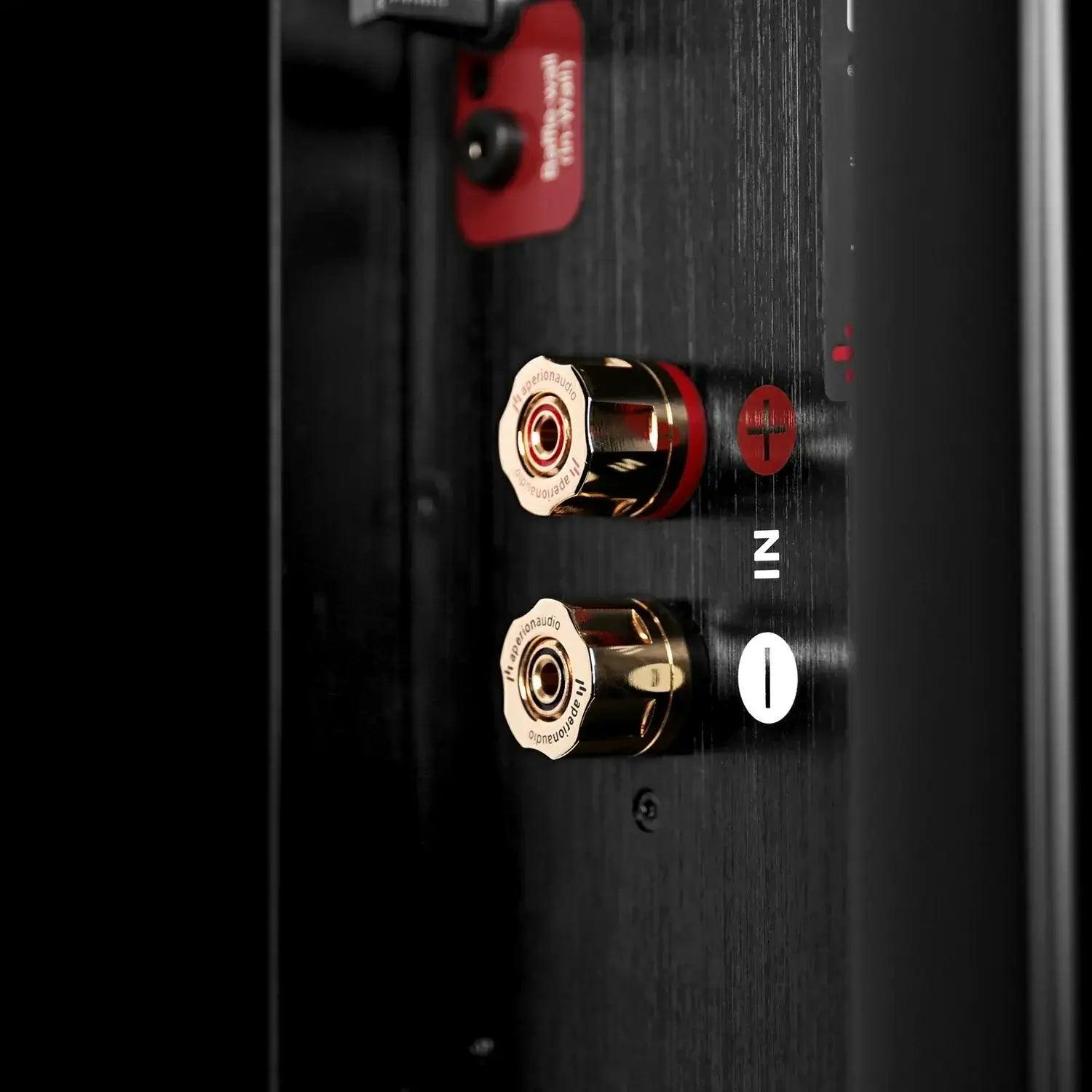

5-Way gold-plated binding posts

aperion-theatrus-t80w-in-wall-speaker-binding-post

The 5-way gold-plated binding posts let you connect your speakers any which way you choose: bare wire, banana plugs, spades, round pins or flat pins.



Hardend Steel Front Baffle

aperion-theatrus-t80w-in-wall-speaker-front-baffle

The solid steel front baffels to reinforce the wall and eliminate the rattle and buzz of common plastic frame In-Wall speaker. The heat hardened steel is powder coated for effective rust-proofing to last a lifetime.



Sealed In-Wall Box

aperion-theatrus-t80w-in-wall-speaker-sealed-cabinet

One of the key steps in achieving sound quality is to contain the sound from the speaker to your room, as opposed to your wall or ceiling cavity. Theatrus In-wall speakers use a sealed box enclosure.



Easy mount and install

aperion-theatrus-t80w-in-wall-speaker-dog-leg

Simply mark the intended placement using the cut-out template enclosed with the speaker, prepare the opening, attach speaker wire, drop in the box, tighten screws and fit the front grille. Then, get ready to be blown away.



Lightweight magnetic grille

aperion-theatrus-t80w-in-wall-speaker-magnet-grille

To protect the speaker innards from accidents, pets or curious fingers, the entire Theatrus line sports a lightweight magnetic grille which can easily be removed when you want to show off your beautiful speakers to friends and family.



Placement location

aperion-theatrus-t80w-in-wall-speaker-placement-location

Main Speakers (Left, Center, Right), or Rear/Side Surround Speakers

Table, Rectangle, Eyewear, Parallel, Circle, Fashion accessory, Font, Ceiling, Transparent material, Slopeaperion-theatrus-speaker-sound-adjustmentaperion-theatrus-speaker-sound-adjustment-high-frequencyaperion-theatrus-speaker-sound-adjustment-bass

Key Features

  • APERION AMT (Air Motion Transformer) Ribbon Tweeter
  • APERION Dual 2" Soft-Dome Mid-range Drivers
  • APERION Dual 8" Curv Cone Woofers
  • Rear Adjustment High-Frequency Compensation for Placement Behind Projector Screens
  • Rear Adjustment Bass-Frequency Compensation for On-Wall or In-Wall Placement
  • APERION® Customized Internal Wiring
  • Optimized Crossover Network with Mylar and Polypropylene Capacitors
  • Anti-Resonant, Internally Braced, MDF Cabinet Walls
  • 5-Way Gold-Plated Binding Posts
  • Lightweight Magnetic Grille
  • Easy mount and Install
  • Rotatable Logo - Easy-Pull Spring-Loaded (On Cabinet) or Magnetic (On Grille)
  • Custom tuned cabinet



Package Contents:

  • T80W Silm In-Wall Speaker x One (1) Pcs
  • Manual x One (1) Pcs
  • Polish Cloth x One (1) Pcs
  • Gloves x Two (2) Pcs
  • Cut-out Template x One (1) Pcs



Download:

Download Theatrus Manual


T80W CAD Drawing

T80W CAD Drawing
