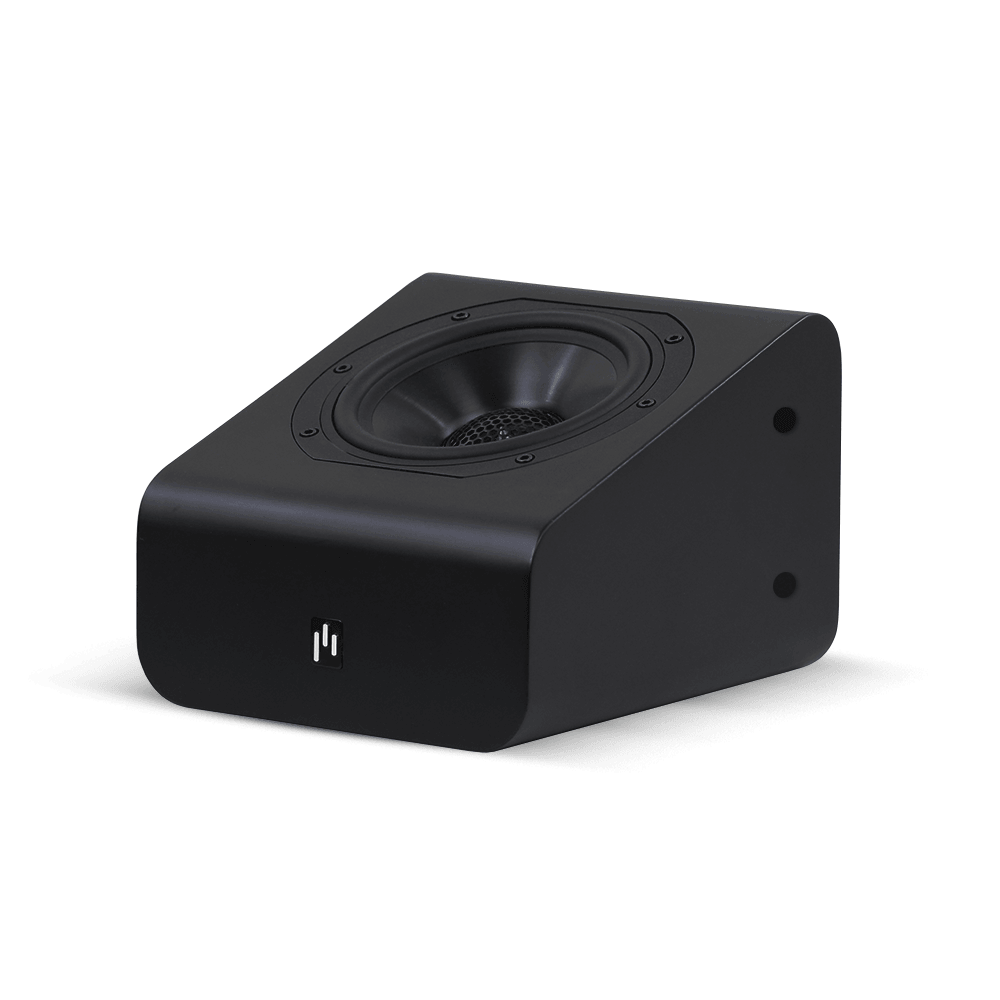

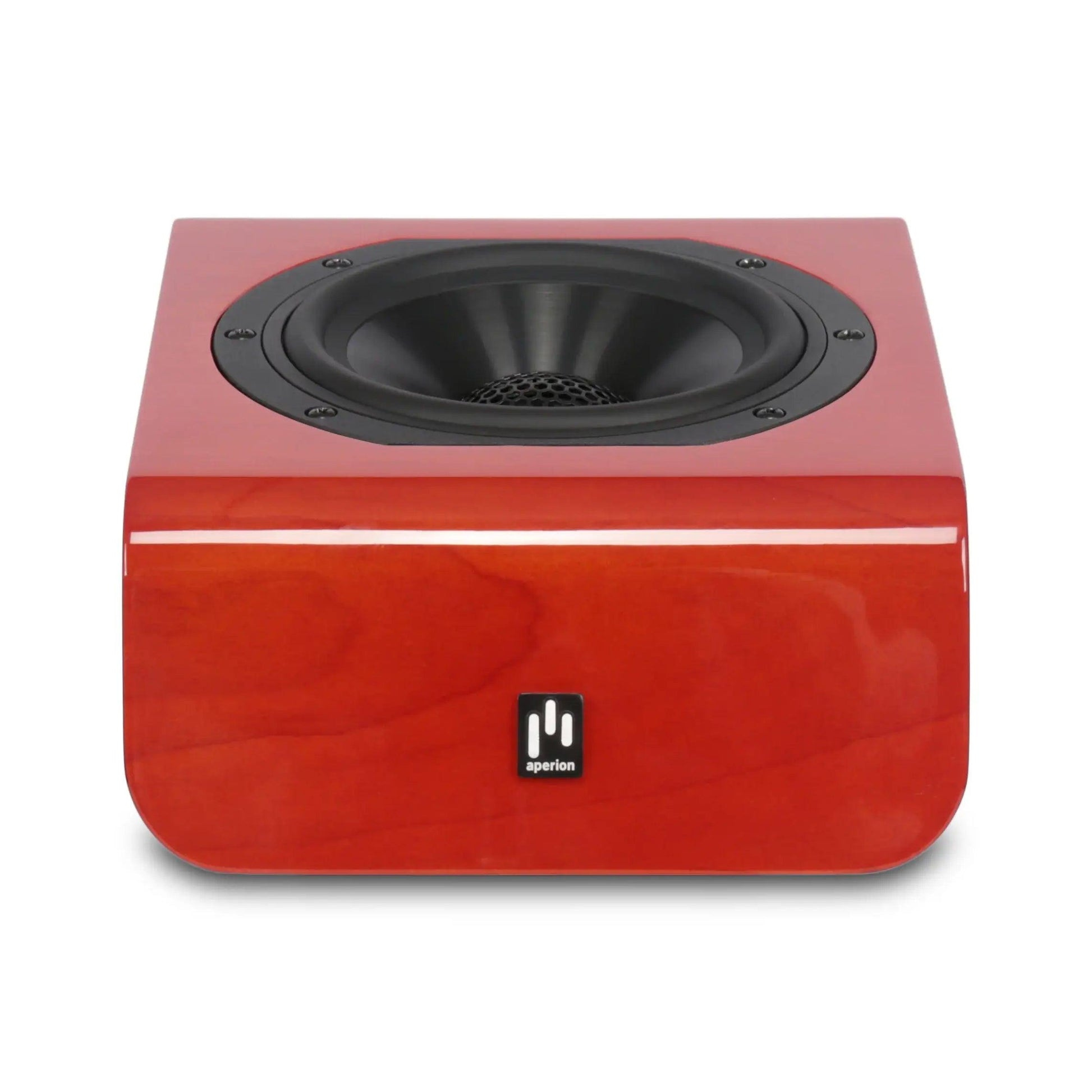

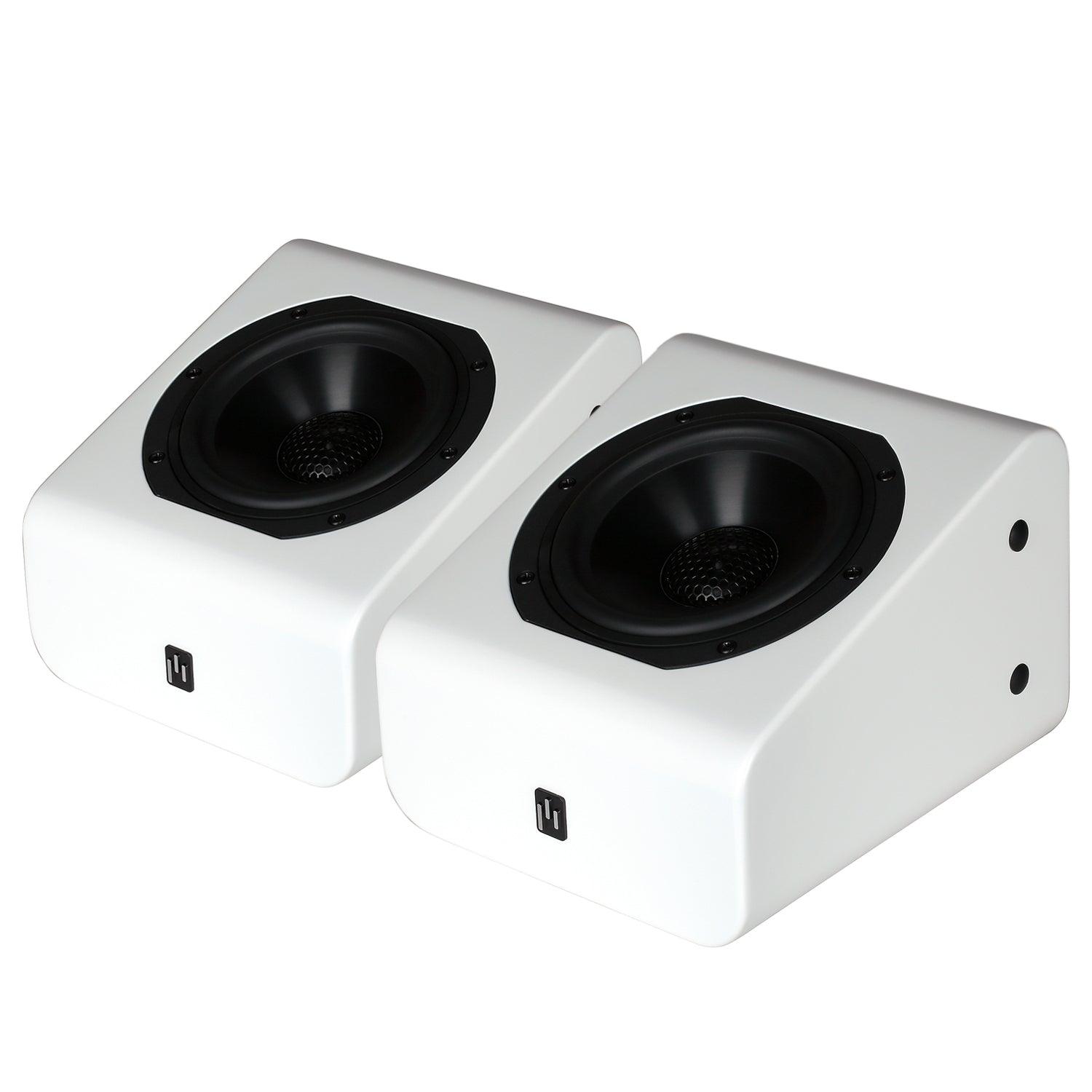

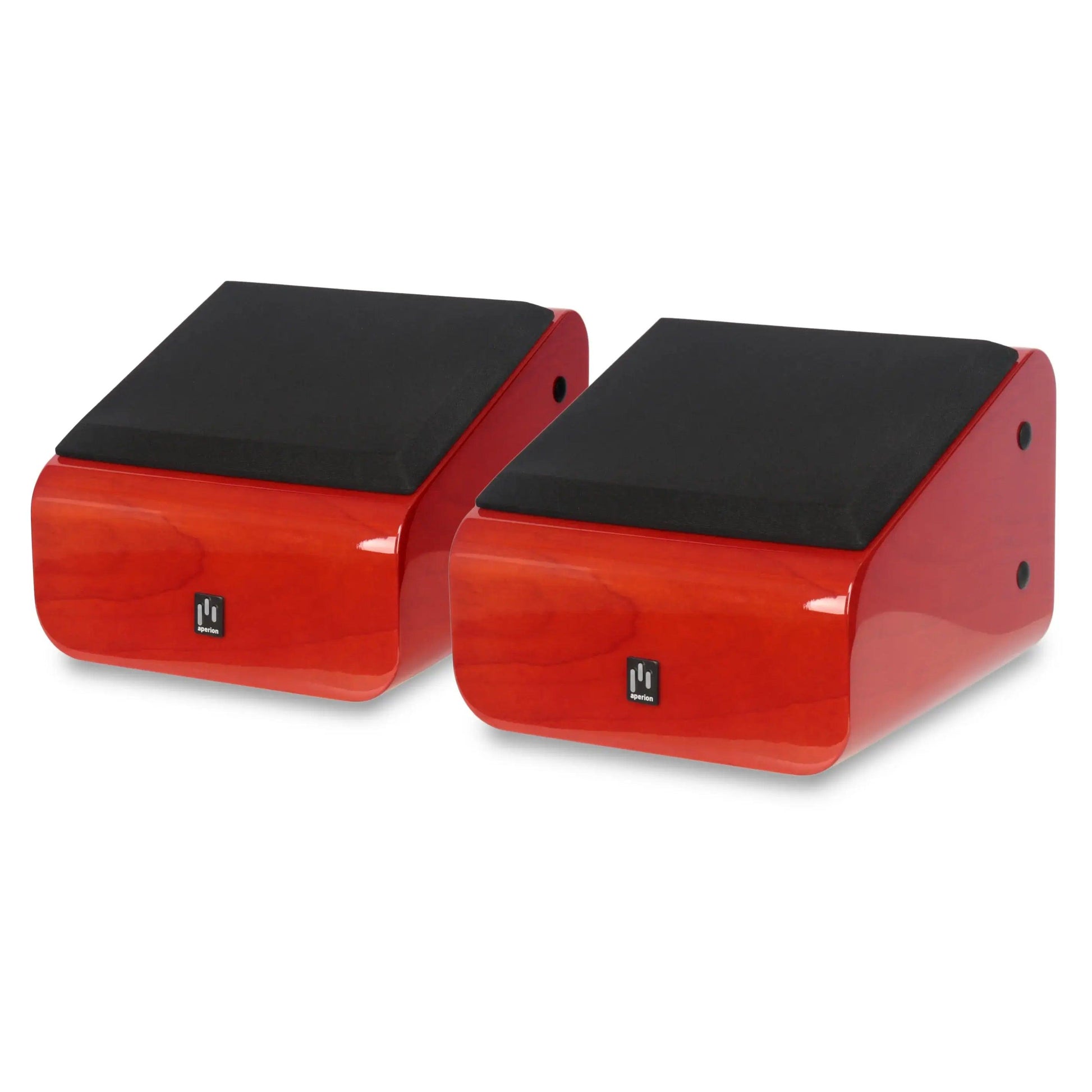

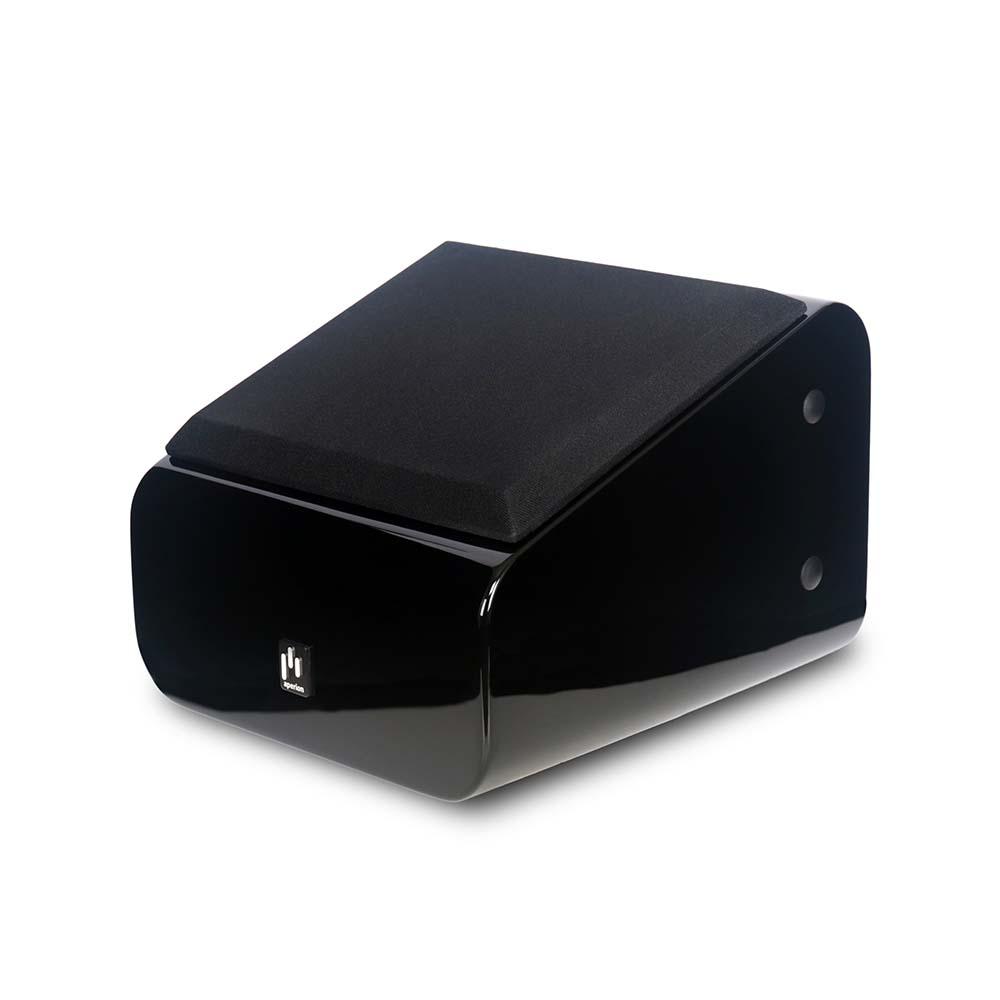

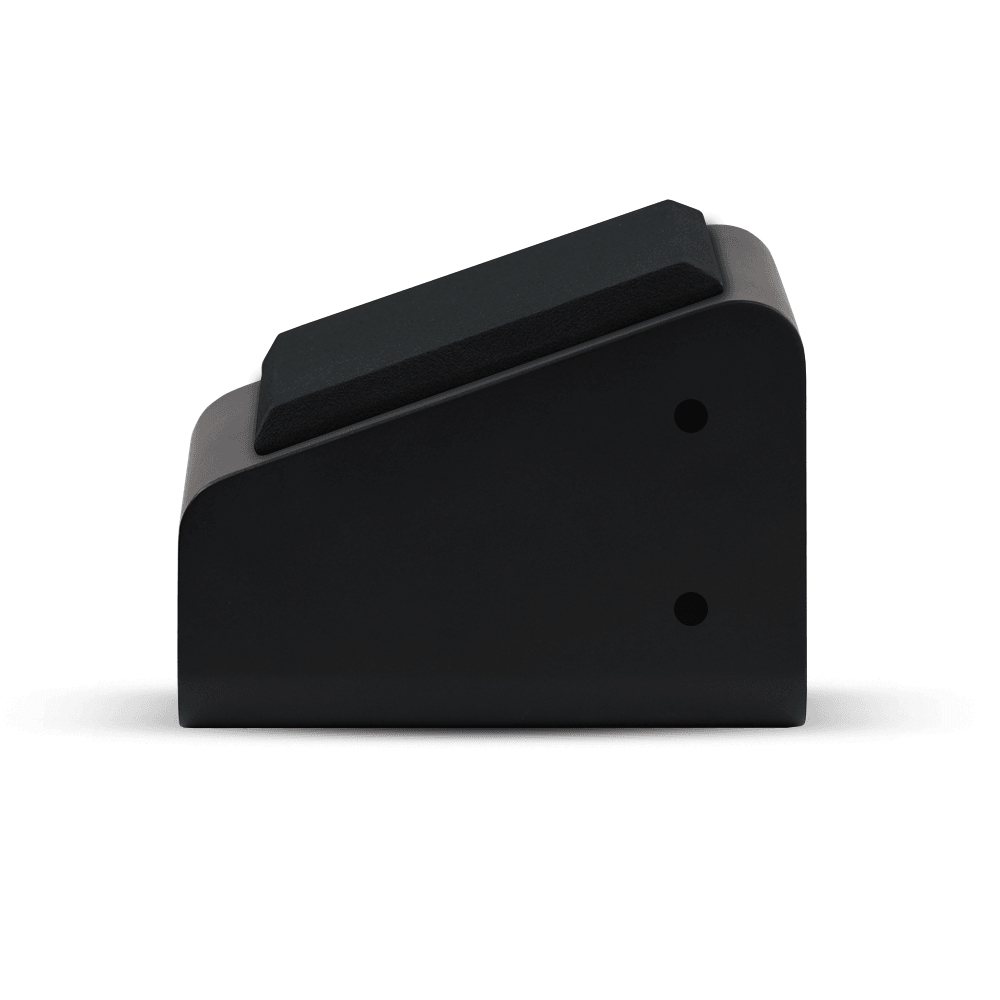

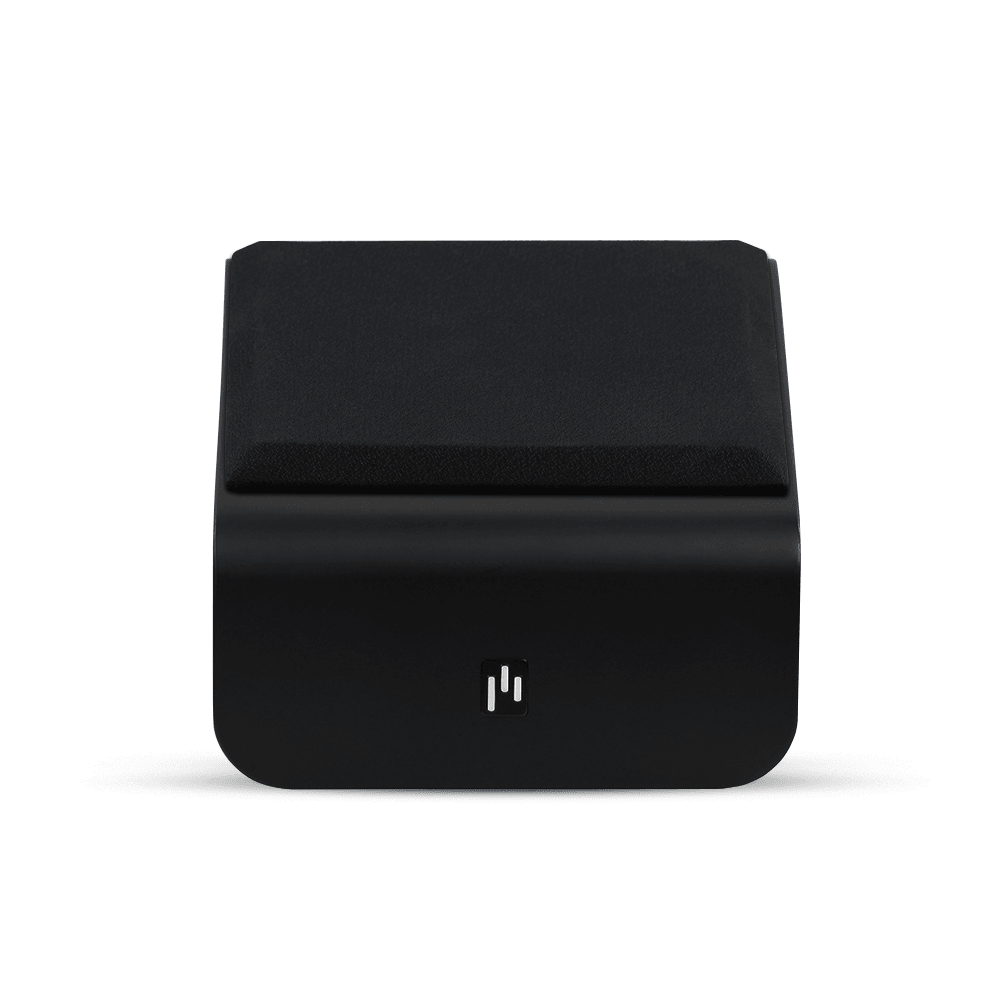

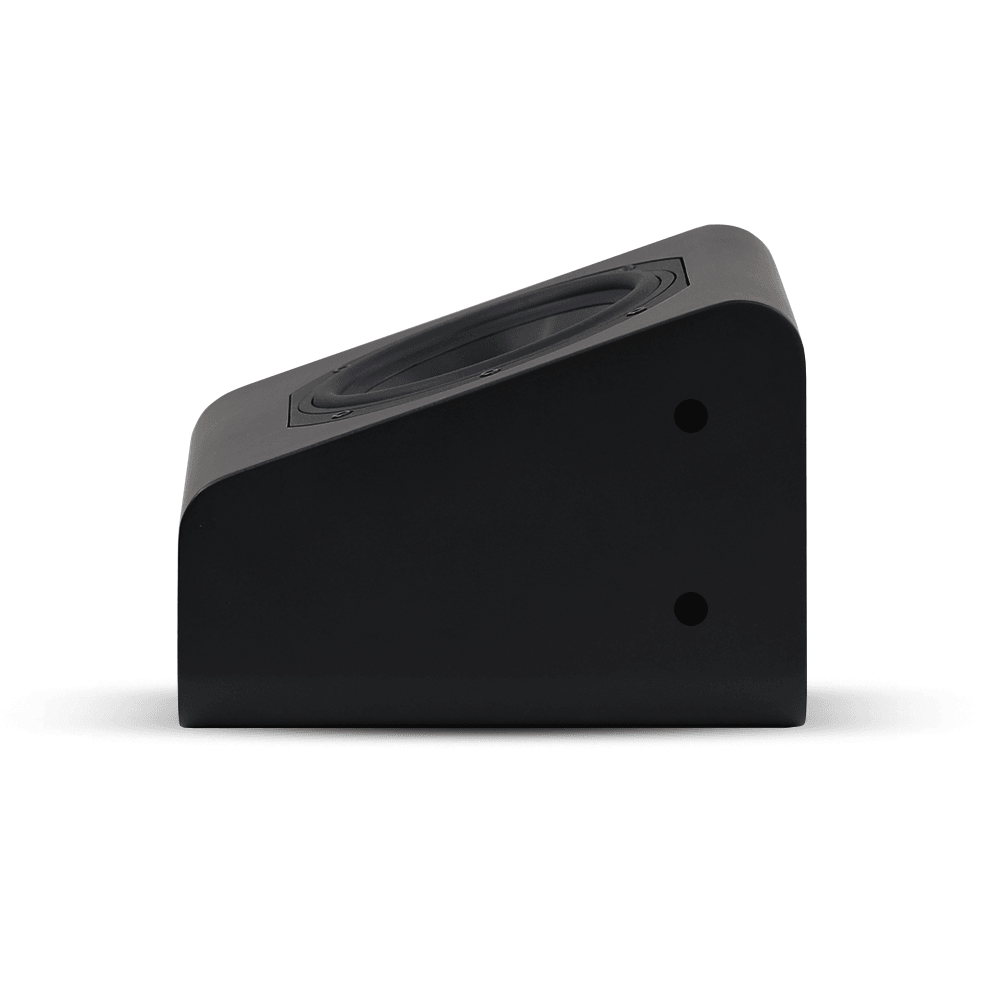

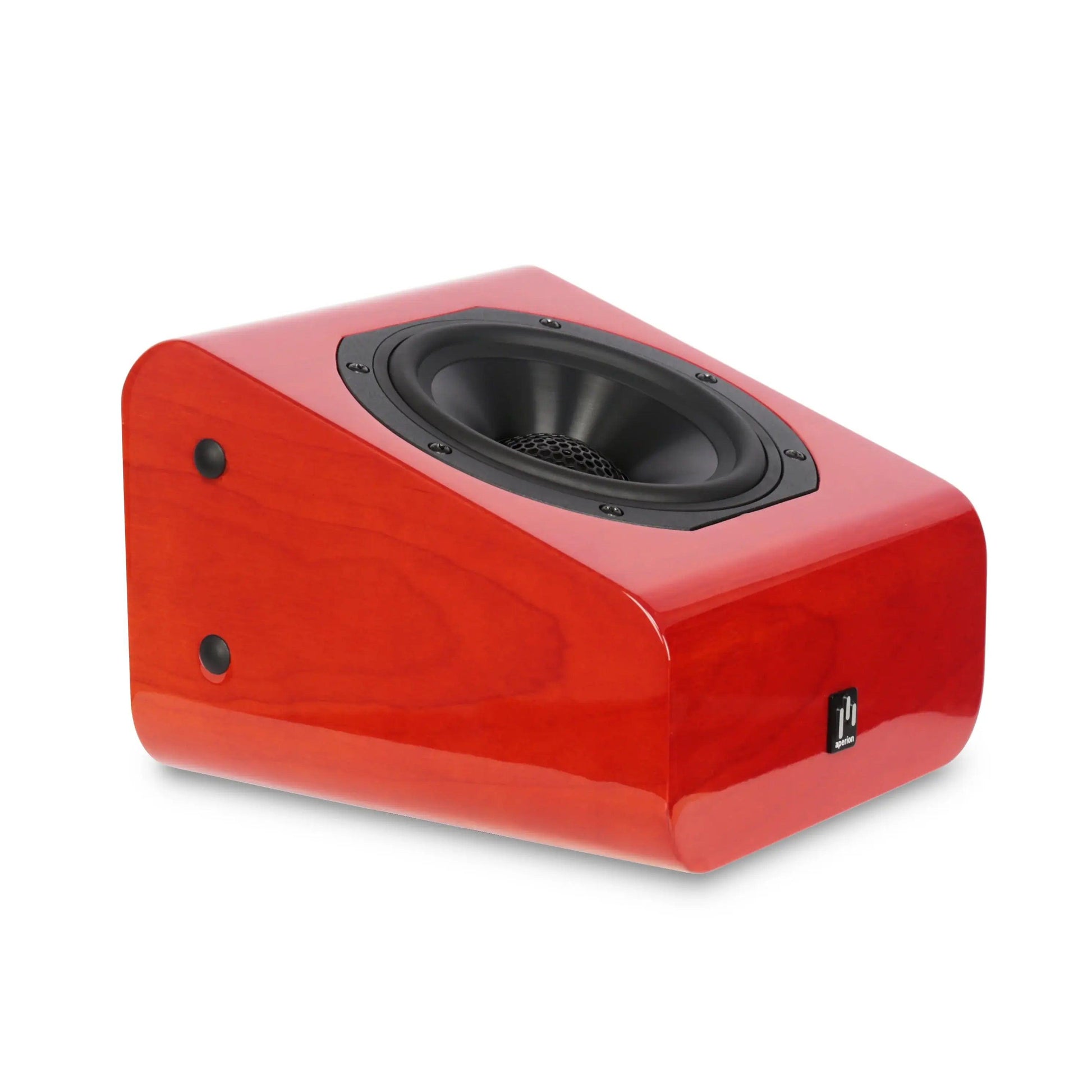

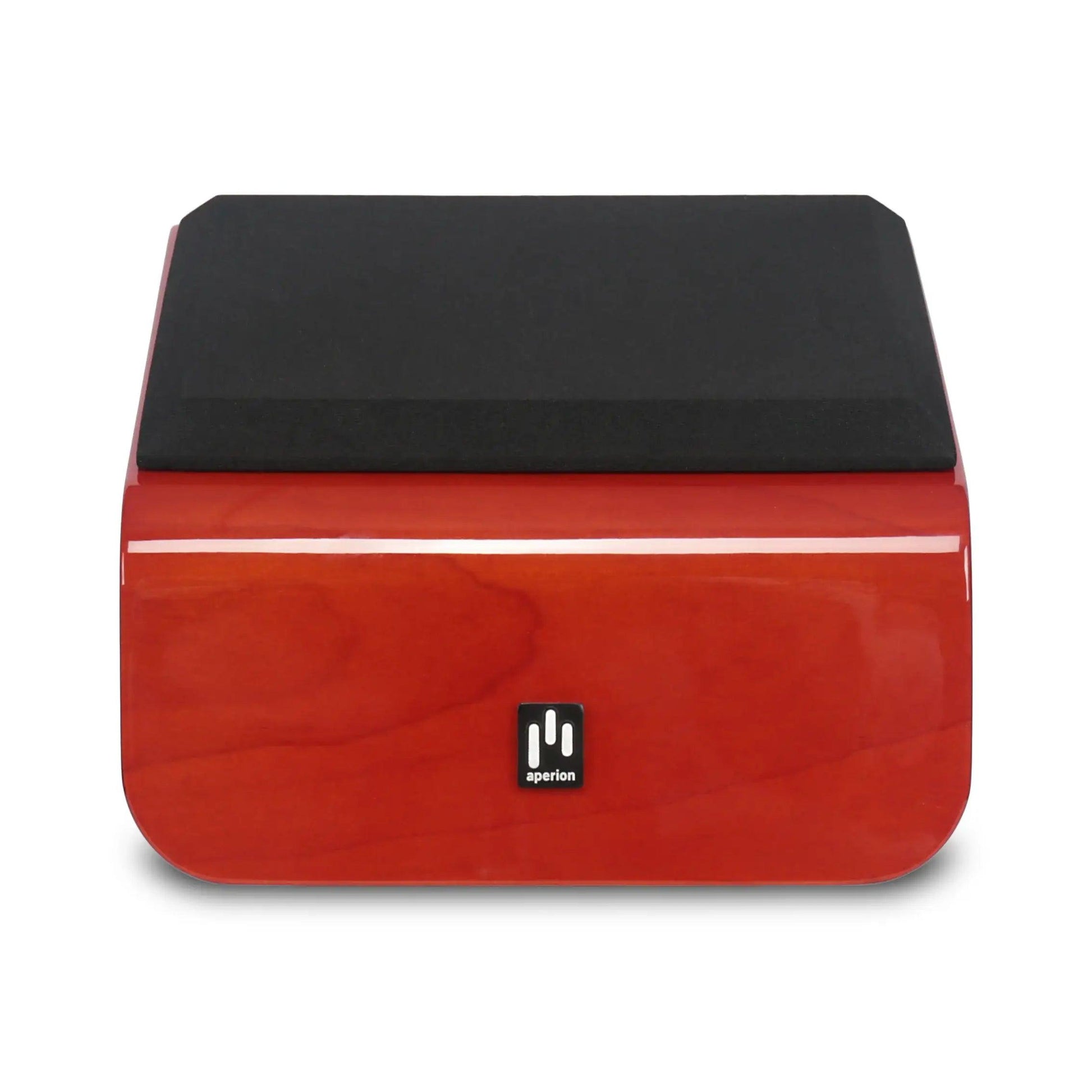

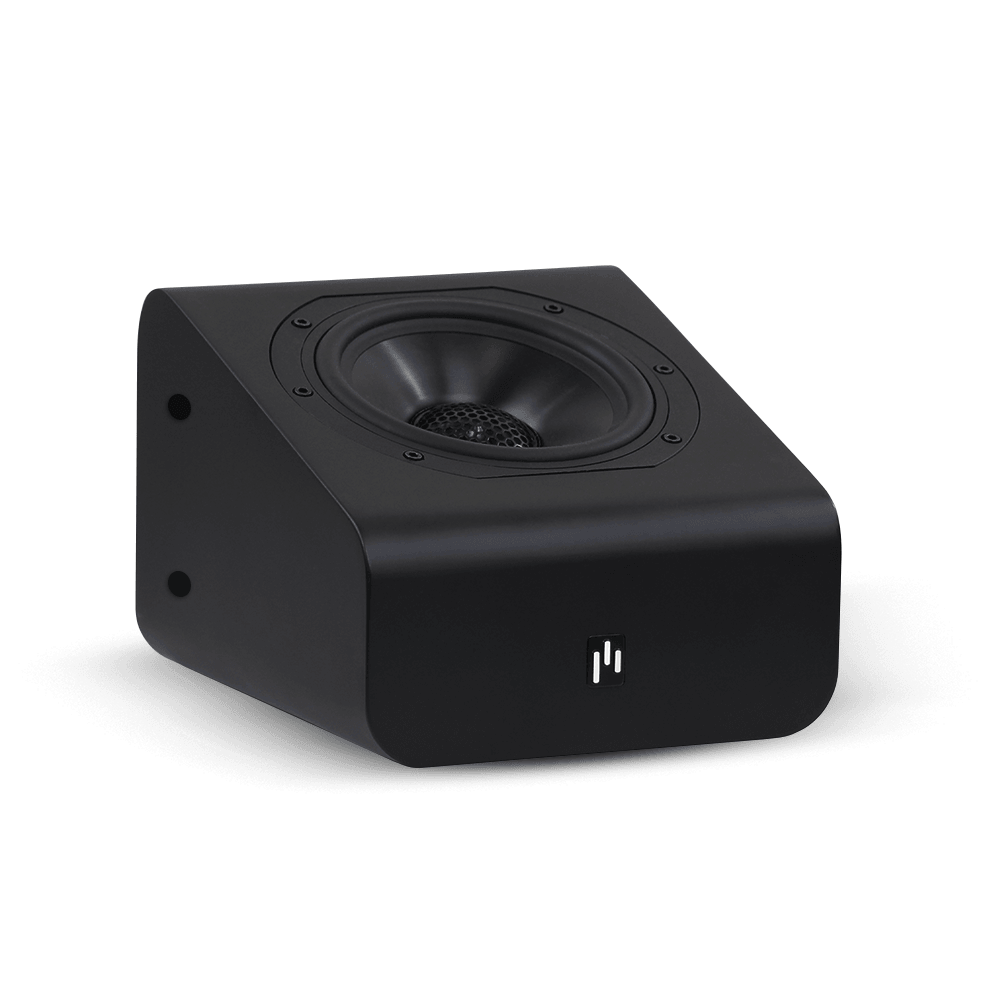

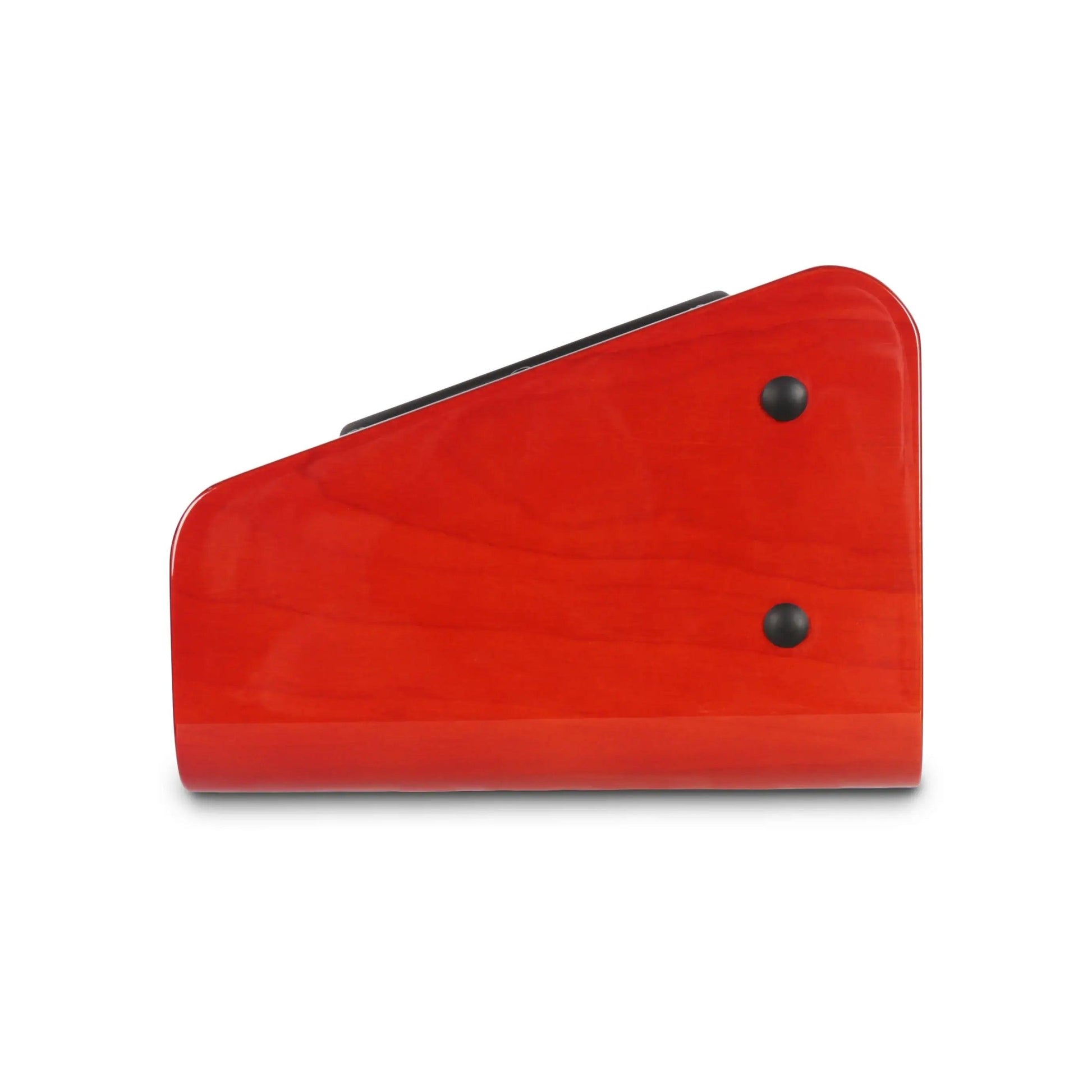

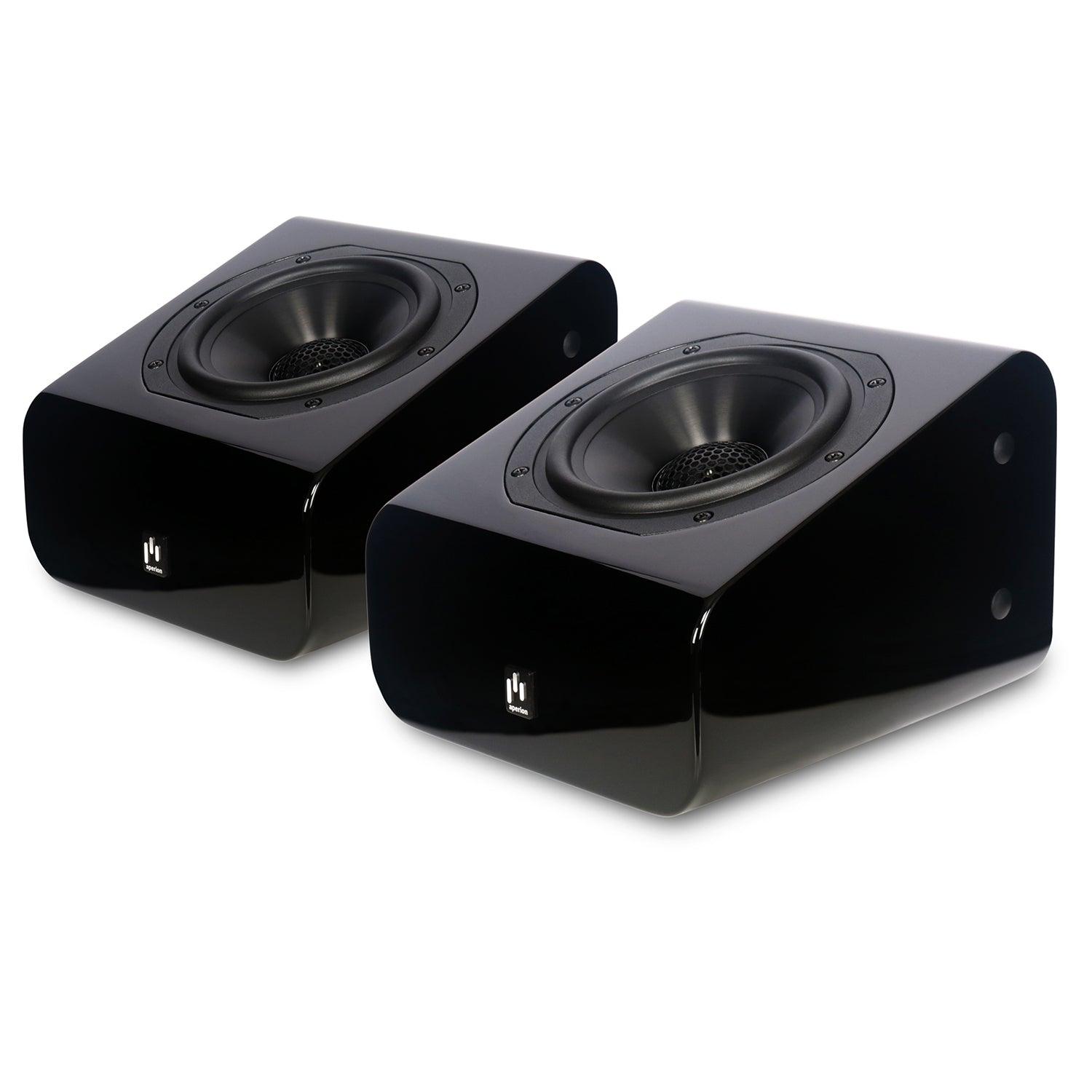

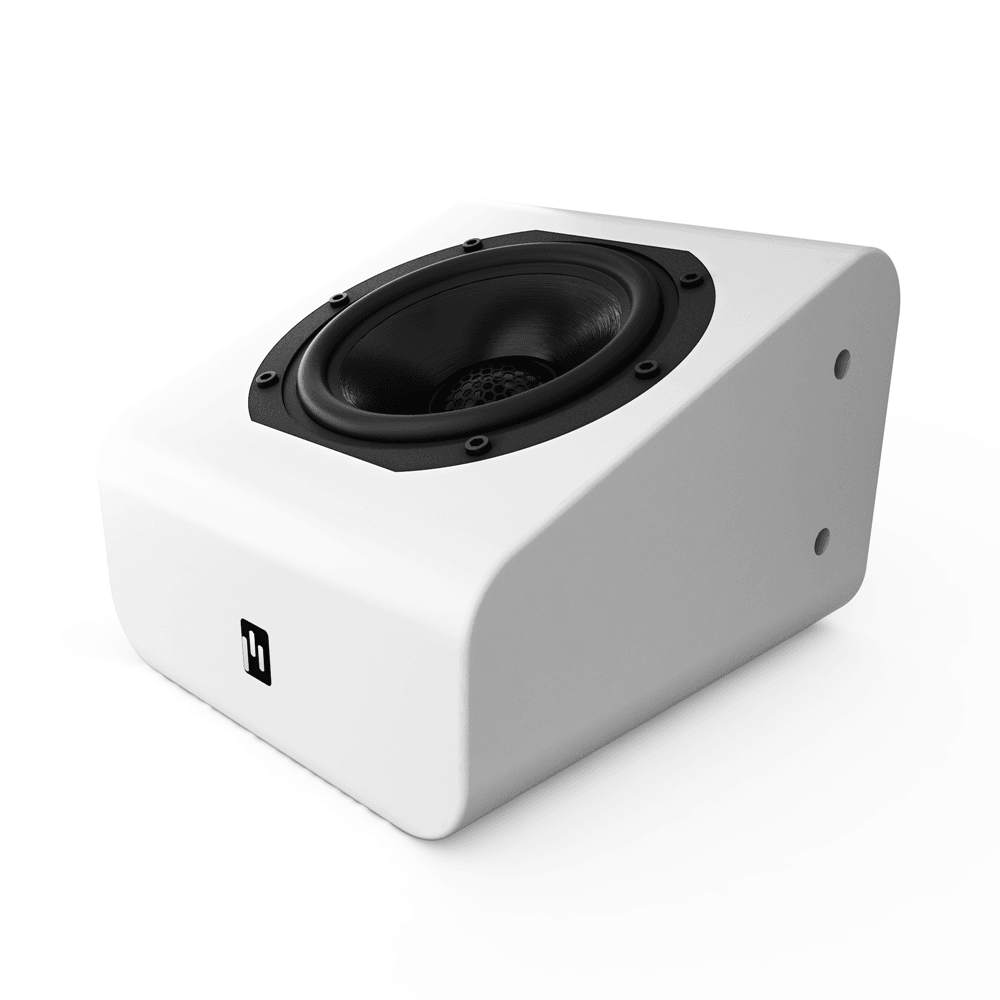

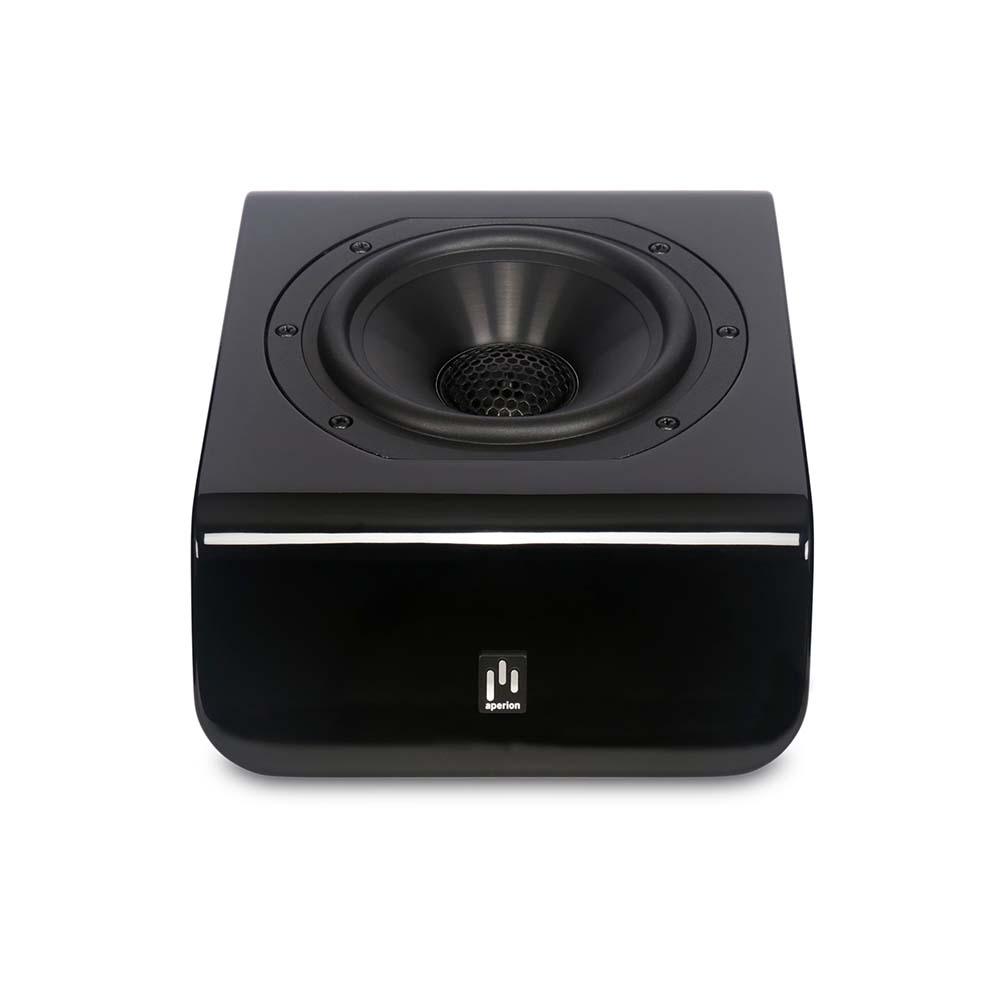

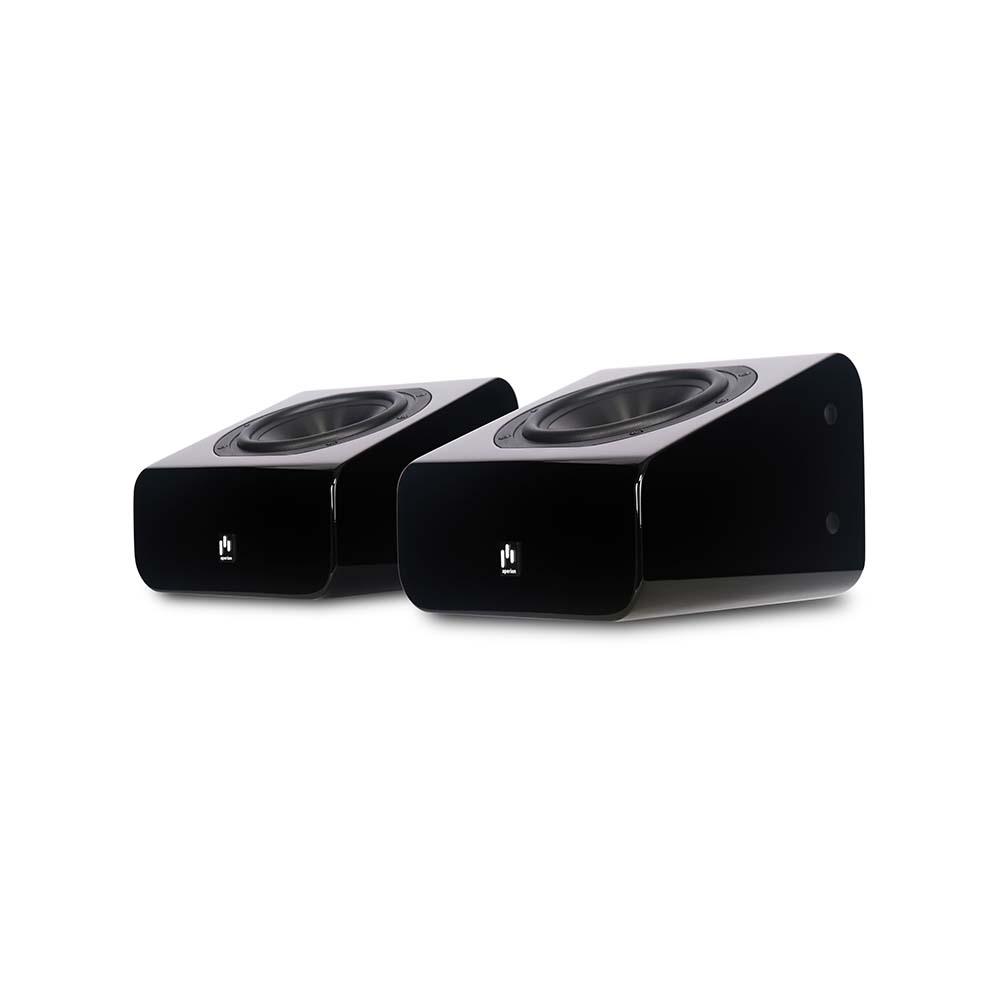

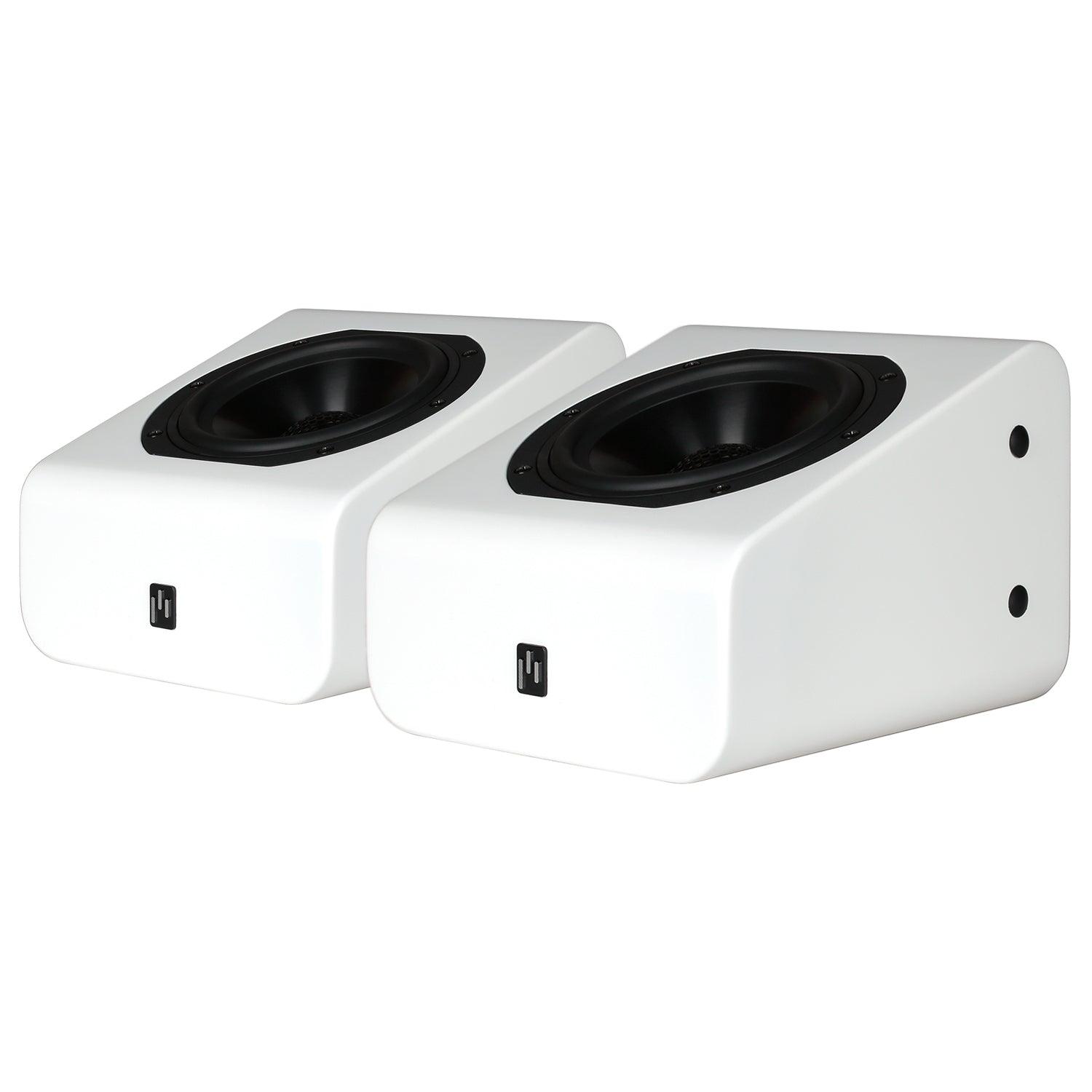

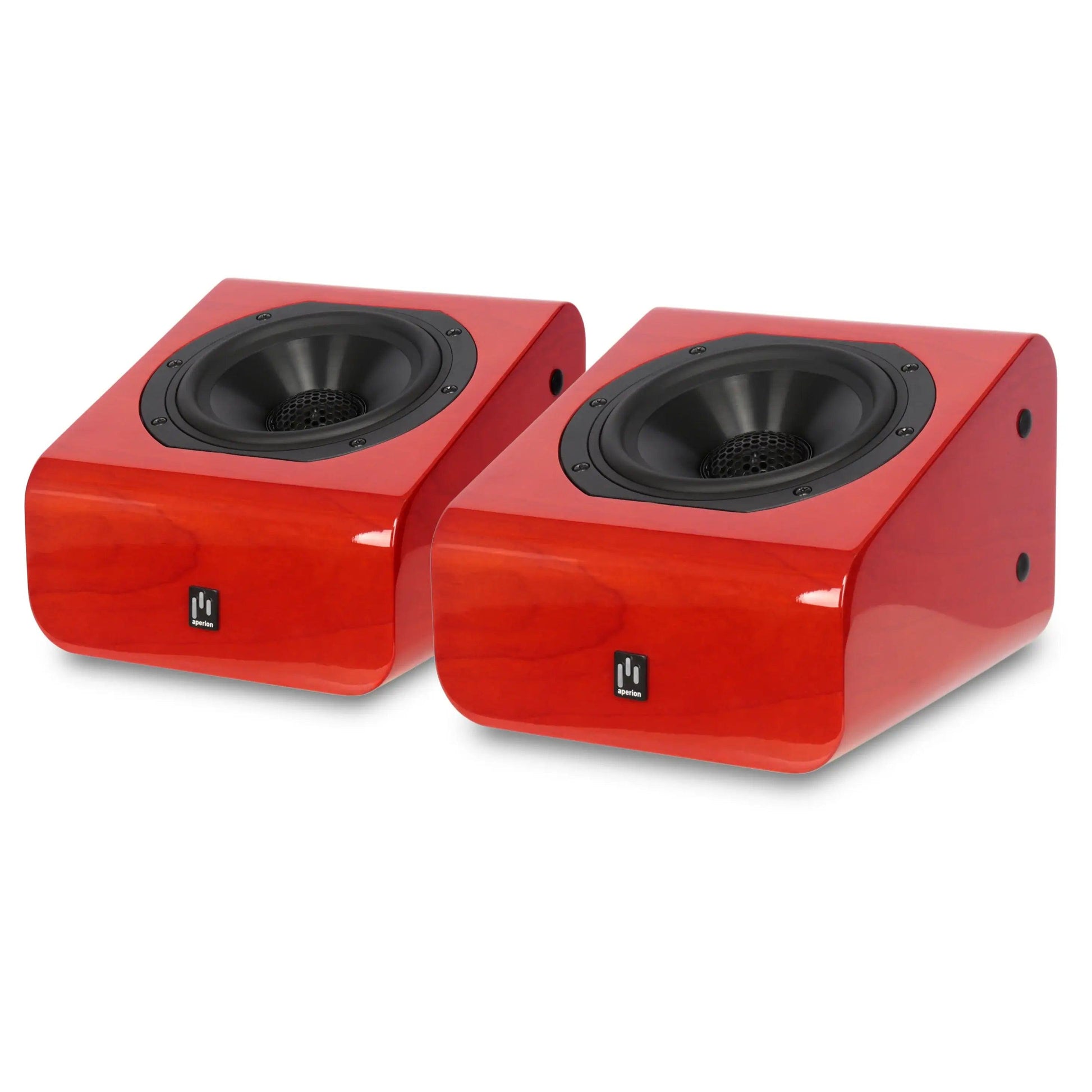

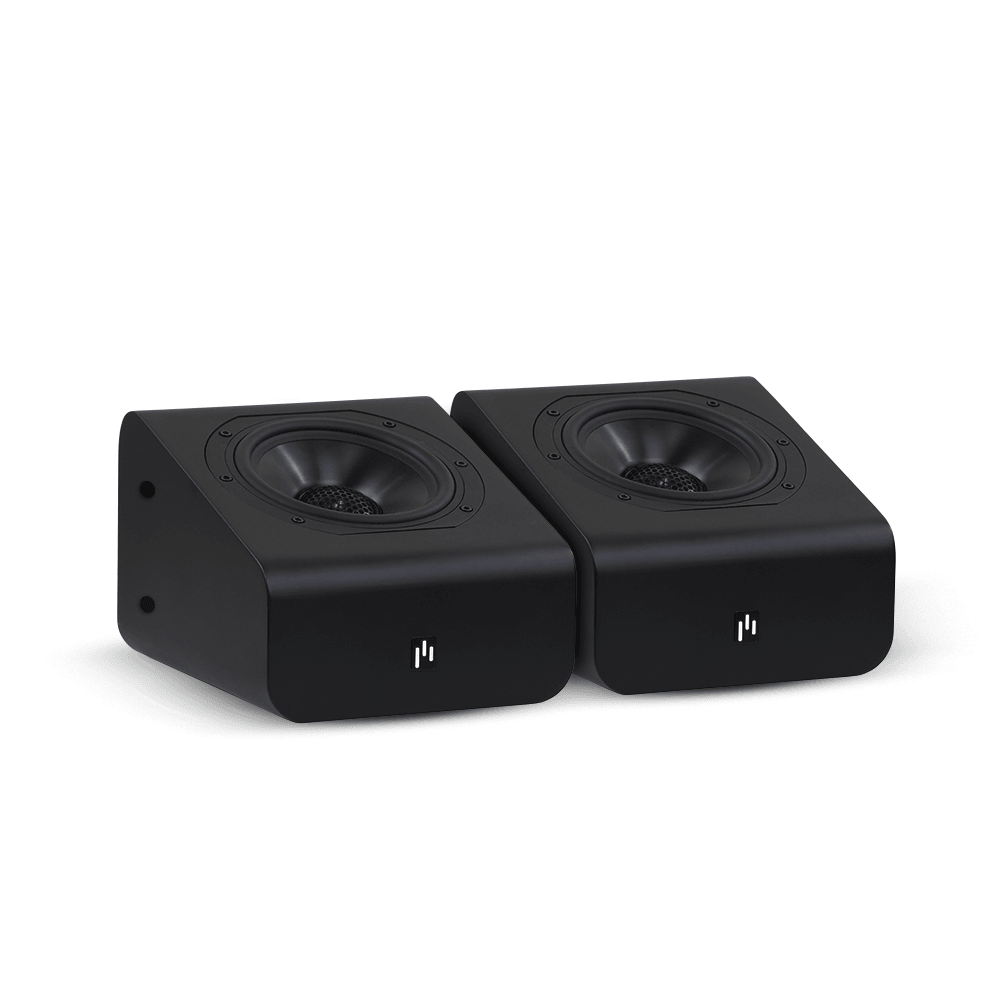

A5 Atmos 5.25" Immersive Reflective/Height Module Speaker Pair

A5 Atmos 5.25" Immersive Reflective/Height Module Speaker Pair

Low stock

Regular price $549.00
Regular price $549.00 Sale price $549.00
Sale Sold out
Finish

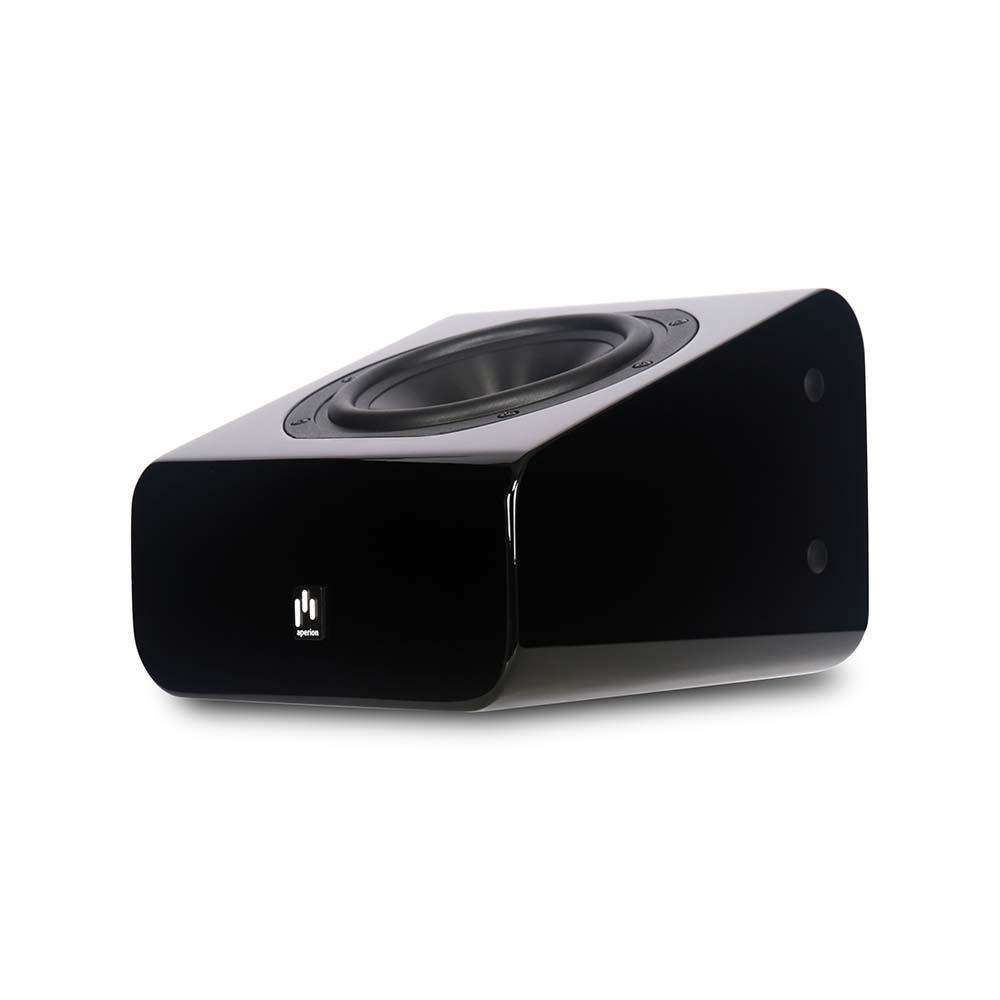

Aperion Audio A5 Atmos 5.25" Immersive Reflective/Height Module Speaker Pair

The APERION A5 Immersive Height Module is perfect for achieving the latest surround formats such as Dolby Atmos and DTS:X that require "height" channels. Traditionally, this required installing in-ceiling speakers above your seating area. But with the Aperion A5, you can attain this effect with several different methods that do not require you to cut holes in your ceiling.

Specification

Frequency Response: (+/- 3dB) 90-30,000 Hz
Impedance: 6 Ohms
Sensitivity: 87 dB
Recommended Power: 20-80 Watts
Peak Power: 160 Watts
Tweeter: Natural-Fiber Silk-Dome, Ferrofluid-Cooled
Woofer: 5.25" Aluminum Cone Woofer
Driver Configuration: 2-Way
Enclosure Type: Anti-Resonant, Sealed
Product Weight: 7.5 lbs/ 3.5 Kg each
Product Dimensions: 5.7" x 7.1" x 7.9" (HxWxD) / 146mm x 180mm x 200mm (HxWxD)
Placement Location: On-top of Speakers, On-wall, Ceiling-Mounted, Surround Speakers
Shipping Weight: 19 lbs/8.5 Kg Pair
Shipping Dimensions: 19" x 12" x 12" / 470 x 295 x 300 mm (LxWxH)


Features

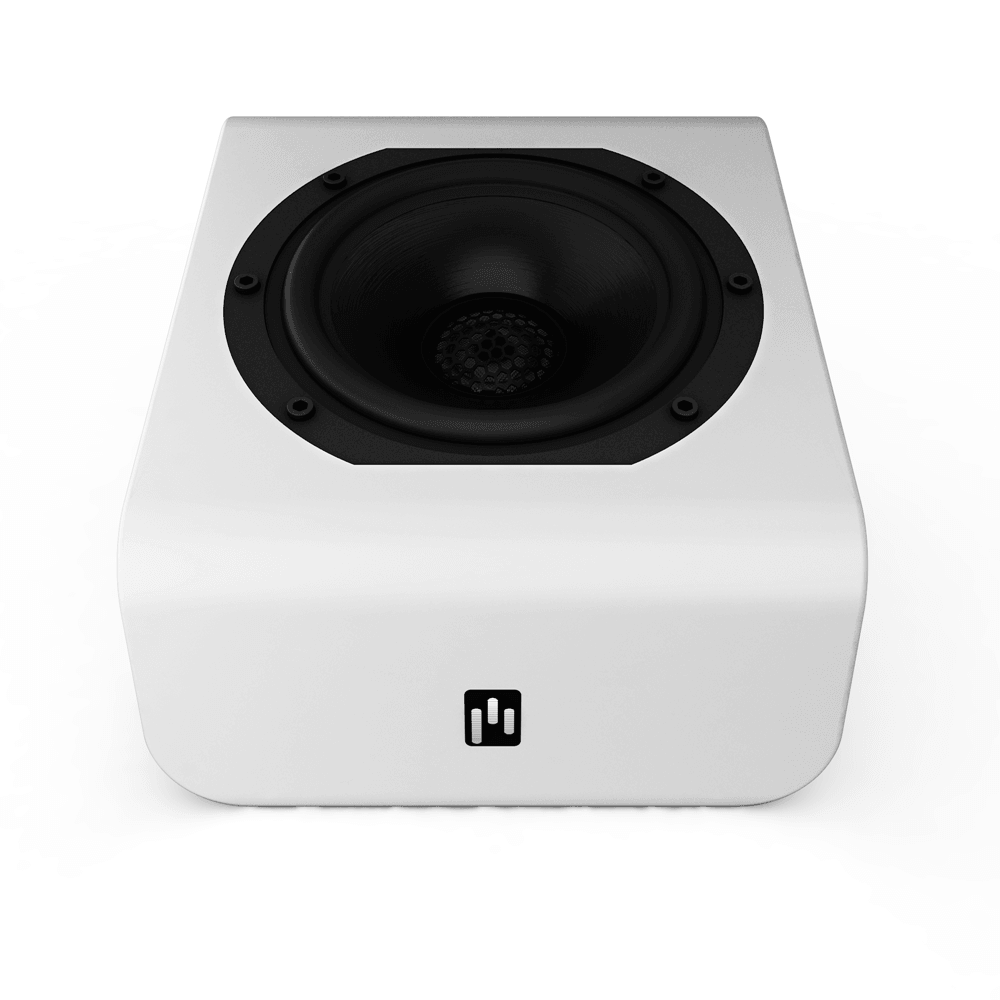

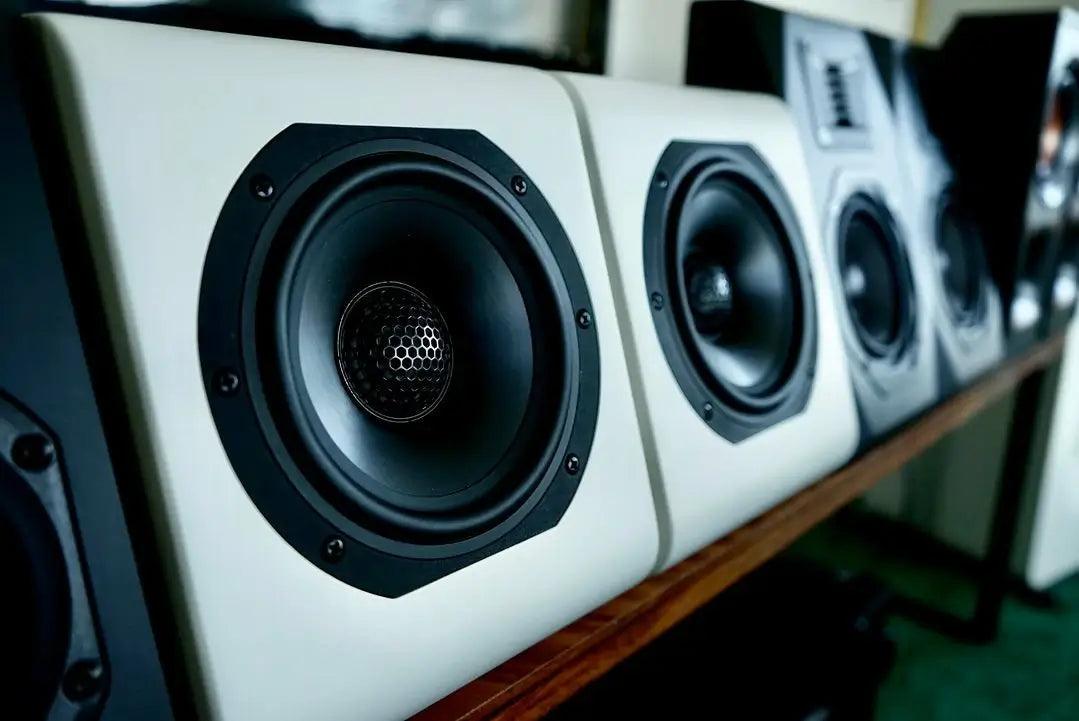

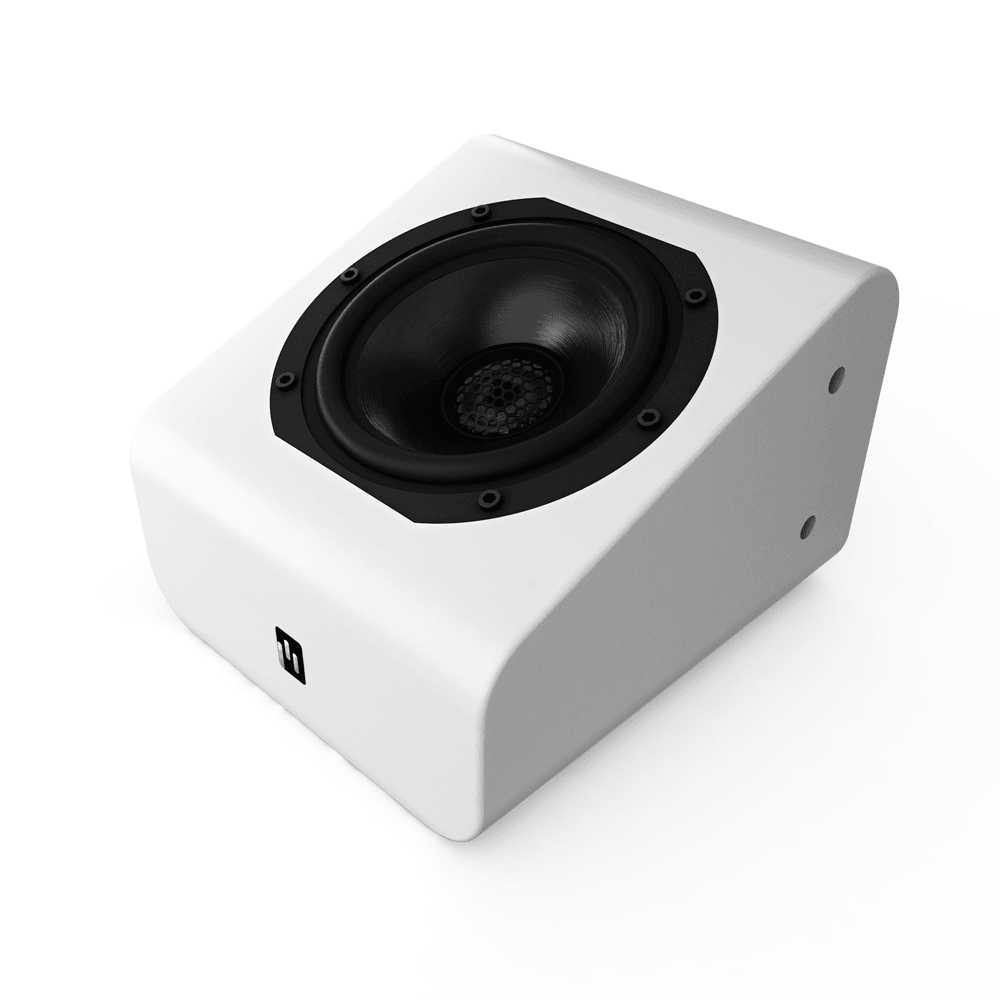

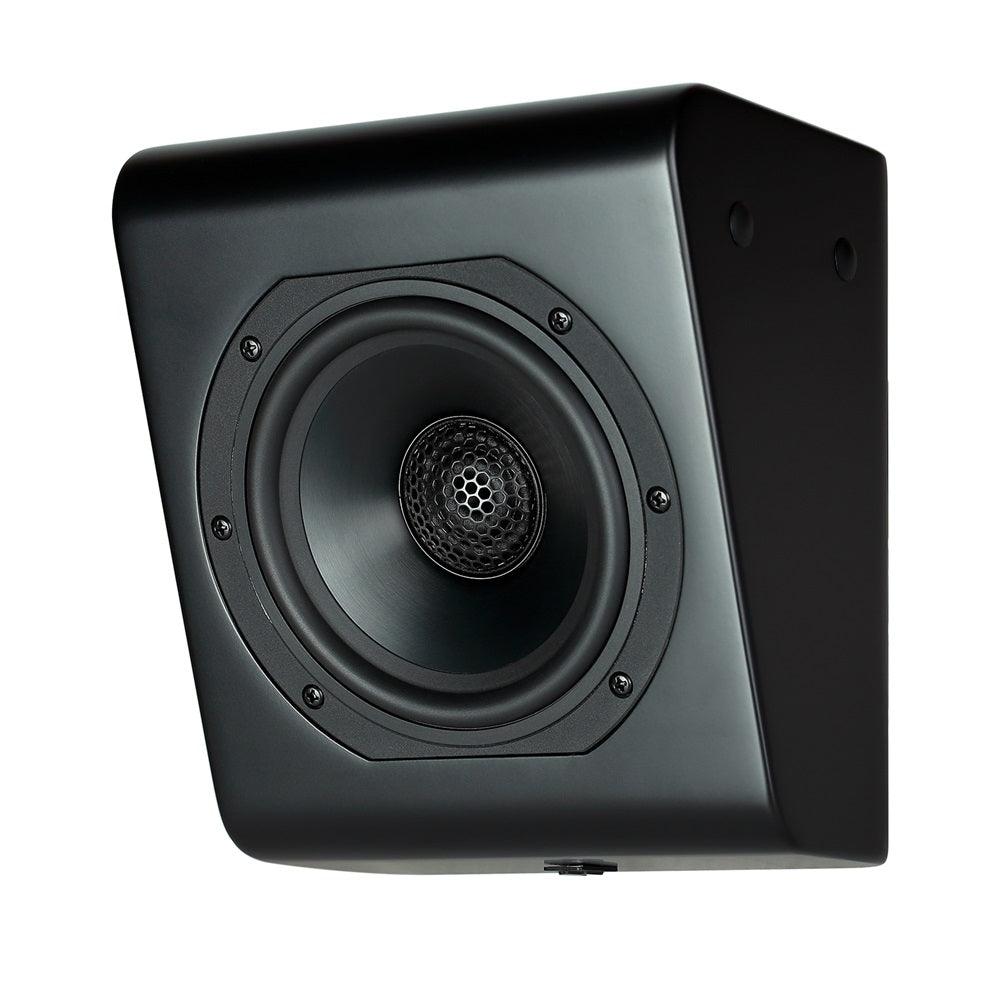

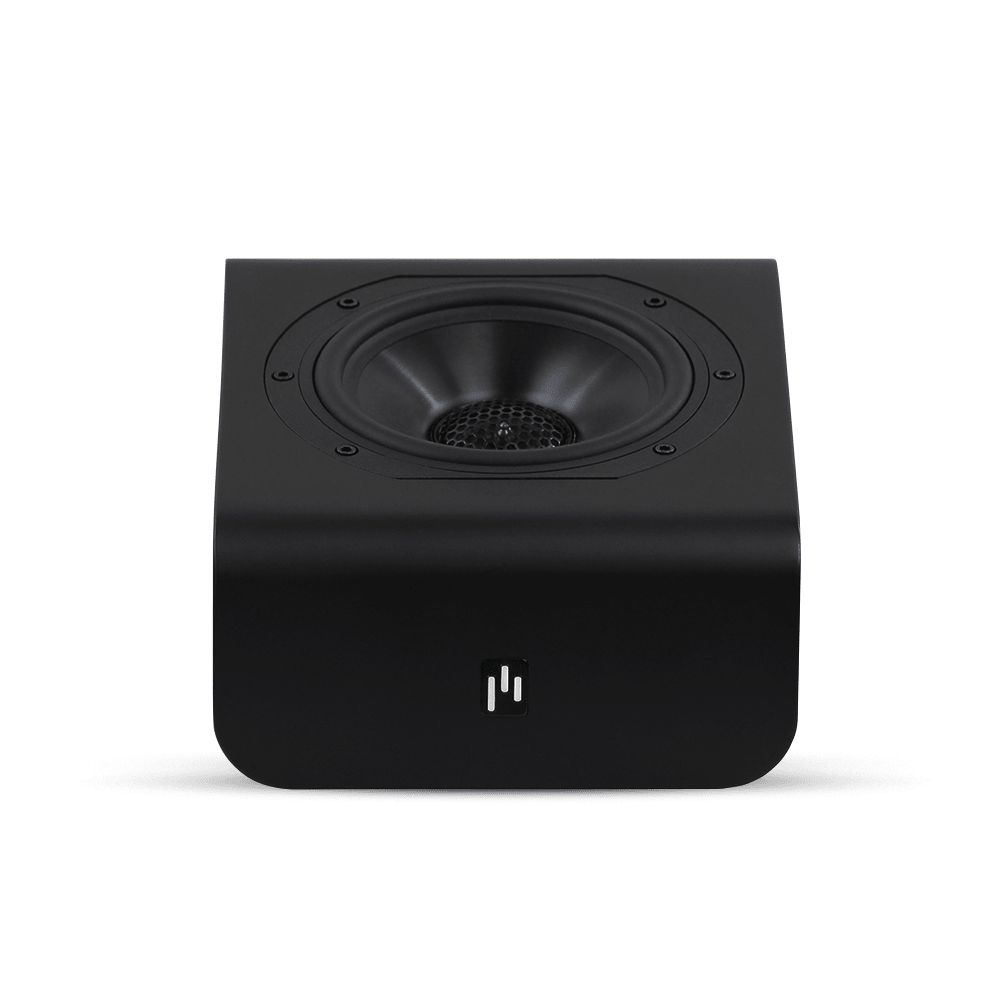

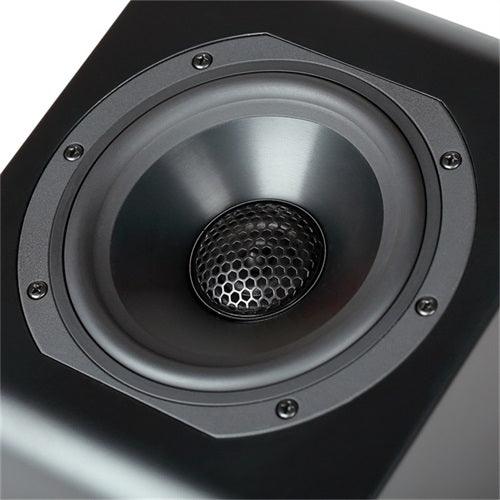

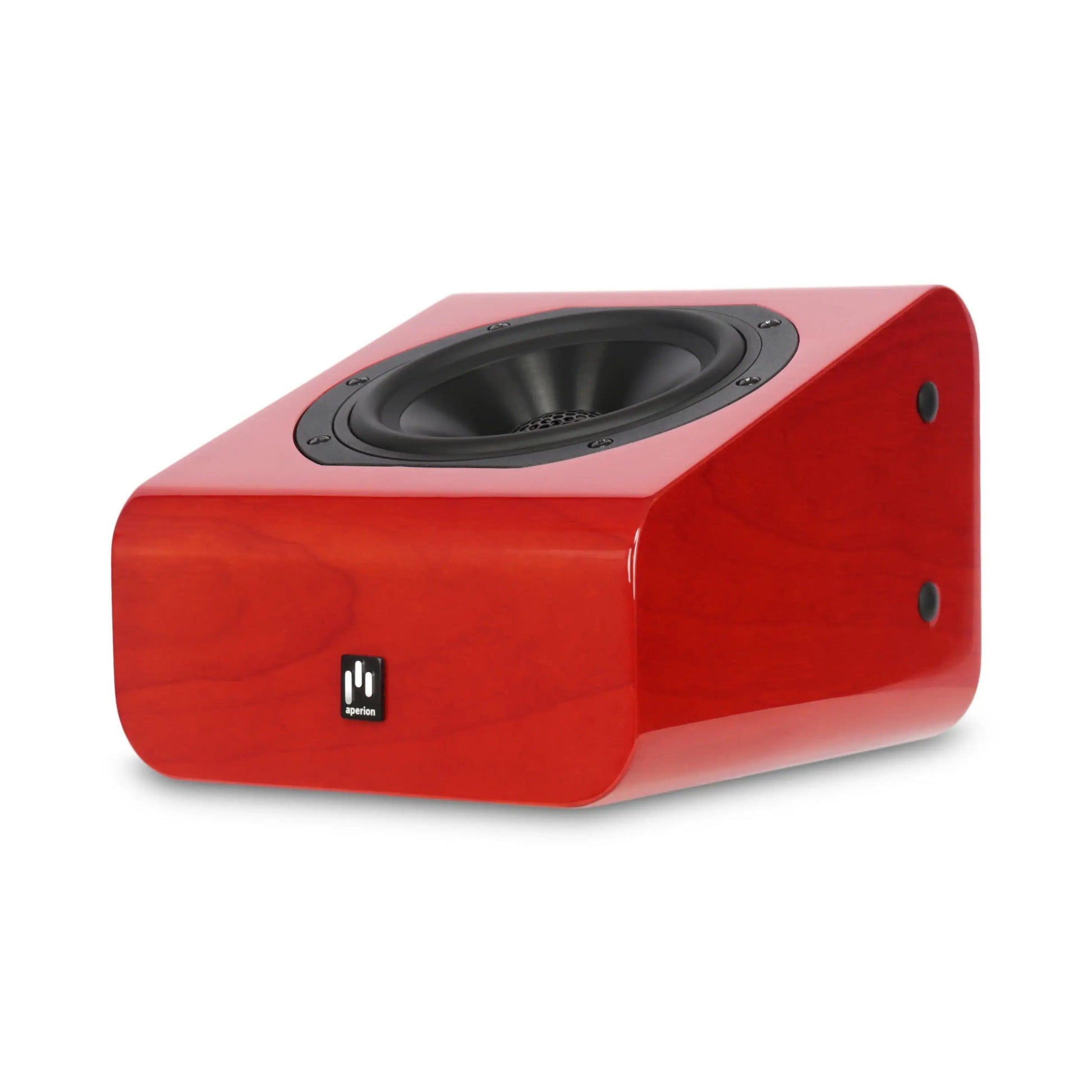

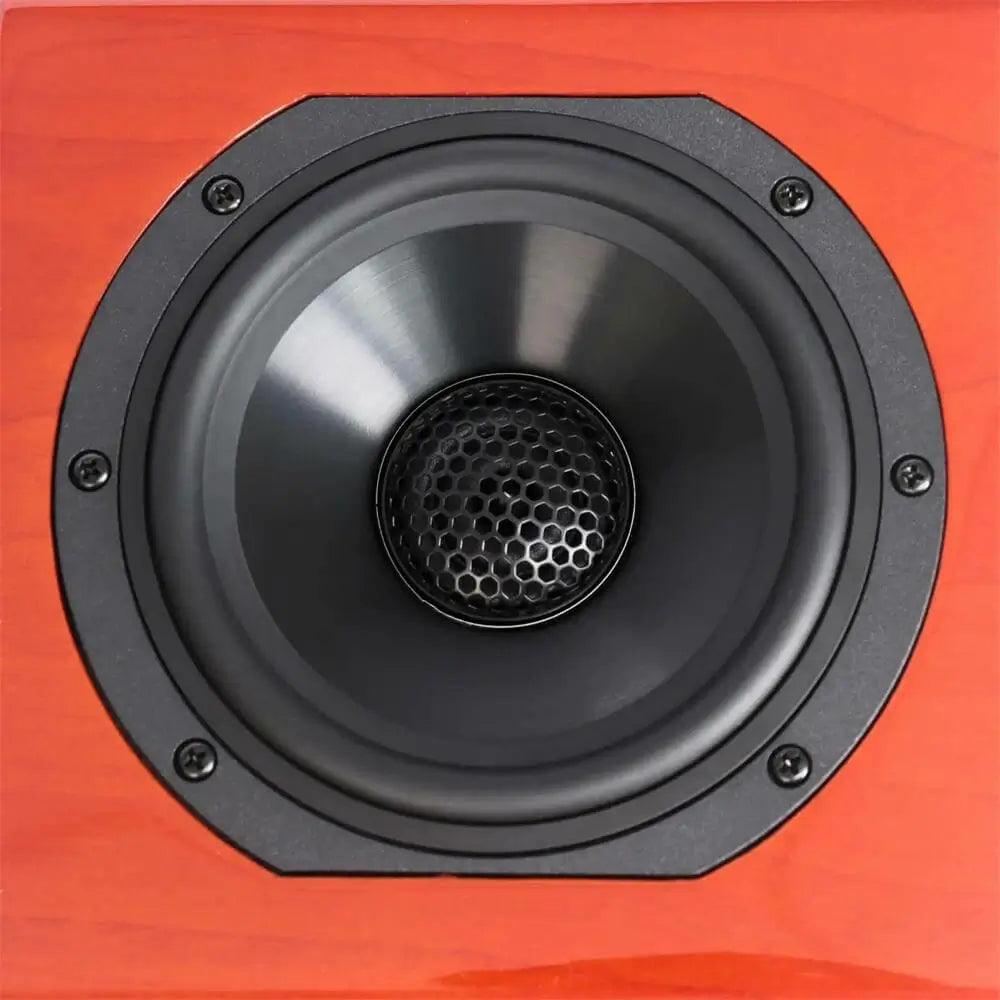

Concentric Driver Design

aperion-a5-atmos-addon-speaker-coax-driver-design

Concentric Driver including a 5.25” woofer and 1" tweeter for improved frequency response and sound placement in enabled Atmos and dts:x speaker configurations.



Versatile Placement Options

aperion-a5-speaker-versatile-placement-options

The APERION A5 Immersive Height Module can be placed on top of your front left and right speakers, mounted on the wall in front and behind, or mounted directly on the ceiling.



Up-Firing

aperion-a5-atmos-addon-speaker

Add-On top firing speakers to make any flat top speaker Dolby Atmos and DTS:X compatible.

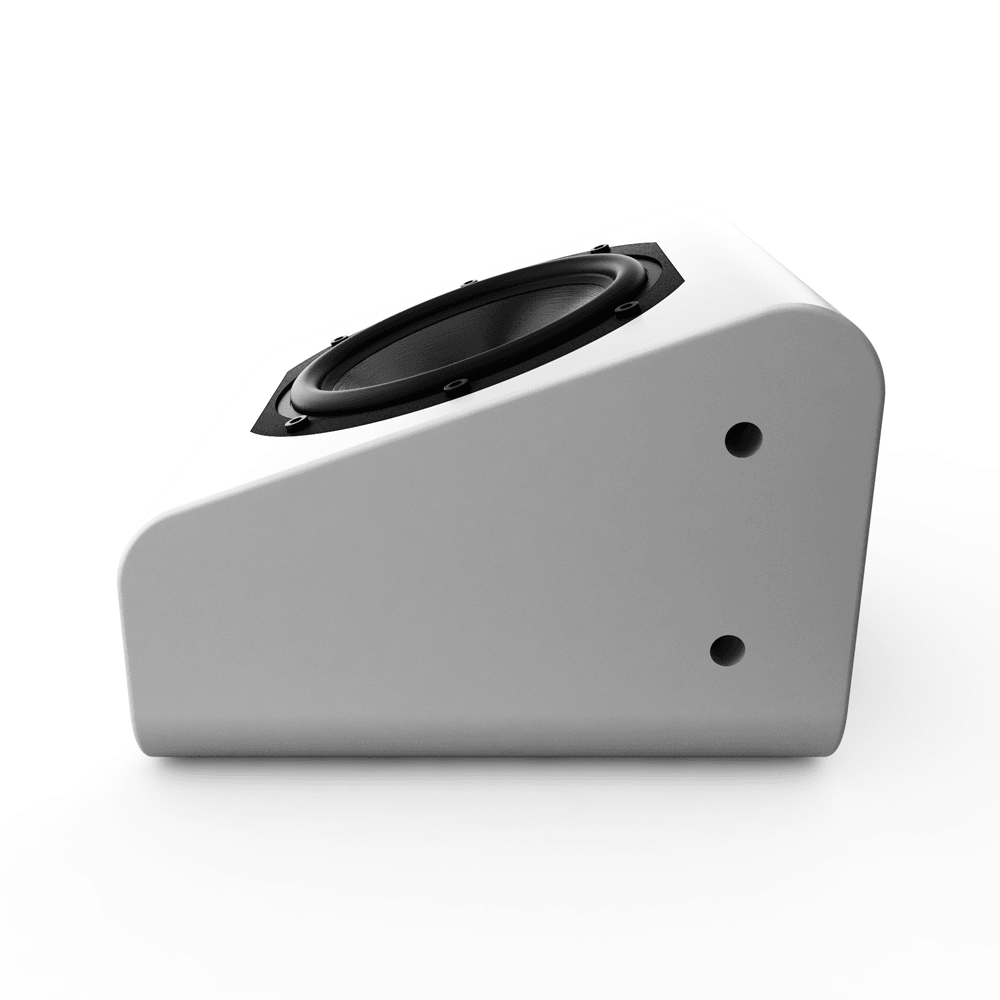

Cabinet Design

aperion-a5-atmos-speaker-cabient-design

RF Molded Curved Cabinets to reduce internal standing waves.

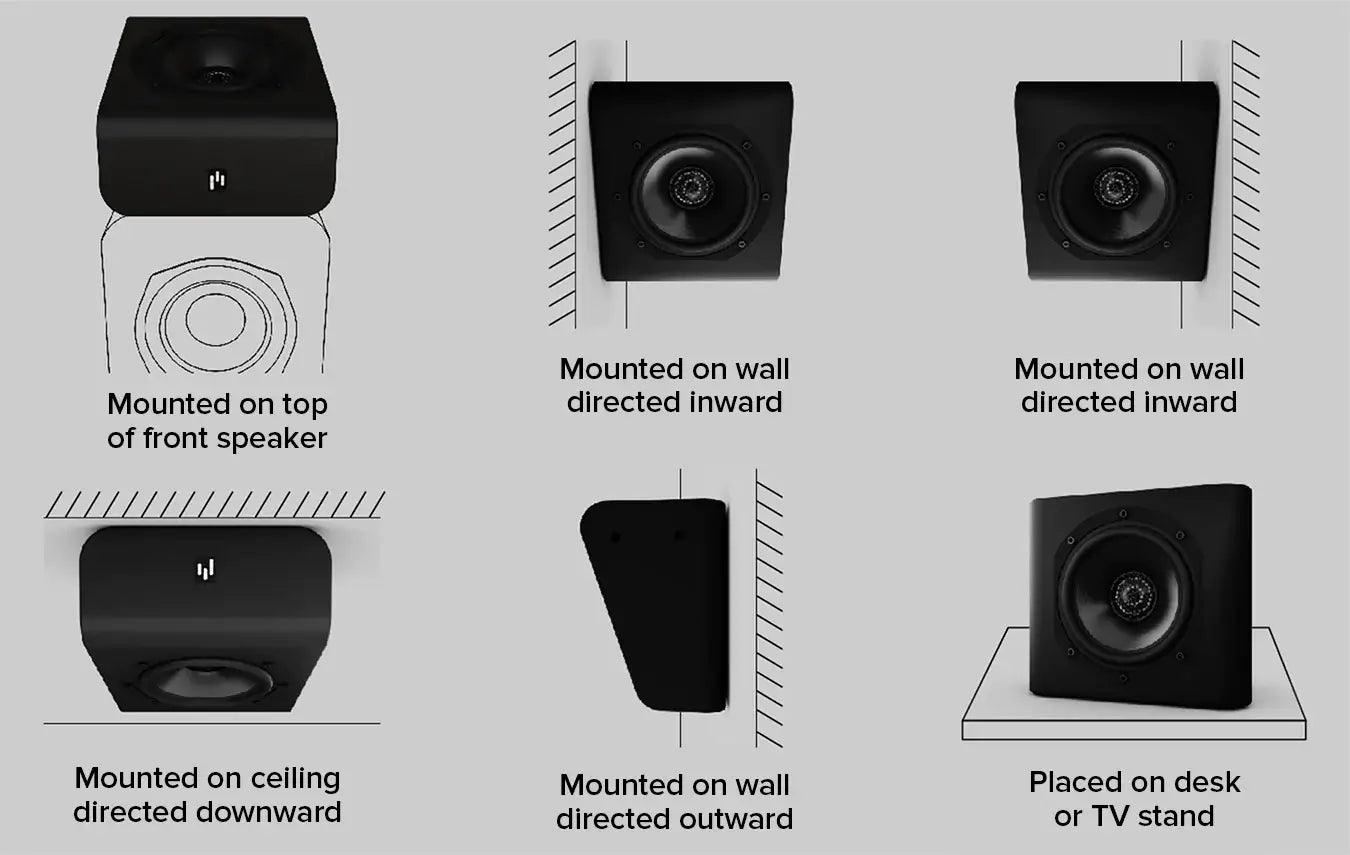

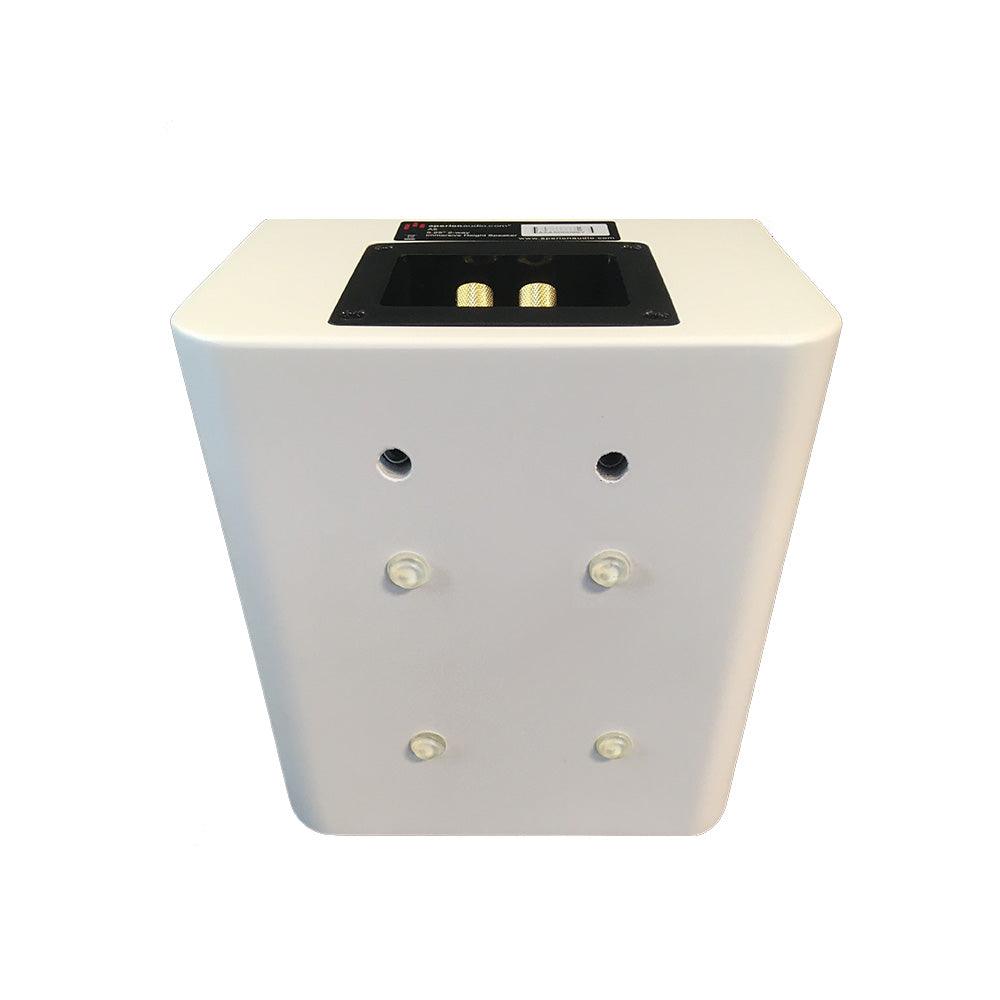

Multiple Mounting Options

aperion-a5-atmos-speaker-mount-options

On Speaker/On-Wall/On-Ceiling/On Desk....



Rotate the logo

aperion-a5-atmos-speaker-magnet-logo

You can even rotate the logo to match whether the speaker is mounted vertical or horizontal.

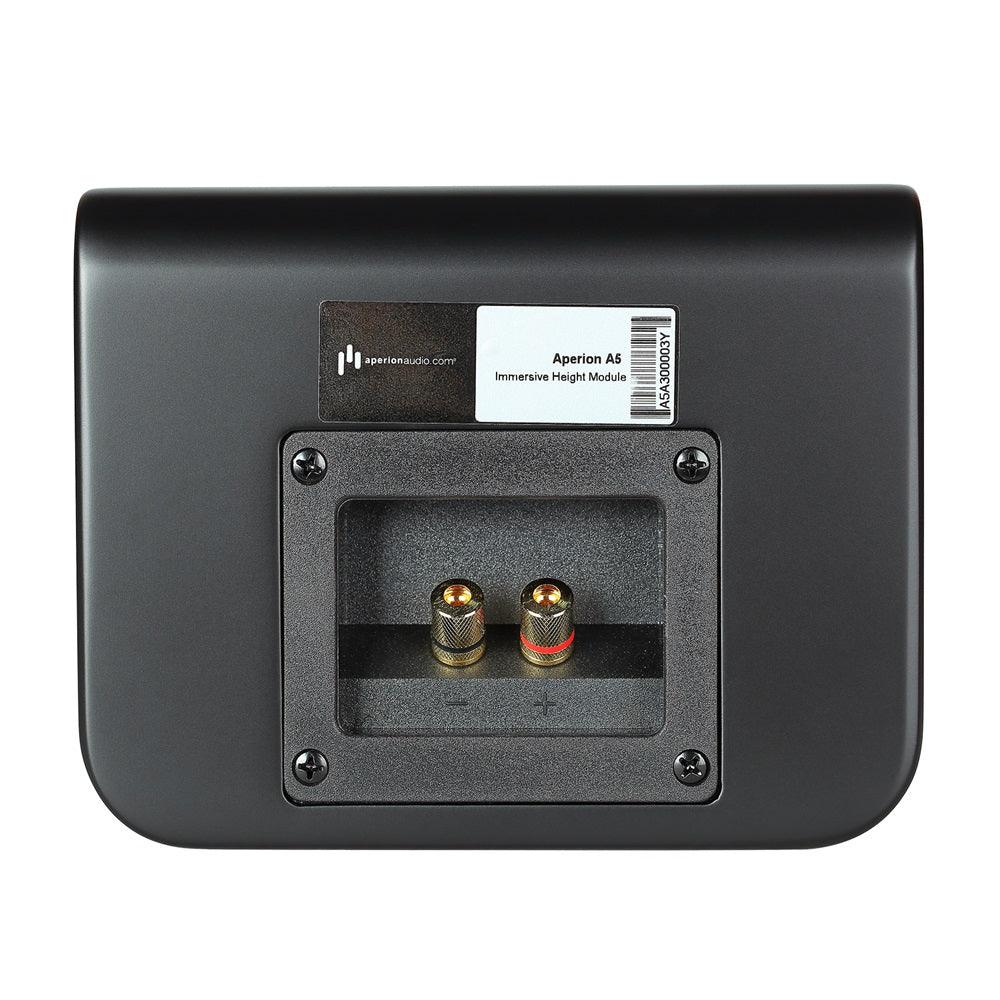

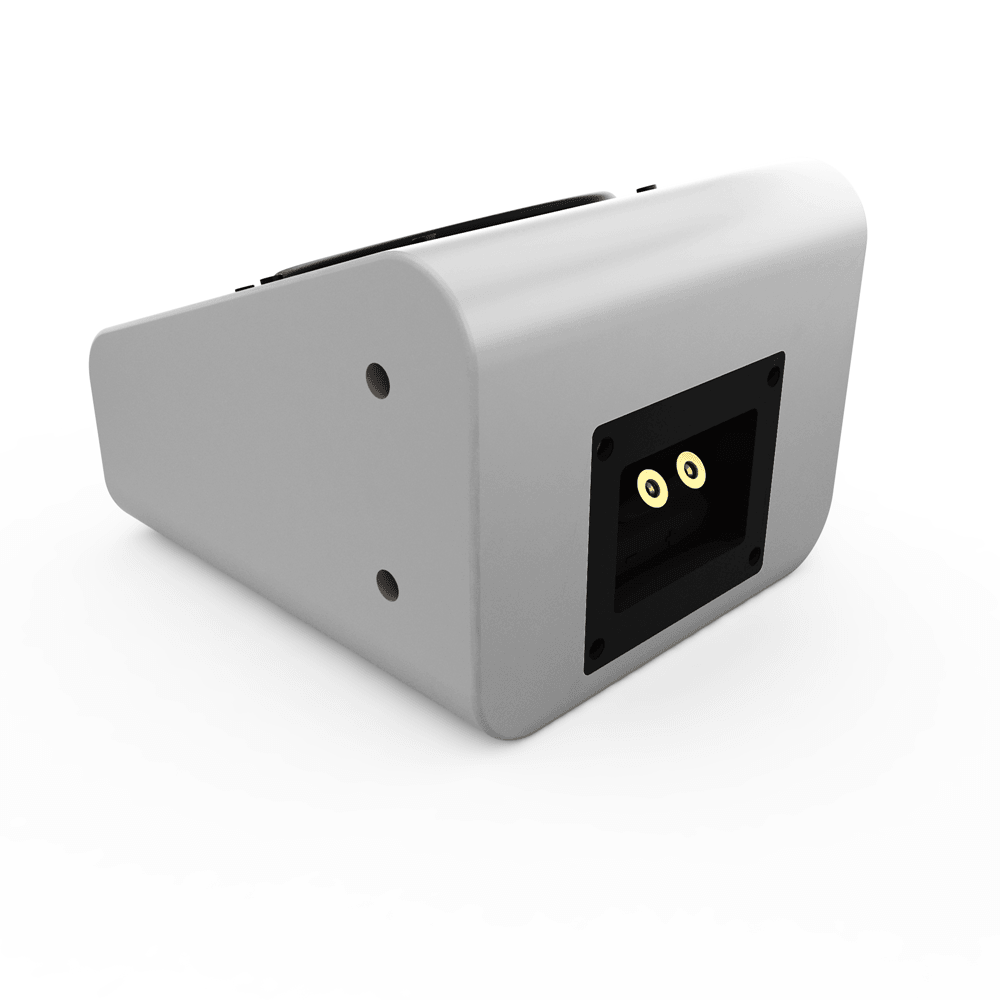

5-Way gold-plated binding posts

aperion-a5-speaker-bindingpost

The 5-way gold-plated binding posts let you connect your speakers any which way you choose: bare wire, banana plugs, spades, round pins or flat pins.

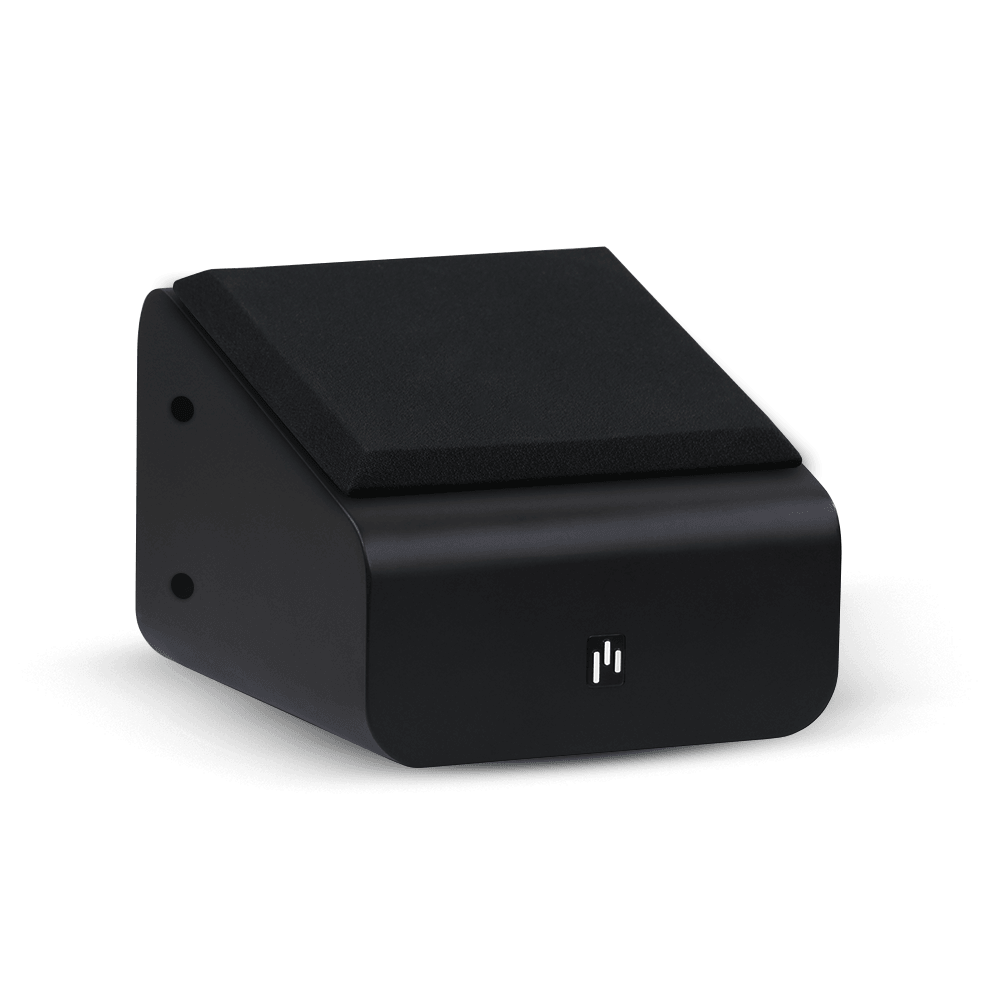

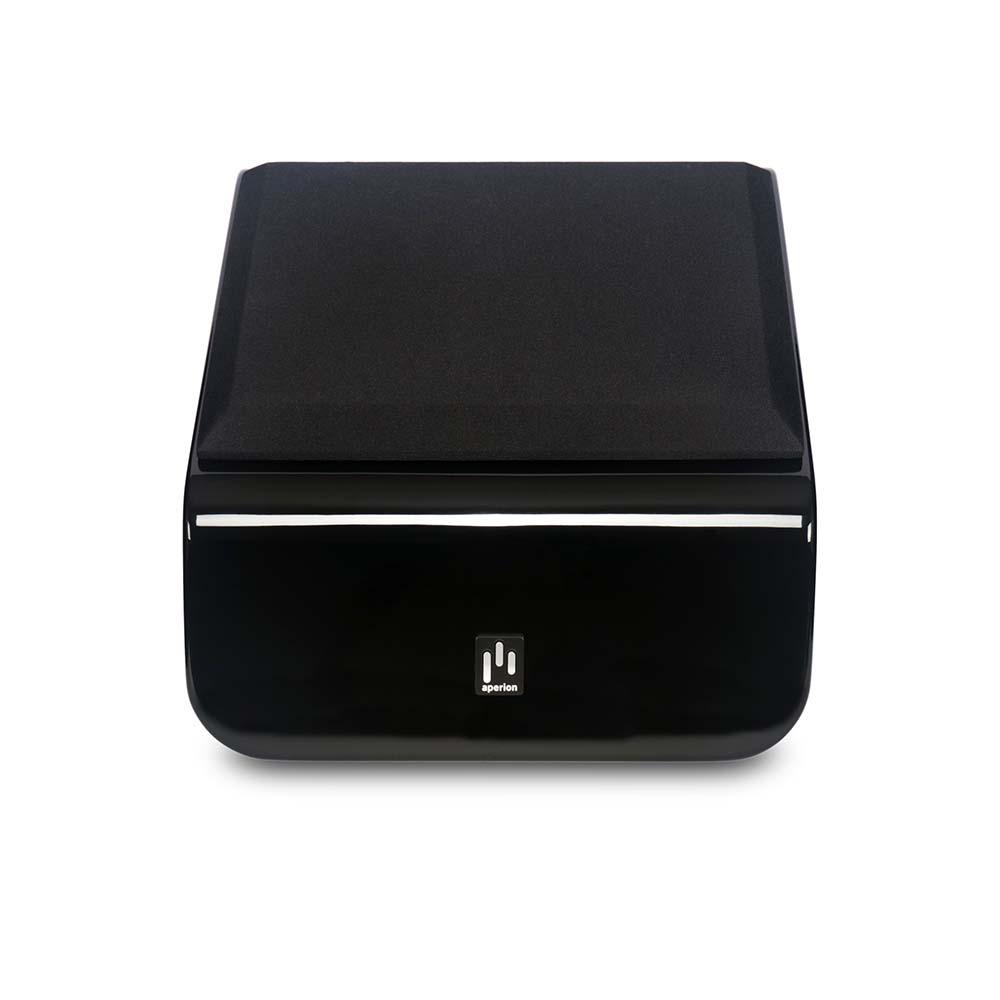

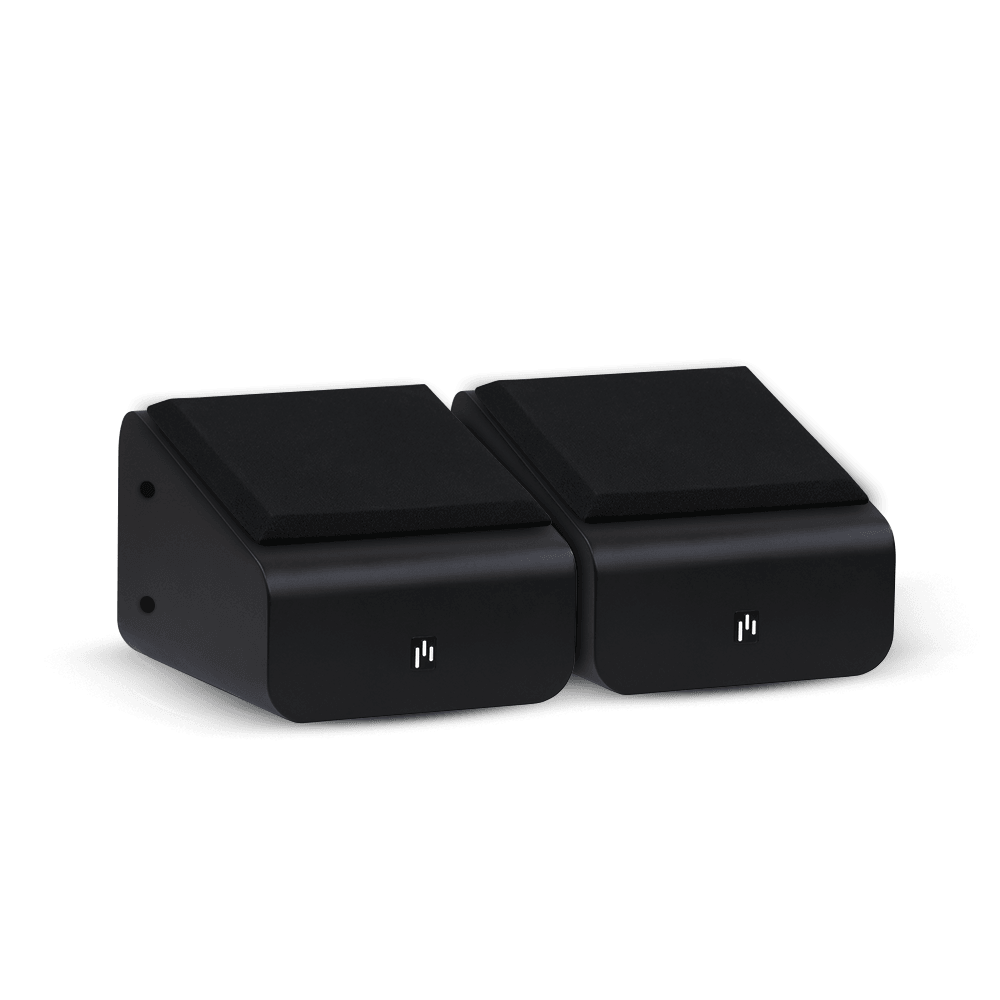

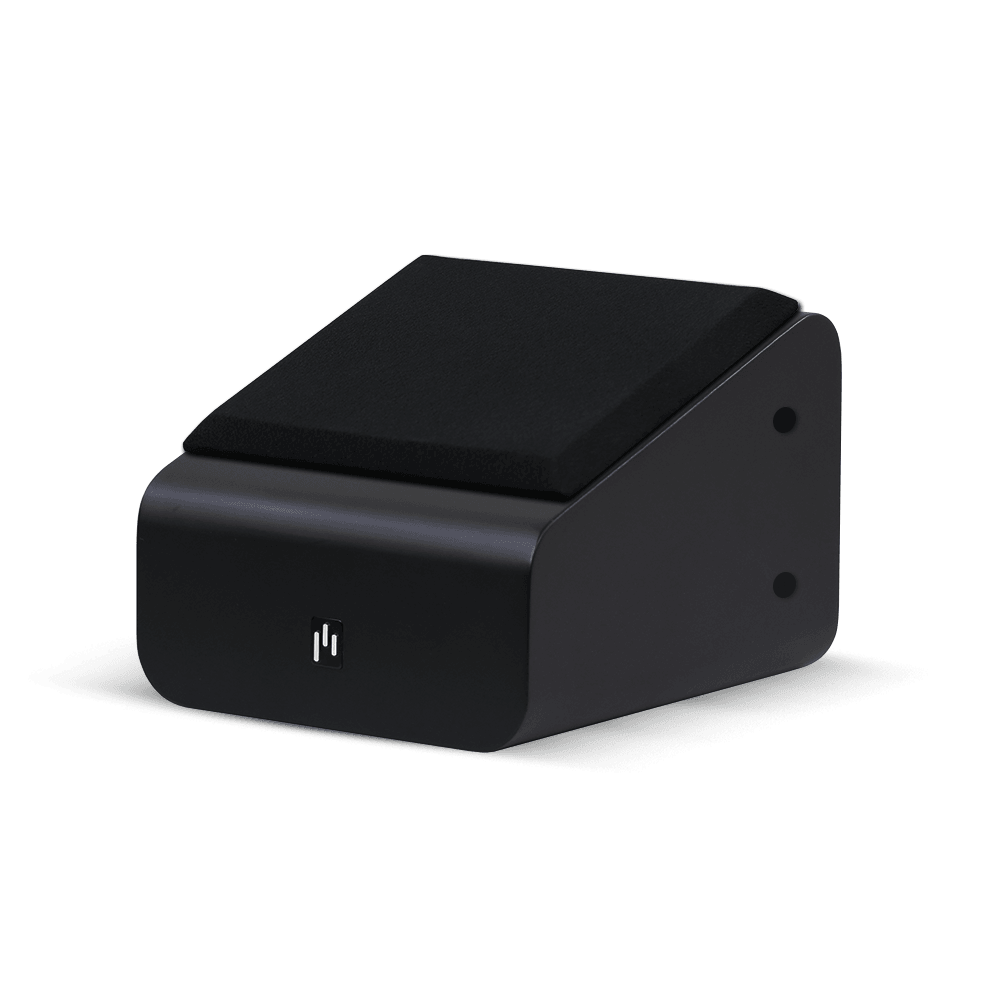

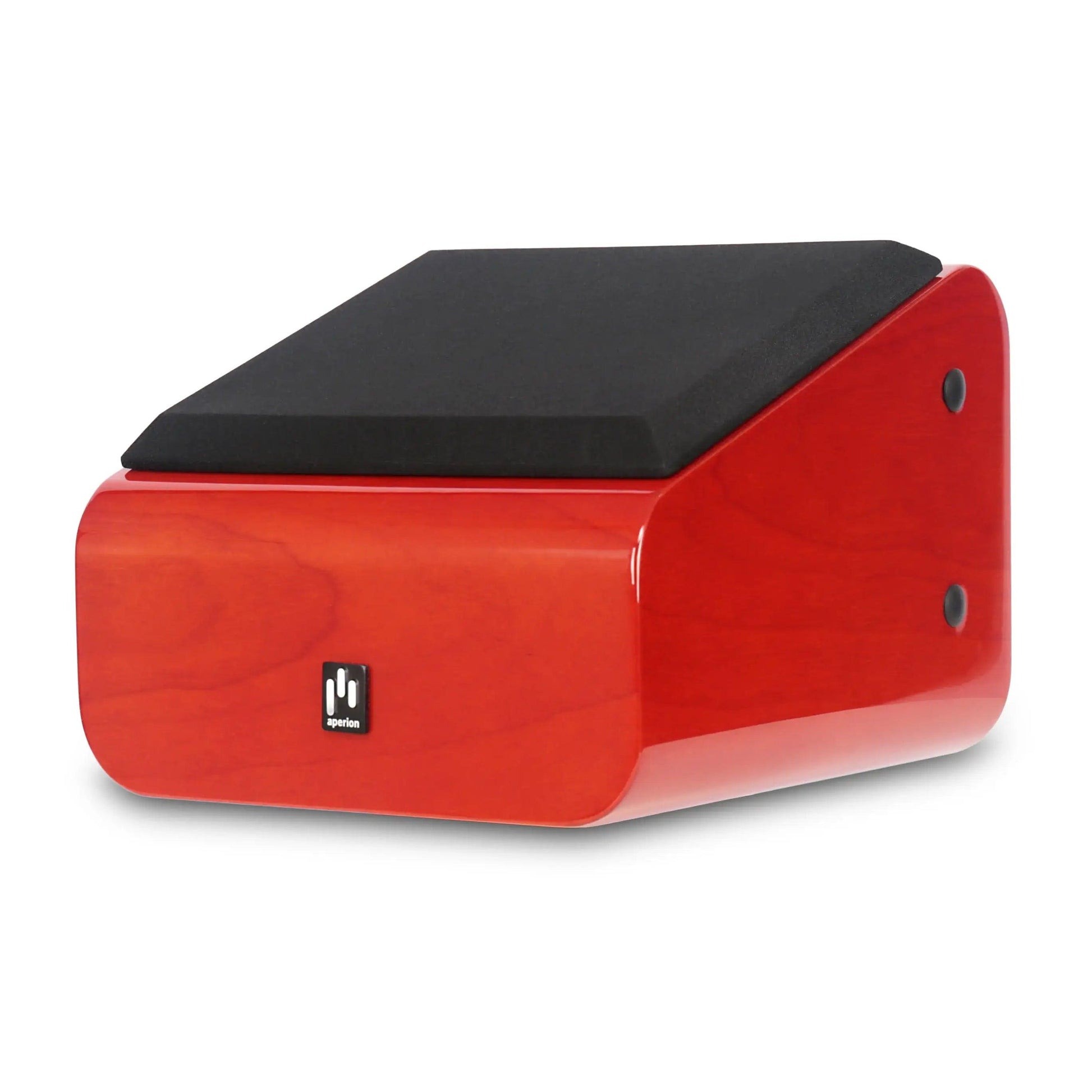

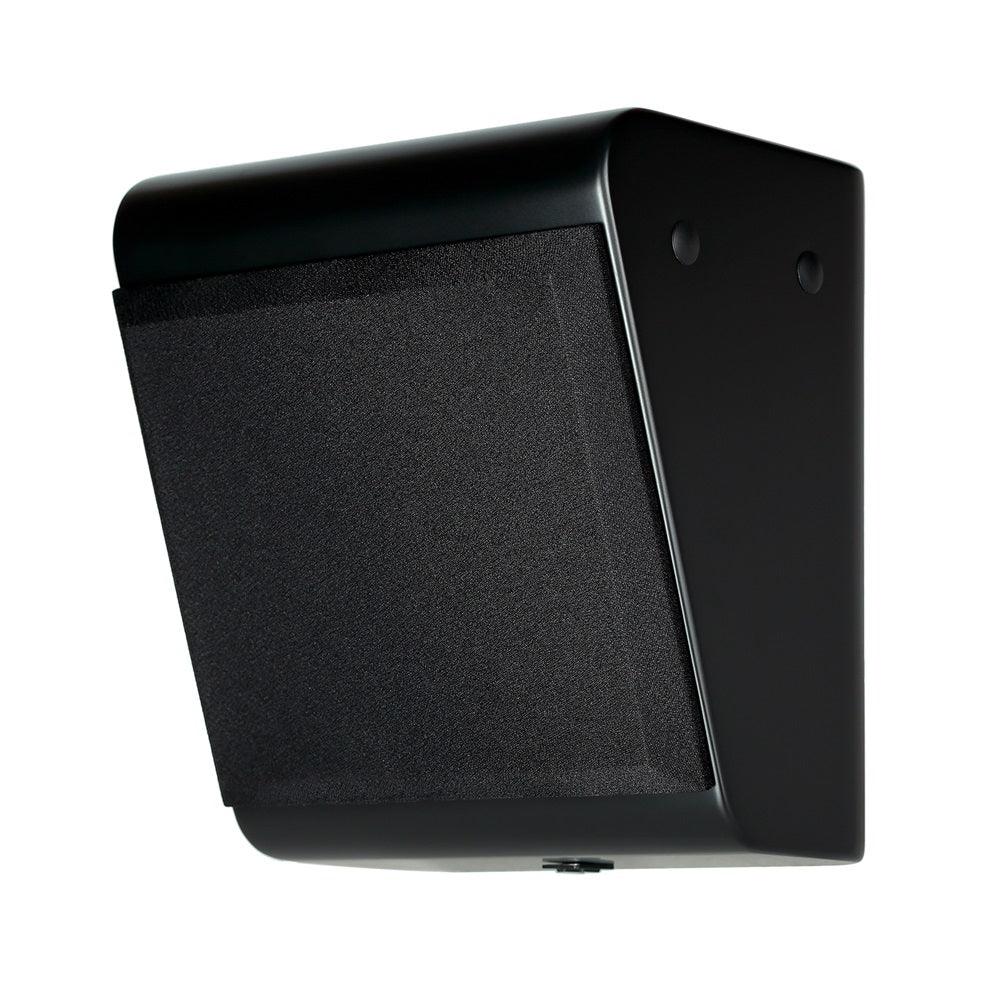

Lightweight Magnetic Grille

aperion-novus-a5-magnet-grille

To protect the speaker innards from accidents, pets, or curious fingers, the Novus line sports a lightweight magnetic grille, which can easily be removed when it’s time to show off the goods to your friends and family.



Aperionaudio-Novus-N6T-Dual-6.5"-2-Way-Floorstanding-Tower-Speaker


Multiple Mounting Options

 Aperionaudio-A5-Immersive-Height-Module-Install-Methods



Method #1

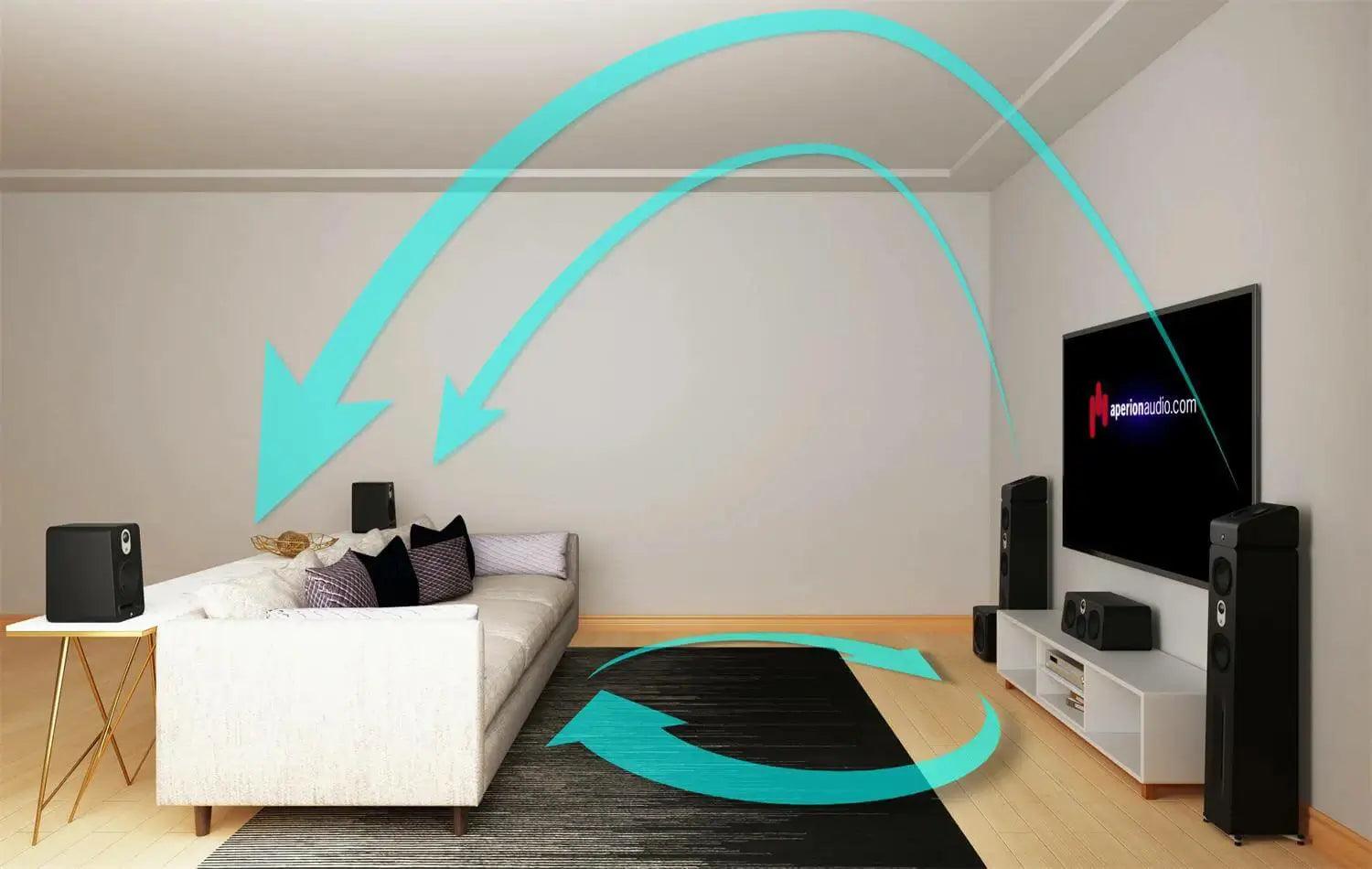

Comfortably set the APERION A5 on top of your front left and right speakers. This will allow the sound to be reflected off the ceiling and produce the illusion of overhead speakers. If using one pair, place on front speakers. For two pairs, place on top of the front and rear speakers.

Aperionaudio-A5-Immersive-Height-Module-Install-Method-1

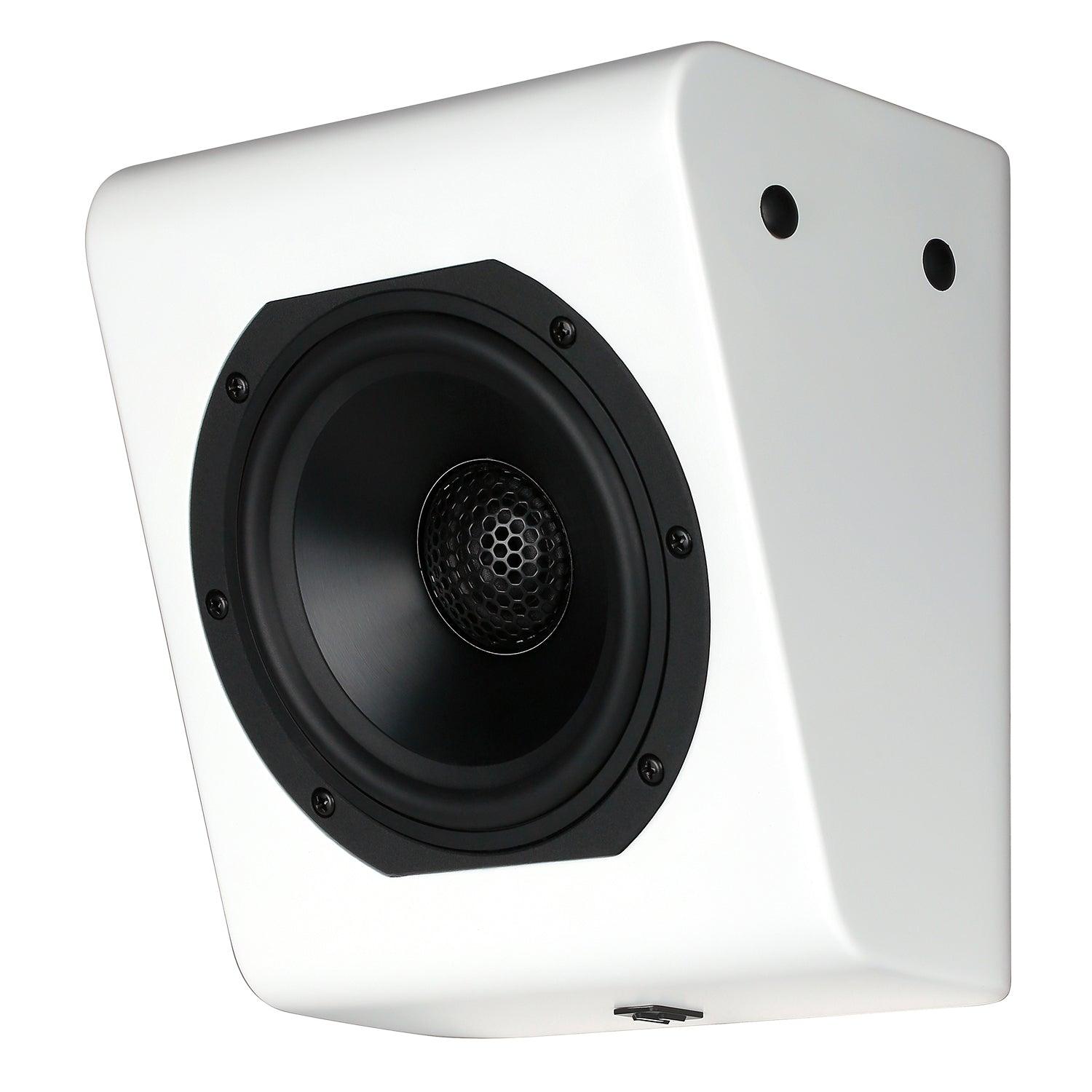

Method #2

If your ceiling does not allow for adequate reflection, mount the APERION A5 high on the front wall. Due to the angle of the speaker, this will also produce a very effective rendering of the overhead channels. Two pairs can be mounted in this fashion on the front and rear walls. The same can be done on the side walls if the front/rear is not suitable.

Aperionaudio-A5-Immersive-Height-Module-Install-Method-2



Method #3

The APERION A5 can also be direct mounted on the ceiling. This avoids having to cut holes in the ceiling, yet provides the ideal positioning of the speakers physically located overhead. Multiple pairs can be used in this configuration.

Aperionaudio-A5-Immersive-Height-Module-Install-Method-3



Key Features

  • Versatile Placement Options
  • Add-On top firing speakers to make any flat top speaker Dolby Atmos and DTS:X compatible.
  • Coax Driver Design
  • Sloping Baffle
  • RF Molded Curved Cabinets to reduce internal standing waves.
  • APERION® Customized Internal Wiring
  • APERION® Customized Crossover Network
  • 5-Way Gold-Plated Binding Posts
  • 12 Gauge Binding Post Straps
  • Lightweight Magnetic Grille
  • Multiple Mounting Options & Easy Connection
  • Wall and Ceiling Mounting



Package Contents:

  • A5 Speakers x Two (2) Pcs
  • Manual x One (1) Pcs
  • Polish Cloth x One (1) Pcs
  • Gloves x Two (2) Pcs
  • Rubber Bumpers x Eight (8) Pcs



Download:

Download A5 Manual


A5 CAD Drawing

A5 CAD Drawing
